Theft Deterrent: Notes

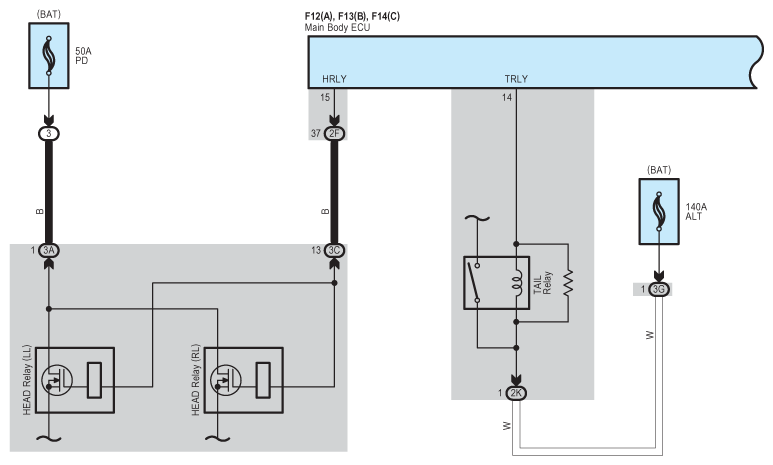

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 9)

G07573817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

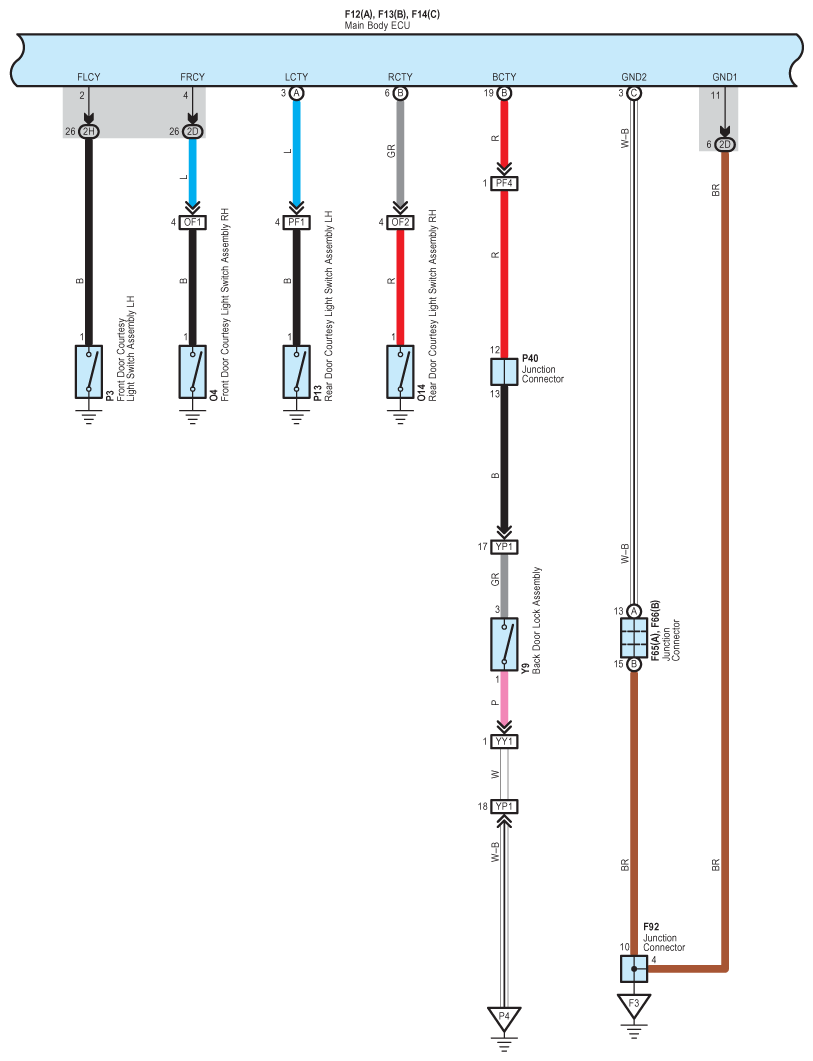

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 9)

G07573818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

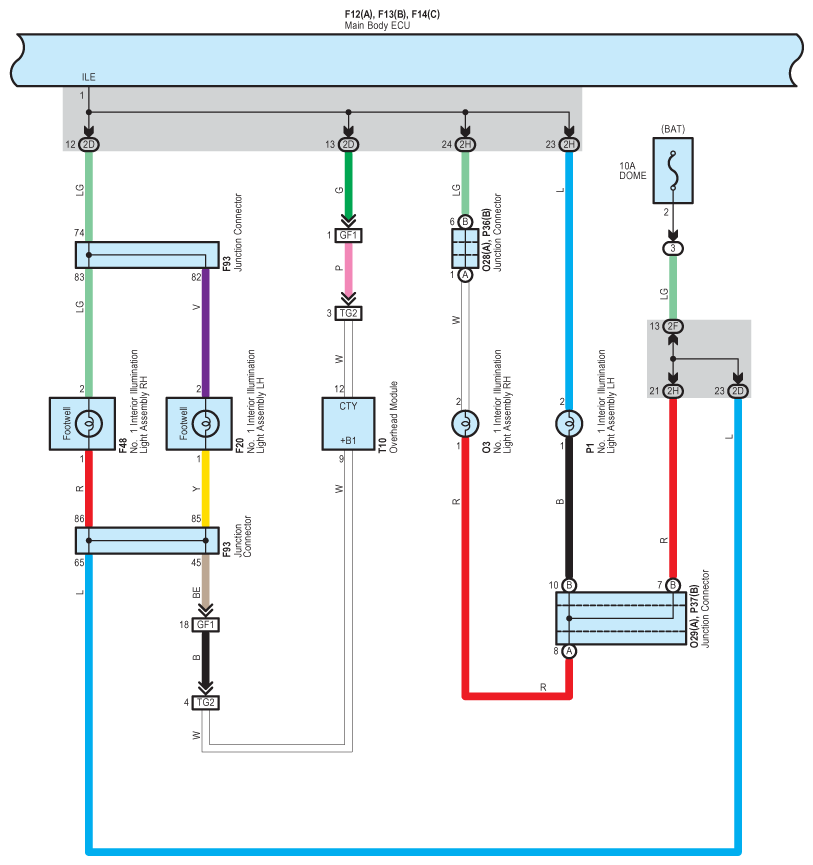

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 9)

G07573819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

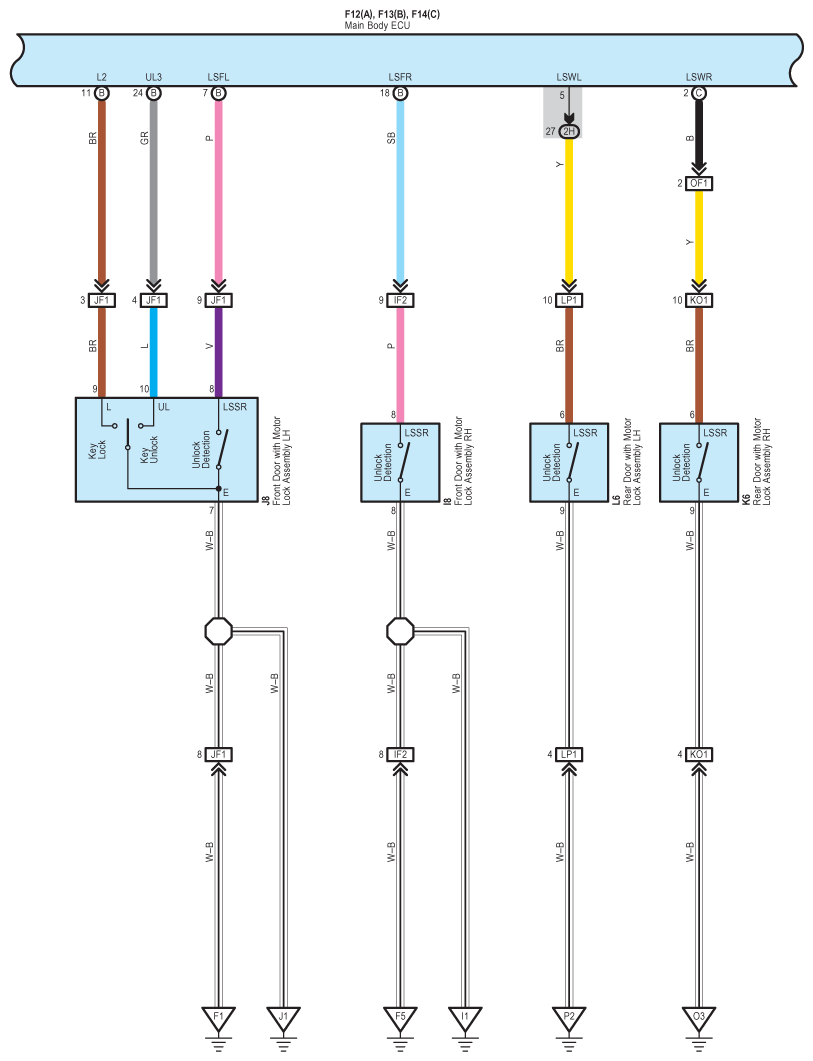

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 9)

G07573820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

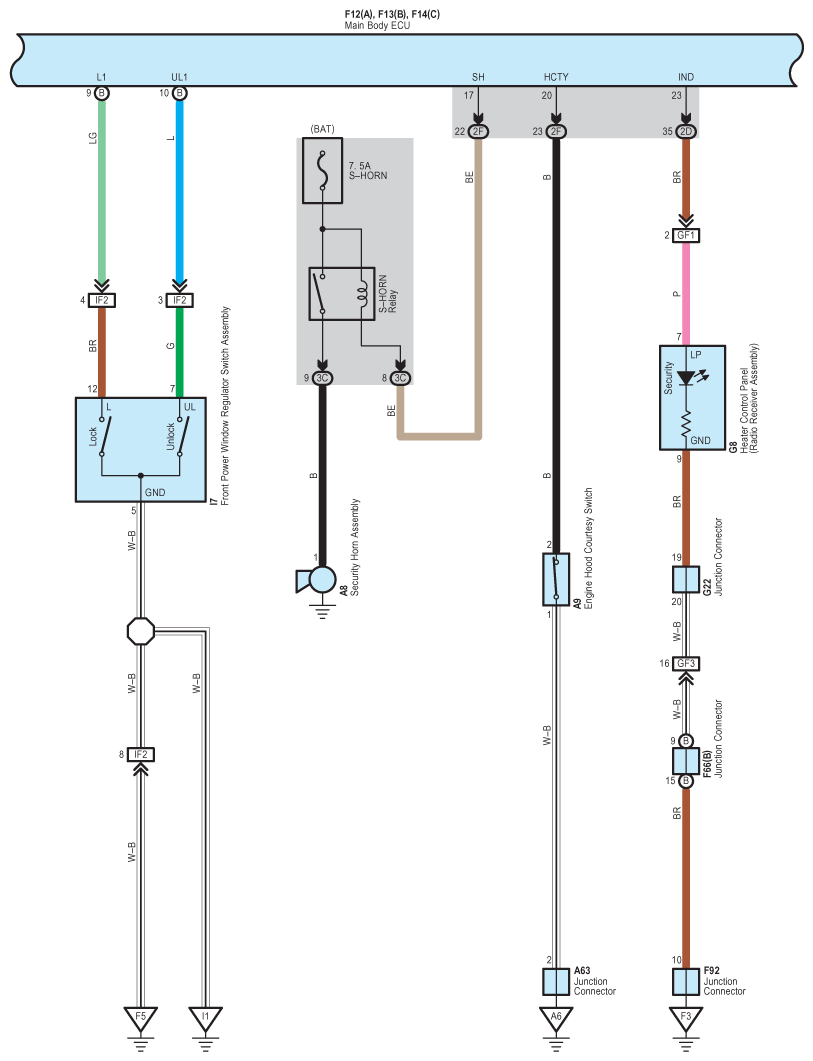

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 9)

G07573821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

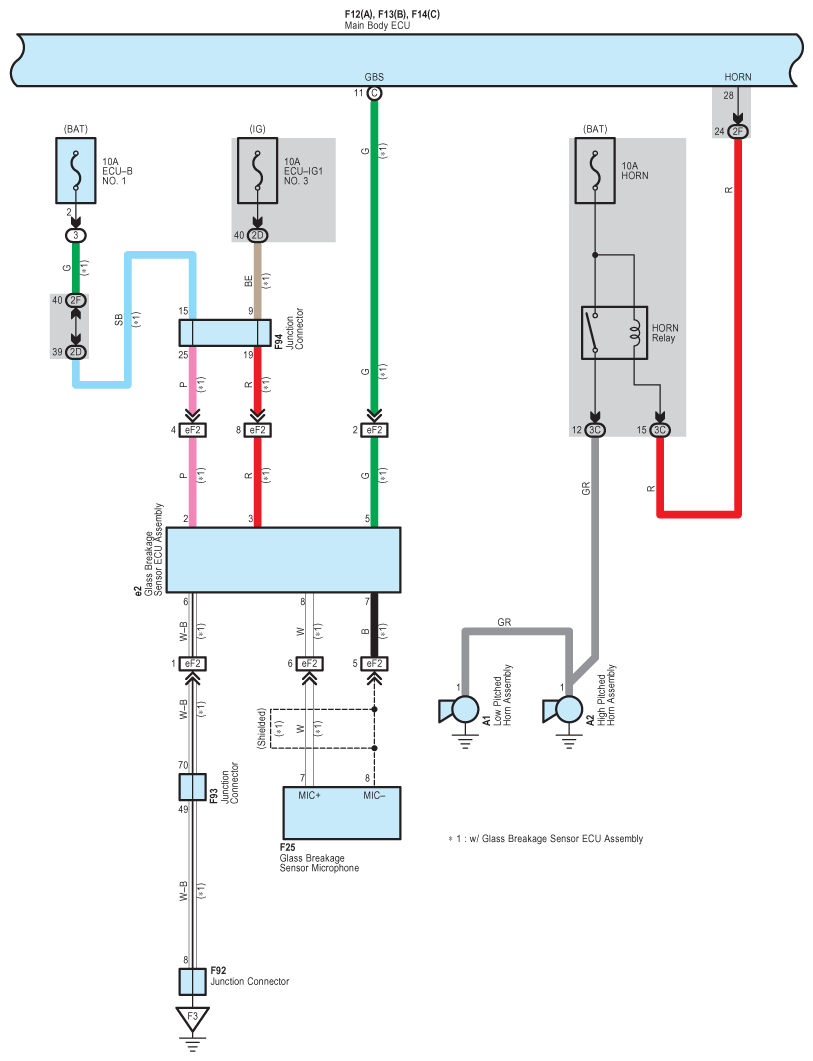

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 9)

G07573822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

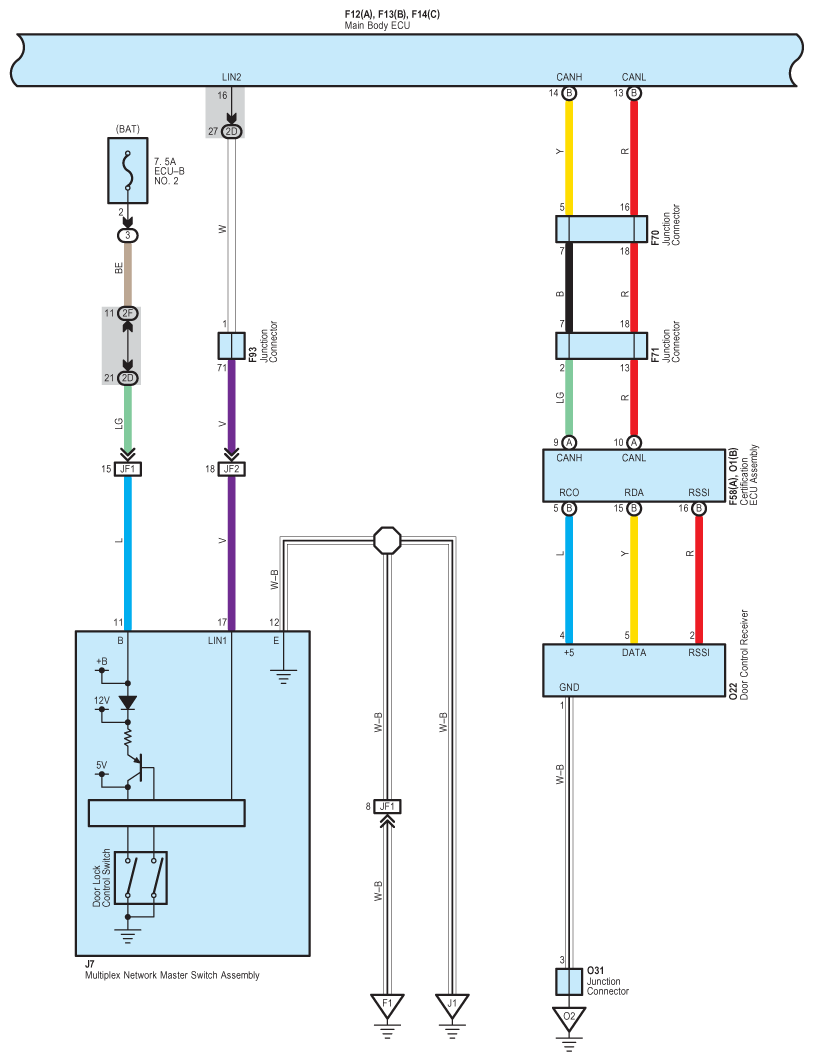

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 9)

G07573823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

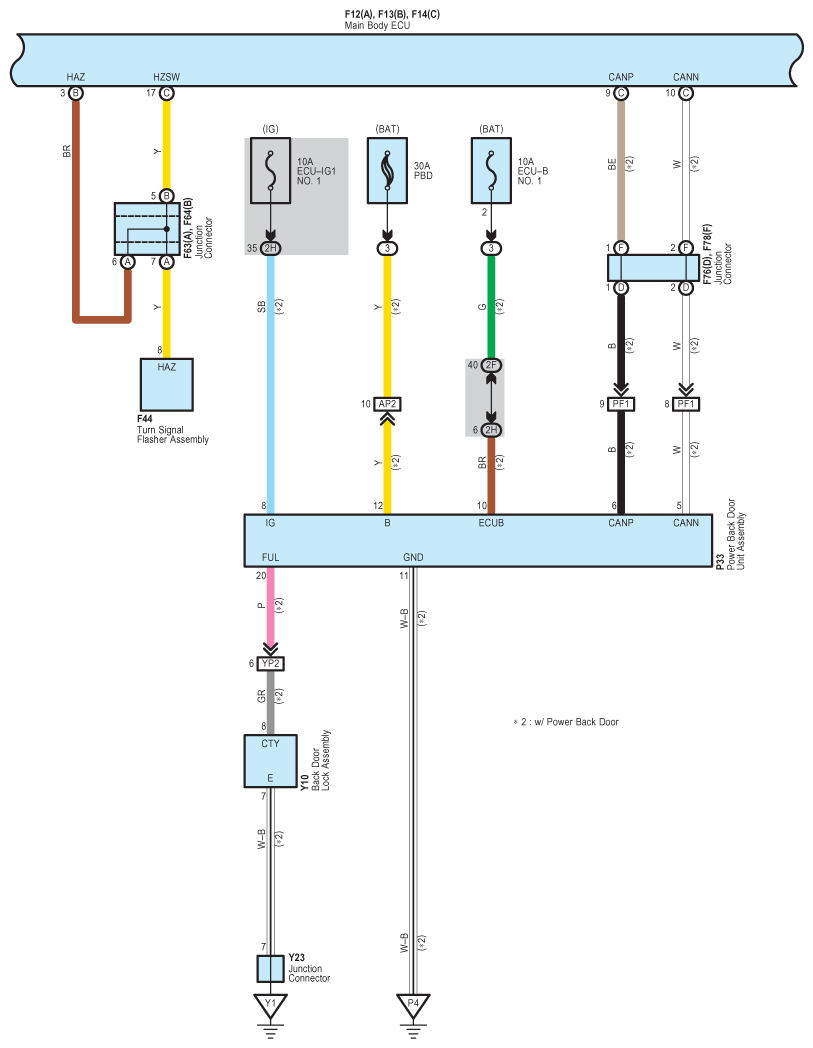

Fig 8: Theft Deterrent - Circuit Diagram (8 Of 9)

G07573824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

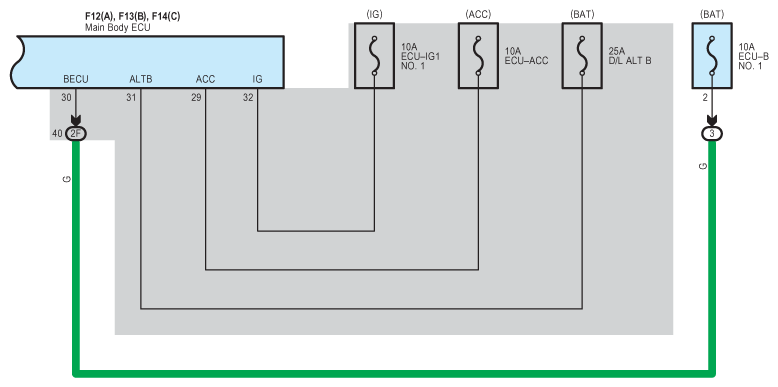

Fig 9: Theft Deterrent - Circuit Diagram (9 Of 9)

G07573825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
