Installation

DOOR LOCK: TRANSMITTER BATTERY: INSTALLATION

1. INSTALL TRANSMITTER BATTERY

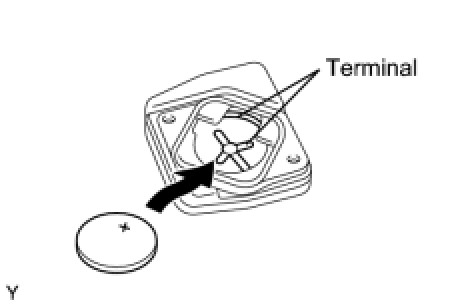

(a) Install the battery (lithium battery) with the positive (+) side up, as shown in the illustration.





NOTICE:
* Be sure that the positive side and the negative side of the transmitter battery are matched up correctly.
* Be careful not to bend the transmitter battery electrode during insertion.
* Keep the transmitter case interior free of dust and oil.
(b) Using a screwdriver, install the cover with the 2 screws.

NOTICE:
If the screws are loose, it may cause faulty contact between the battery (lithium battery) and the terminals.

2. INSTALL DOOR CONTROL TRANSMITTER ASSEMBLY

3. INSTALL TRANSMITTER HOUSING COVER
