Fuse Block

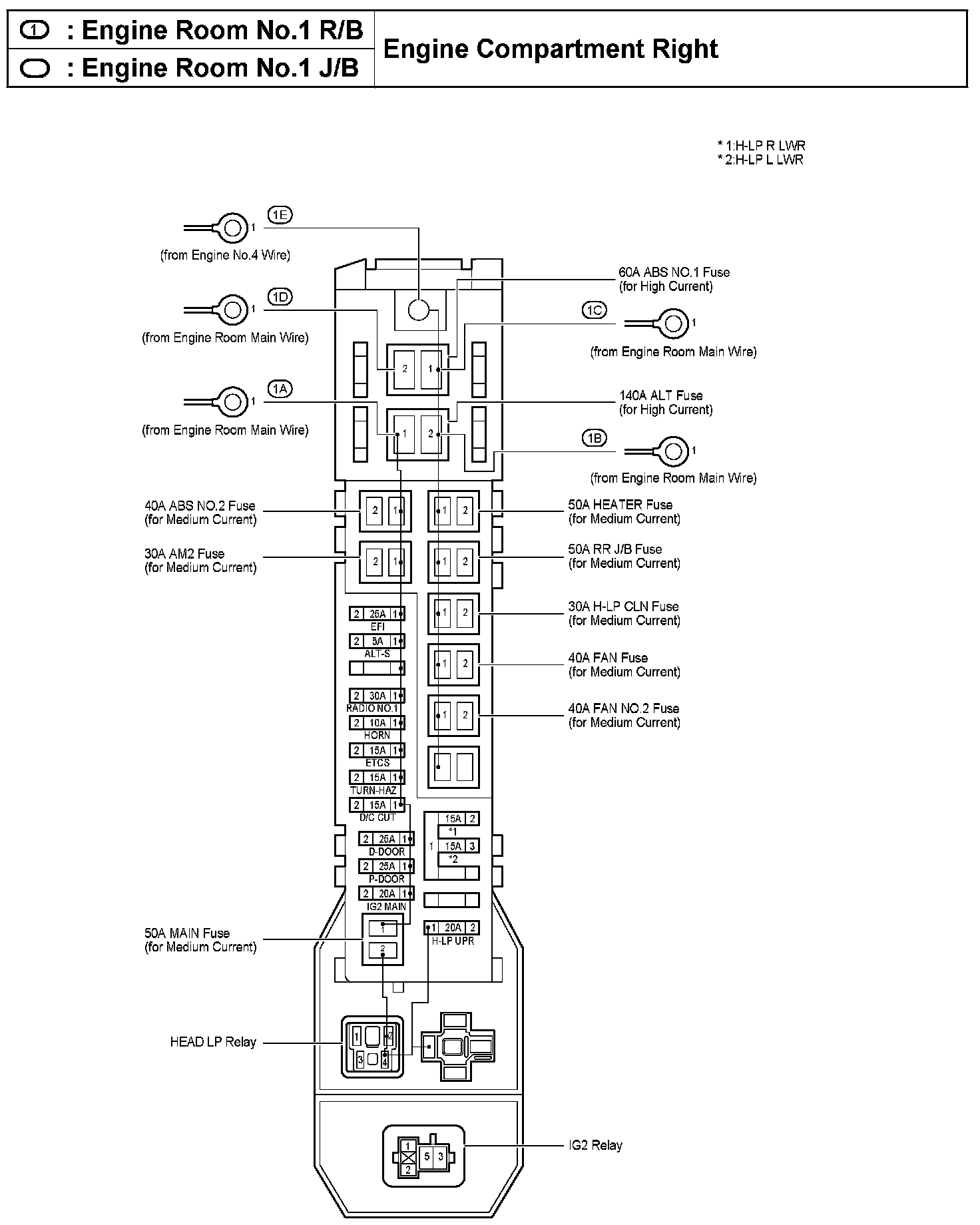

Engine Room No.1 R/B, J/B - Engine Compartment Right:

Driver Side J/B - Right Kick Panel:

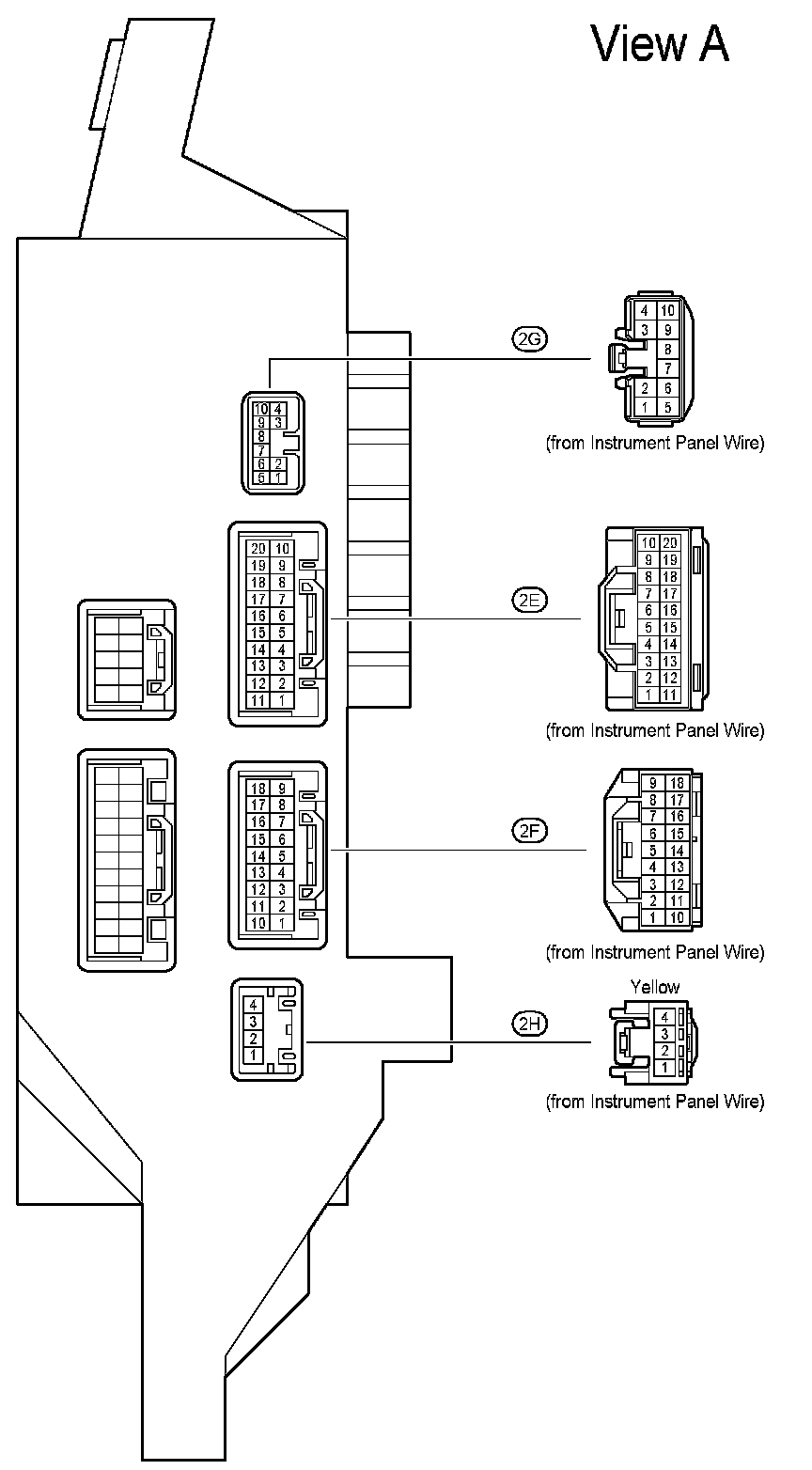

Driver Side J/B - Right Kick Panel - View A:

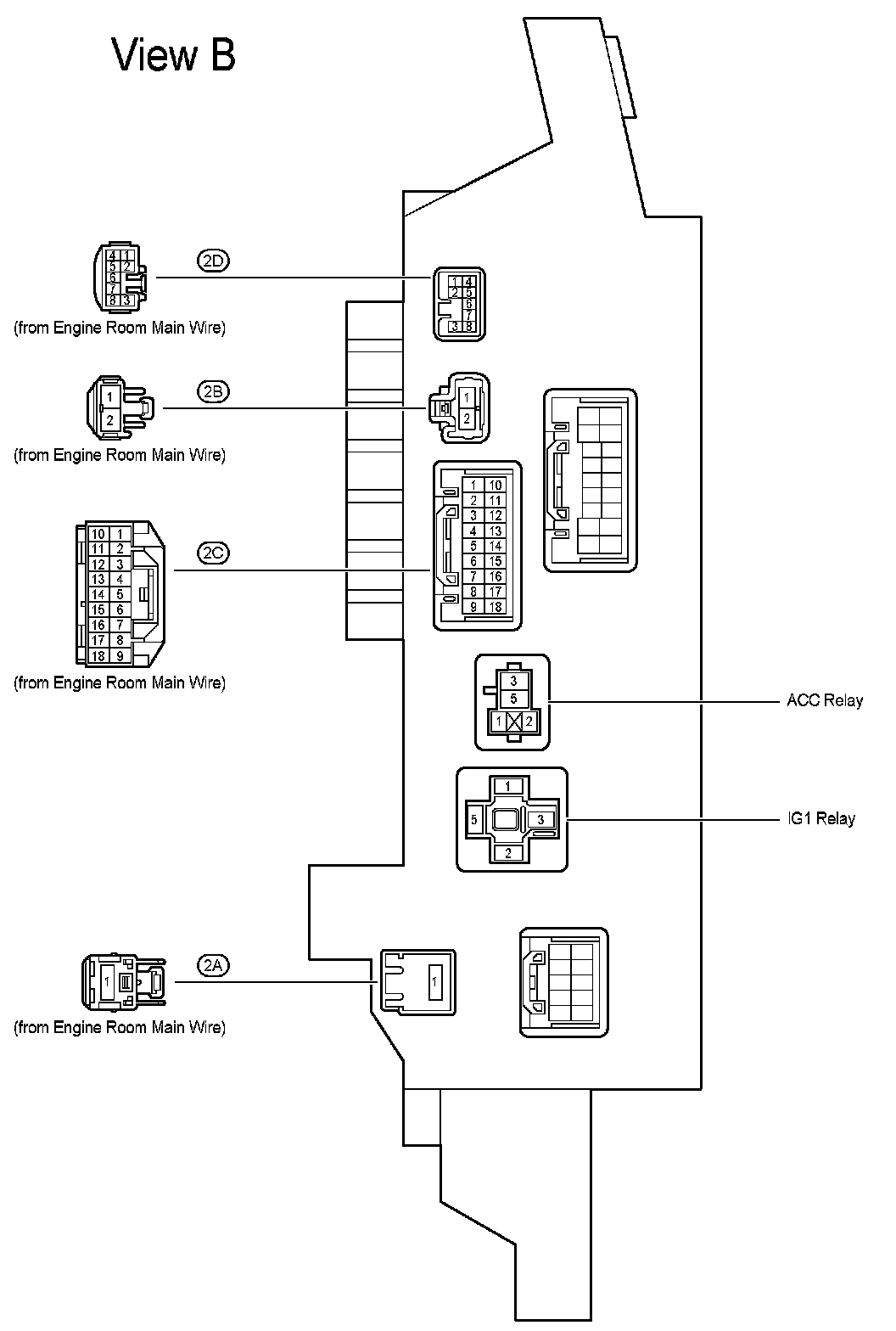

Driver Side J/B - Right Kick Panel - View B:

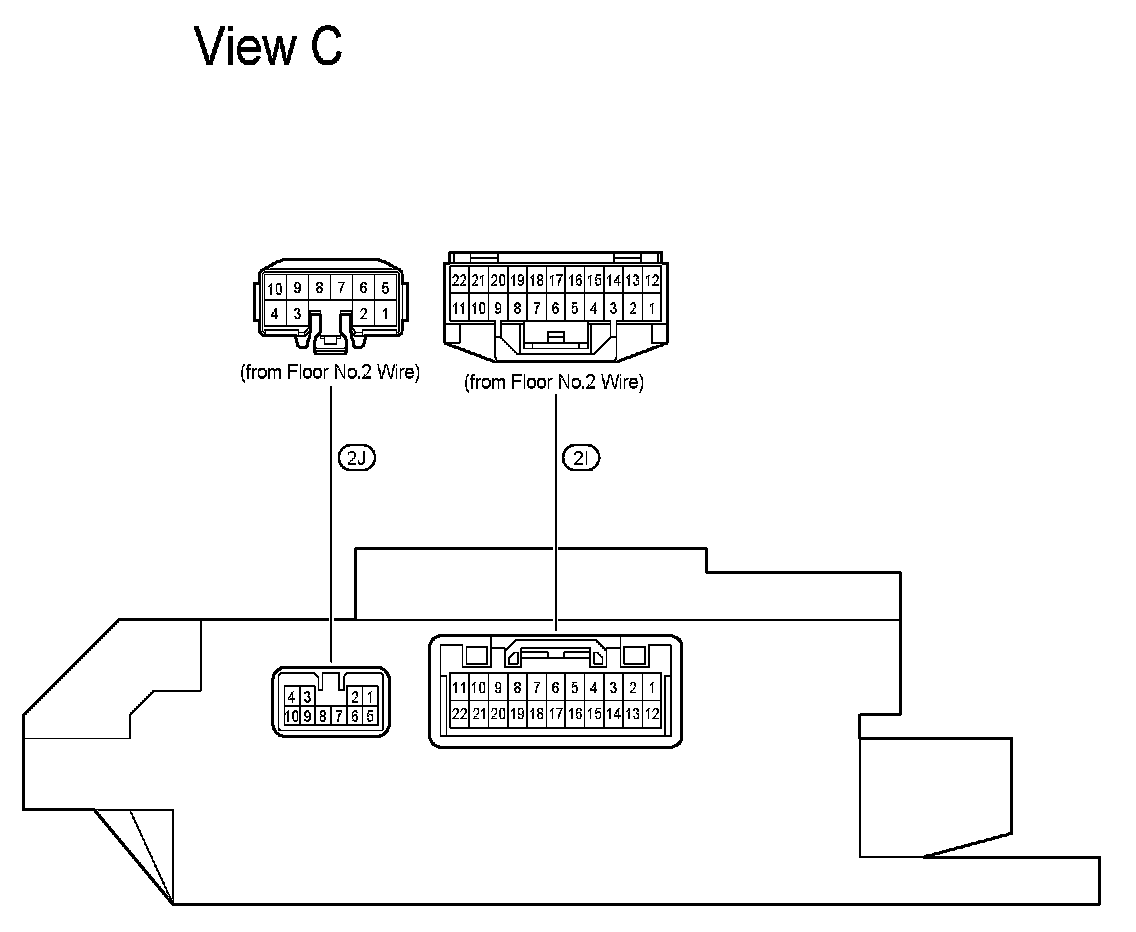

Driver Side J/B - Right Kick Panel - View C:

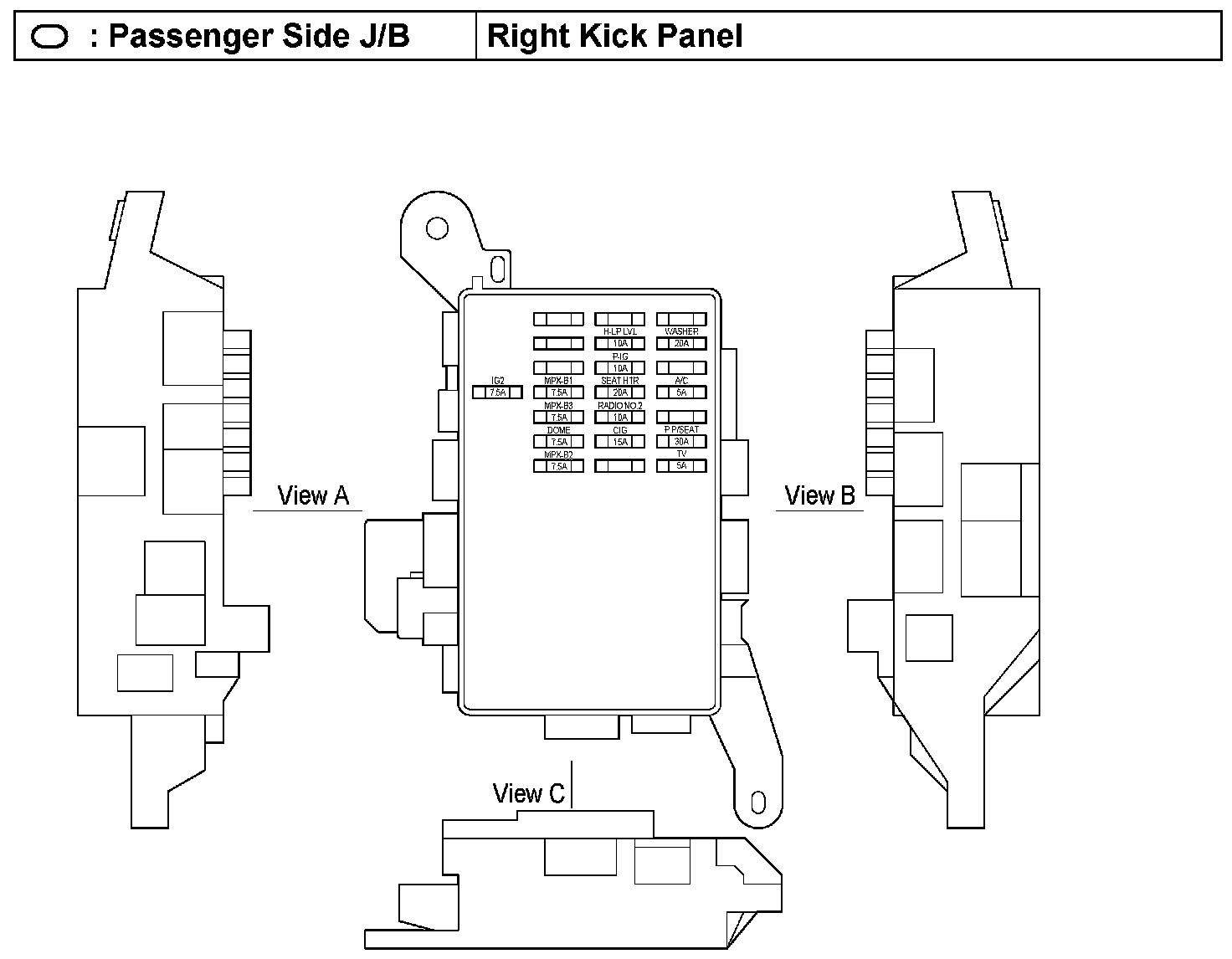

Passenger Side J/B - Right Kick Panel:

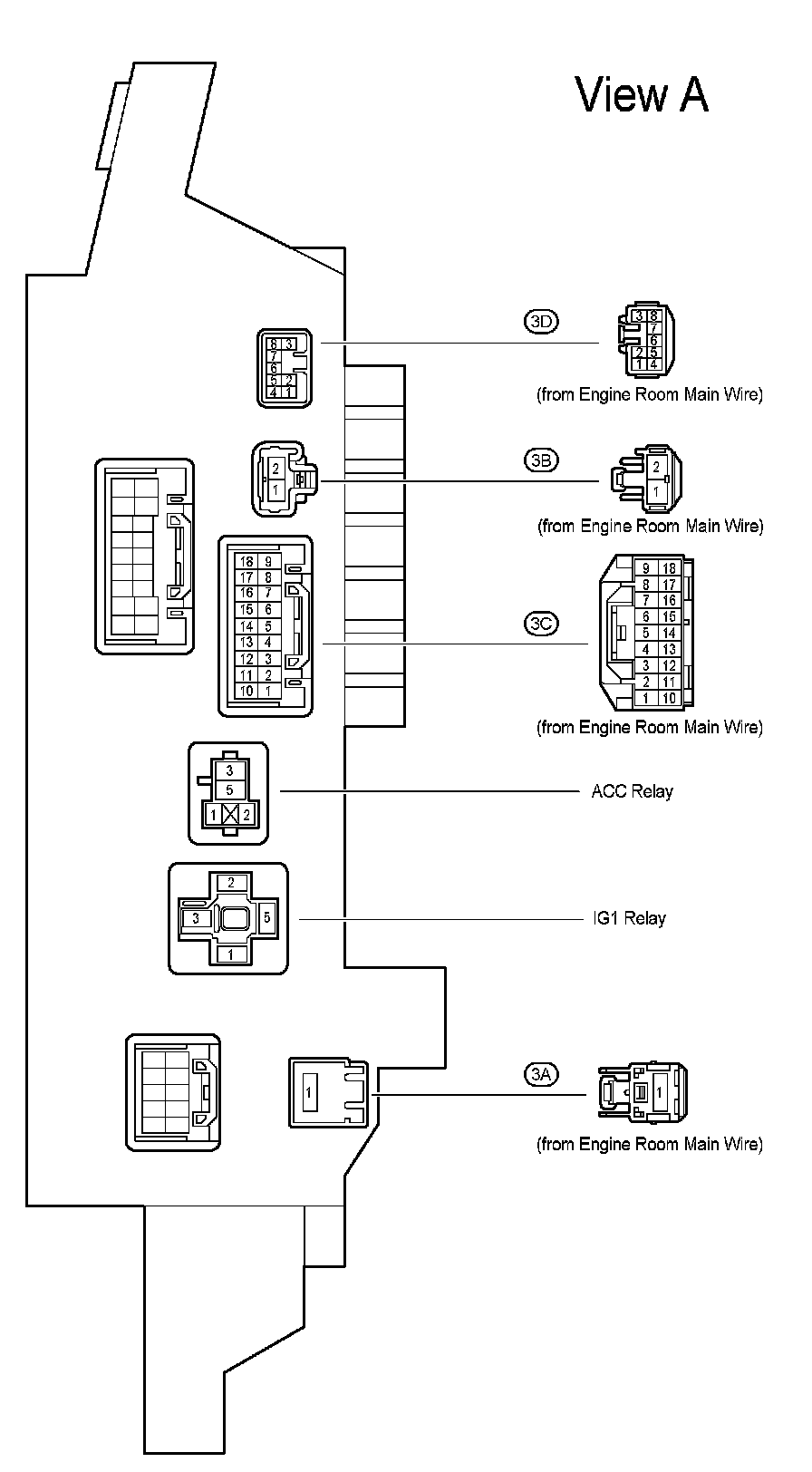

Passenger Side J/B - Right Kick Panel - View A:

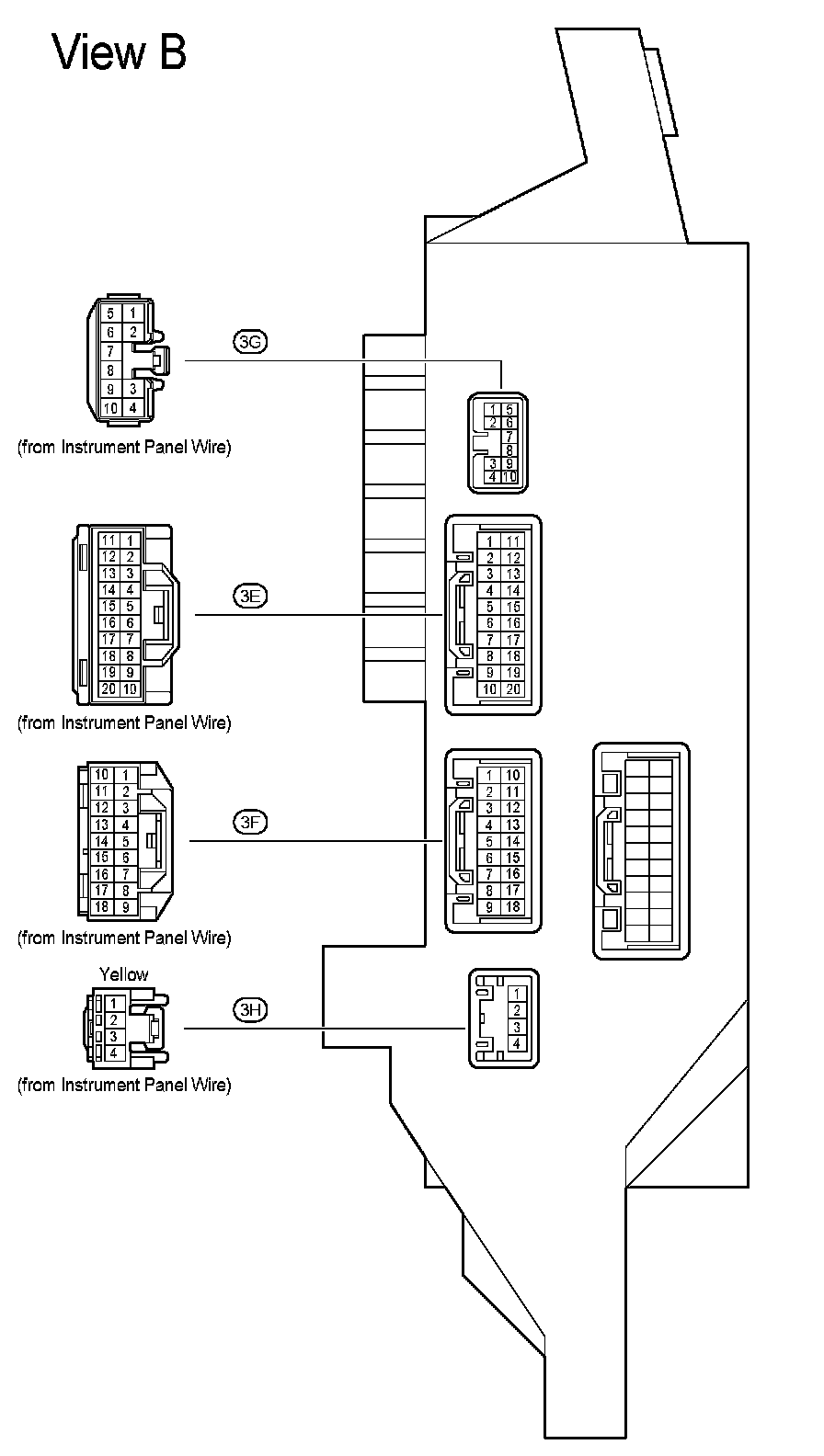

Passenger Side J/B - Right Kick Panel - View B:

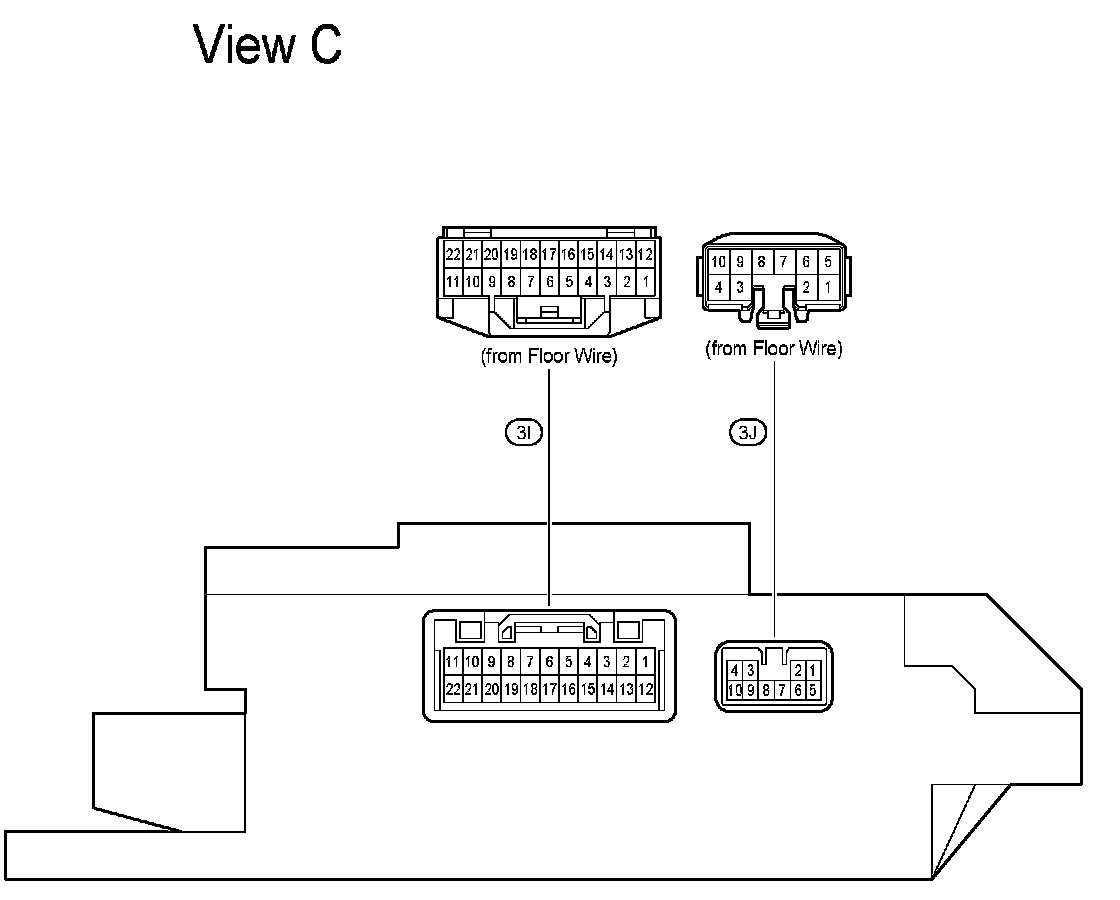

Passenger Side J/B - Right Kick Panel - View C:

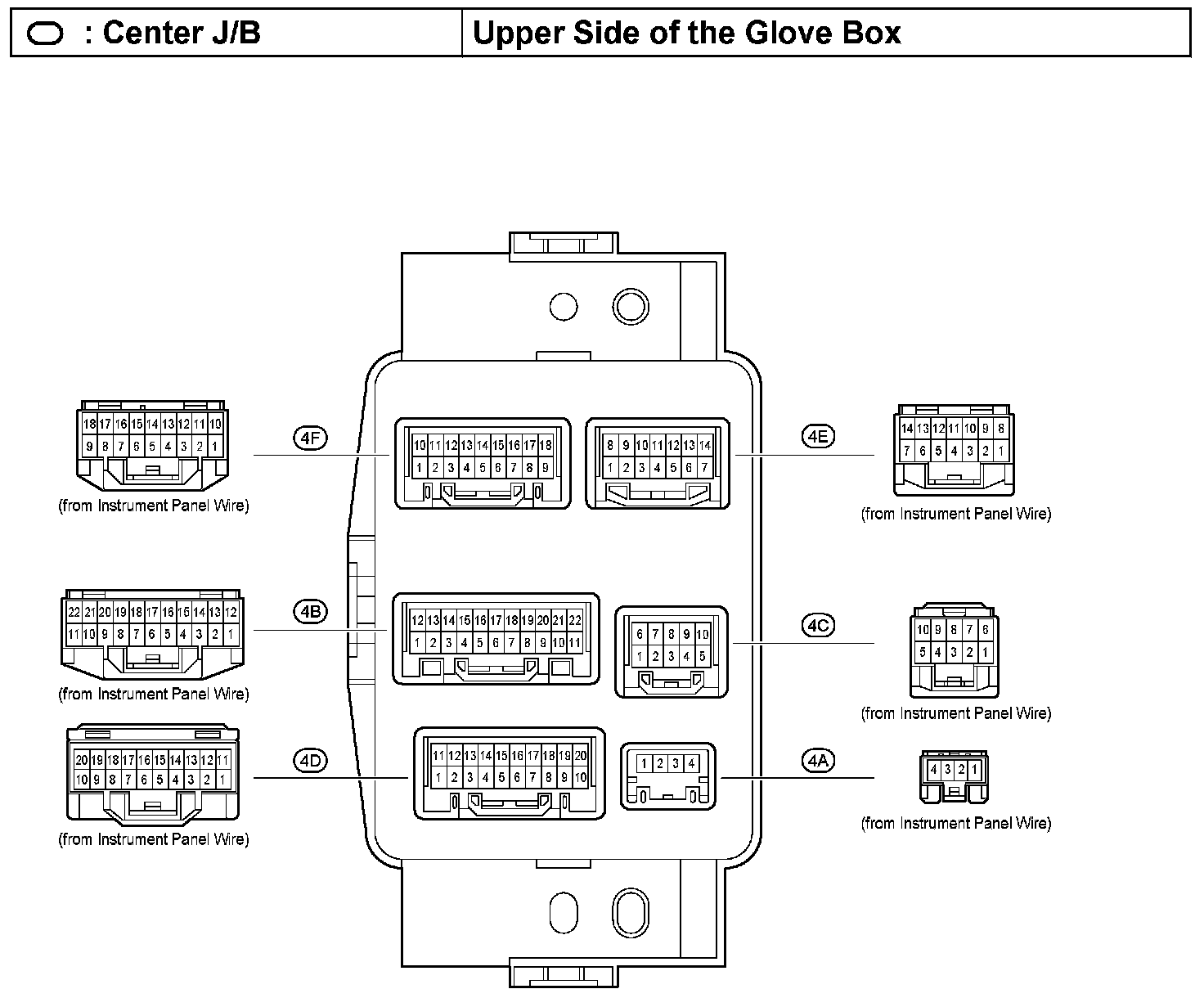

Center J/B - Upper Side of the Glove Box:

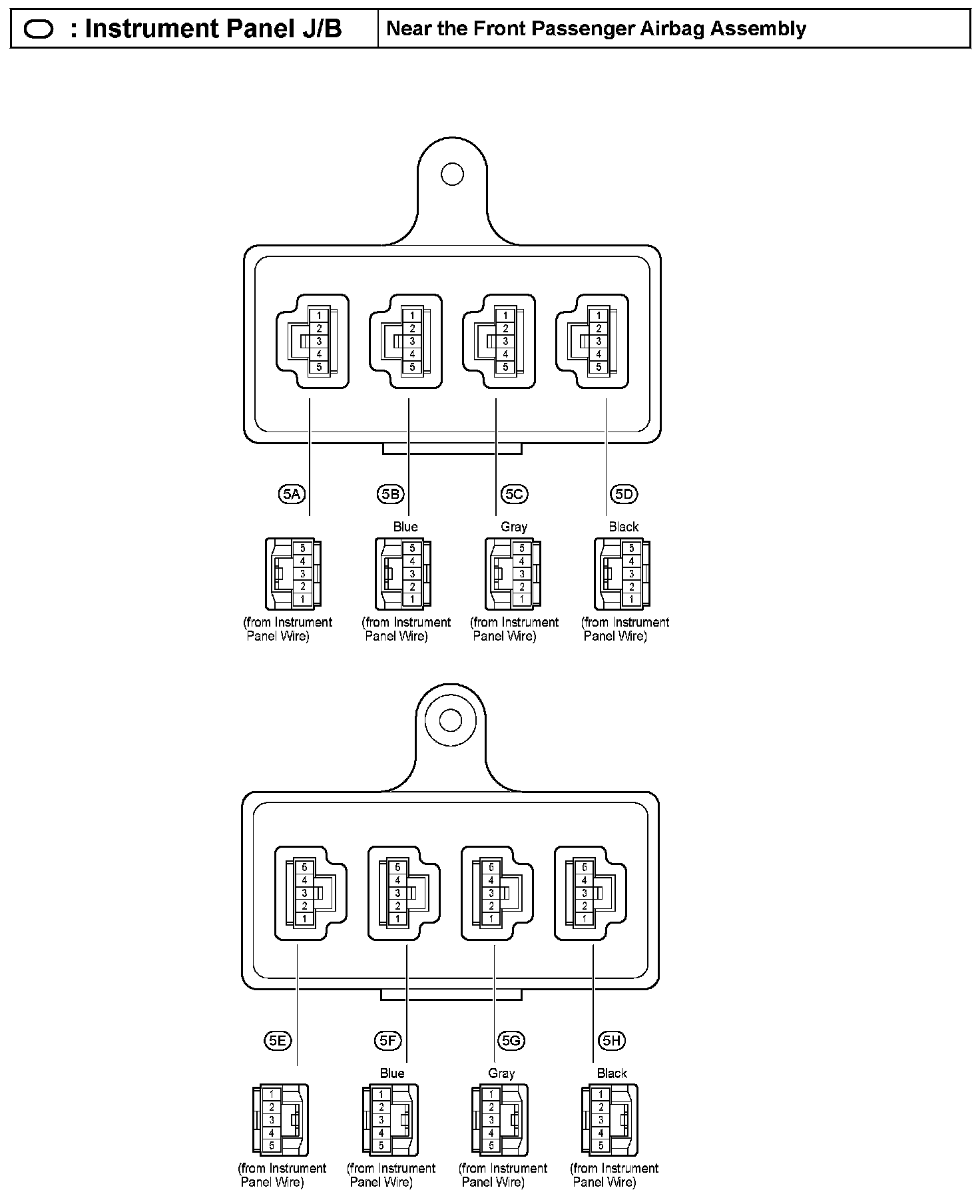

Instrument Panel J/B - Near The Front Passenger Airbag Assembly:

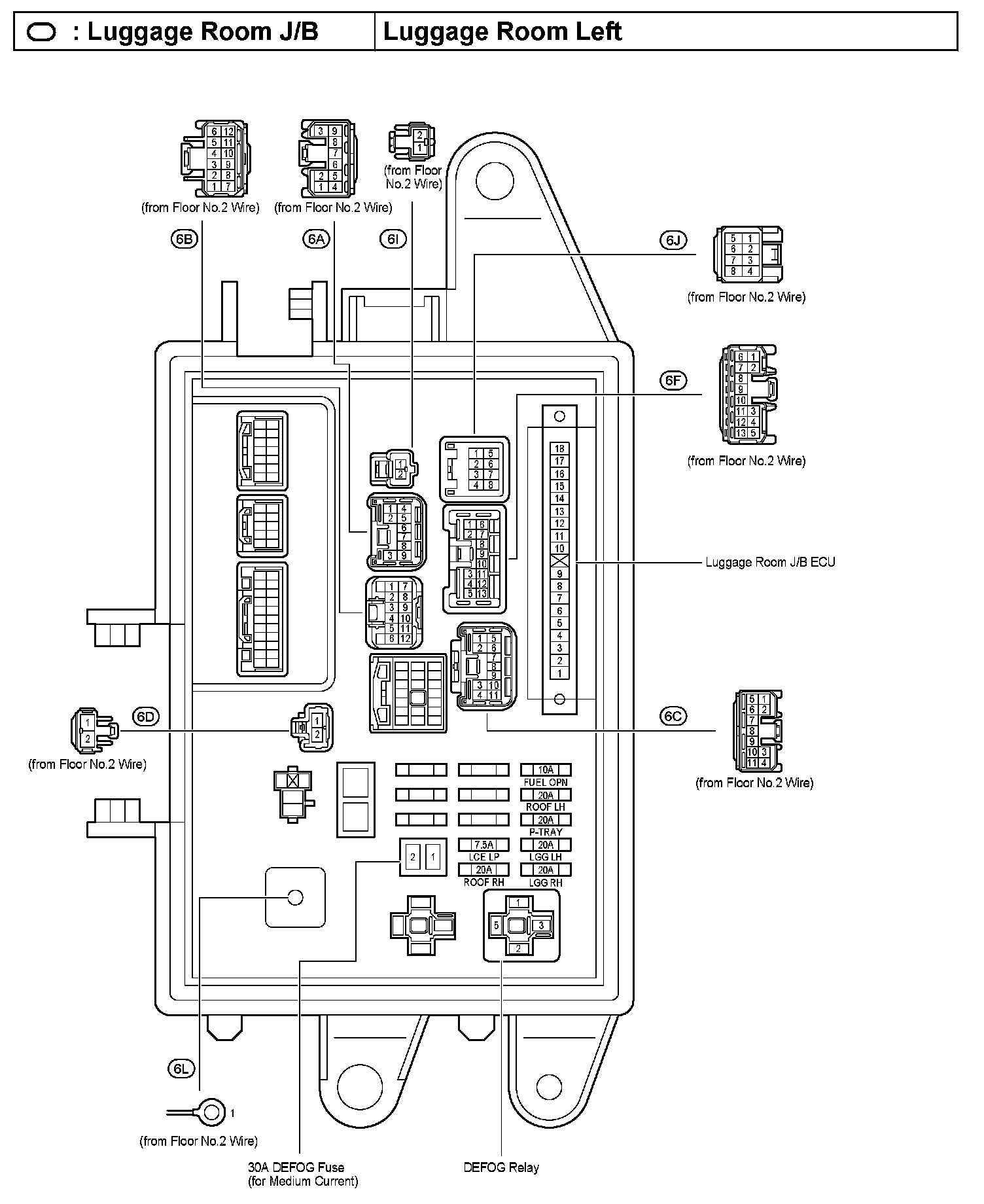

Luggage Room J/B - Luggage Room Left:
