Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> System Diagram >> Display and Navigation Module Display
April 5, 2026: LEMON Manuals is launched! Read the announcement.

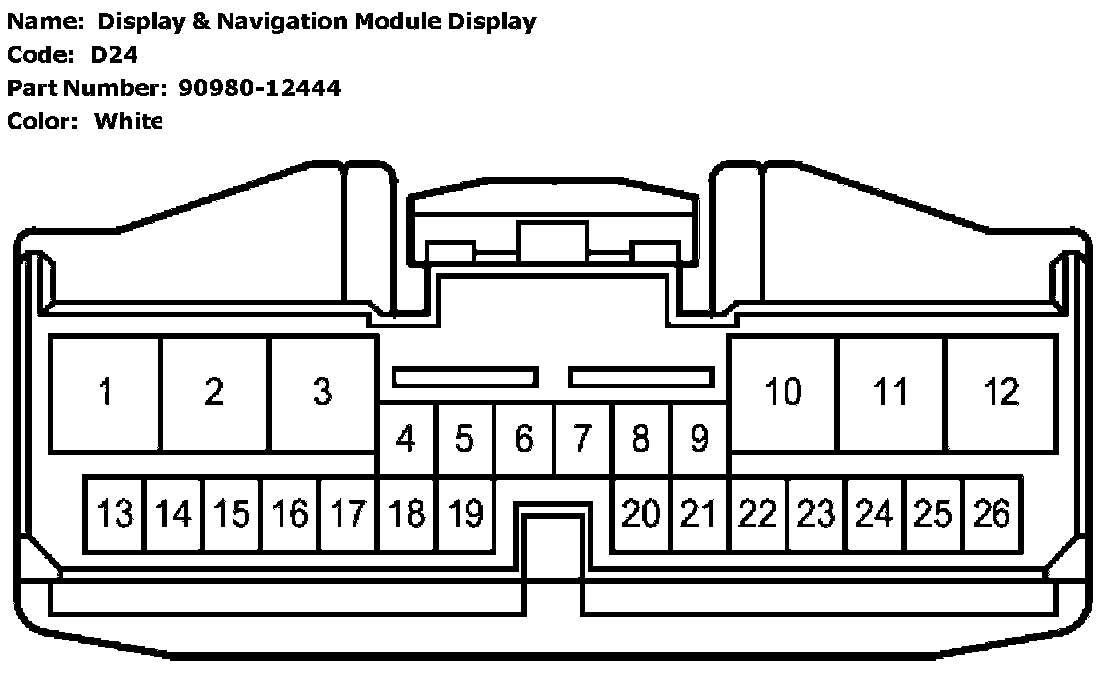

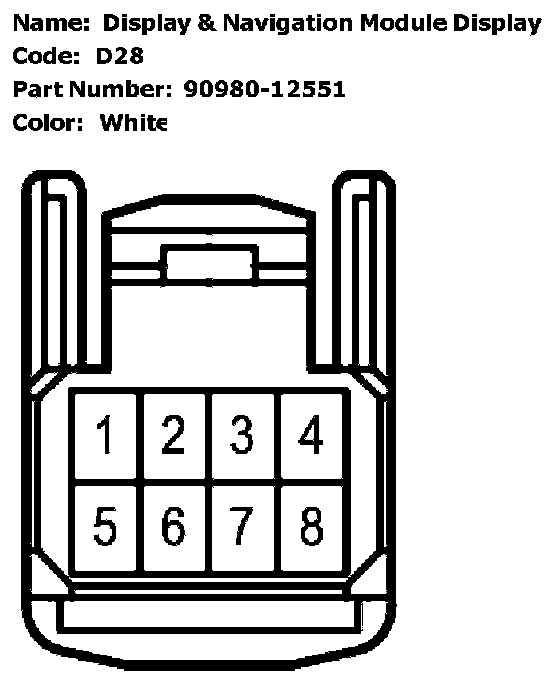

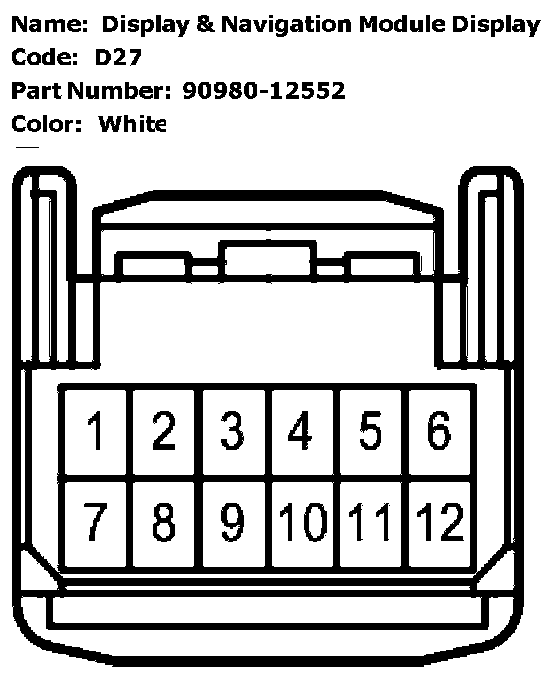

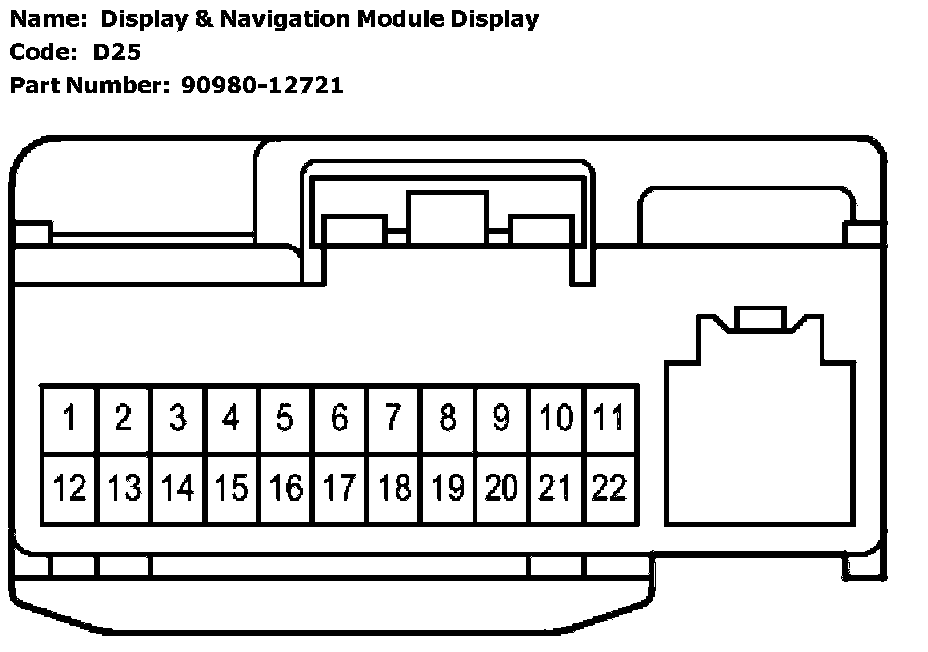

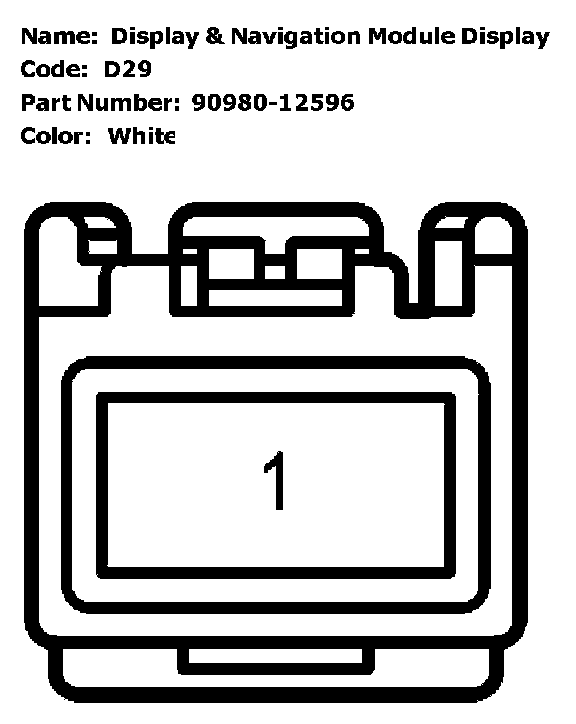

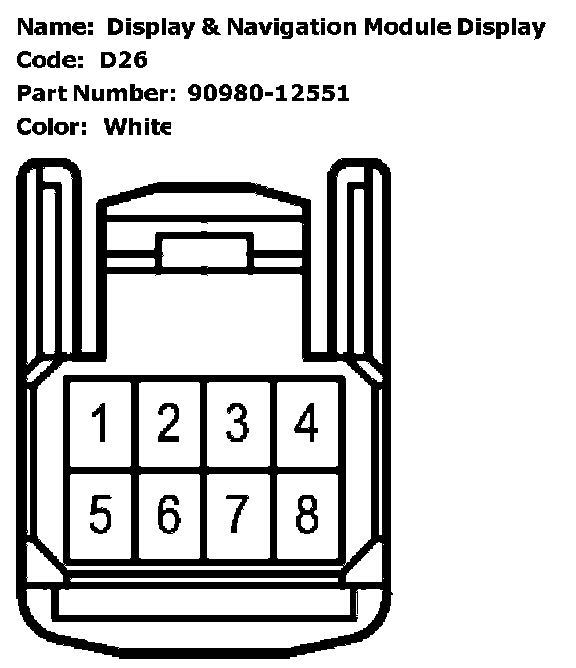

Display and Navigation Module Display
