Service Data

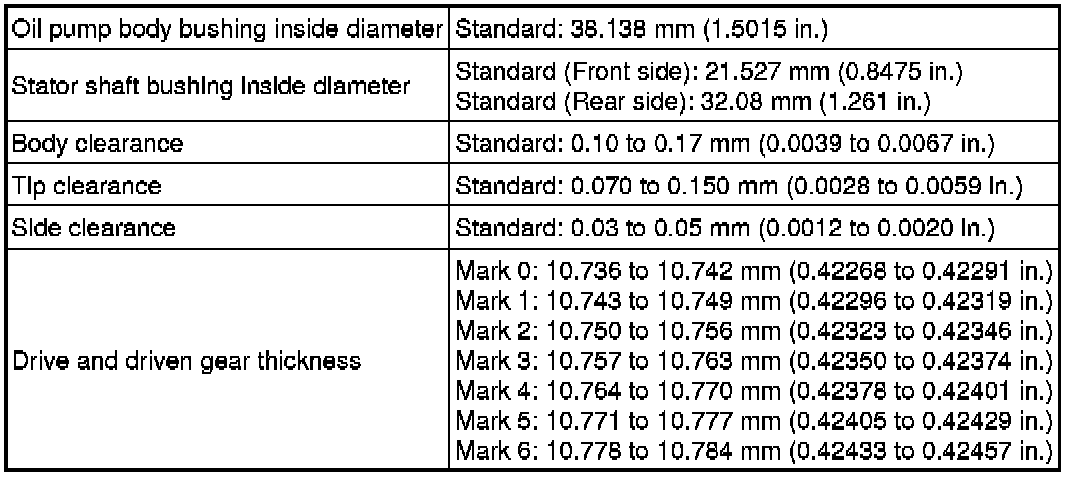

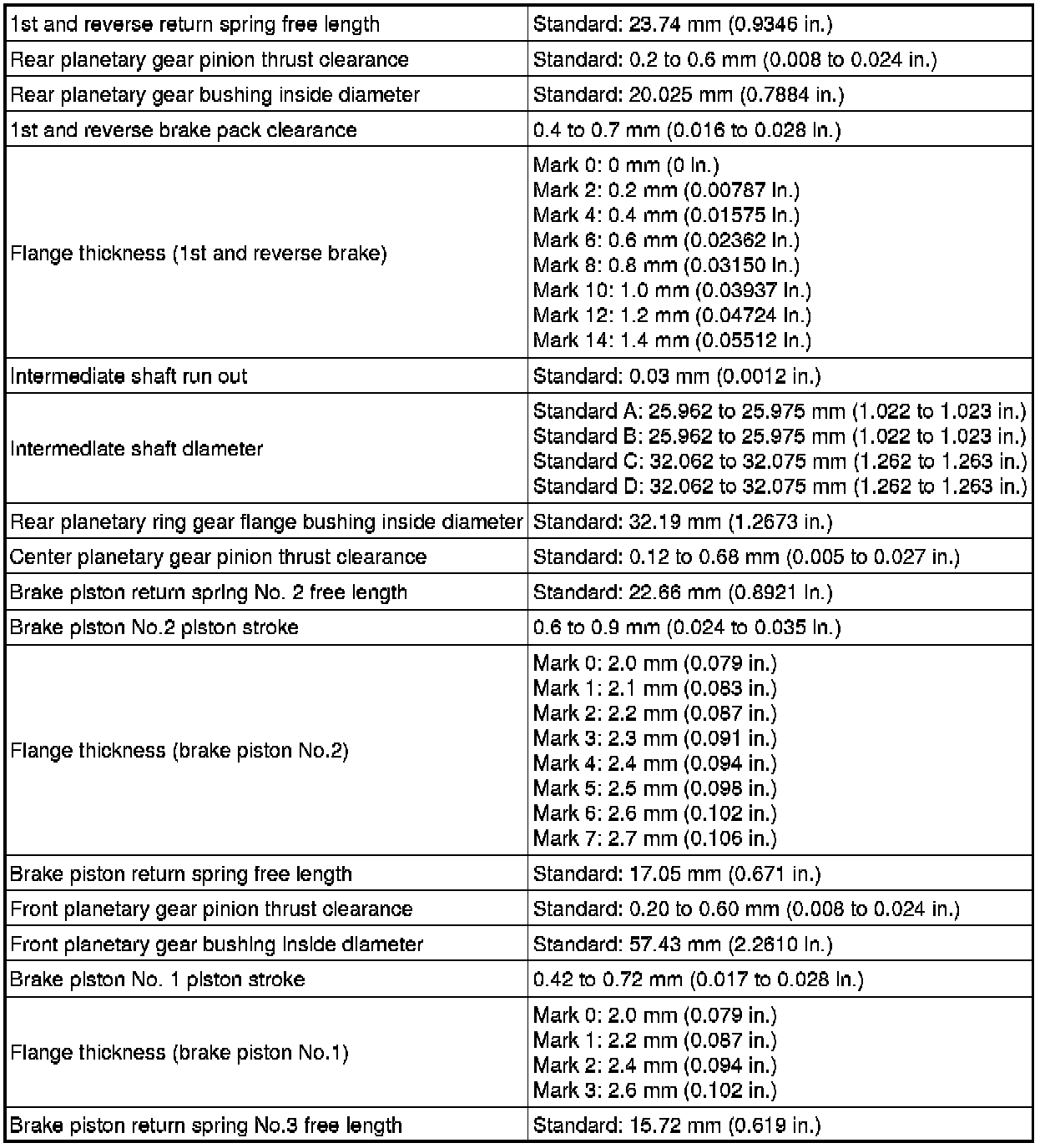

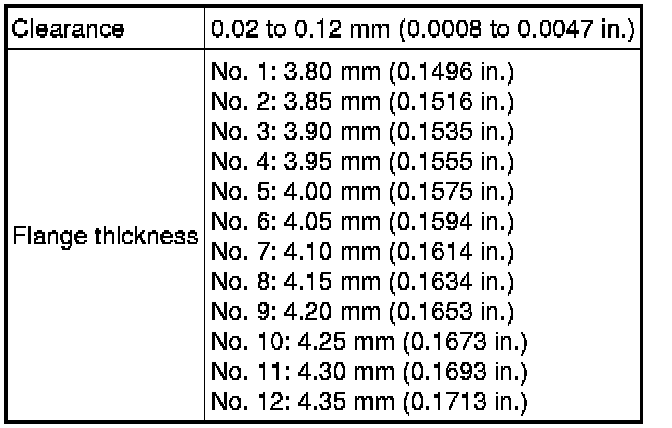

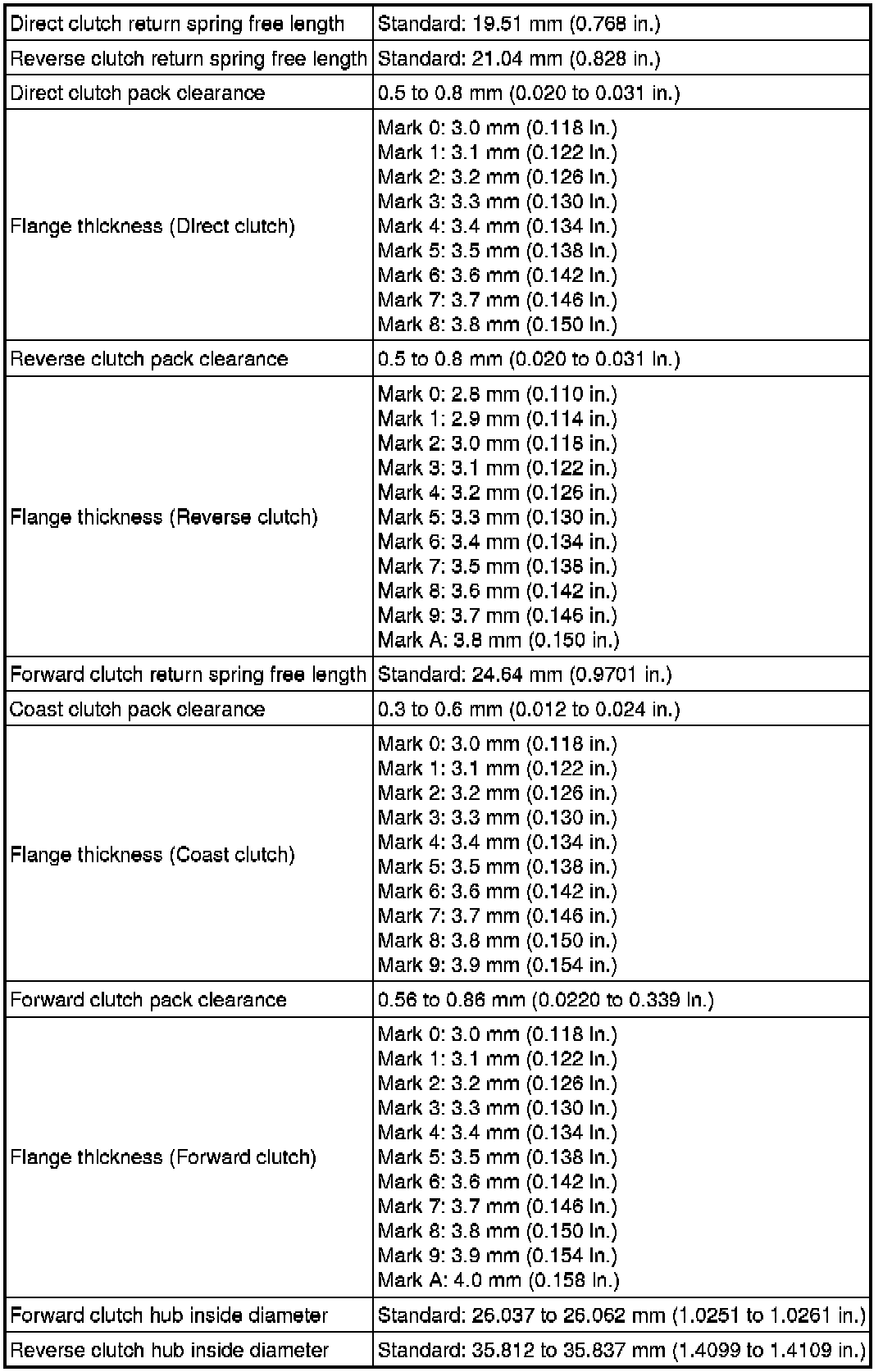

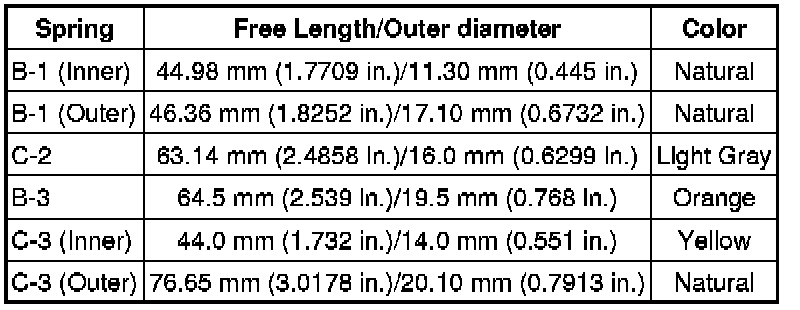

SERVICE SPECIFICATIONS: A761E AUTOMATIC TRANSMISSION: SERVICE DATA
NOTICE:

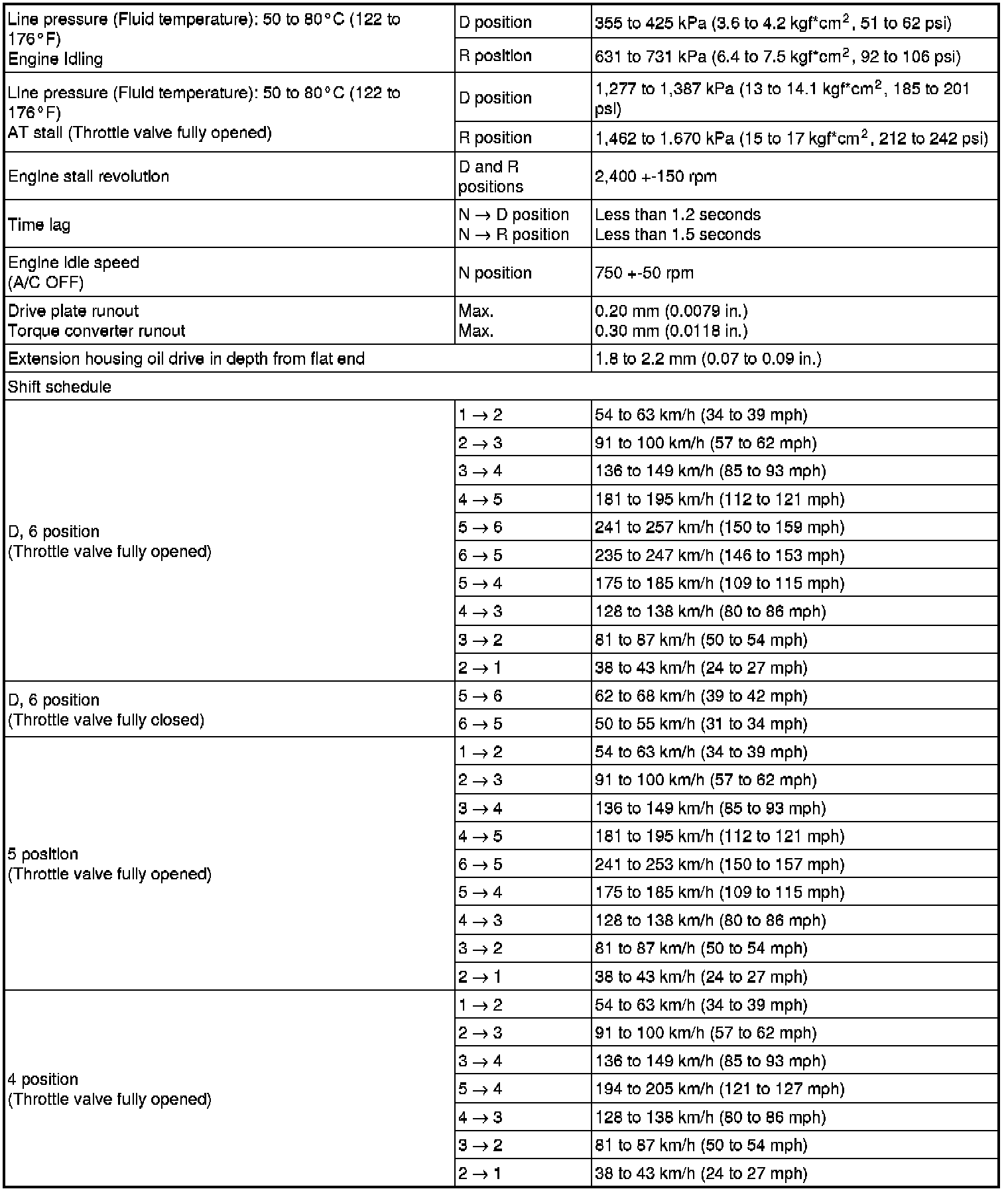

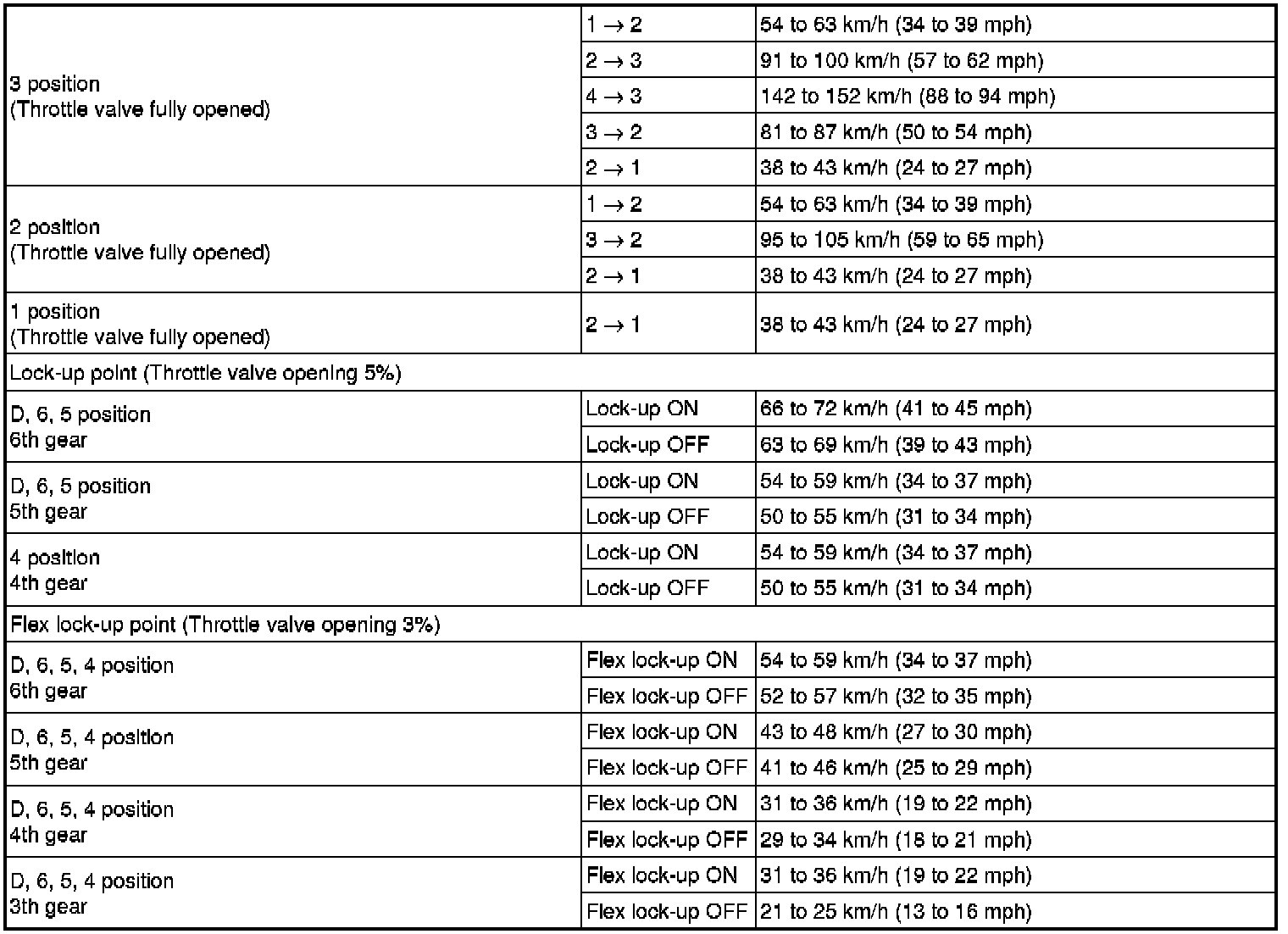

* All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.
