Charging (Service Information): Generator: Replacement: Replacement

  1. REPLACE FRONT BEARING

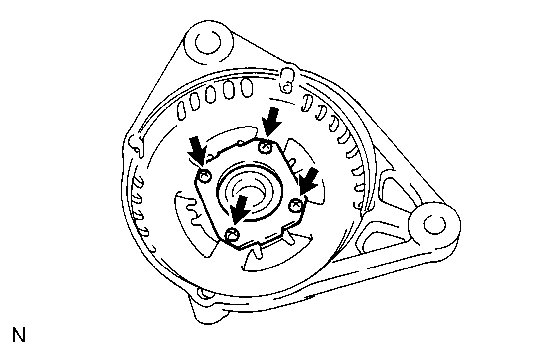

      Fig 1: Locating Screws And Retainer Plate
      GTY145107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and bearing retainer.

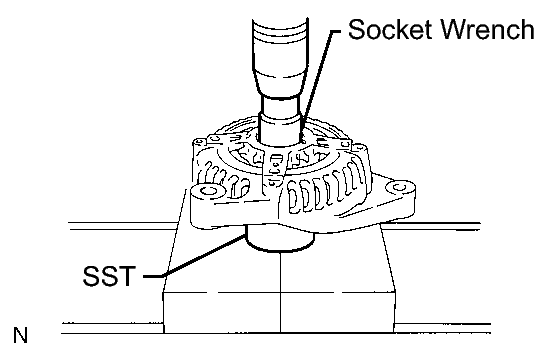

      2. Fig 2: Pressing Bearing
      GTY123405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, press out the bearing.
      • SST: 09223-00010

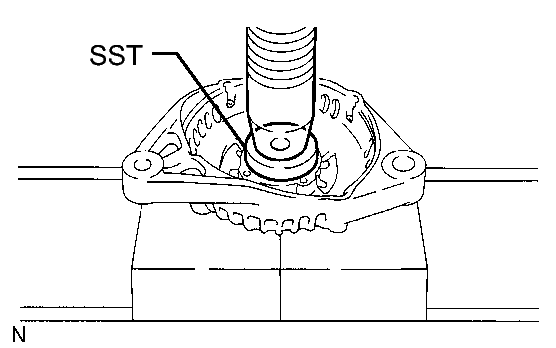

      3. Fig 3: Pressing New Bearing
      GTY145103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, press in a new bearing.
      • SST: 09950-60010
    4. Install the bearing retainer with the 4 screws.

      Torque: 2.3 N*m (24 kgf*cm, 20 in.*lbf)

  2. REPLACE REAR BEARING

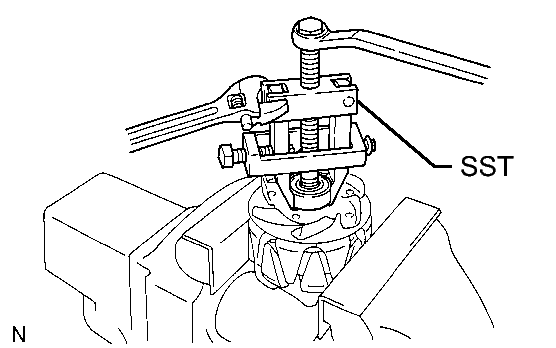

      Fig 4: Removing Rear Bearing
      GTY145102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the fan.

    1. Using SST, remove the bearing cover (outside) and bearing.
      • SST: 09820-00021
    2. Remove the bearing cover (inside).

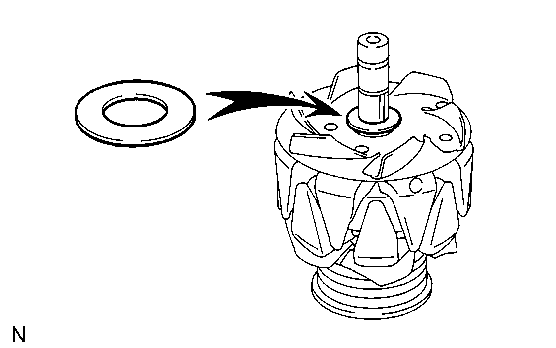

      3. Fig 5: Placing Bearing Cover (Inside) On Rotor
      GTY124951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Place the bearing cover (inside) on the rotor.

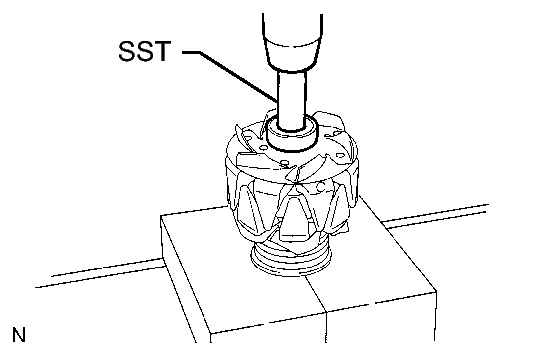

      4. Fig 6: Pressing Bearing
      GTY144459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST and a press, press in a new bearing.
      • SST: 09820-00031

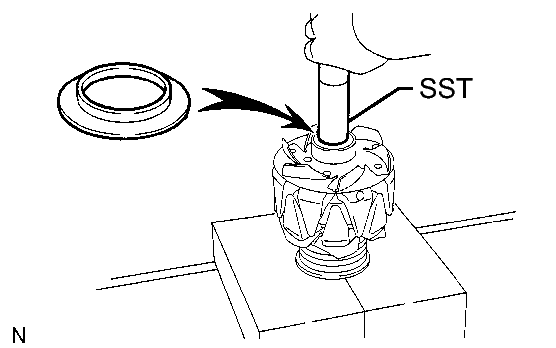

      5. Fig 7: Pushing Bearing Cover (Outside)
      GTY136524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using SST, push in the bearing cover (outside).
      • SST: 09285-76010
