Front Speed Sensor: Removal: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT SPEED SENSOR LH
   1. Disconnect the sensor connector.

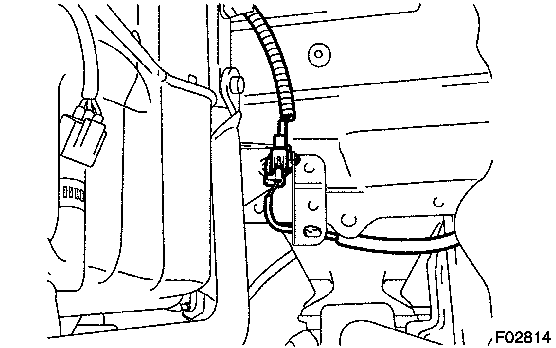

      Fig 1: Identifying Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the resin clip and 2 clamp bolts holding the sensor harness.
   3. Remove the bolt and sensor.

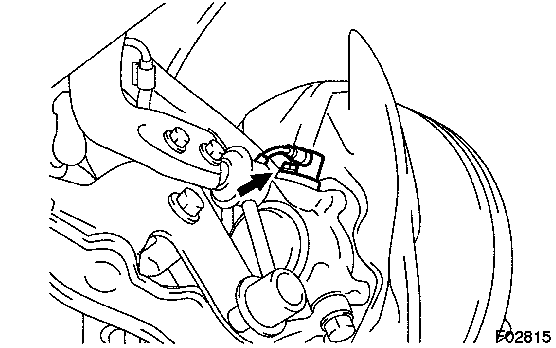

      Fig 2: Identifying Front Speed Sensor And Fastener

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the sensor tip free from foreign matter.
