Yaw Rate And Acceleration Sensor: Installation: Installation

  1. INSTALL YAW RATE AND ACCELERATION SENSOR

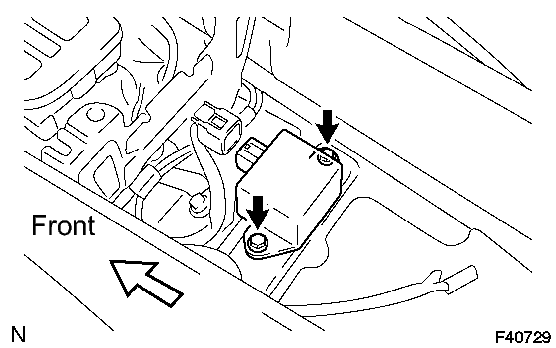

      Fig 1: Identifying Yaw Rate/Acceleration Sensor And Fasteners
      GTY123223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the sensor with the 2 bolts.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

    2. Connect the sensor connector.
  2. INSTALL CONSOLE BOX ASSEMBLY  . Refer to INSTALLATION - Step 7
  3. INSTALL NO. 3 BOX PANEL  . Refer to INSTALLATION - Step 8
  4. INSTALL CONSOLE BOX CARPET
  5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 10
  6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 11
  7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
  8. INSTALL AIR CONDITIONER CONTROL ASSEMBLY  . Refer to INSTALLATION - Step 17
  9. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 18
  10. INSTALL REAR CONSOLE UPPER PANEL GARNISH  . Refer to INSTALLATION - Step 19
  11. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 26
  12. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 27
  13. INSTALL DOOR SCUFF PLATE ASSEMBLY LH  . Refer to INSTALLATION - Step 29
  14. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
    1. Perform the yaw rate sensor zero point calibration. Refer to CALIBRATION .
  15. CHECK VSC SENSOR SIGNAL
    1. Check the VSC sensor signal. Refer to TEST MODE PROCEDURE .
