Engine Coolant Temperature Sensor: Removal: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to REMOVAL - Step 2

  2. REMOVE FUEL INJECTOR ASSEMBLY

    Refer to REMOVAL

  3. SEPARATE INVERTER RESERVE TANK ASSEMBLY  See step  9
  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.
    2. Using SST, remove the engine coolant temperature sensor and gasket.

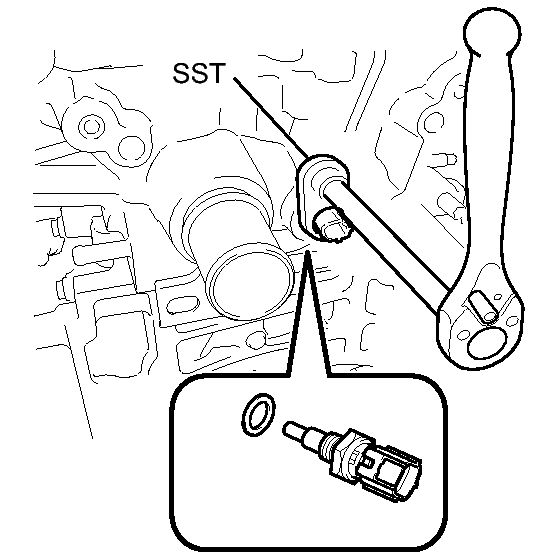

      Fig 1: Removing Engine Coolant Temperature Sensor And Gasket Using SST
      GTY355912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09205-76030
