Parts Location: Illustration

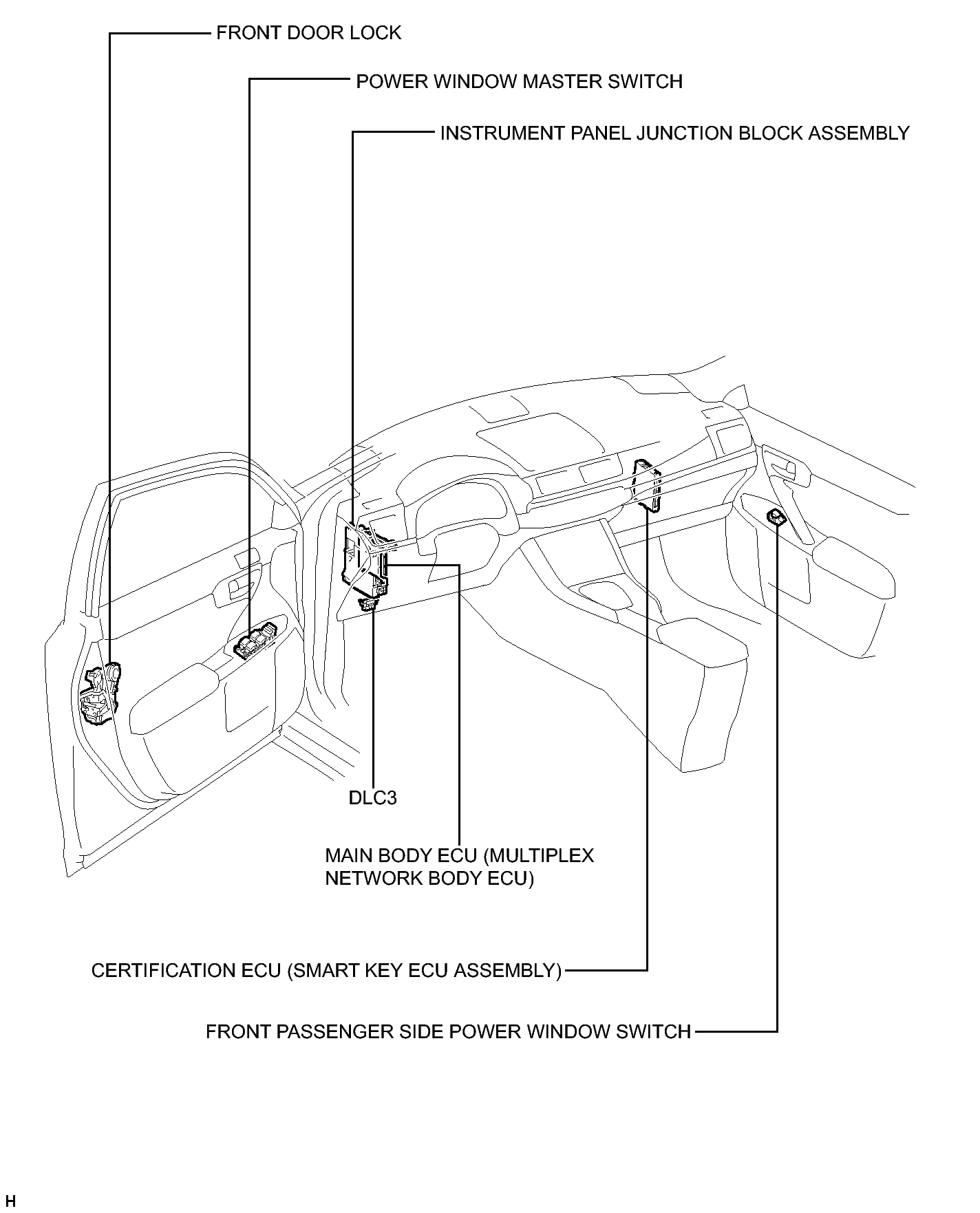

Fig 1: Identifying Power Window Control System Components Location
GTY357270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

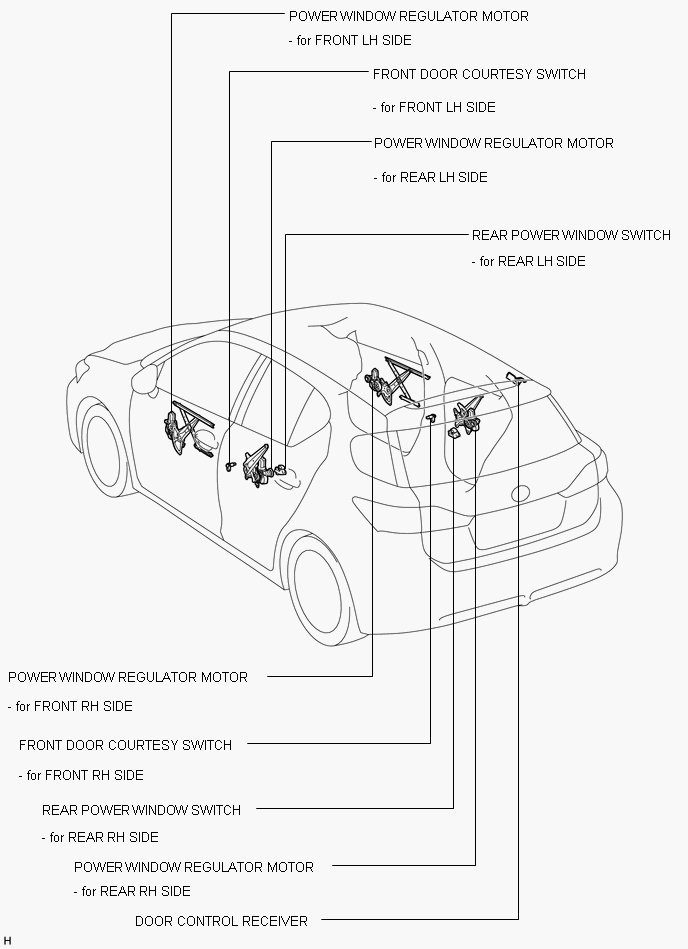

Fig 1: Identifying Power Window Control System Components Location
GTY356770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
