ABS, Hill-Start Assist Control, TRAC and VSC: Notes

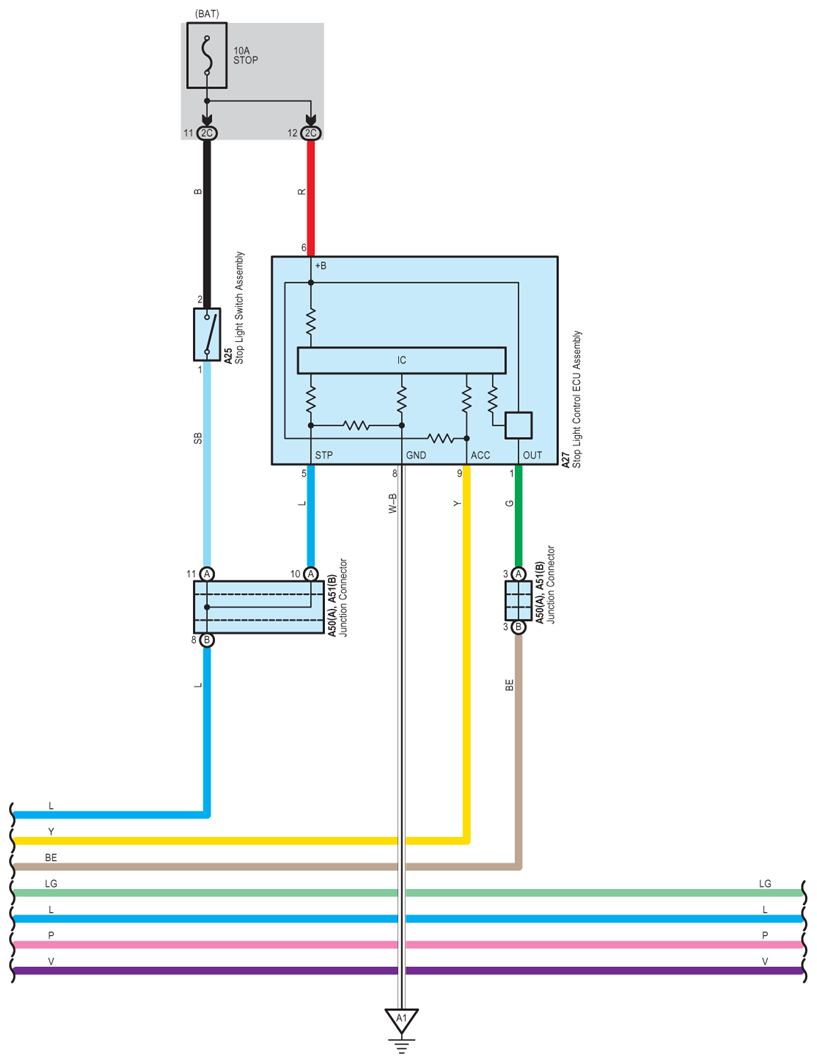

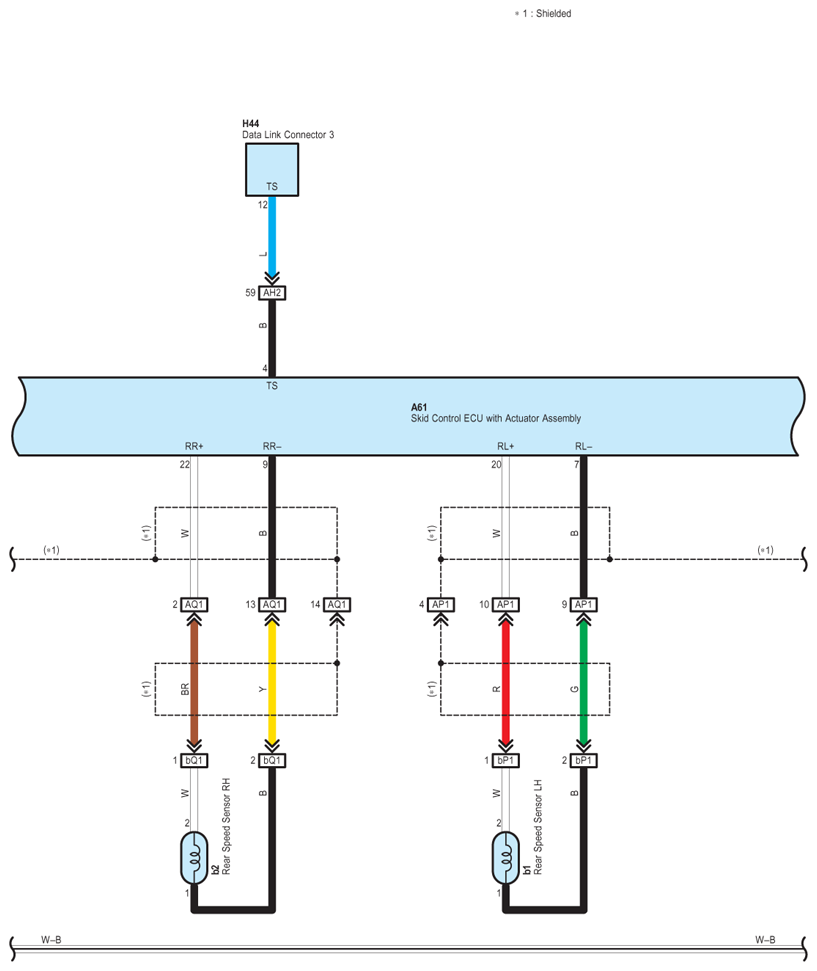

Fig 1: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

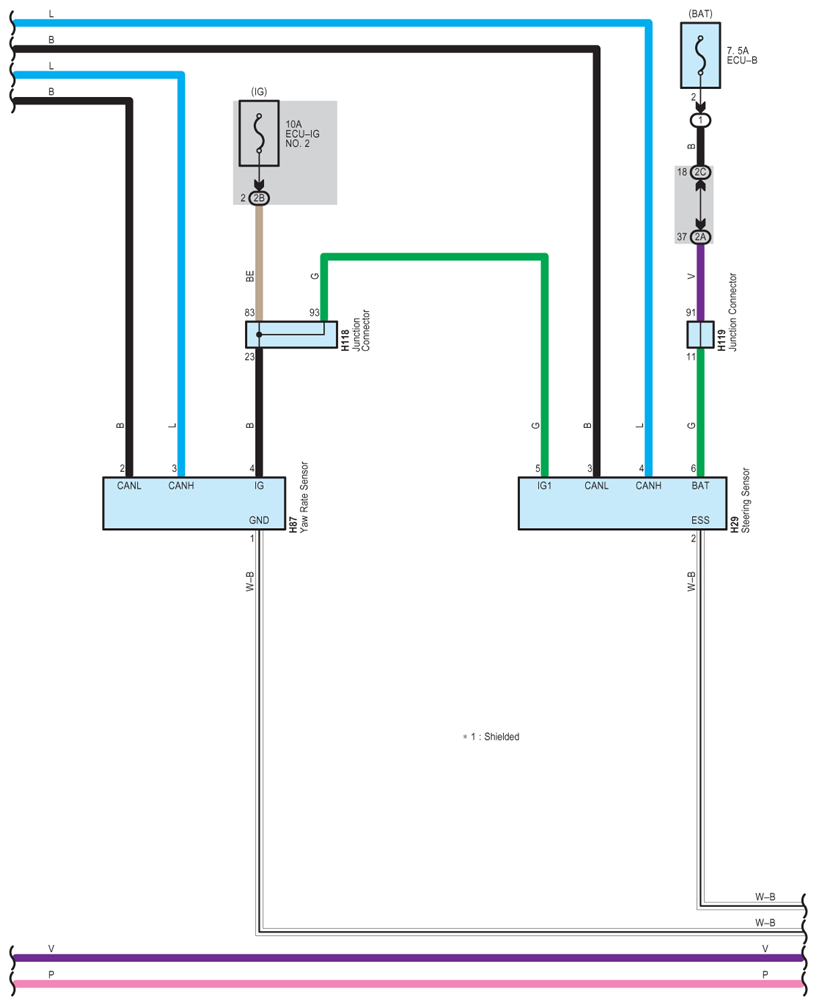

Fig 2: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

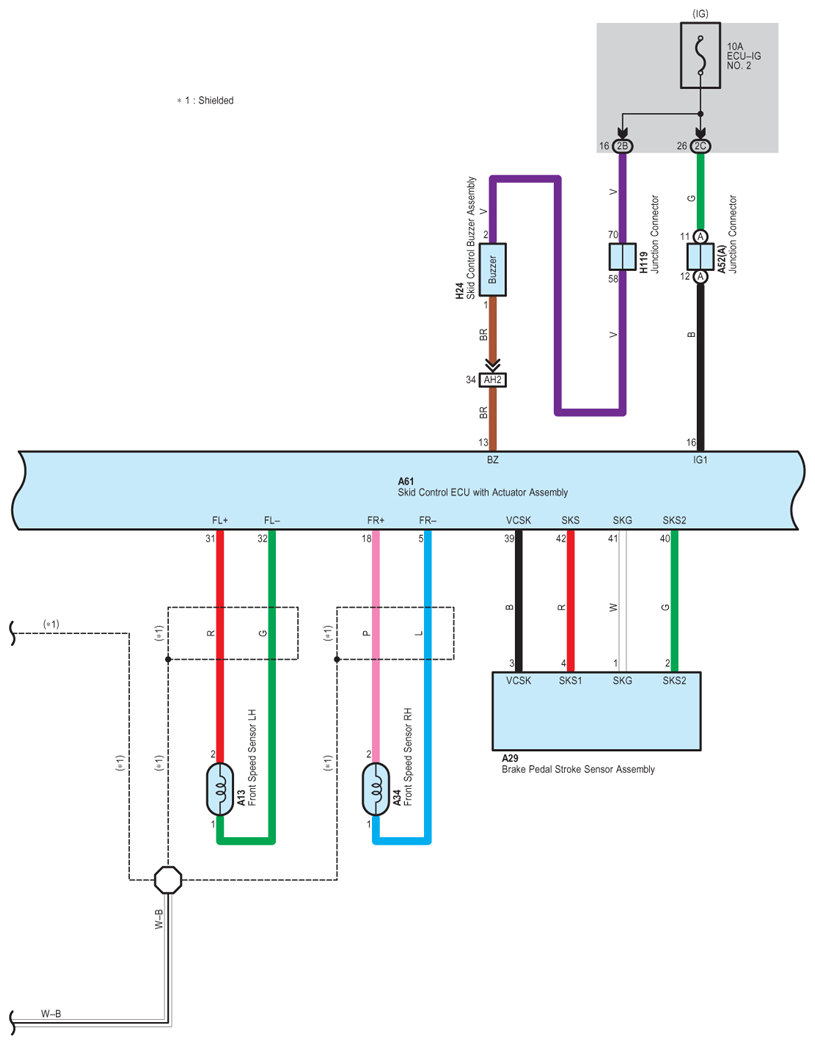

Fig 3: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

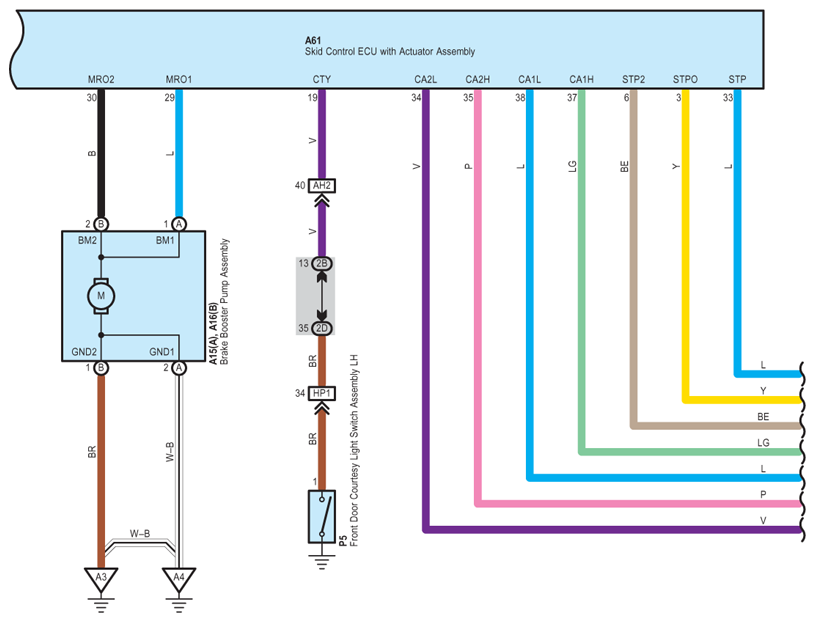

Fig 4: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

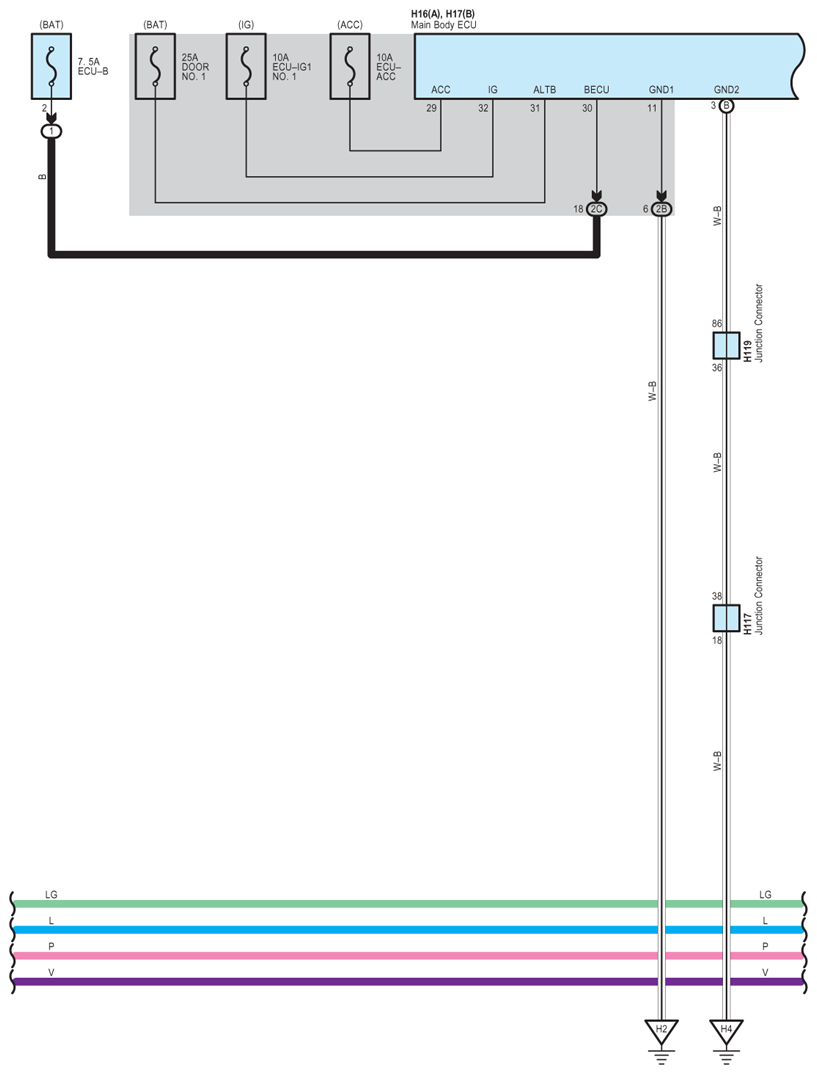

Fig 5: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

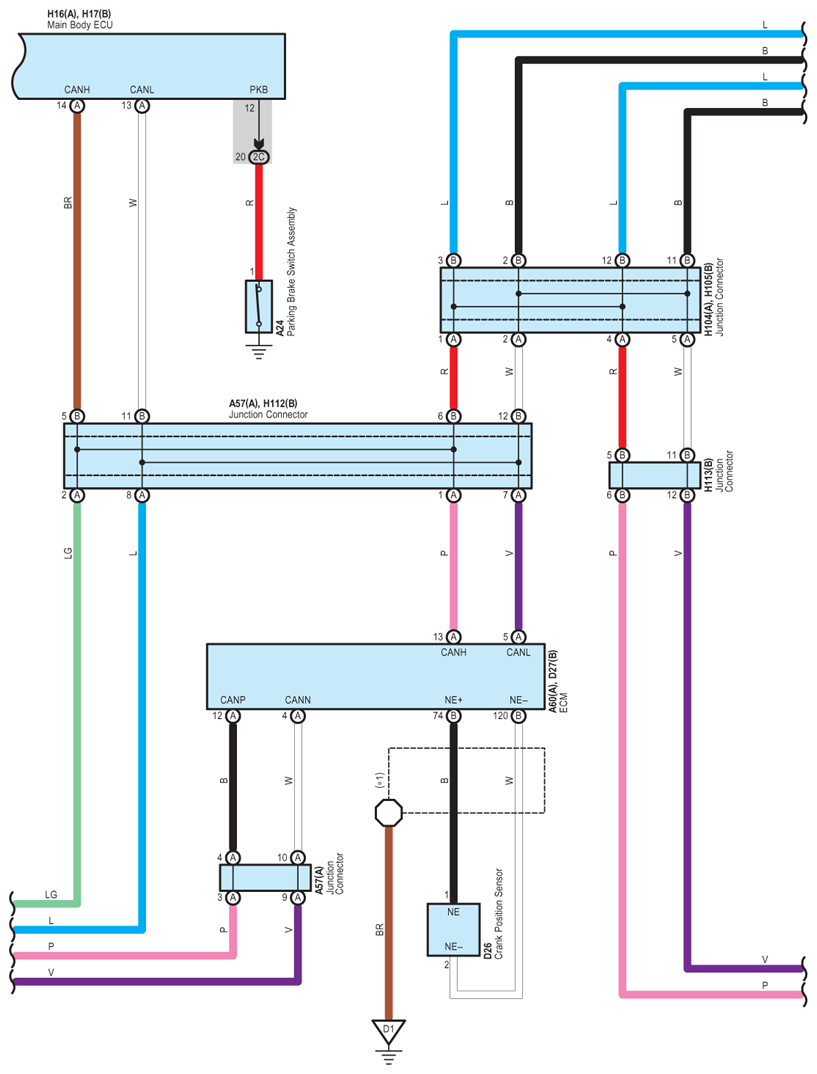

Fig 6: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (6 Of 9)

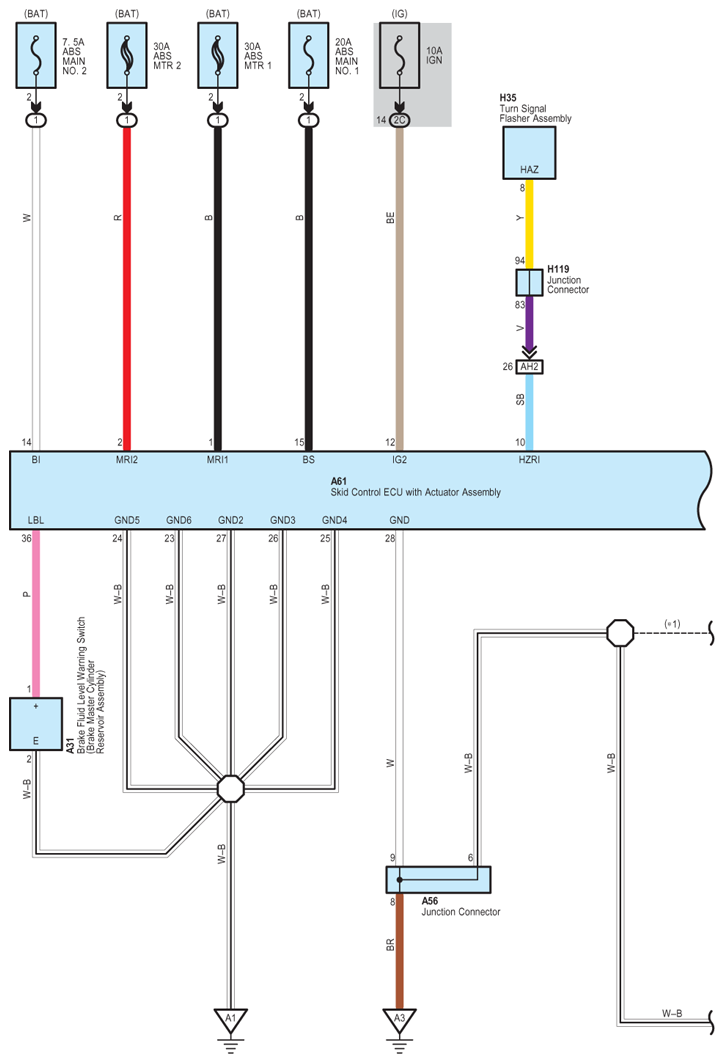

Fig 7: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (7 Of 9)

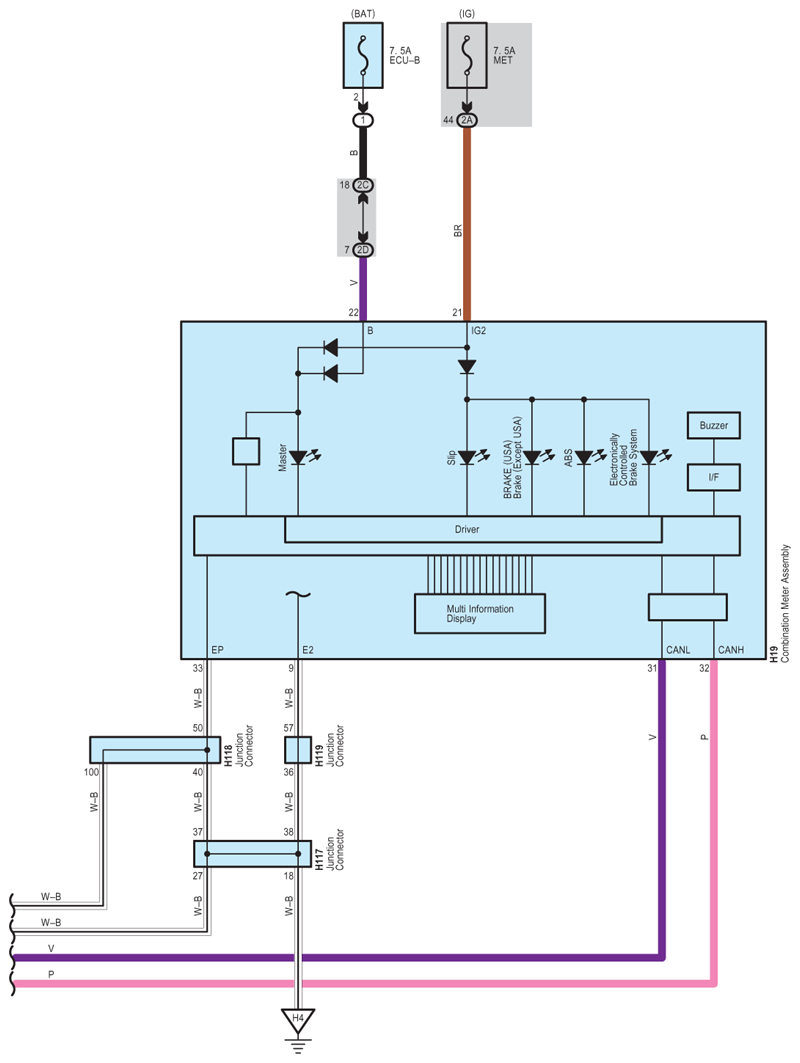

Fig 8: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (8 Of 9)

Fig 9: ABS, Hill-Start Assist Control, TRAC And VSC - Wiring Diagram (9 Of 9)
