Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/ LEXUS Navigation System): Notes

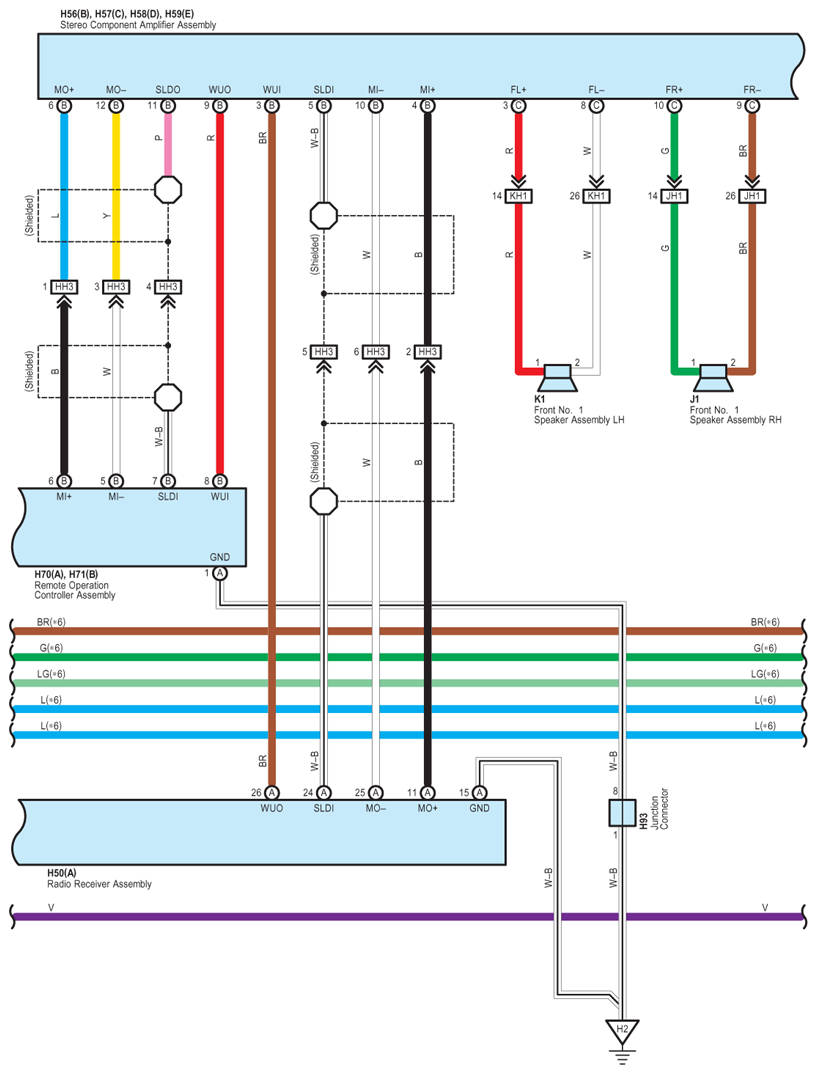

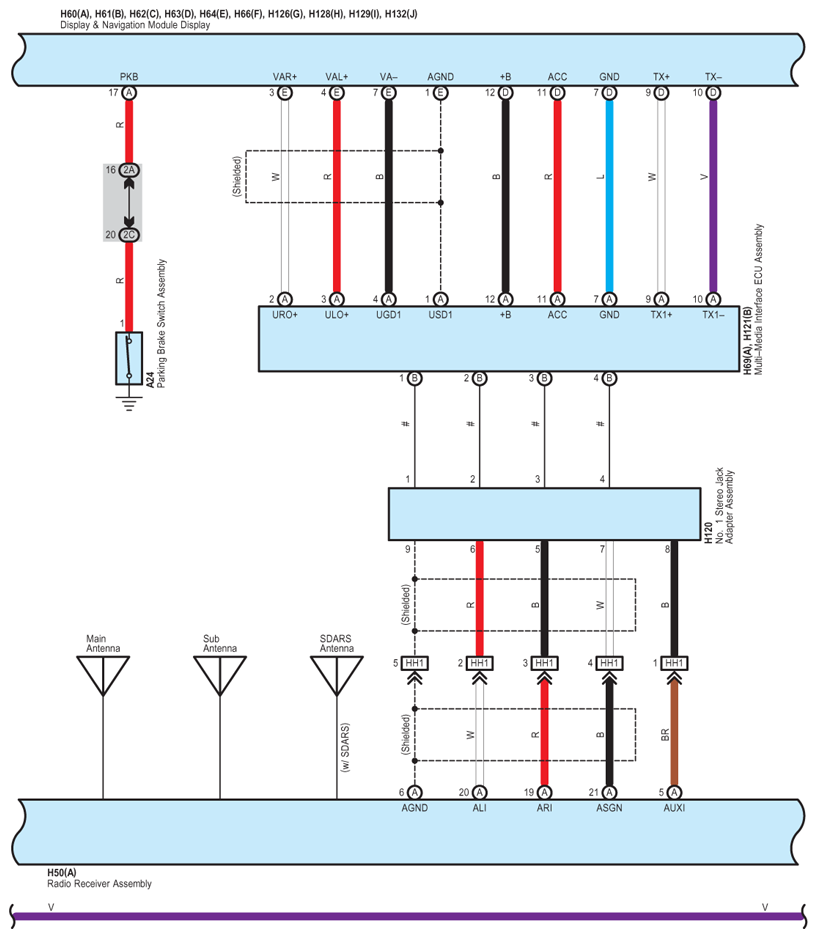

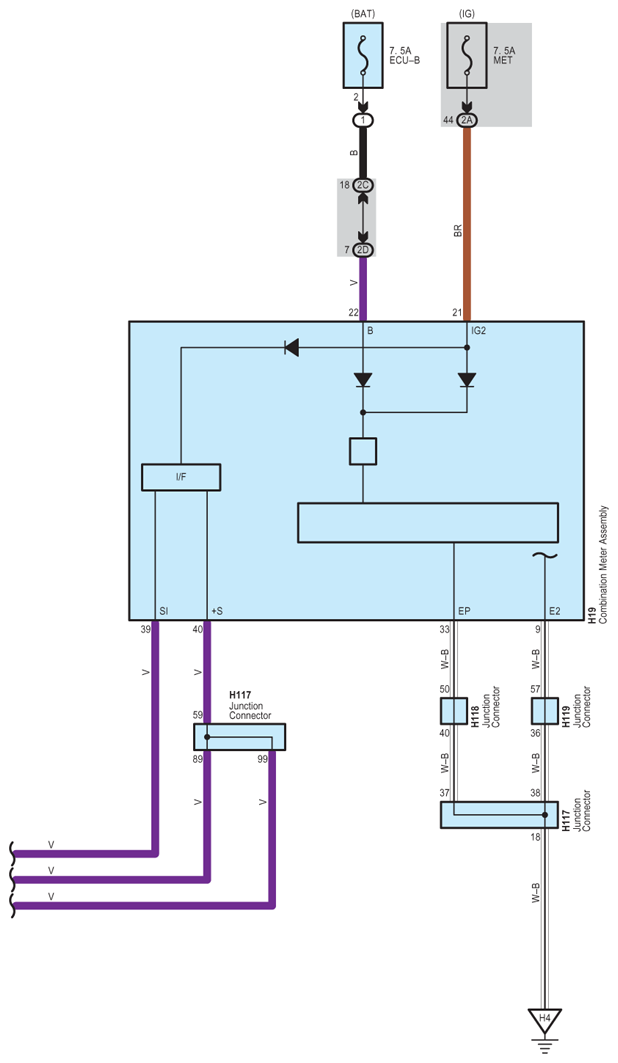

Fig 1: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

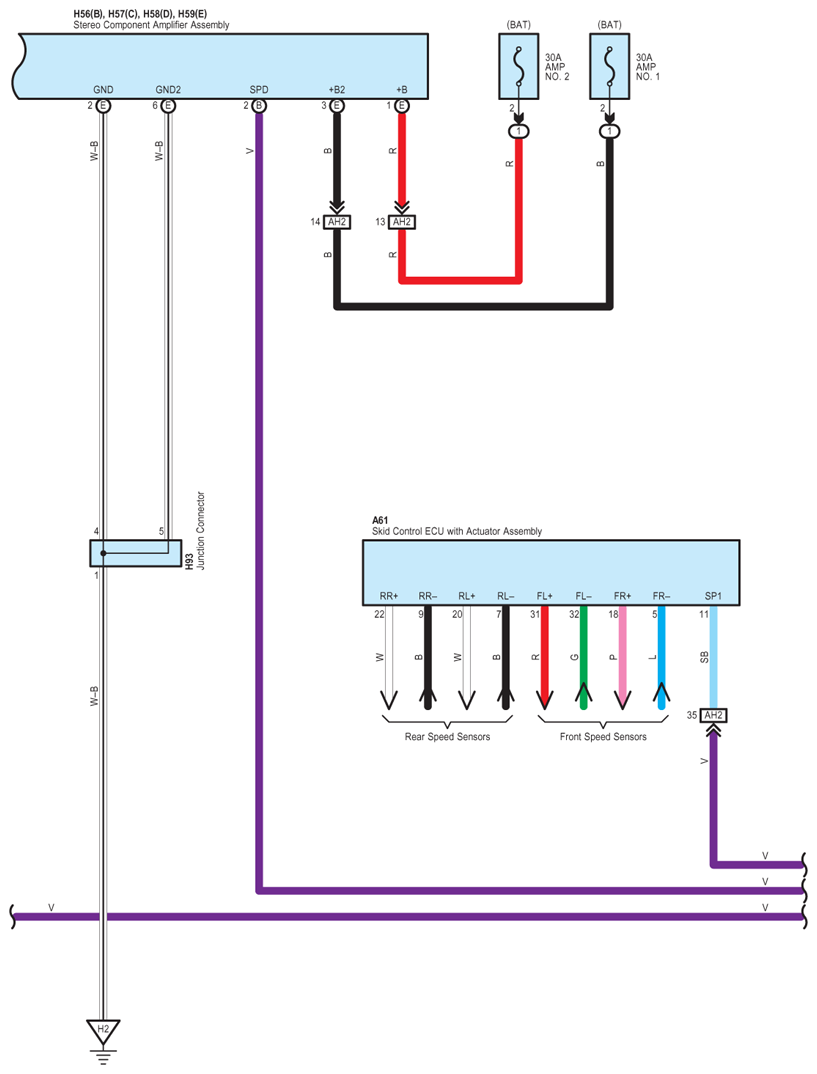

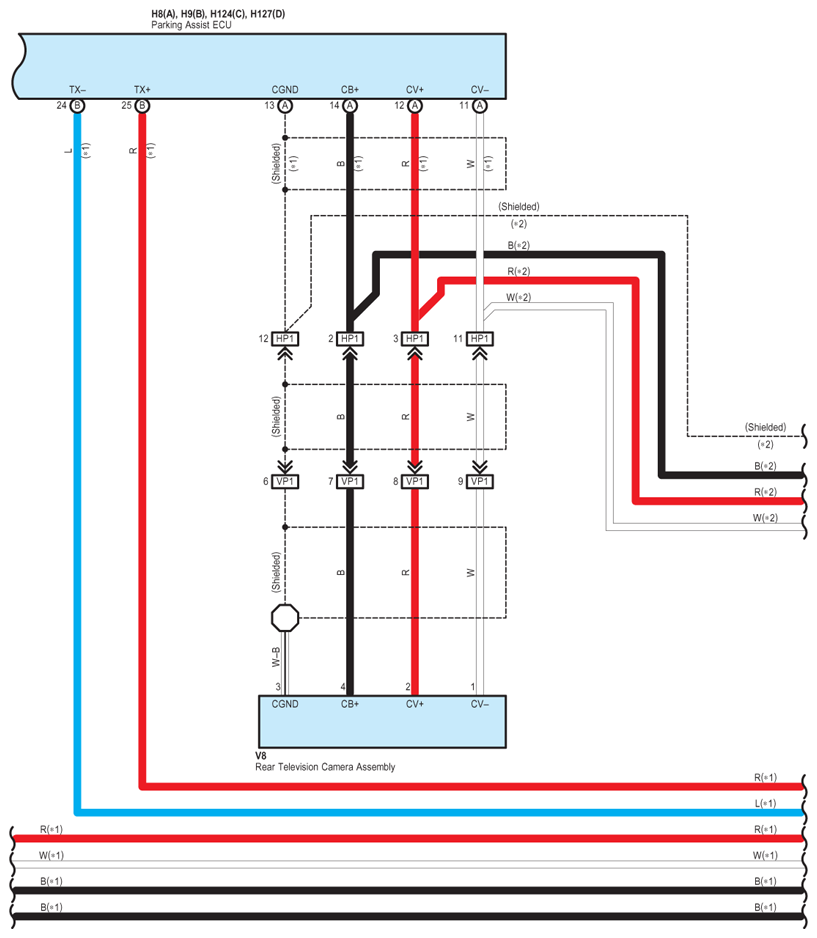

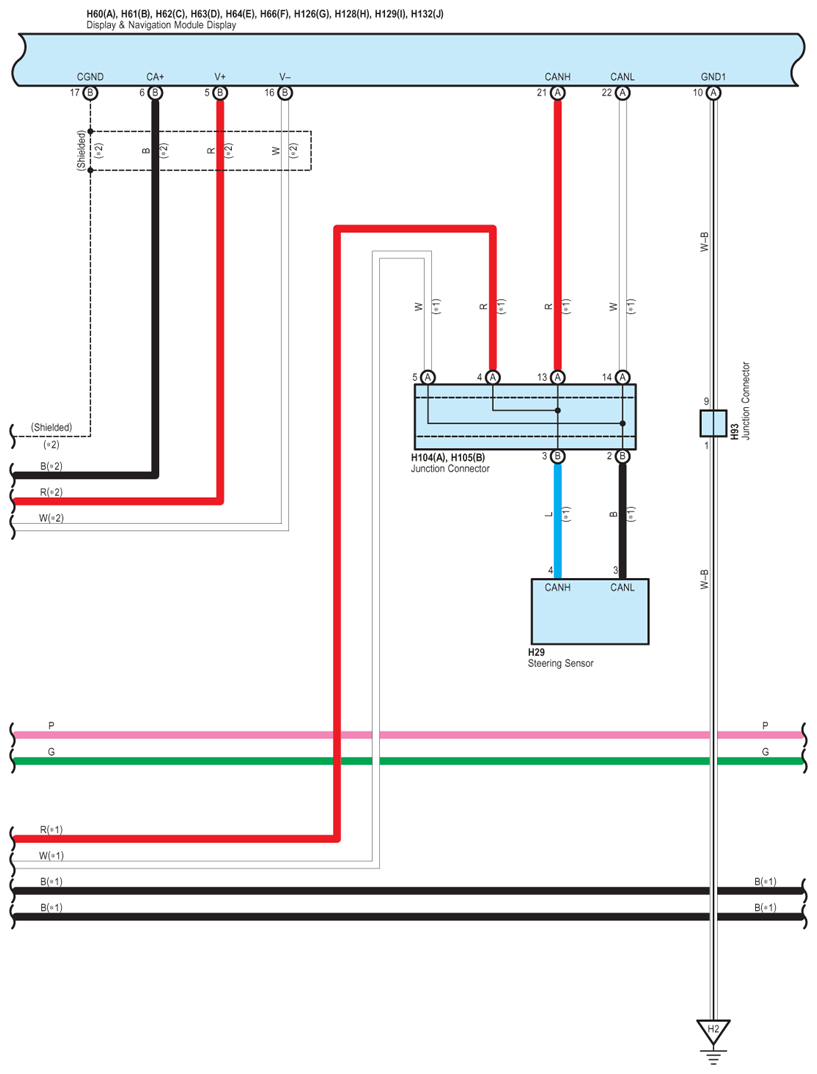

Fig 2: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

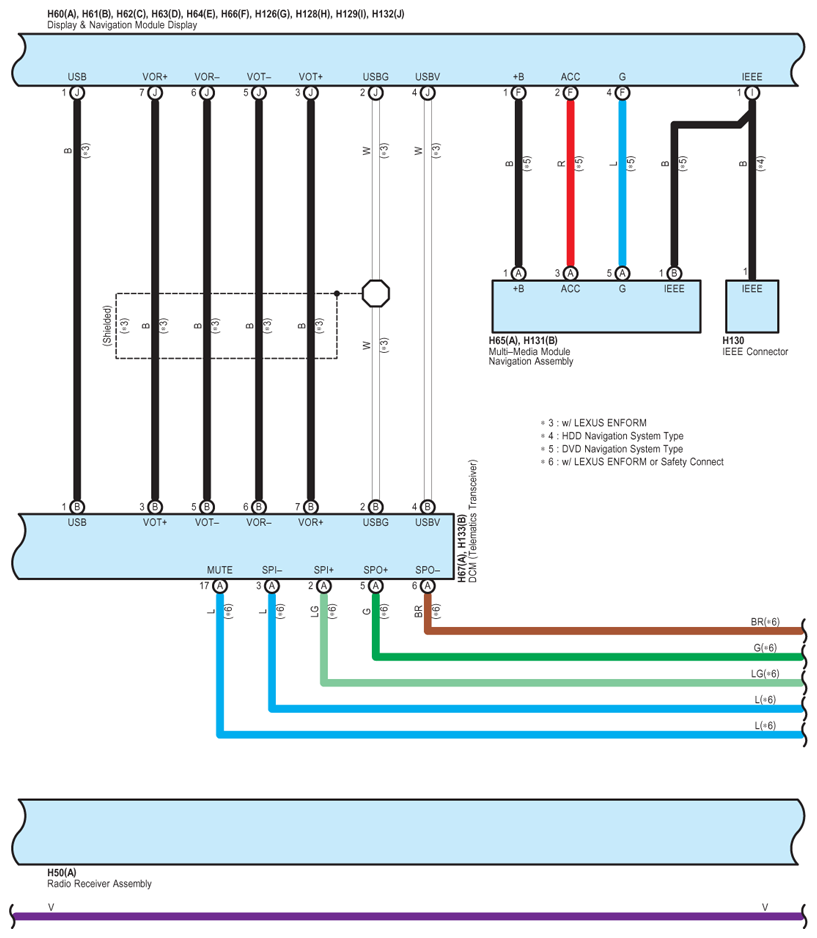

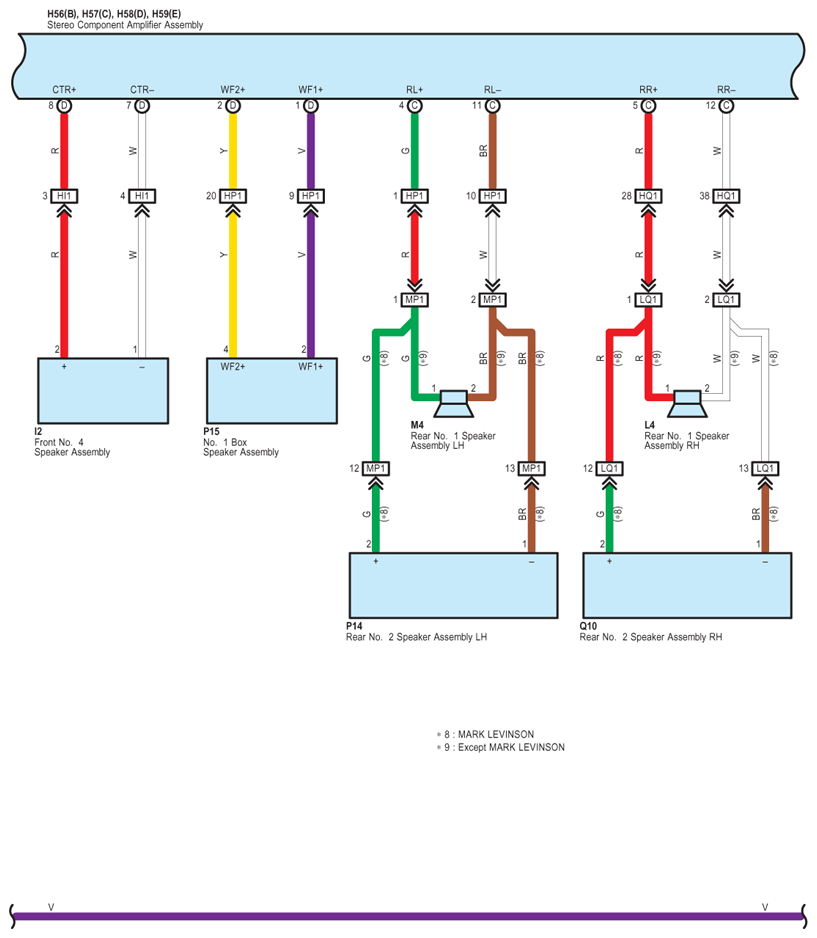

Fig 3: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

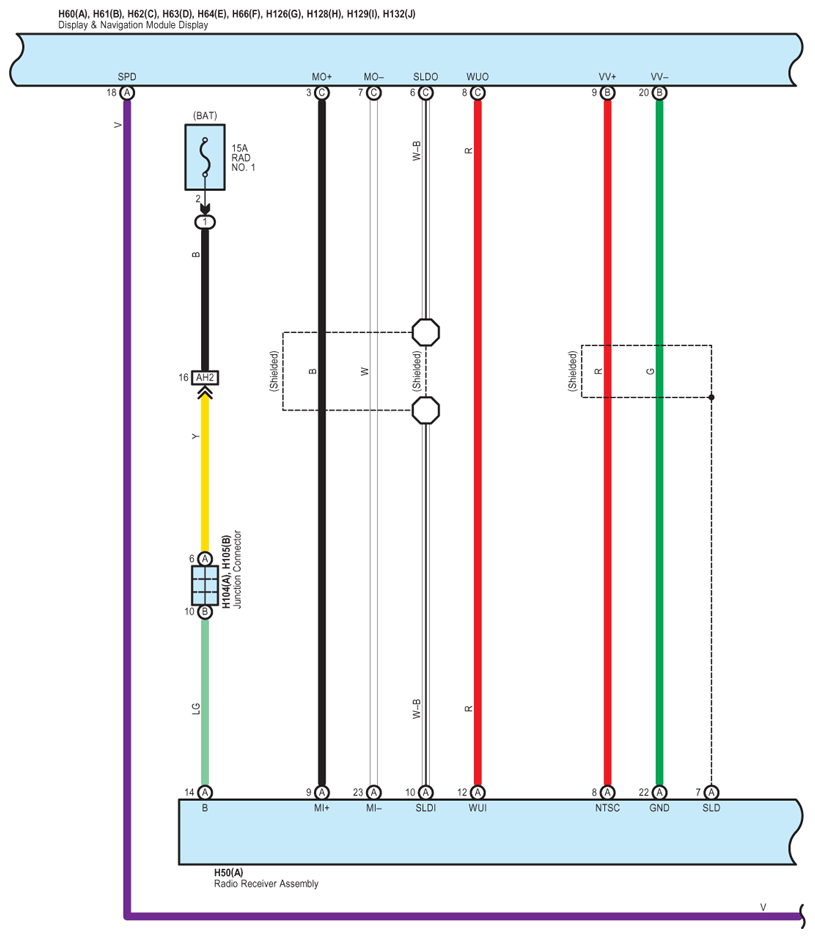

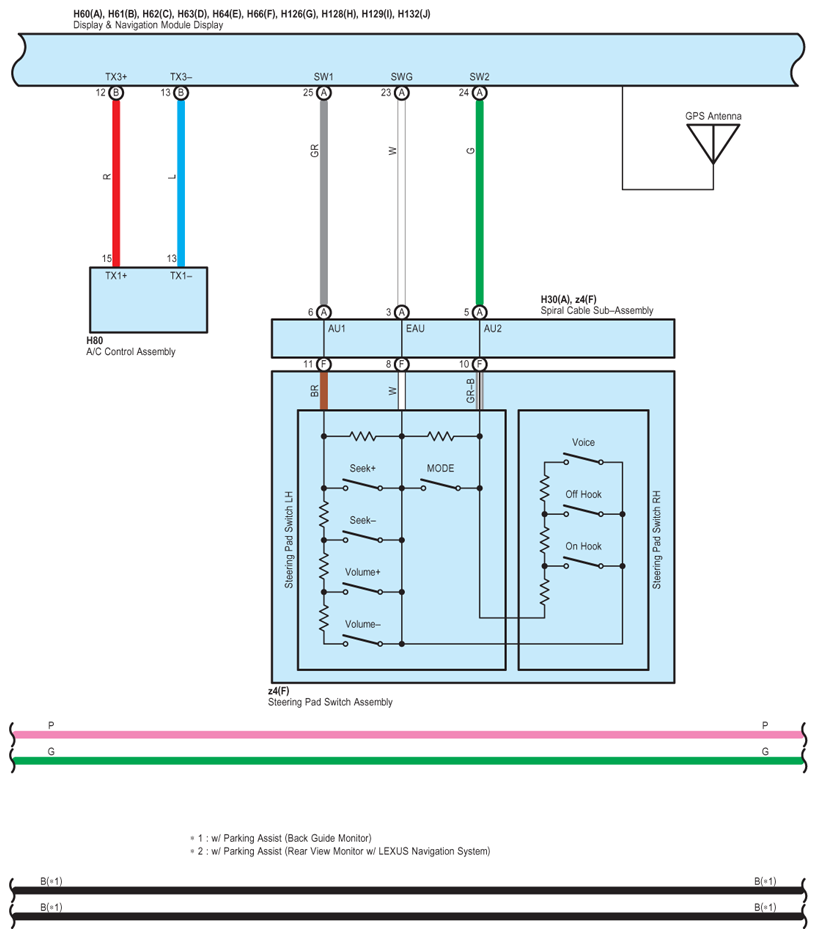

Fig 4: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

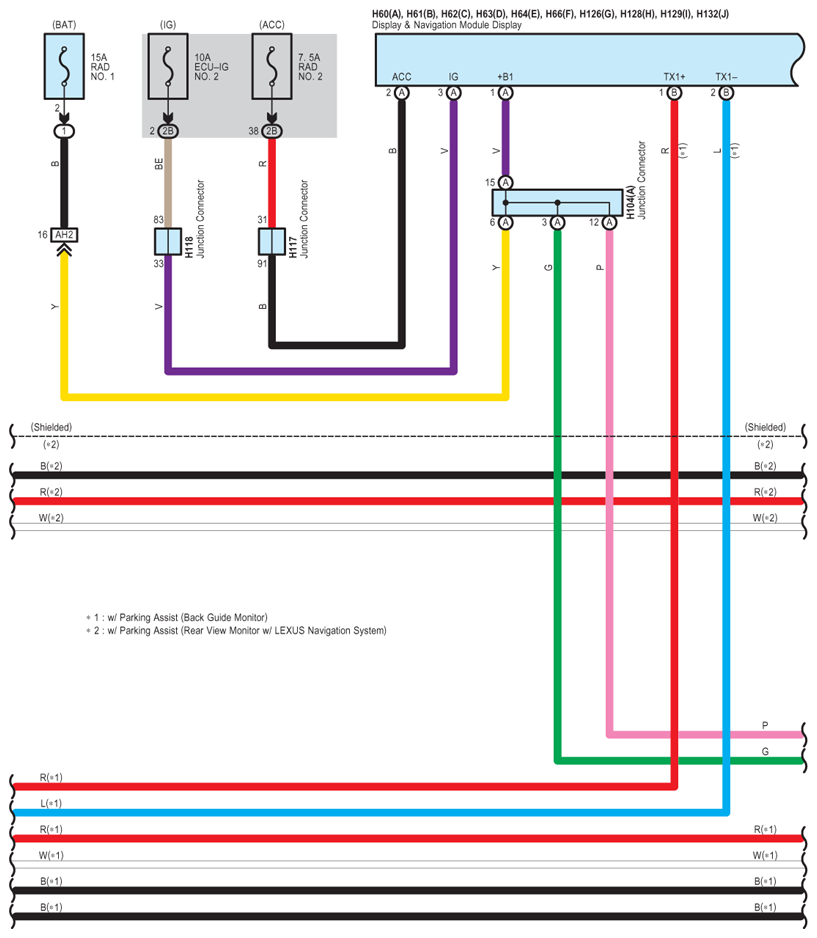

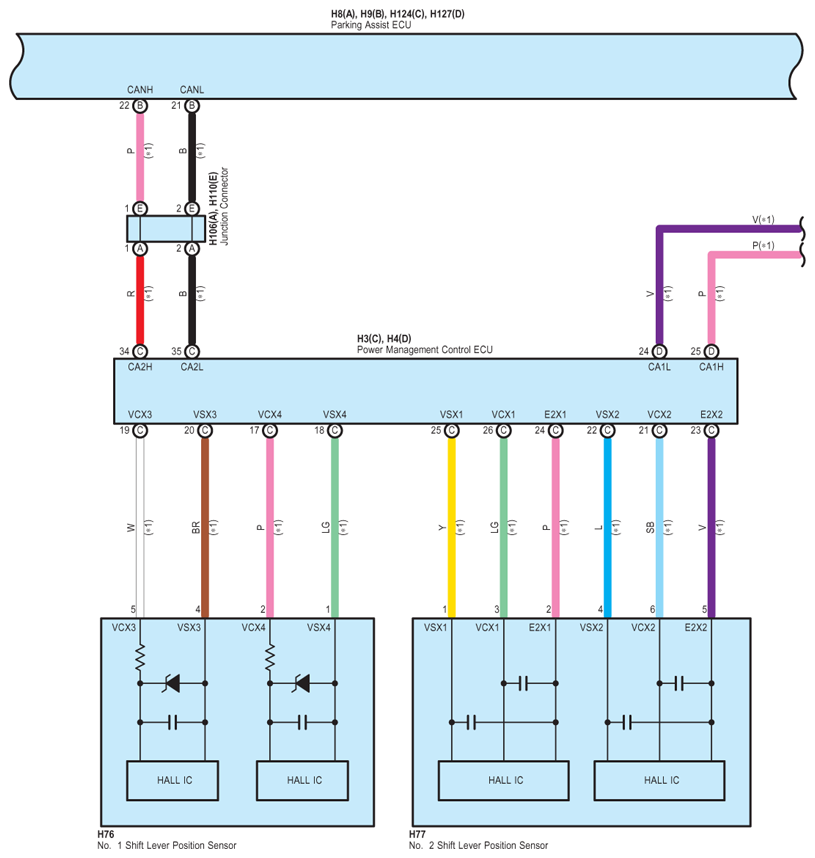

Fig 5: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

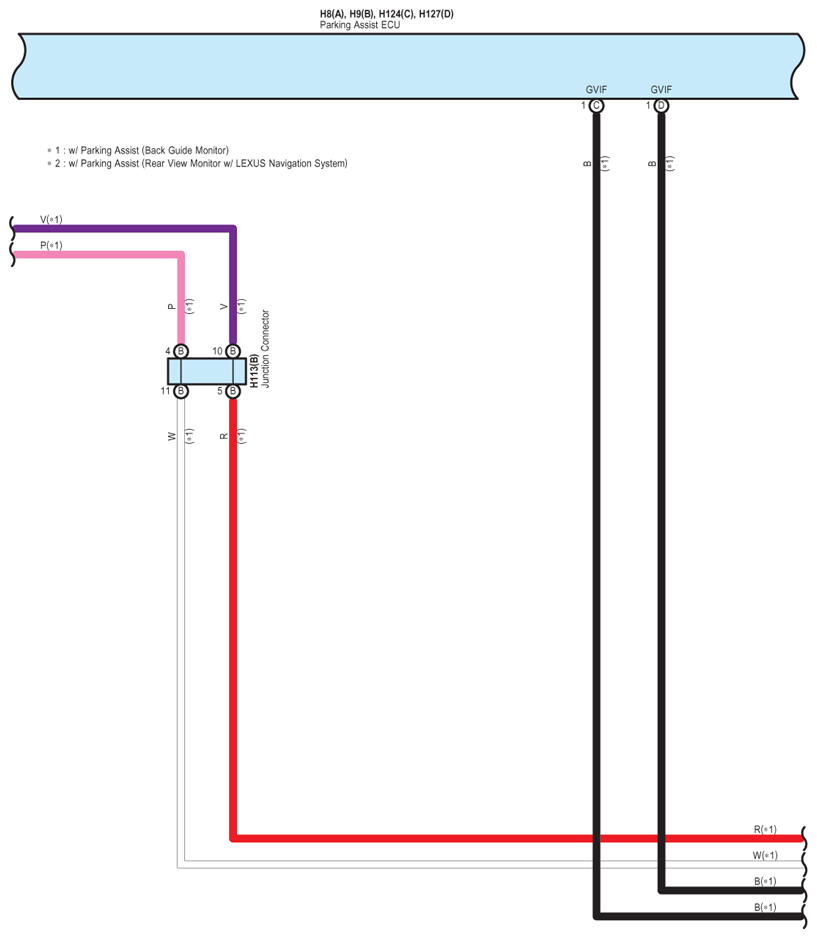

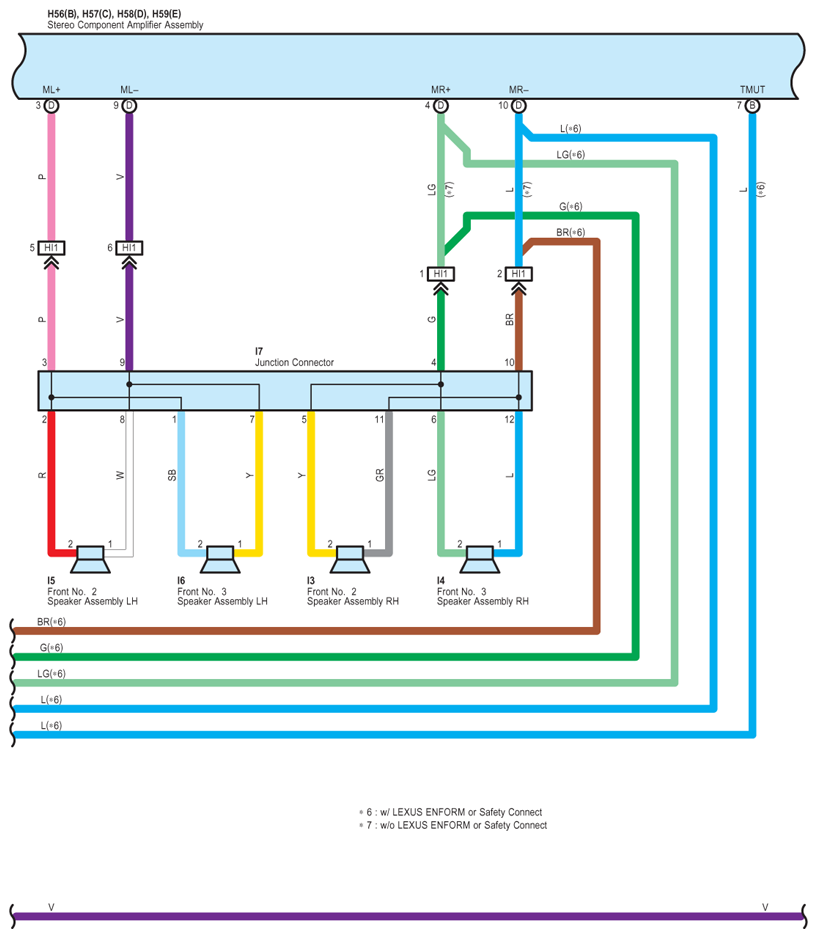

Fig 6: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

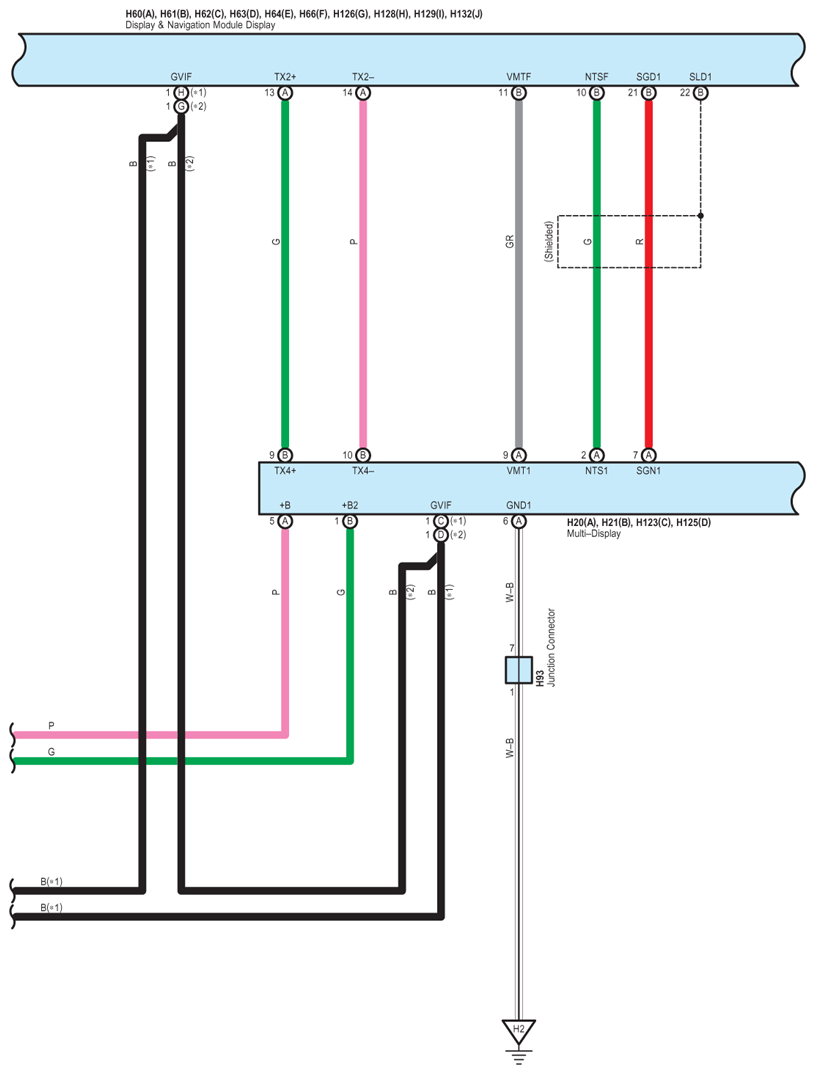

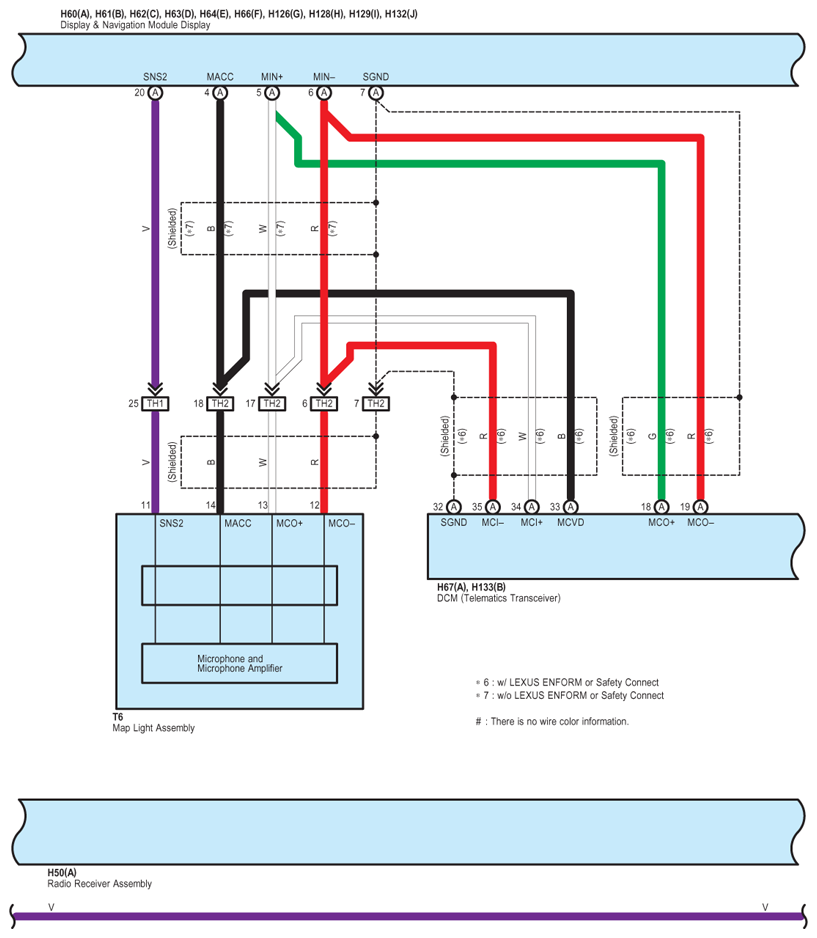

Fig 7: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

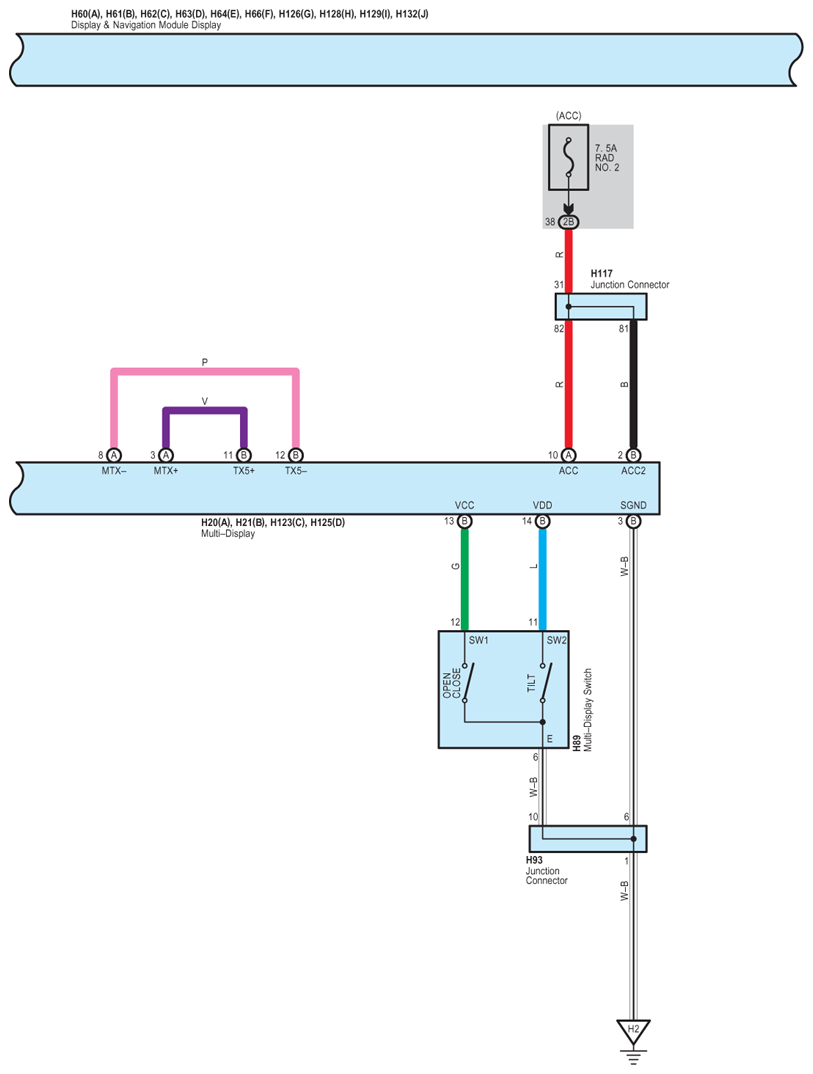

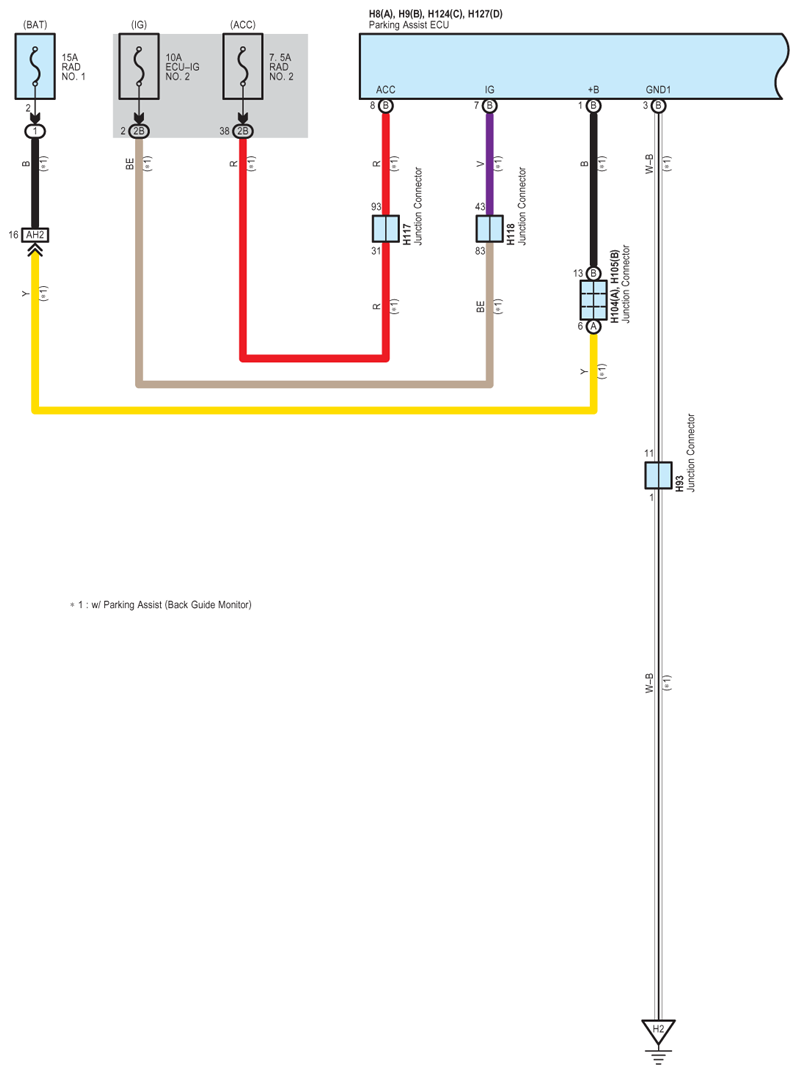

Fig 8: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (13 Of 19)

Fig 14: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (14 Of 19)

Fig 15: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (15 Of 19)

Fig 16: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (16 Of 19)

Fig 17: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (17 Of 19)

Fig 18: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (18 Of 19)

Fig 19: Audio System (W/ Lexus Navigation System) Lexus Navigation System And Parking Assist (Back Guide Monitor Or Rear View Monitor W/ Lexus Navigation System) - Wiring Diagram (19 Of 19)
