LEXUS ENFORM or Safety Connect: Notes

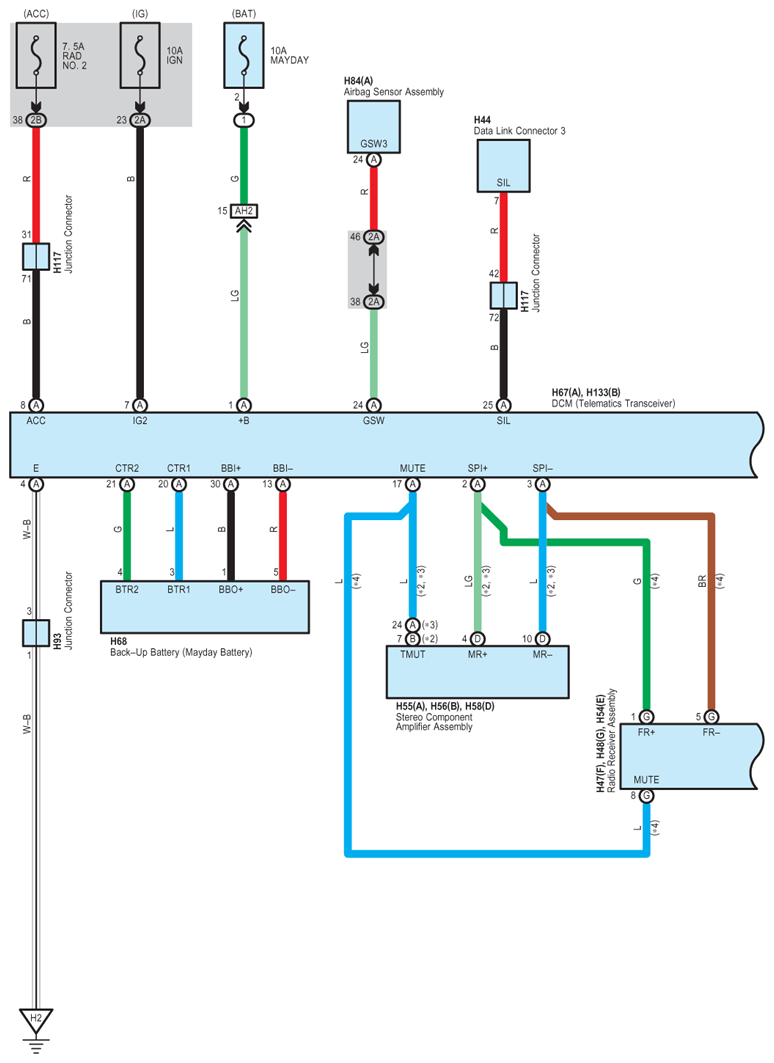

Fig 1: Lexus Enform Or Safety Connect - Wiring Diagram (1 Of 4)
G07777158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

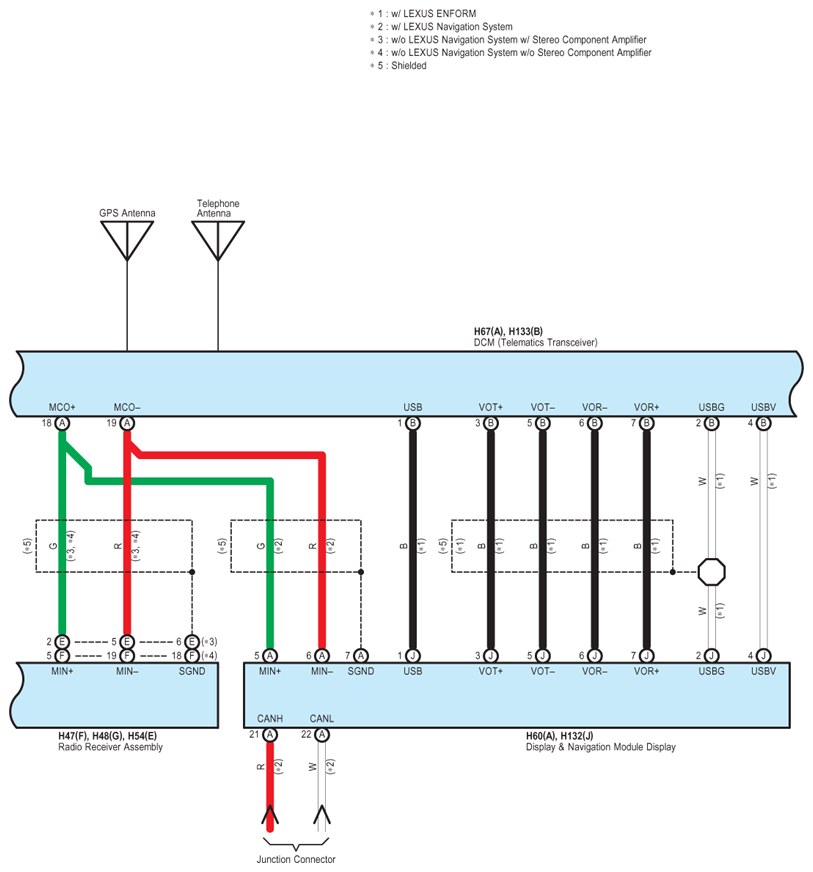

Fig 2: Lexus Enform Or Safety Connect - Wiring Diagram (2 Of 4)
G07777159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

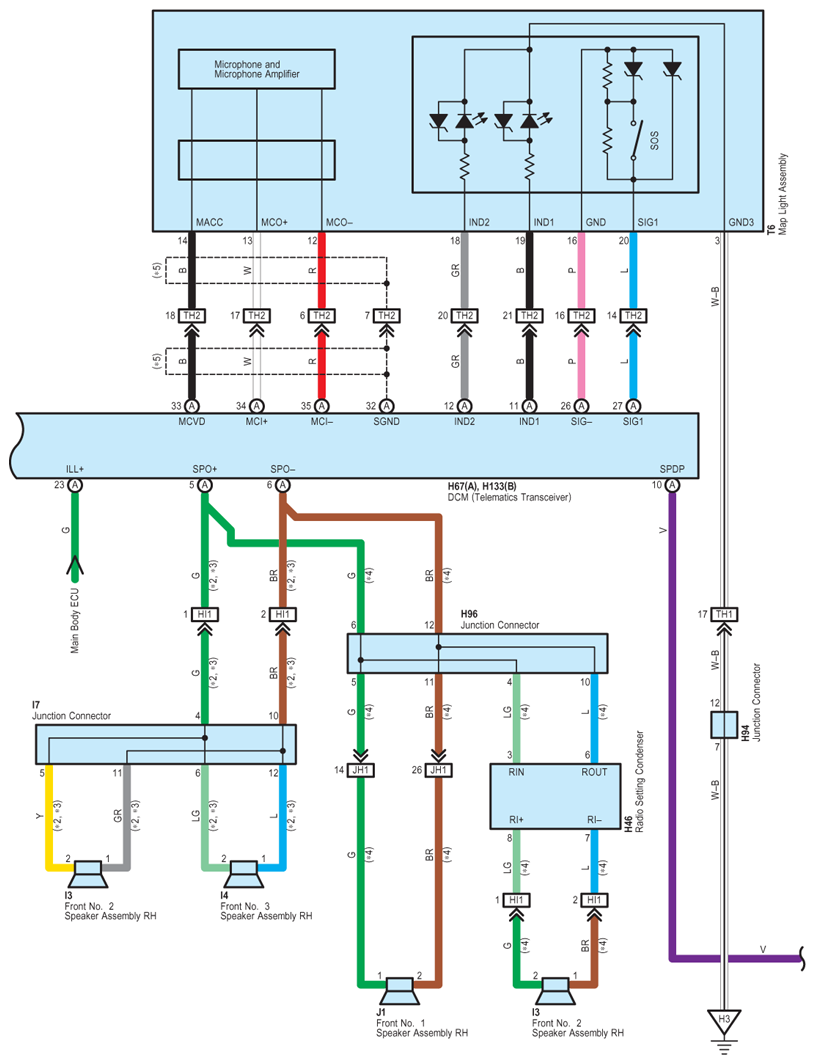

Fig 3: Lexus Enform Or Safety Connect - Wiring Diagram (3 Of 4)
G07777160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

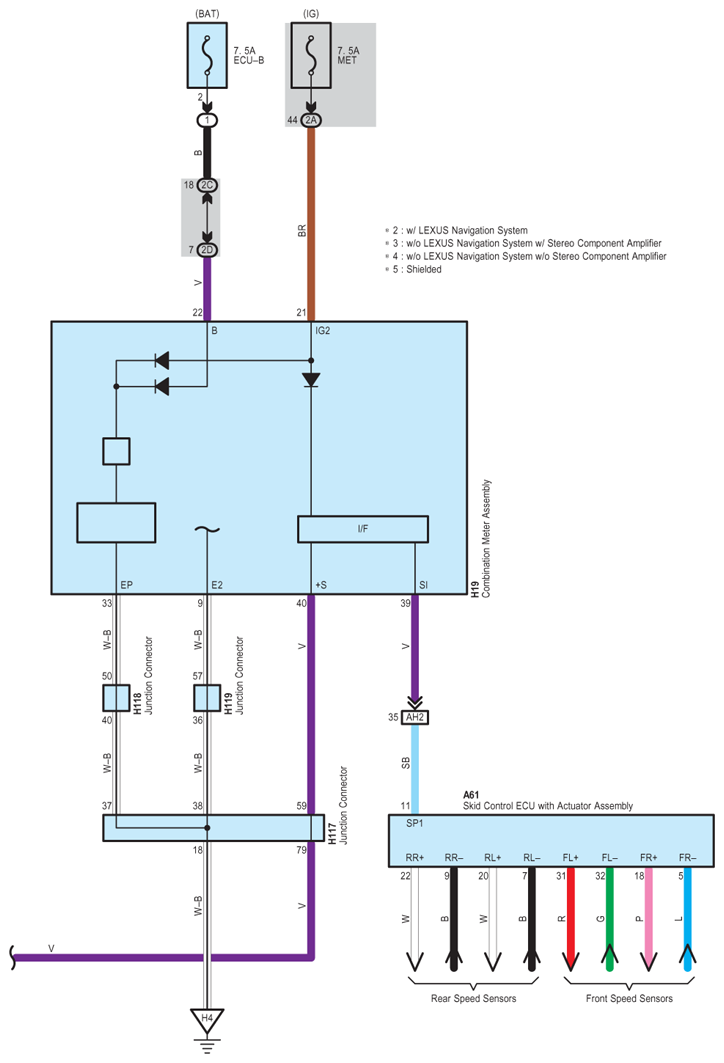

Fig 4: Lexus Enform Or Safety Connect - Wiring Diagram (4 Of 4)
G07777161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
