Fuel Pump: Reassembly: Reassembly

INSTALL FUEL PUMP

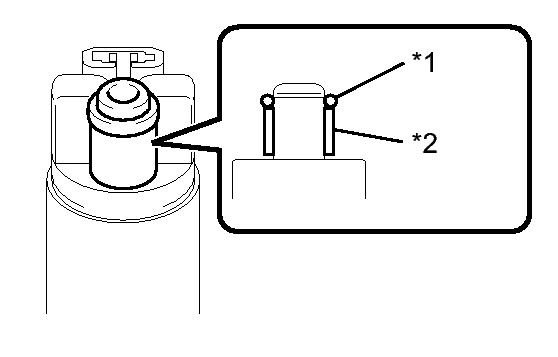

Apply gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump.

Fig 1: Identifying O-Ring And Spacer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	O-ring
*2	Spacer

Connect the fuel pump harness connector.

Fig 2: Identifying Fuel Pump Harness Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

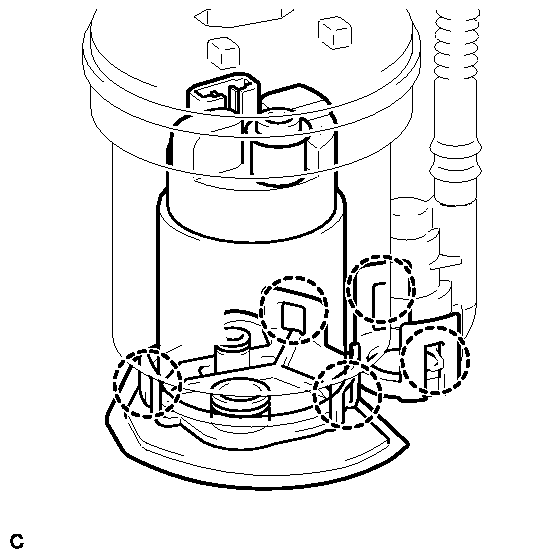

Engage the 5 claws of the fuel pump.

Fig 3: Identifying Fuel Pump Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Make sure that the O-ring is not cut or pinched during the installation.
- Engage the claws securely.
- Do not remove the suction filter.

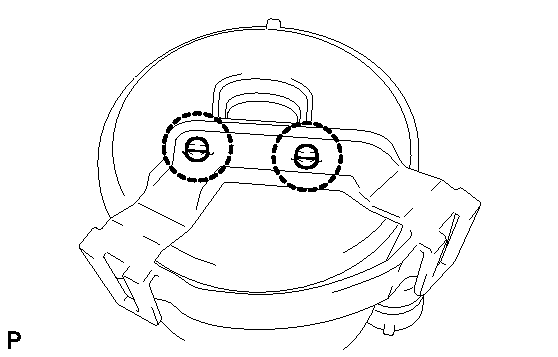

Engage the 2 claws of the No. 1 fuel suction support.

Fig 4: Identifying Claws Of No. 1 Fuel Suction Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

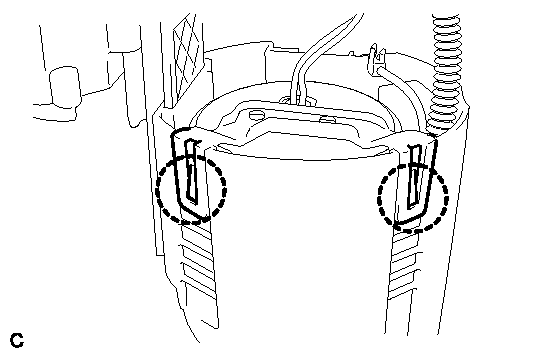

Engage the 2 claws of the fuel suction support and install the fuel filter and the fuel pump onto the fuel sub-tank.

Fig 5: Identifying Fuel Suction Support Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Align the groove of the fuel pump filter hose with the cutout of the fuel sub-tank and install the hose.

Fig 6: Identifying Fuel Pump Filter Hose Groove
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Do not apply excessive force to the fuel tube or the suction support.

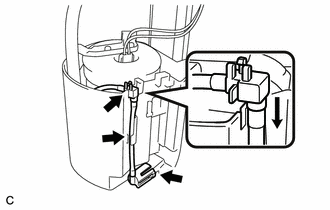

Connect the connector of the fuel pump harness.
