Parts Location: Illustration

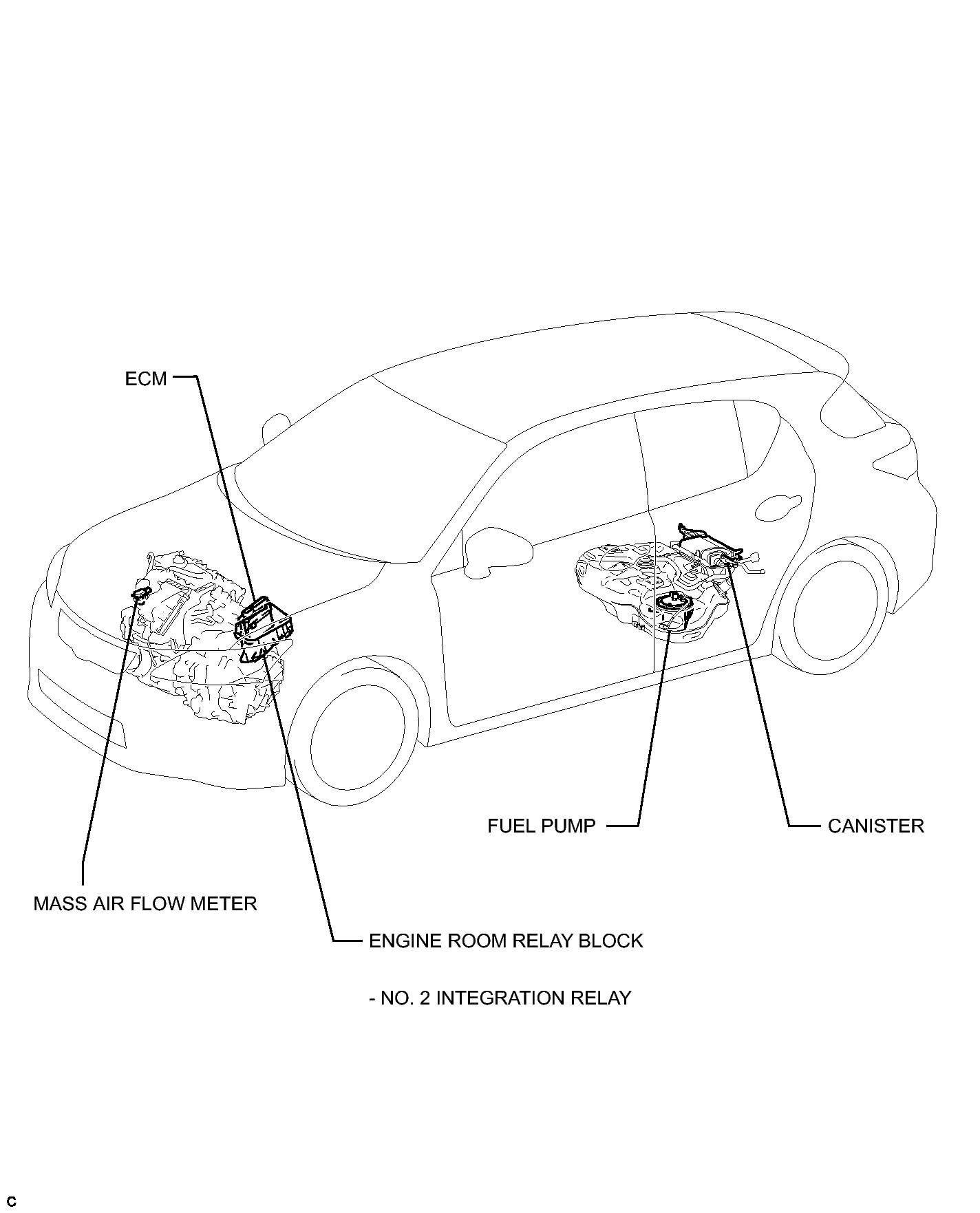

Fig 1: Engine Control System Components Location (1 Of 4)
GTY355763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

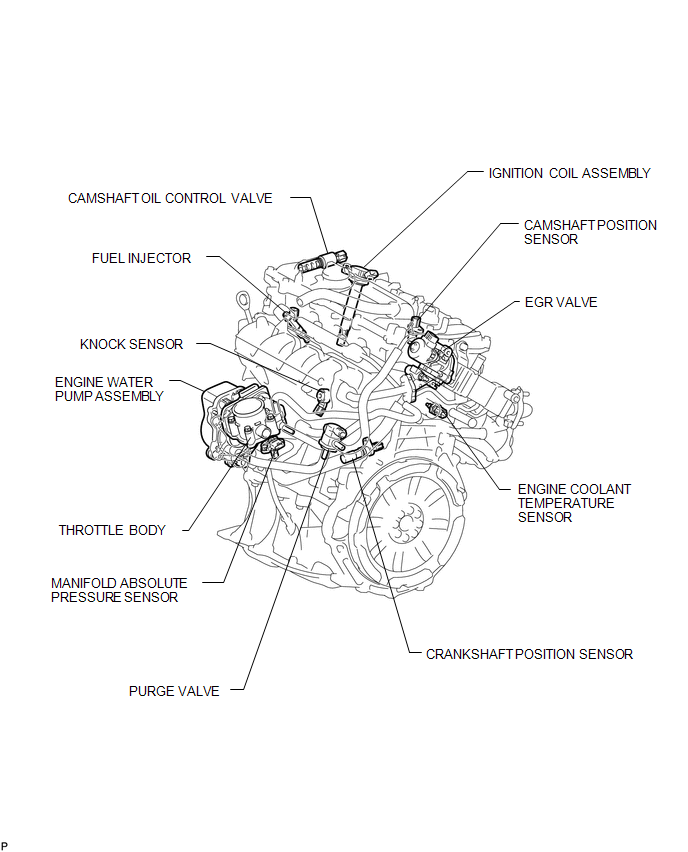

Fig 1: Engine Control System Components Location (2 Of 4)
GTY333081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

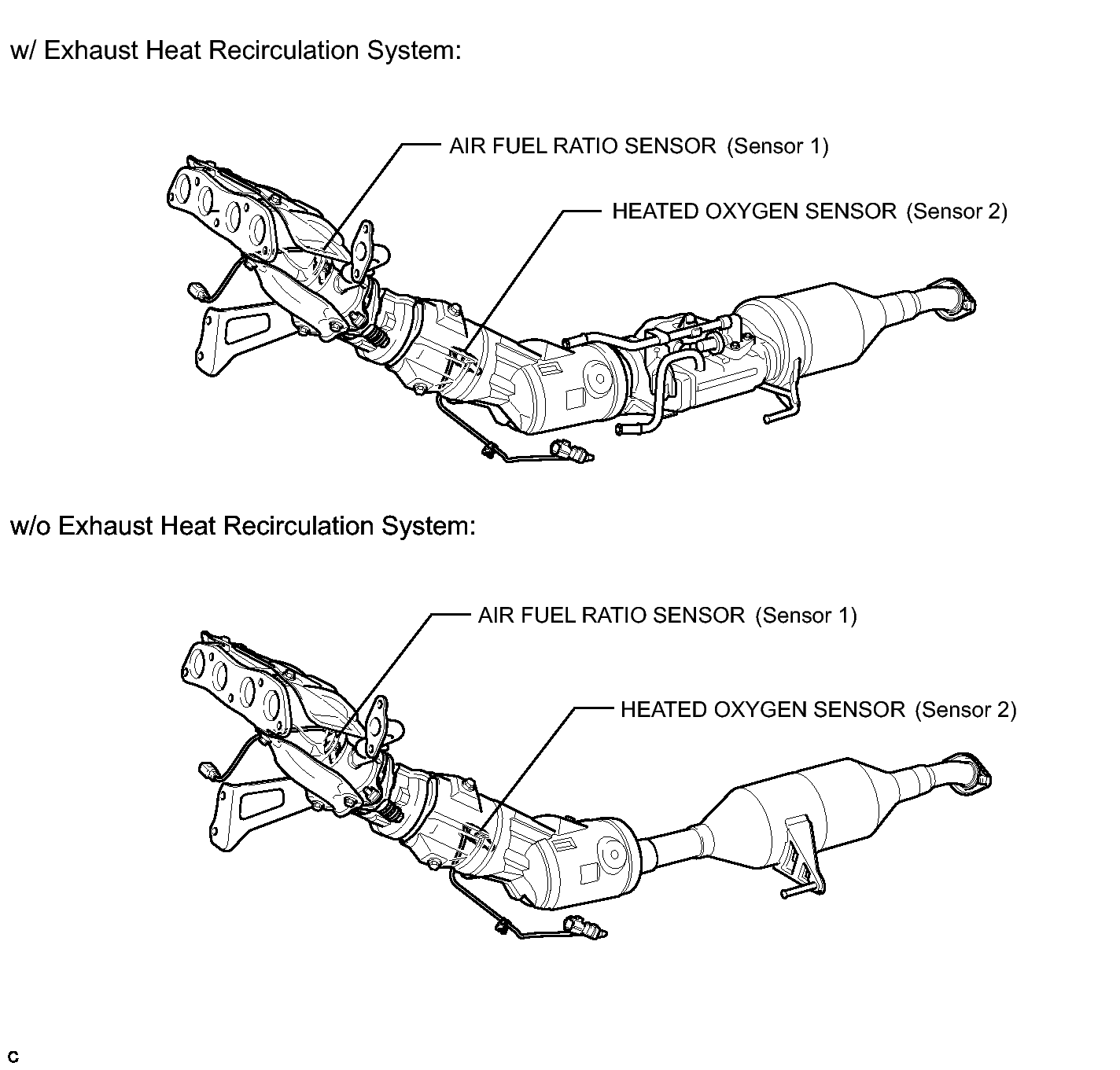

Fig 1: Engine Control System Components Location (3 Of 4)
GTY357004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

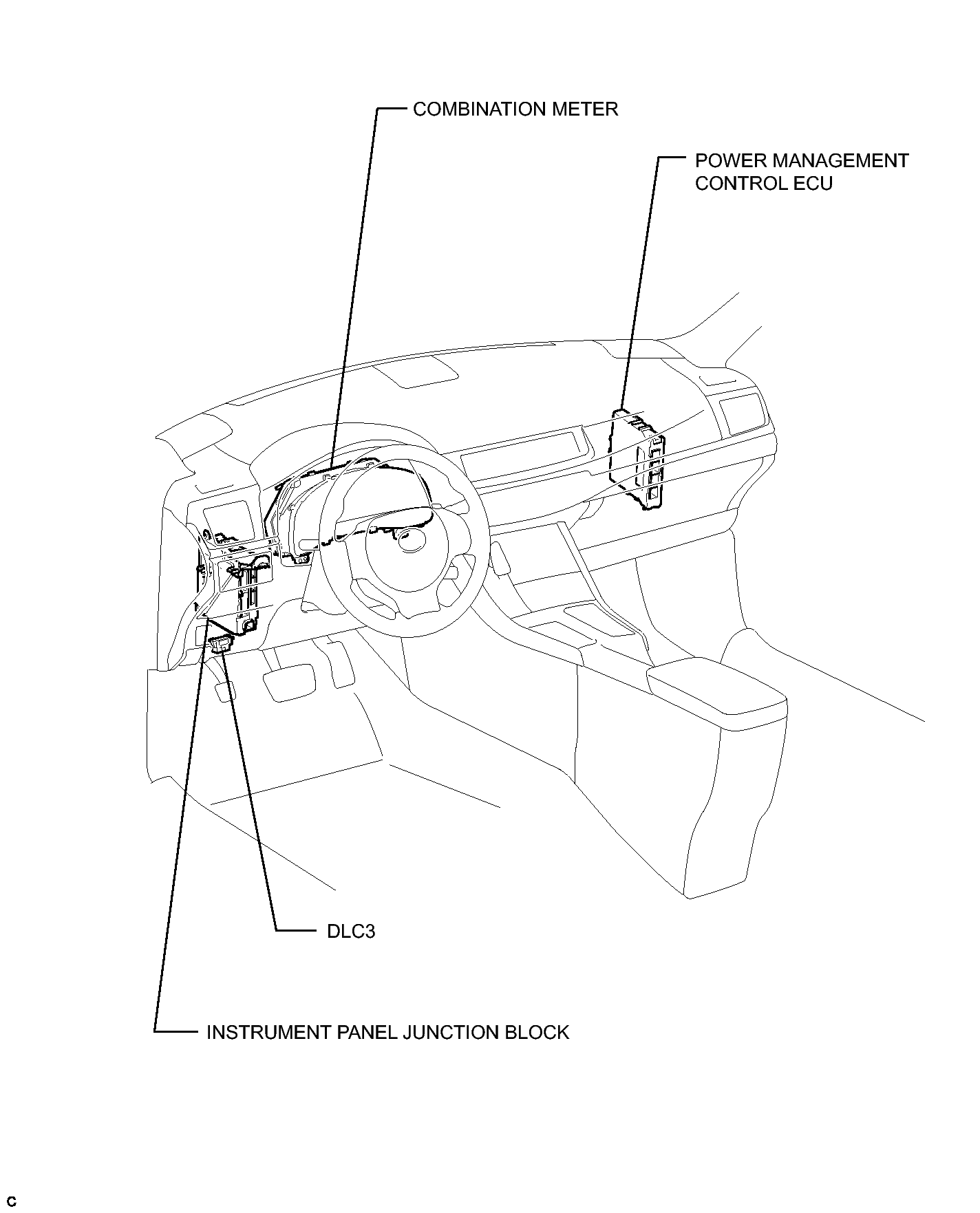

Fig 1: Engine Control System Components Location (4 Of 4)
GTY359388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
