Disassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLY

1. REMOVE HEATER CONTROL ORNAMENT LH

(a) Remove the 5 screws and heater control ornament LH.





2. REMOVE HEATER CONTROL ORNAMENT RH

(a) Remove the 5 screws and heater control ornament RH.





3. REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY

(a) Remove the 4 screws and disengage the 4 claws. Remove the heater control housing sub-assembly.





4. REMOVE CENTER CLUSTER MODULE CONTROL ASSEMBLY

NOTICE:
When disassembling the center cluster module control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

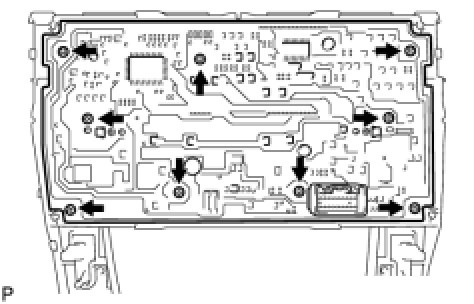

(a) Remove the 9 screws and center cluster module control assembly.





NOTICE:
Do not drop the switches or buttons.

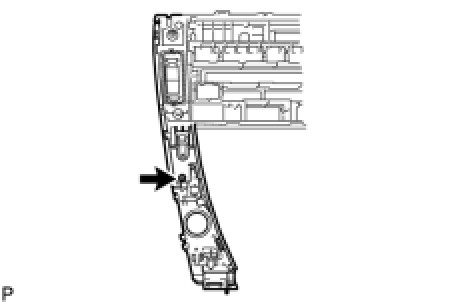

5. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY LH

(a) Remove the screw and air conditioning panel sub-assembly LH.

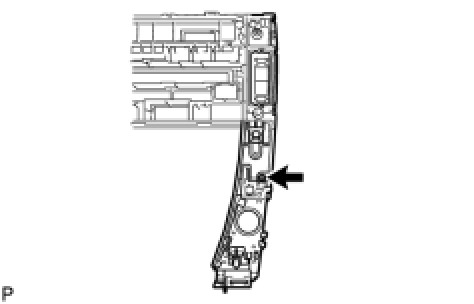

6. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY RH

(a) Remove the screw and air conditioning panel sub-assembly RH.
