Installation

2GR-FE ENGINE CONTROL SYSTEM: ECM: INSTALLATION

1. INSTALL ECM

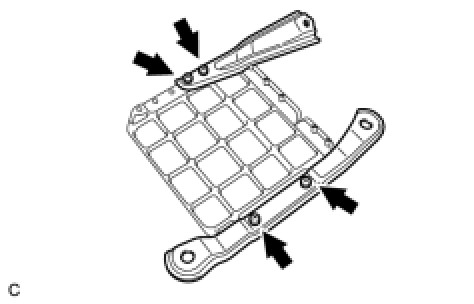

(a) Install the ECM bracket with the 4 screws.





Torque : 3.0 Nm (31 kgf-cm, 27 in-lbf)

(b) Connect the 2 ECM connectors.

NOTICE:
When connecting the connector, make sure that dirt, water and other foreign matter do not become stuck between the connector and other parts.

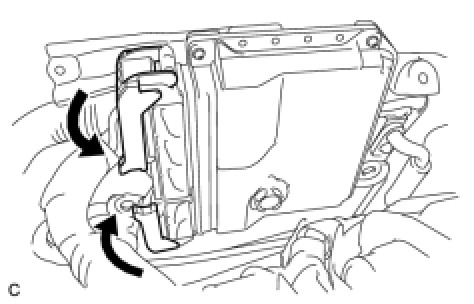

(1) Connect the 2 ECM connectors and lower the 2 levers.





NOTICE:
Make sure that the 2 levers are securely lowered.

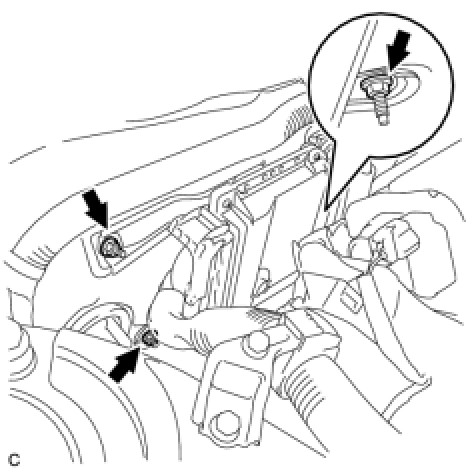

(c) Install the ECM with the 3 nuts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

2. INSTALL FRONT SUSPENSION UPPER CENTER BRACE Installation

3. INSTALL ENGINE ROOM SIDE COVER LH Installation

4. INSTALL ENGINE ROOM SIDE COVER RH Installation

5. INSTALL COOL AIR INTAKE DUCT SEAL Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
