Circuit Opening Relay





2GR-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY: INSPECTION

1. INSPECT CIRCUIT OPENING RELAY

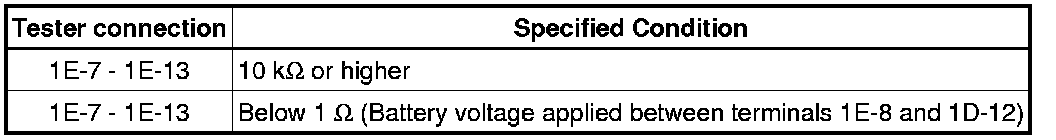

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.





Standard resistance:
