Emission Control Systems: Locations

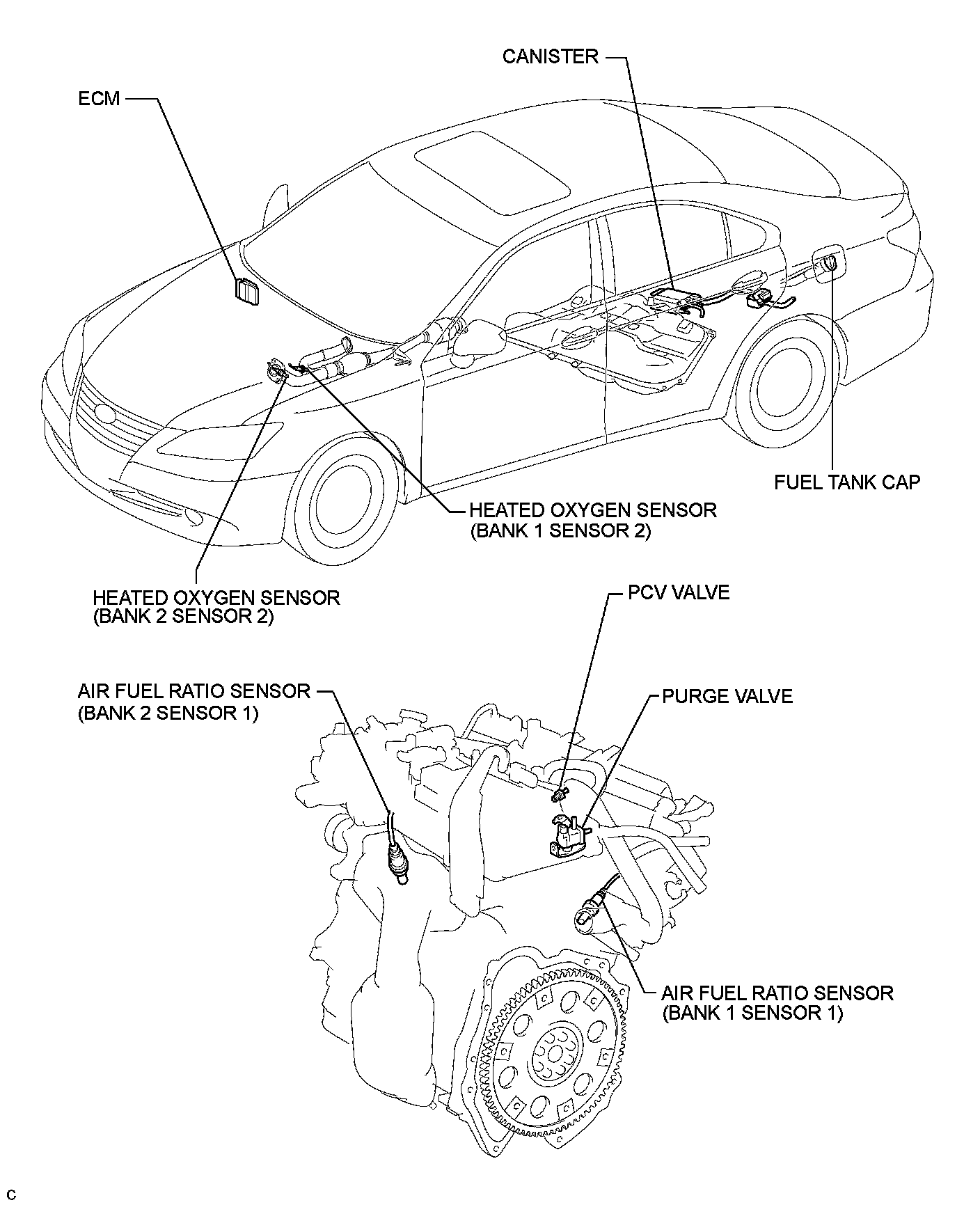

2GR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
