Alignment

WHEEL ALIGNMENT SPECIFICATIONS





Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower suspension arm No. 2 bushing set bolt head center

G: Ground clearance of rear wheel center

D: Ground clearance of strut rod set bolt center

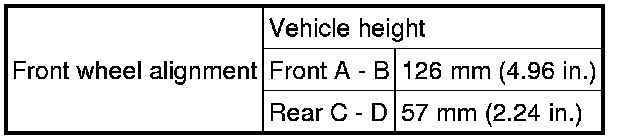

Vehicle Height:

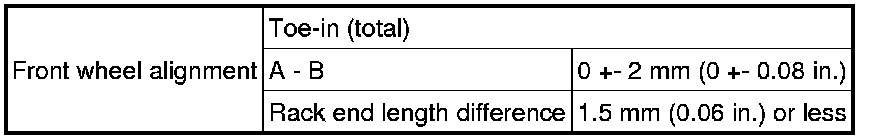

Toe-in (total):

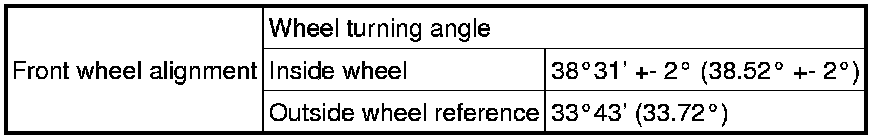

Wheel Turning Angle:

Camber:

Caster:

Steering Axis Inclination:

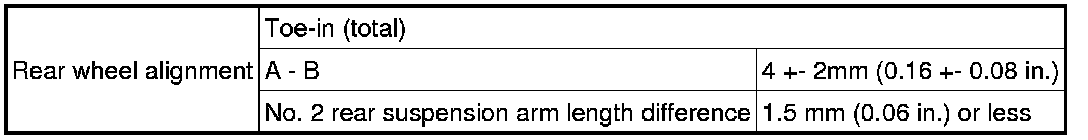

Rear Toe-in (Total):

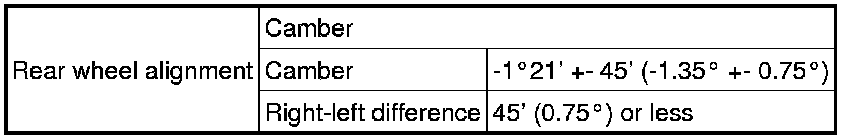

Rear Wheel Camber:
