Intake Manifold

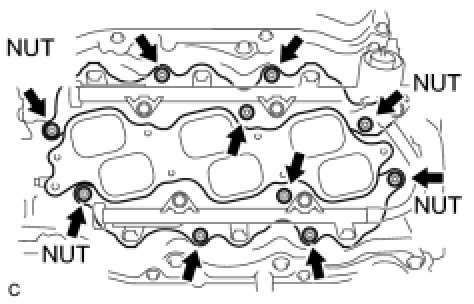

Intake manifold 21 Nm (214 kgf-cm, 15 ft lb)

Tighten the 6 bolts and 4 nuts uniformly in several steps

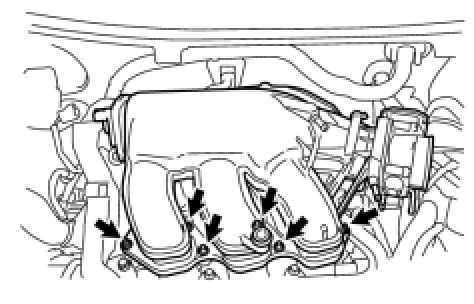

Intake air surge tank





Bolt 18 Nm (184 kgf-cm, 13 ft lb)
Nut 16 Nm (163 kgf-cm, 12 ft lb)
