Adaptive Front-Lighting System: Notes

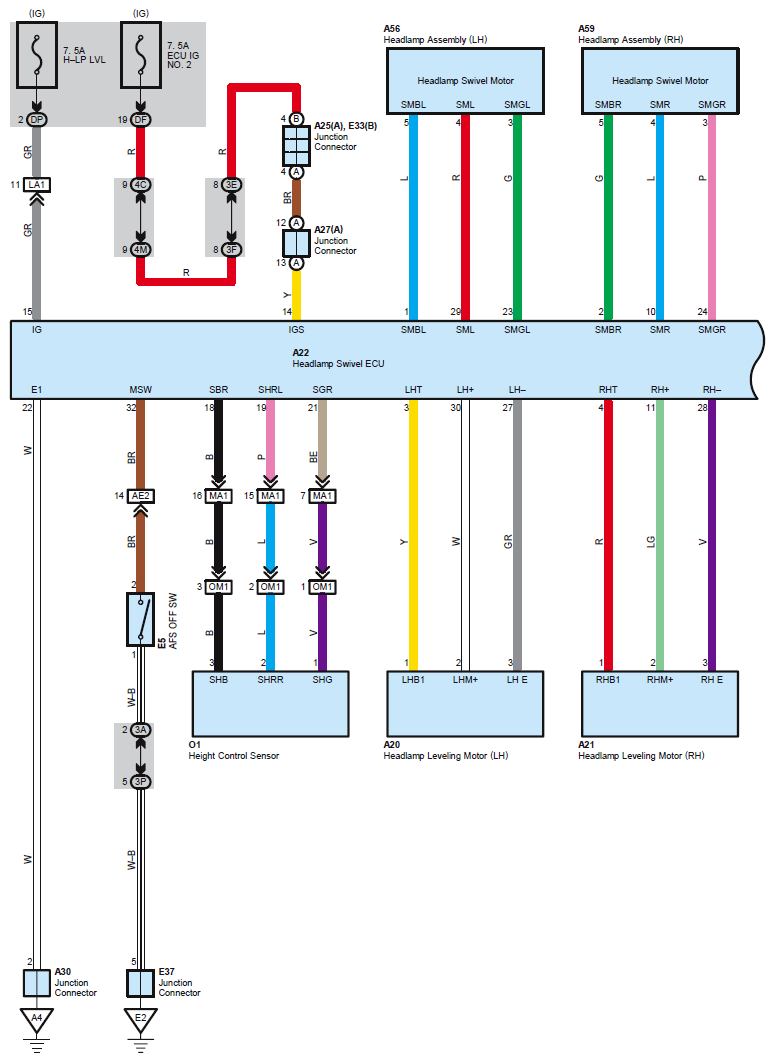

Fig 1: Adaptive Front-Lighting System - Circuit Diagram (1 Of 4)
G07569610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

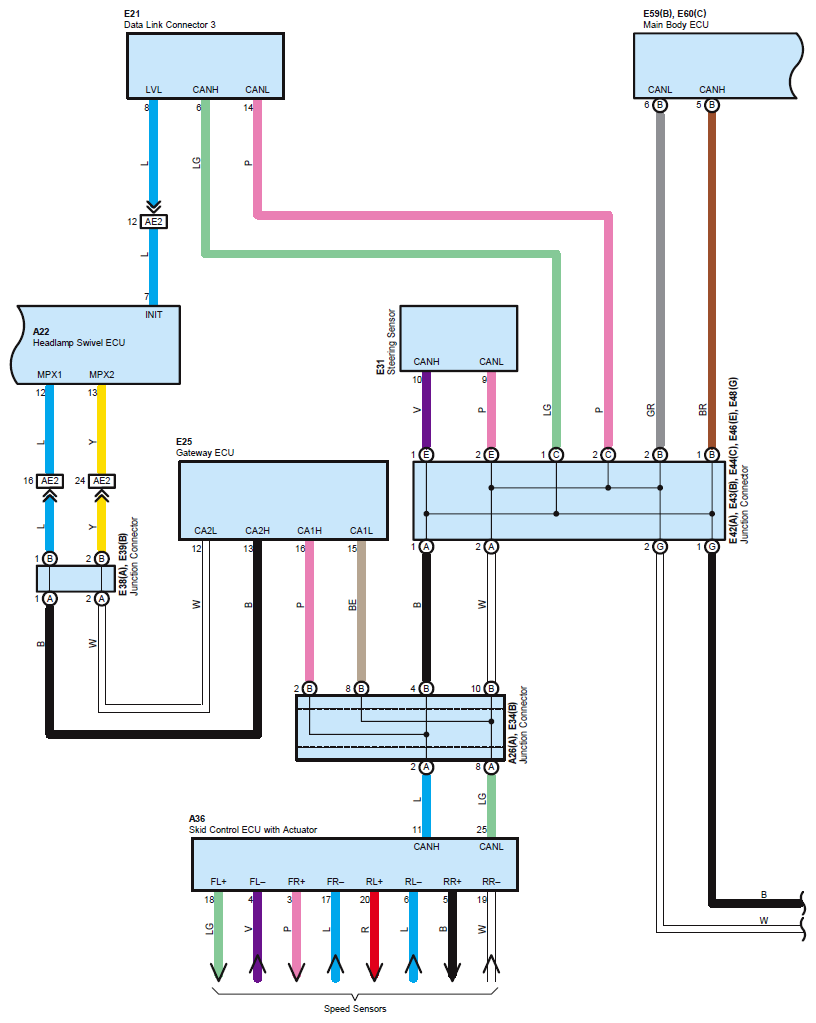

Fig 2: Adaptive Front-Lighting System - Circuit Diagram (2 Of 4)
G07569611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

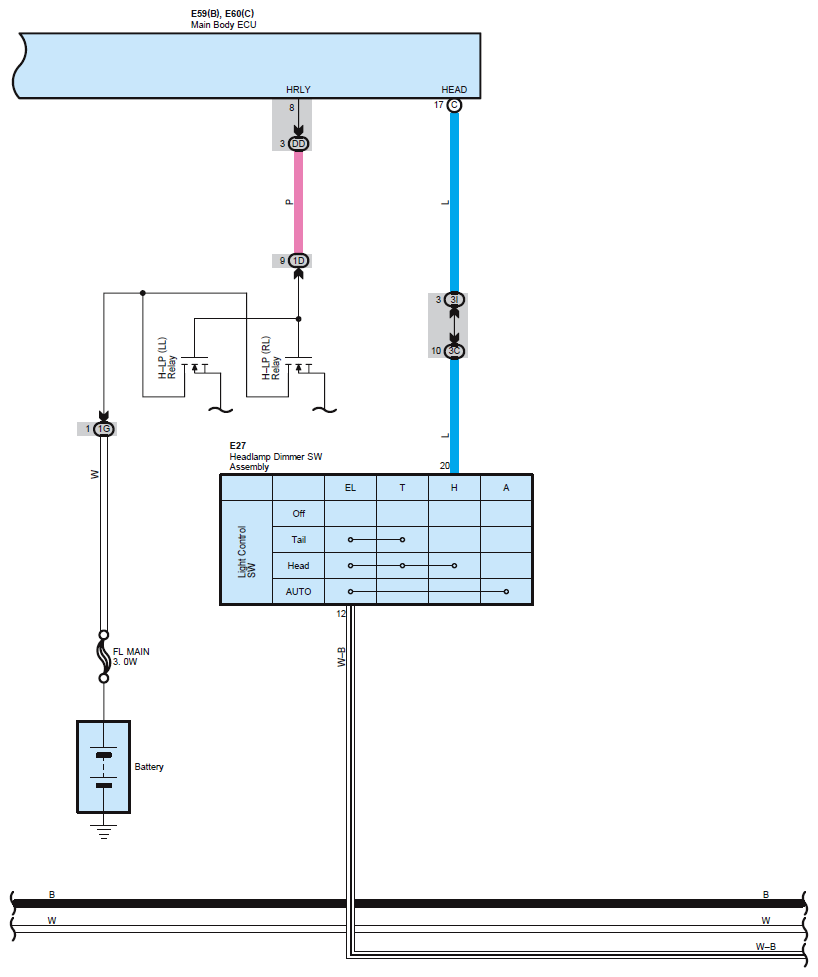

Fig 3: Adaptive Front-Lighting System - Circuit Diagram (3 Of 4)
G07569612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

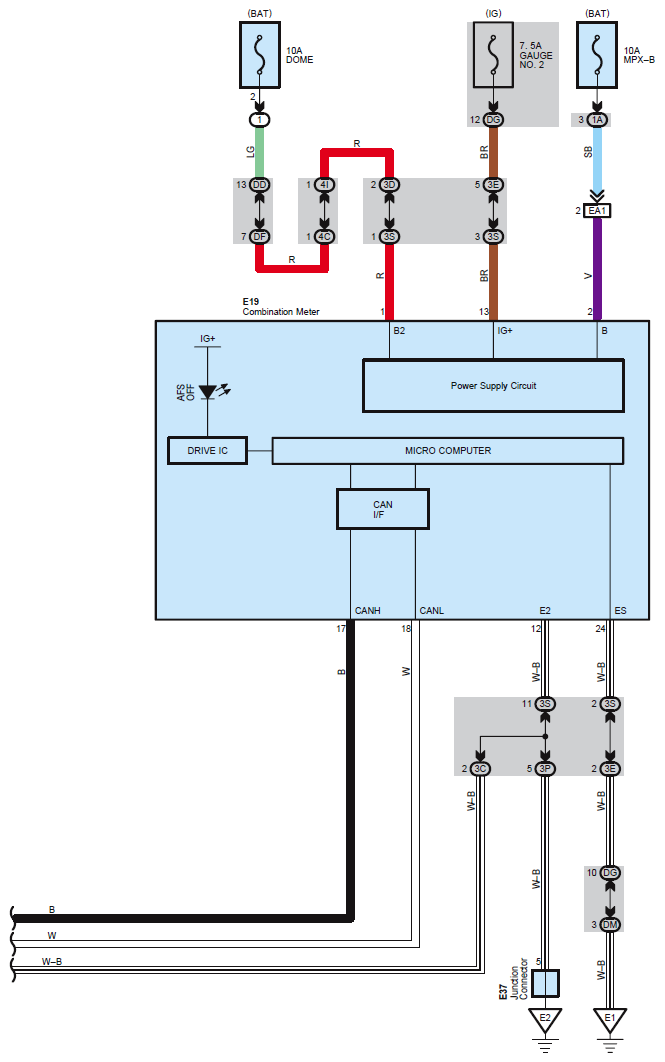

Fig 4: Adaptive Front-Lighting System - Circuit Diagram (4 Of 4)
G07569613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
