Pre-Collision System: Notes

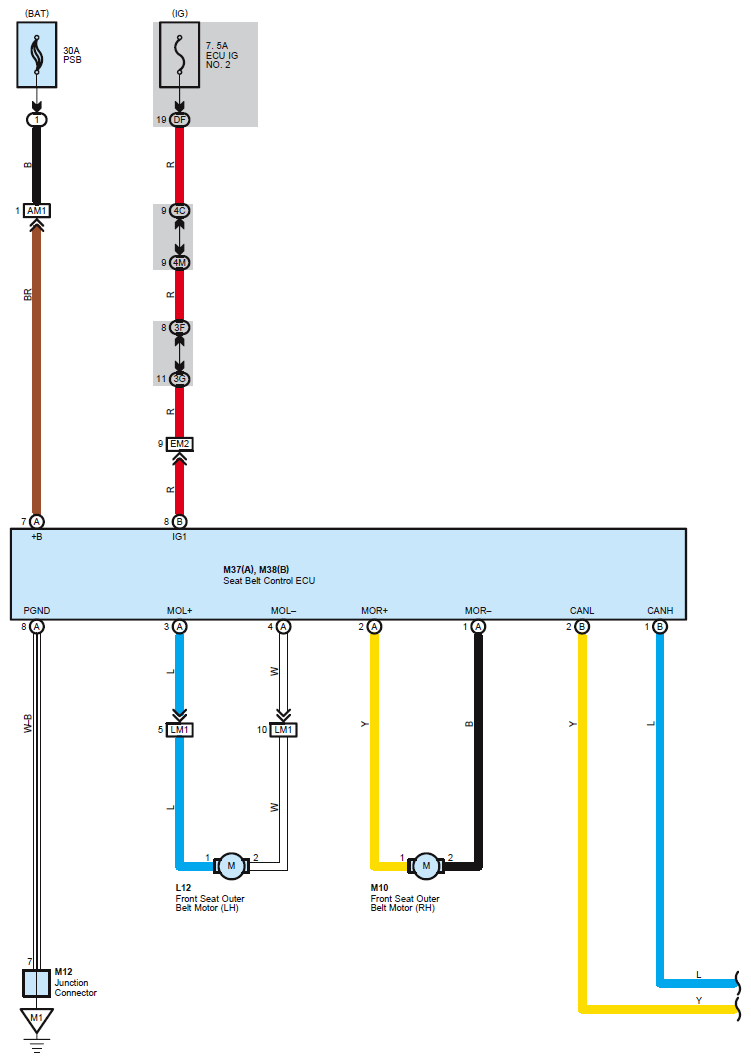

Fig 1: Pre-Collision System - Circuit Diagram (1 Of 4)
G07569683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

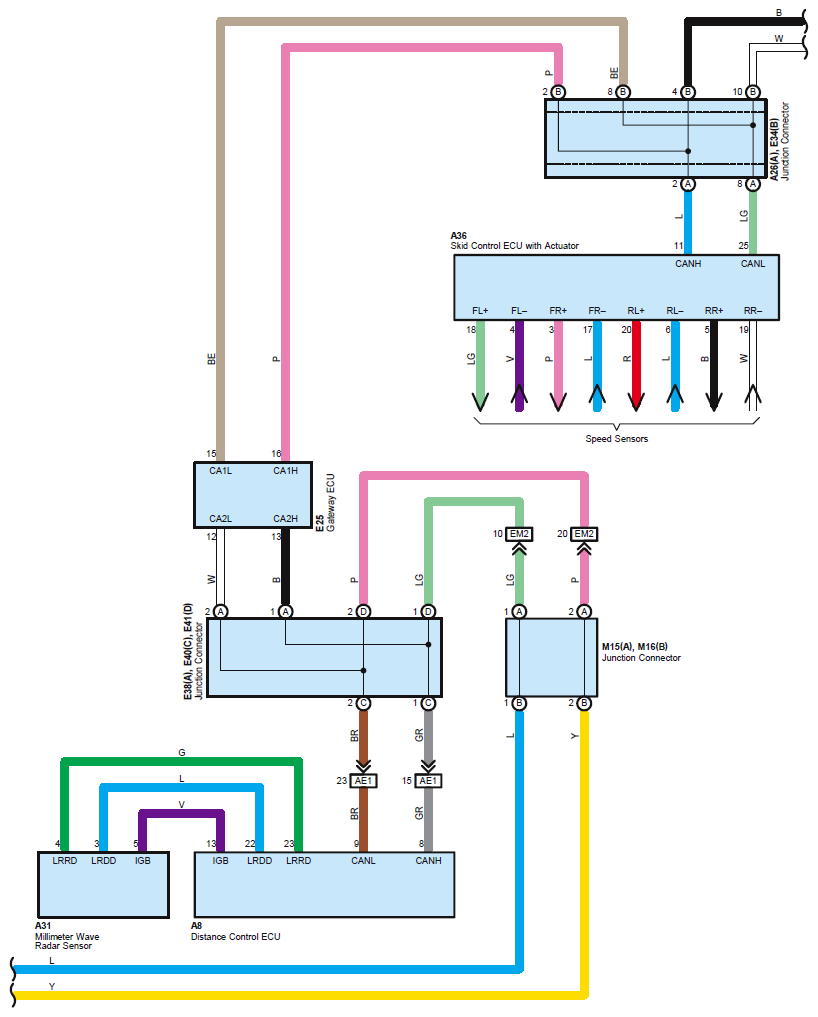

Fig 2: Pre-Collision System - Circuit Diagram (2 Of 4)
G07569684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

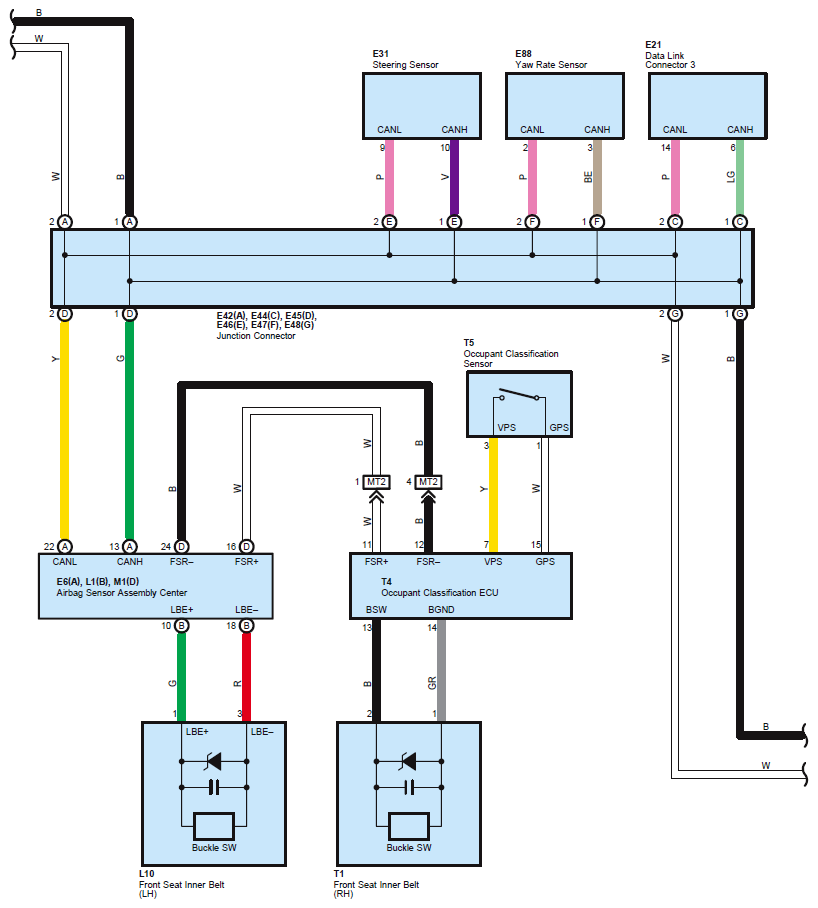

Fig 3: Pre-Collision System - Circuit Diagram (3 Of 4)
G07569685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

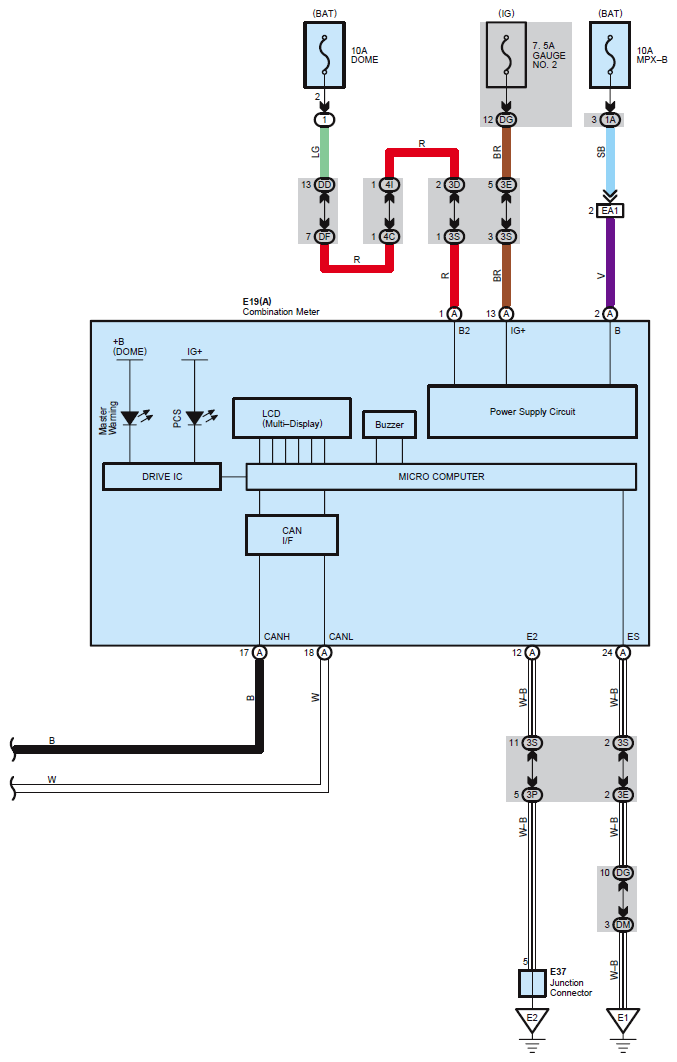

Fig 4: Pre-Collision System - Circuit Diagram (4 Of 4)
G07569686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
