Remote Control Mirror: Notes

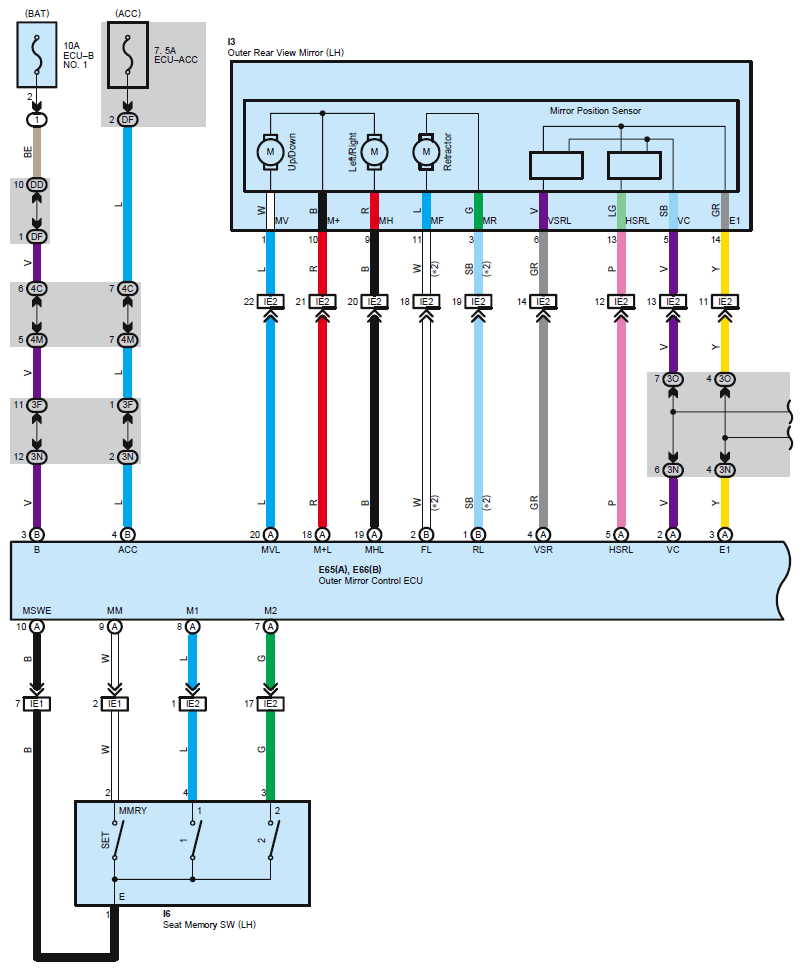

Fig 1: Remote Control Mirror - Circuit Diagram (1 Of 6)
G07569723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Remote Control Mirror - Circuit Diagram (2 Of 6)
G07569724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

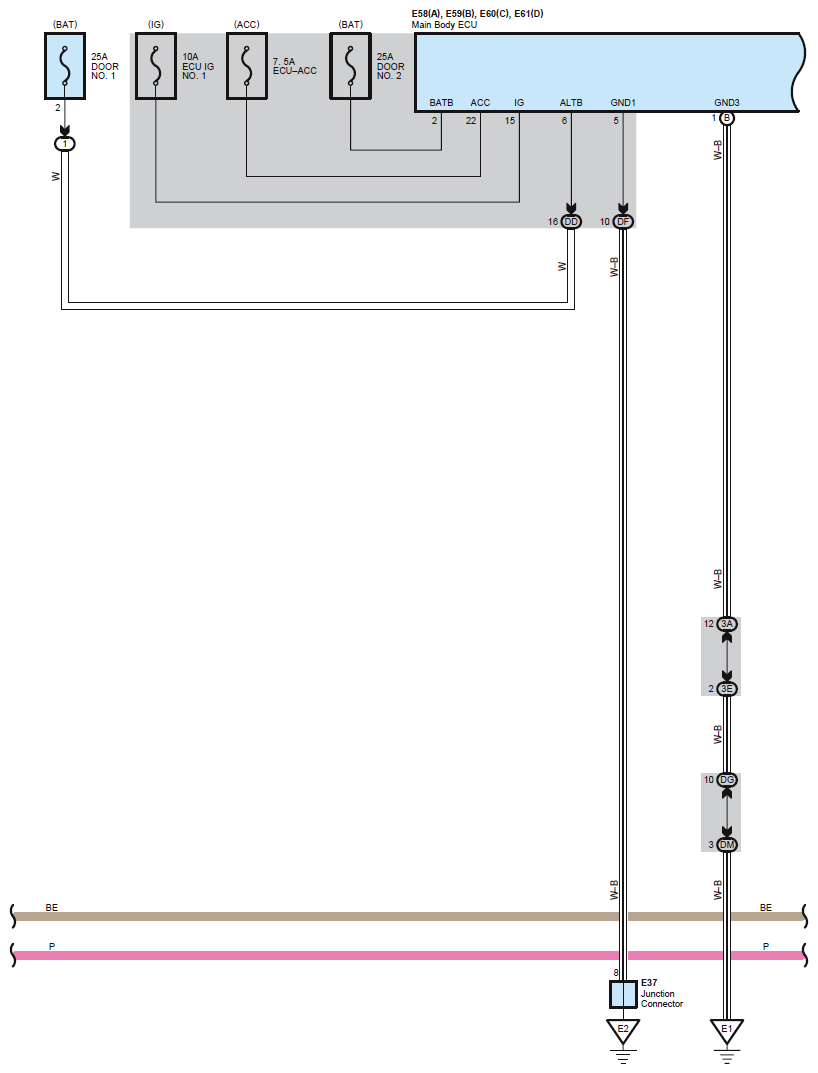

Fig 3: Remote Control Mirror - Circuit Diagram (3 Of 6)
G07569725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

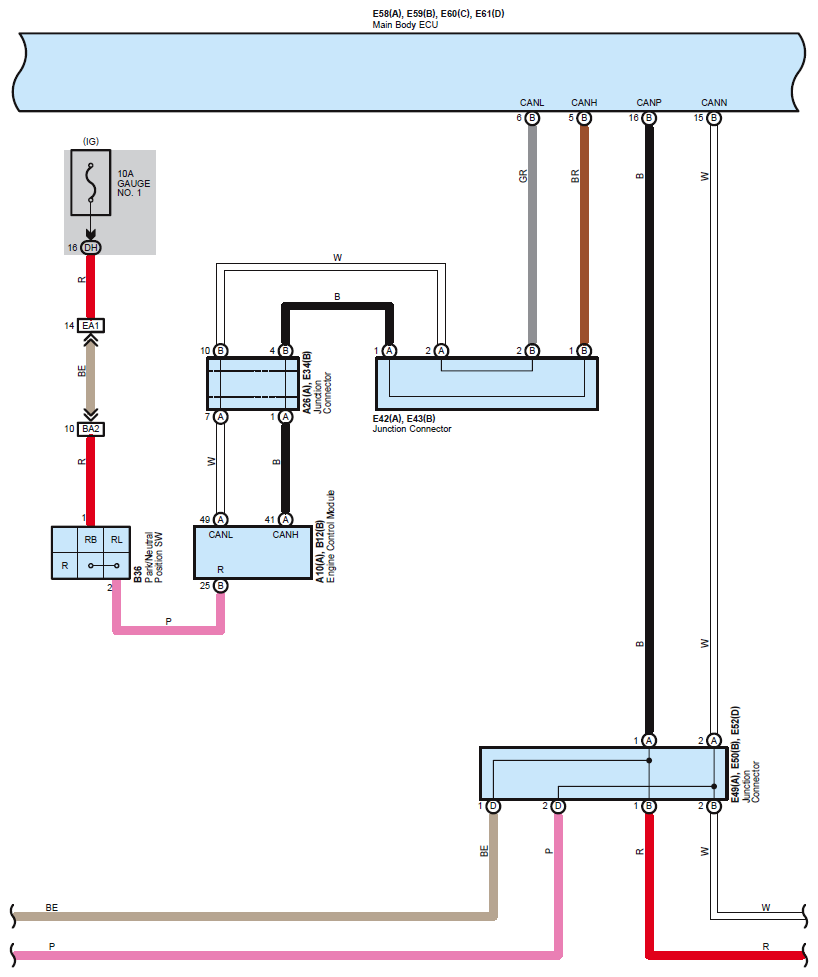

Fig 4: Remote Control Mirror - Circuit Diagram (4 Of 6)
G07569726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

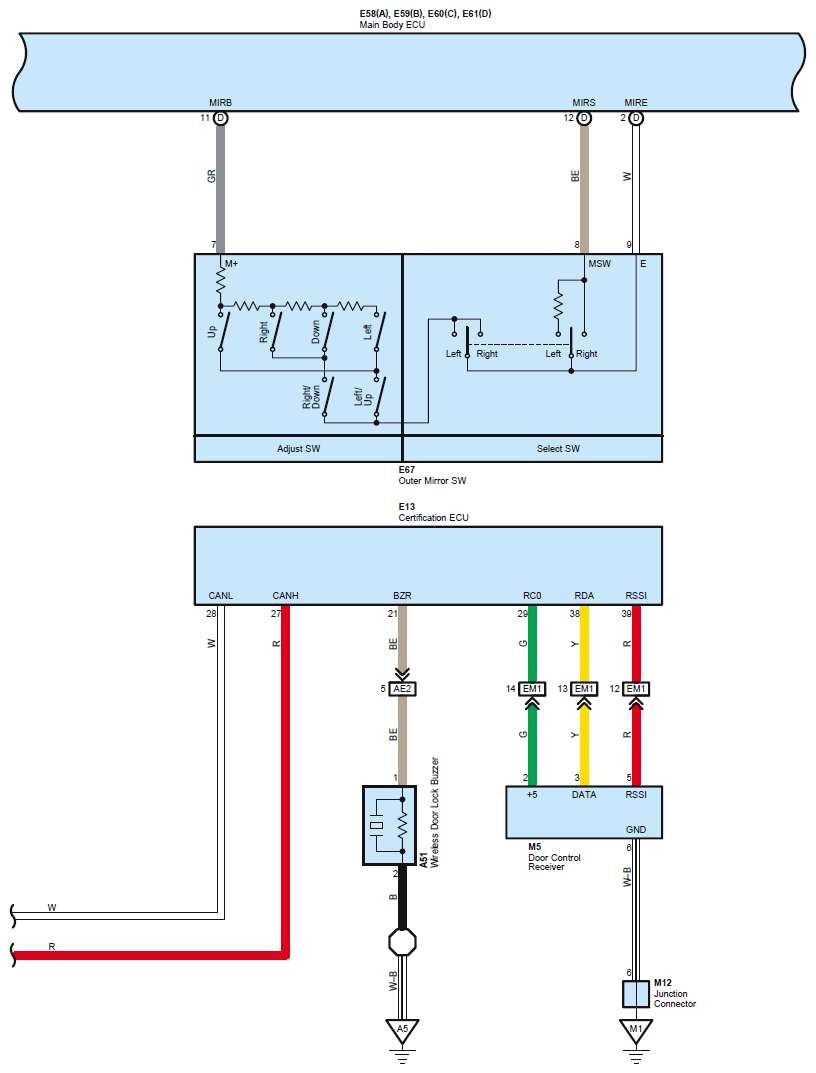

Fig 5: Remote Control Mirror - Circuit Diagram (5 Of 6)
G07569727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

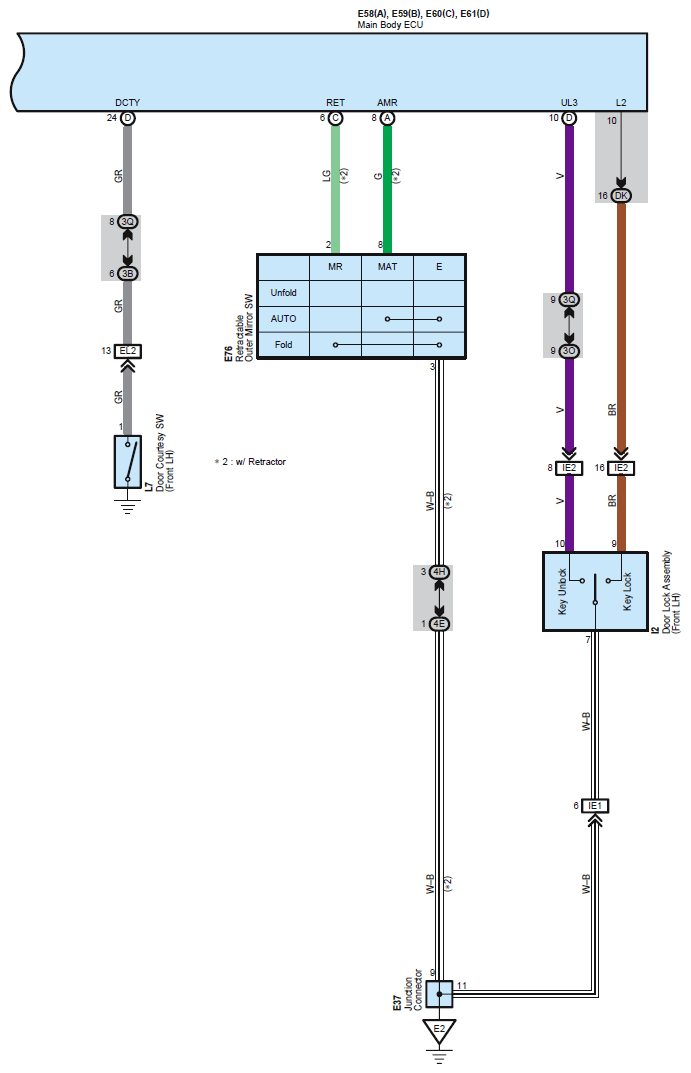

Fig 6: Remote Control Mirror - Circuit Diagram (6 Of 6)
G07569728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
