Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown.

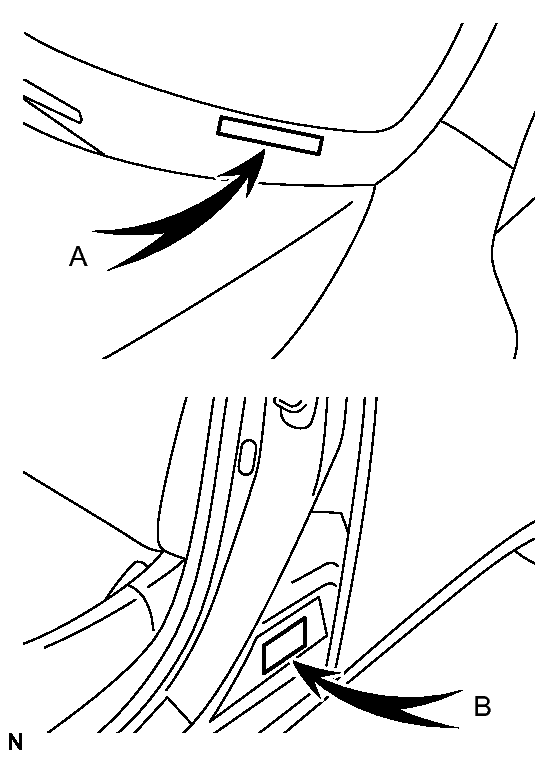

  Fig 1: Identifying Vehicle Identification Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown.

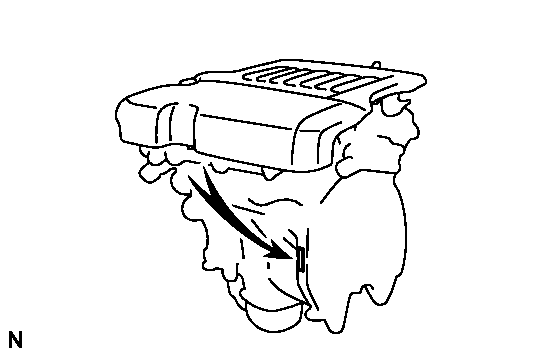

  Fig 2: Identifying Engine Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The transaxle serial number is stamped on the case as shown.

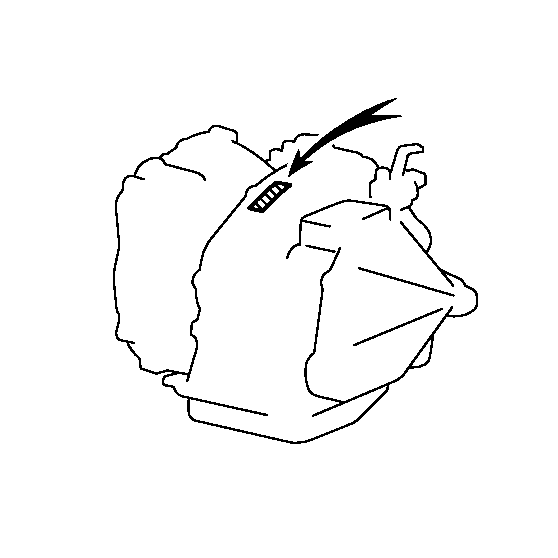

  Fig 3: Identifying Transaxle Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
