Transmission Control Cable Assembly: Installation: Installation

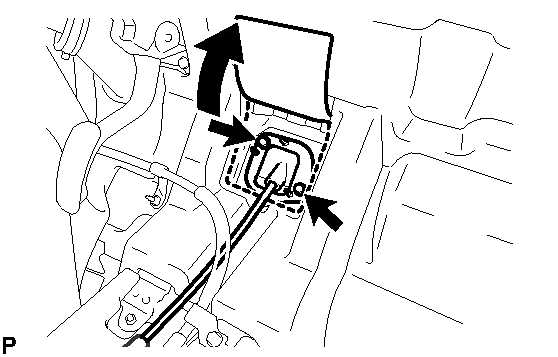

1. Pass the control cable from the cabin to the engine compartment.
2. Install the No. 2 shift cable grommet retainer with the 2 bolts.
   Fig 1: Identifying No. 2 Shift Cable Grommet Retainer Bolts Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

1. Move the shift lever to N.
2. Install the transmission control cable assembly as shown.
   Fig 2: Identifying Transmission Control Cable Assembly And Floor Shift Cable Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Install the floor shift cable with the uneven surface facing up.
   • Securely engage the claws of the floor shift cable.

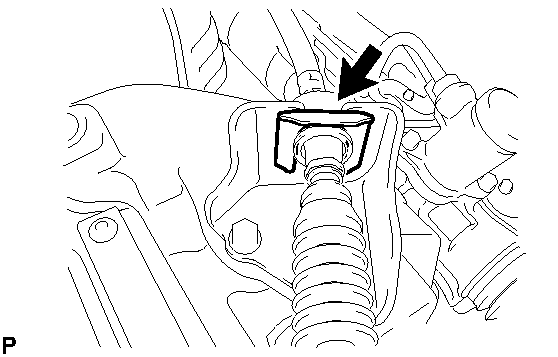

3. Connect the control cable to the bracket with a new clip.
   Fig 3: Identifying Transmission Cable Bracket And Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable to the control shaft lever with the nut.
   Fig 4: Identifying Transmission Control Cable And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

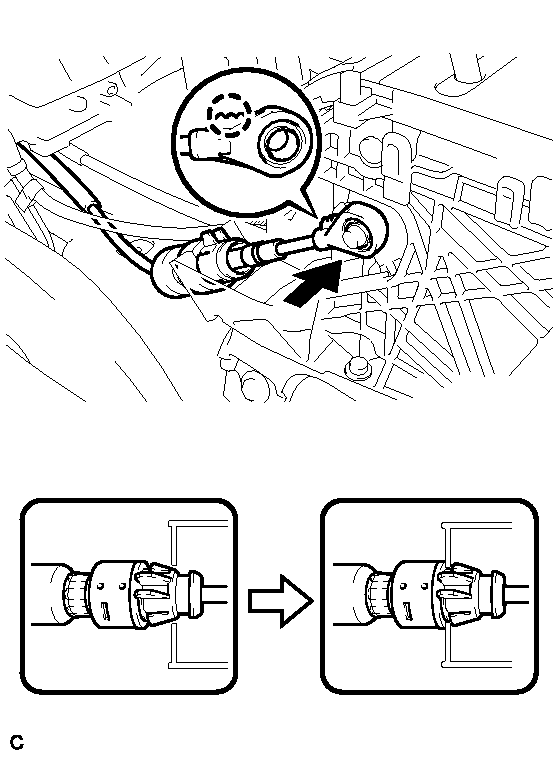

5. Push in the lock piece of the transmission control cable.
   Fig 5: Pushing In Lock Piece Of Transmission Control Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

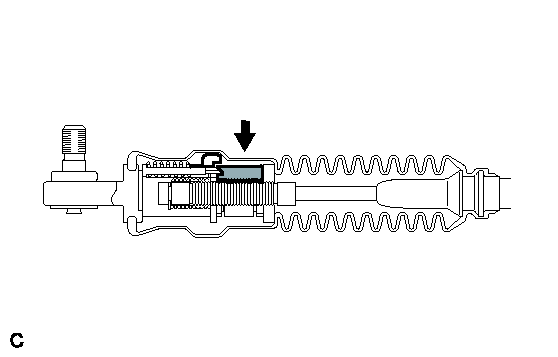

   NOTE: Firmly push in the lock piece until the slider lock is engaged.

   HINT:

   After pushing in the lock piece, make sure that the boot is not deformed.

HINT:

Refer to INSTALLATION
