Back Window Glass: Installation: Installation

  1. INSTALL NO. 2 BACK WINDOW GLASS STOPPER
    1. Using a brush or sponge, coat the application area of the No. 2 stoppers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new No. 2 stoppers onto the back window glass, as shown.

      HINT:

      Only 2-piece type No. 2 stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

      Standard dimension

      Area Dimension
      A 15.5 mm (0.610 in.)

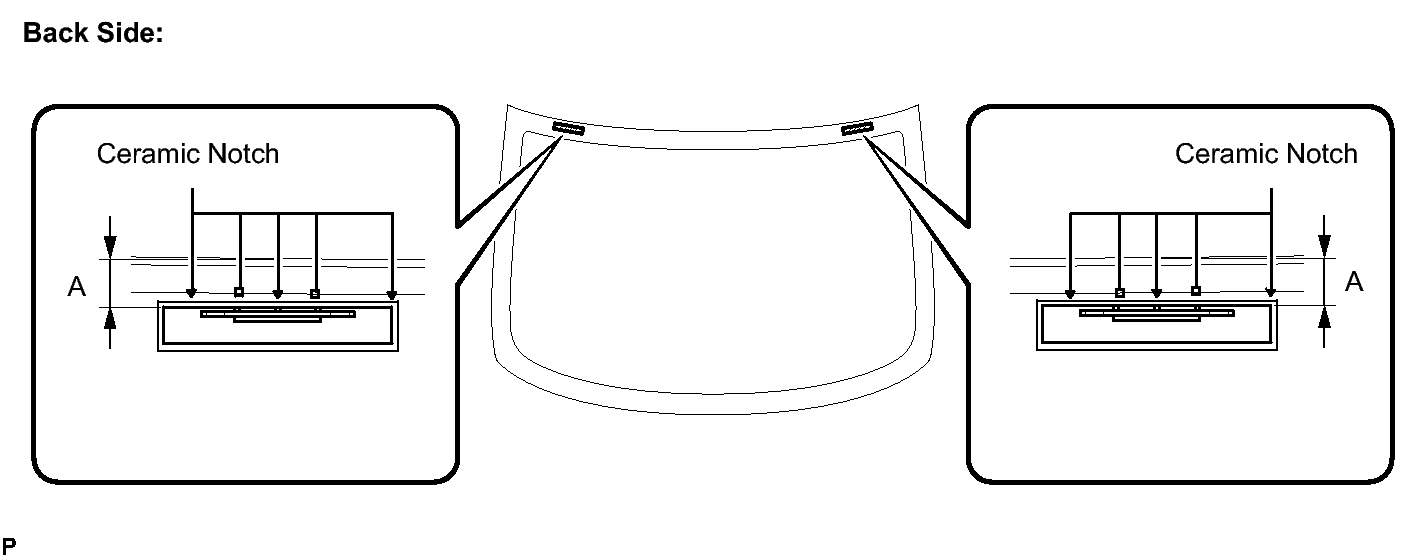

      Fig 1: Identifying 2-Piece Type No. 2 Stoppers
      GTY118329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 BACK WINDOW GLASS STOPPER
    1. Install 2 new No. 1 stoppers to the vehicle body as shown.

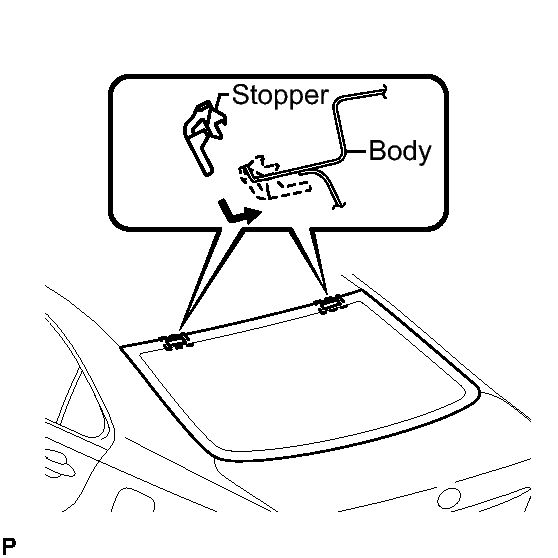

      Fig 2: Identifying 2-Piece Type No. 1 Stoppers
      GTY128567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Only 2-piece type No. 1 stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

  3. INSTALL BACK WINDOW MOLDING
    1. Using a brush or sponge, coat the application area of molding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new molding onto the back window glass as shown.

      Standard dimension

      Area Dimension
      A 6.4 mm (0.252 in.)

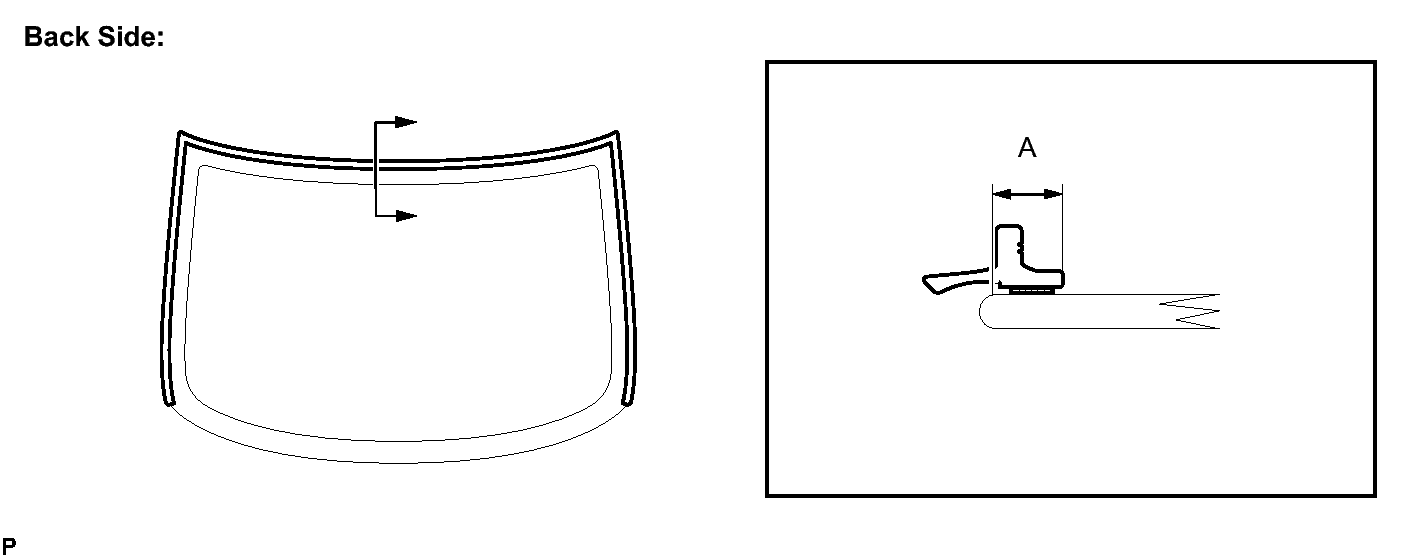

      Fig 3: Identifying Molding Onto Back Window Glass
      GTY118330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WINDSHIELD GLASS ADHESIVE DAM
    1. Using a brush or sponge, coat the application area of adhesive dam with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new adhesive dam onto the windshield glass as shown.

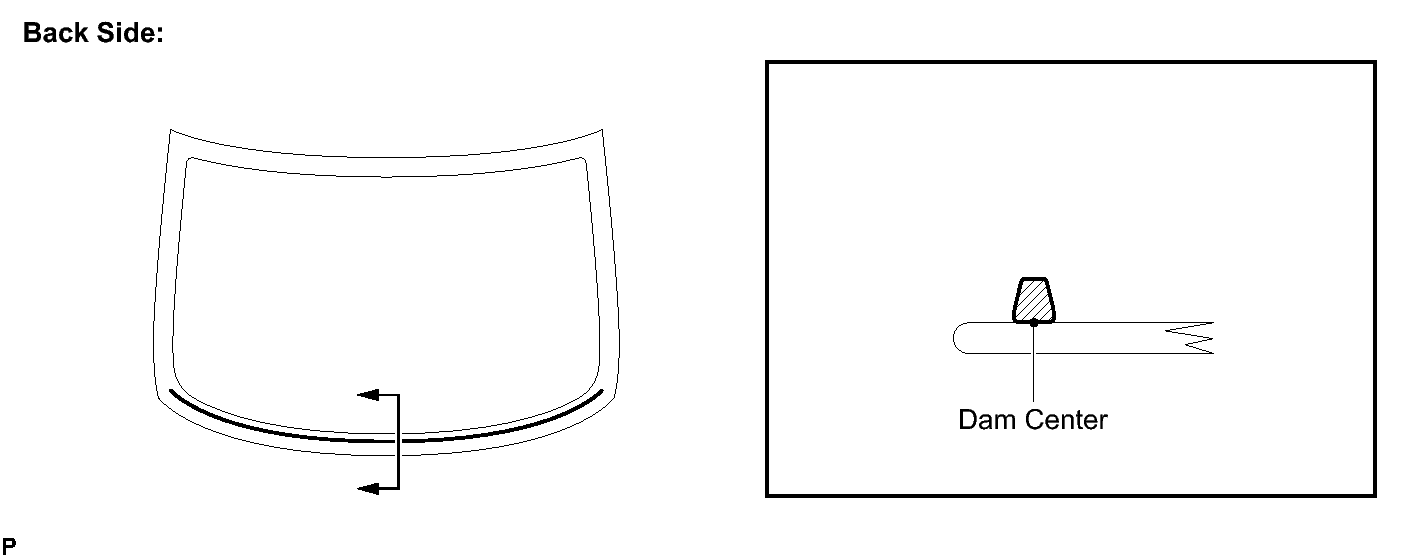

      Fig 4: Identifying Adhesive Dam Onto Windshield Glass
      GTY131446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BACK WINDOW GLASS ASSEMBLY
    1. Position the back window glass assembly.

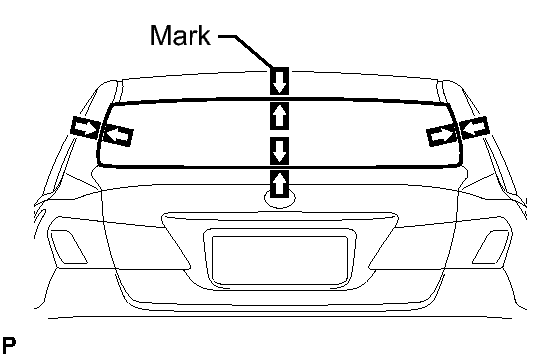

      Fig 5: Identifying Alignment Matchmarks On Back Window Glass And Vehicle Body
      GTY118325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, place the back window glass assembly in the correct position.
      2. Check that the whole contact surface of the back window glass rim is perfectly even.
      3. Align the matchmarks on the back window glass and vehicle body.
        NOTE: Check that the back window glass stoppers are attached to the vehicle body correctly.
      4. Remove the back window glass assembly.
    2. Using a brush, coat the installation surface on the vehicle body with Primer M.

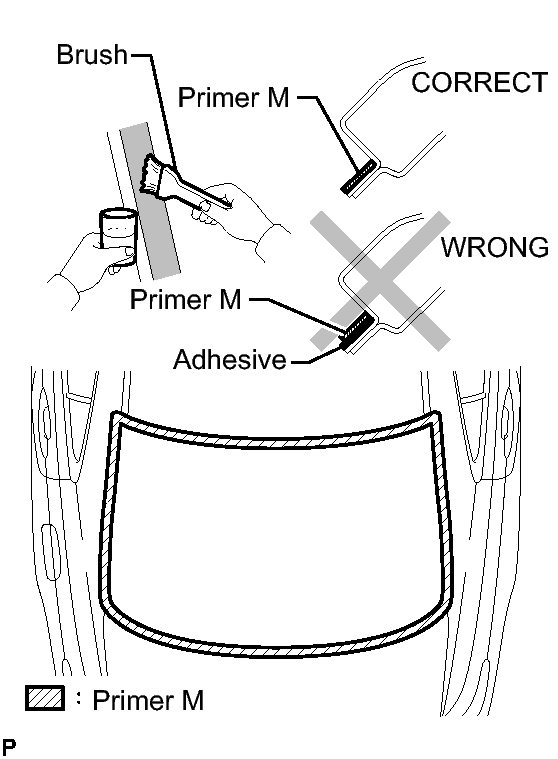

      Fig 6: Coating Installation Surface On Vehicle Body With Primer M
      GTY118331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not coat the adhesive with Primer M.
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer M for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    3. Using a brush or sponge, coat the application area of adhesive with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

      Standard dimension

      Area Dimension
      a 9.6 mm (0.378 in.)
      b 15.5 mm (0.610 in.)
      c 10.1 mm (0.397 in.)
      d 10.0 mm (0.393 in.)
      e 6.5 mm (0.255 in.)
      f 10.0 mm (0.393 in.)

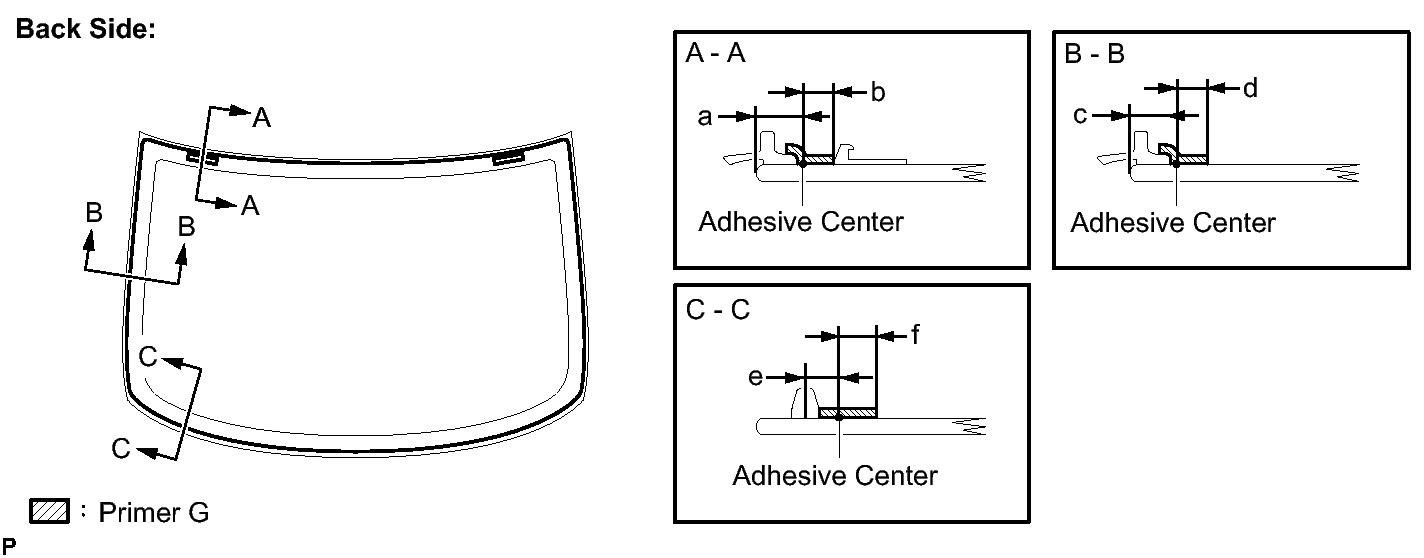

      Fig 7: Coating Application Area Of Adhesive With Primer G
      GTY118332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply adhesive (Adhesive: TOYOTA genuine windshield glass adhesive or equivalent).
      1. Cut off the tip of the cartridge nozzle, as shown.

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Usage time frame

        Temperature Tack-free Time
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour and 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with cartridge.
      3. Apply adhesive to the back window glass as shown.

        Standard dimension

        Area Dimension
        a 9.6 mm (0.378 in.)
        b 10.1 mm (0.397 in.)
        c 6.5 mm (0.255 in.)
        d 12.0 mm (0.472 in.)
        e 8.0 mm (0.315 in.)

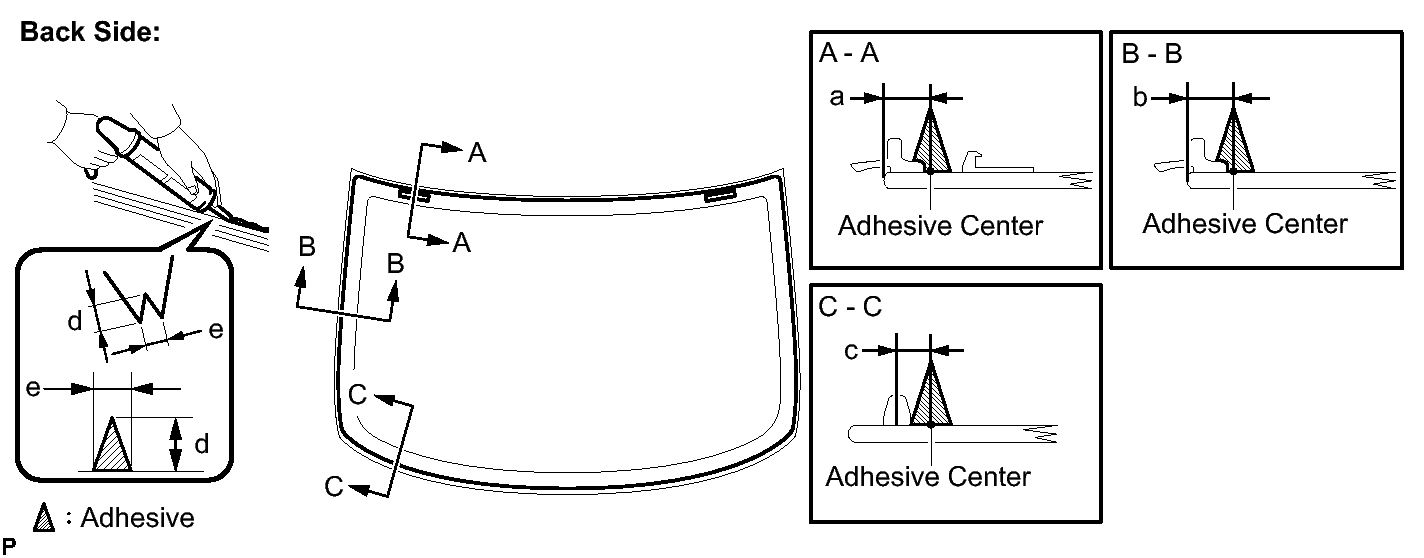

        Fig 8: Applying Adhesive To Back Window Glass
        GTY134109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the back window glass assembly.

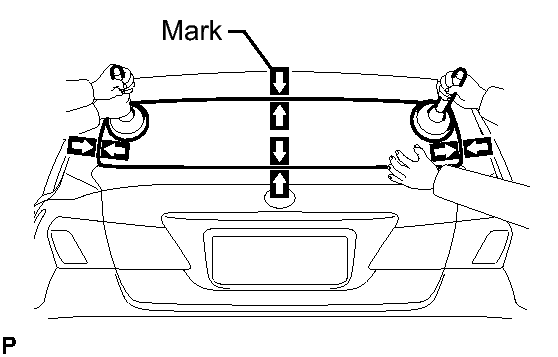

      Fig 9: Identifying Back Window Glass Assembly Using Suction Cup
      GTY121220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, position the back window glass so that the matchmarks are aligned, and press it in gently along the rim.
        NOTE:
        • Check that the back window glass stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and back window glass.
      2. Lightly press the front surface of the back window glass to ensure a close fit.

        HINT:

        Press the glass with force of 98 N (10 kgf, 22 lb) or more.

      3. Hold the back window glass using protective tape until applied adhesive becomes hard.
        NOTE: Do not drive the vehicle for the time described in the table below.

        Minimum time

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour and 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
    6. Connect the connectors.

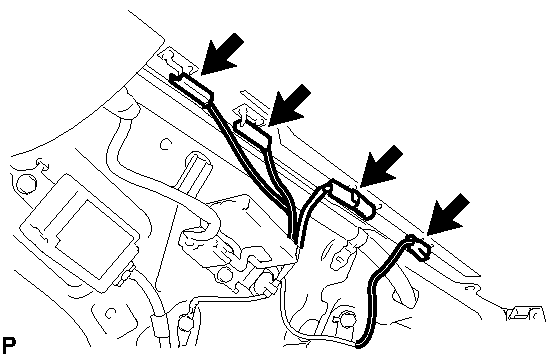

      Fig 10: Identifying Connectors Location
      GTY118323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the connector.

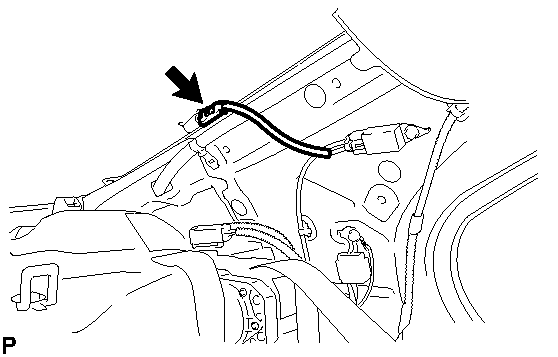

      Fig 11: Identifying Connector Location
      GTY138364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CHECK FOR LEAKS AND REPAIR
    1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
    2. If water leaks into the cabin, allow the water to dry and add adhesive.
    3. Remove the protective tape.
  7. INSTALL ROOF HEADLINING ASSEMBLY (for Standard)

    Return the rear section of the roof headlining assembly to the original position. Refer to INSTALLATION - Step 5 .

  8. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)

    Return the rear section of the roof headlining assembly to the original position. Refer to INSTALLATION - Step 6 .

  9. INSTALL ASSIST GRIP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 7
  10. INSTALL INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Standard)  . Refer to INSTALLATION - Step 8
  11. INSTALL INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Glass Roof)  . Refer to INSTALLATION - Step 9
  12. INSTALL SPOT LIGHT ASSEMBLY LH  . Refer to INSTALLATION - Step 10
  13. INSTALL SPOT LIGHT ASSEMBLY RH  . Refer to INSTALLATION - Step 11
  14. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)  . Refer to INSTALLATION - Step 3
  15. INSTALL CENTER STOP LIGHT SET  . Refer to INSTALLATION - Step 1
  16. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)  . Refer to INSTALLATION - Step 2
  17. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)  . Refer to INSTALLATION - Step 5
  18. INSTALL REAR SEAT SHOULDER BELT HOLE COVER  . Refer to INSTALLATION - Step 5
  19. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH  . Refer to INSTALLATION - Step 6
  20. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH  . Refer to INSTALLATION - Step 7
  21. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH  . Refer to INSTALLATION - Step 8
  22. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH  . Refer to INSTALLATION - Step 35
  23. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH  . Refer to INSTALLATION - Step 44
  24. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH  . Refer to INSTALLATION - Step 1
  25. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH  . Refer to INSTALLATION - Step 12
  26. INSTALL REAR DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 39
  27. INSTALL REAR DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 48
  28. INSTALL REAR SEATBACK ASSEMBLY  . Refer to INSTALLATION - Step 1
  29. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  30. INSTALL REAR SEAT HEADREST ASSEMBLY
  31. INSTALL REAR SEAT CUSHION ASSEMBLY  . Refer to INSTALLATION - Step 4
  32. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  33. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal. Refer to INITIALIZATION .
  34. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
