Rear Power Window Switch: Inspection: Inspection

  1. INSPECT POWER WINDOW SWITCH (for Rear RH)
    1. Remove the power window switch.

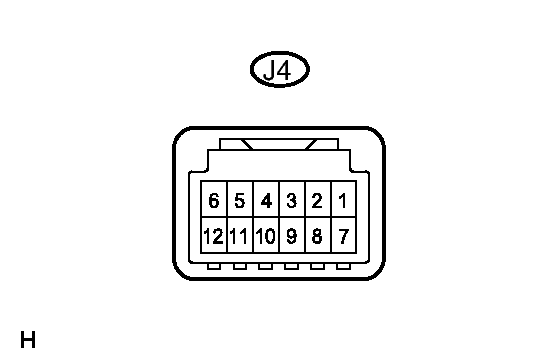

      Fig 1: Identifying J4 Connector Terminals
      GTY118042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance when the switch is operated according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      2 (U) - 4 (A) - 5 (E) Auto UP Below 1 Ω
      2 (U) - 5 (E) Manual UP Below 1 Ω
      5 (E) - 10 (D) Manual DOWN Below 1 Ω
      4 (A) - 10 (D) - 5 (E) Auto DOWN Below 1 Ω
  2. REMOVE POWER WINDOW SWITCH (for Rear LH)
    1. Remove the power window switch.

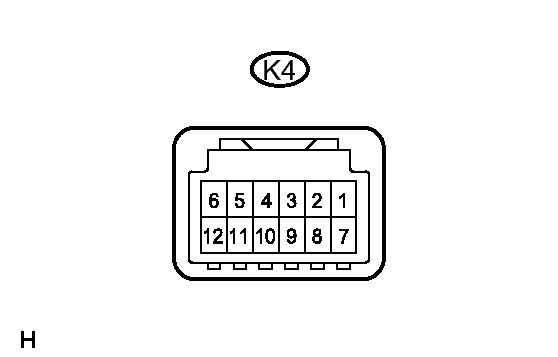

      Fig 2: Identifying K4 Connector Terminals
      GTY118041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance when the switch is operated according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      2 (U) - 4 (A) - 5 (E) Auto UP Below 1 Ω
      2 (U) - 5 (E) Manual UP Below 1 Ω
      5 (E) - 10 (D) Manual DOWN Below 1 Ω
      4 (A) - 10 (D) - 5 (E) Auto DOWN Below 1 Ω
