Front Speed Sensor: Components: Illustration

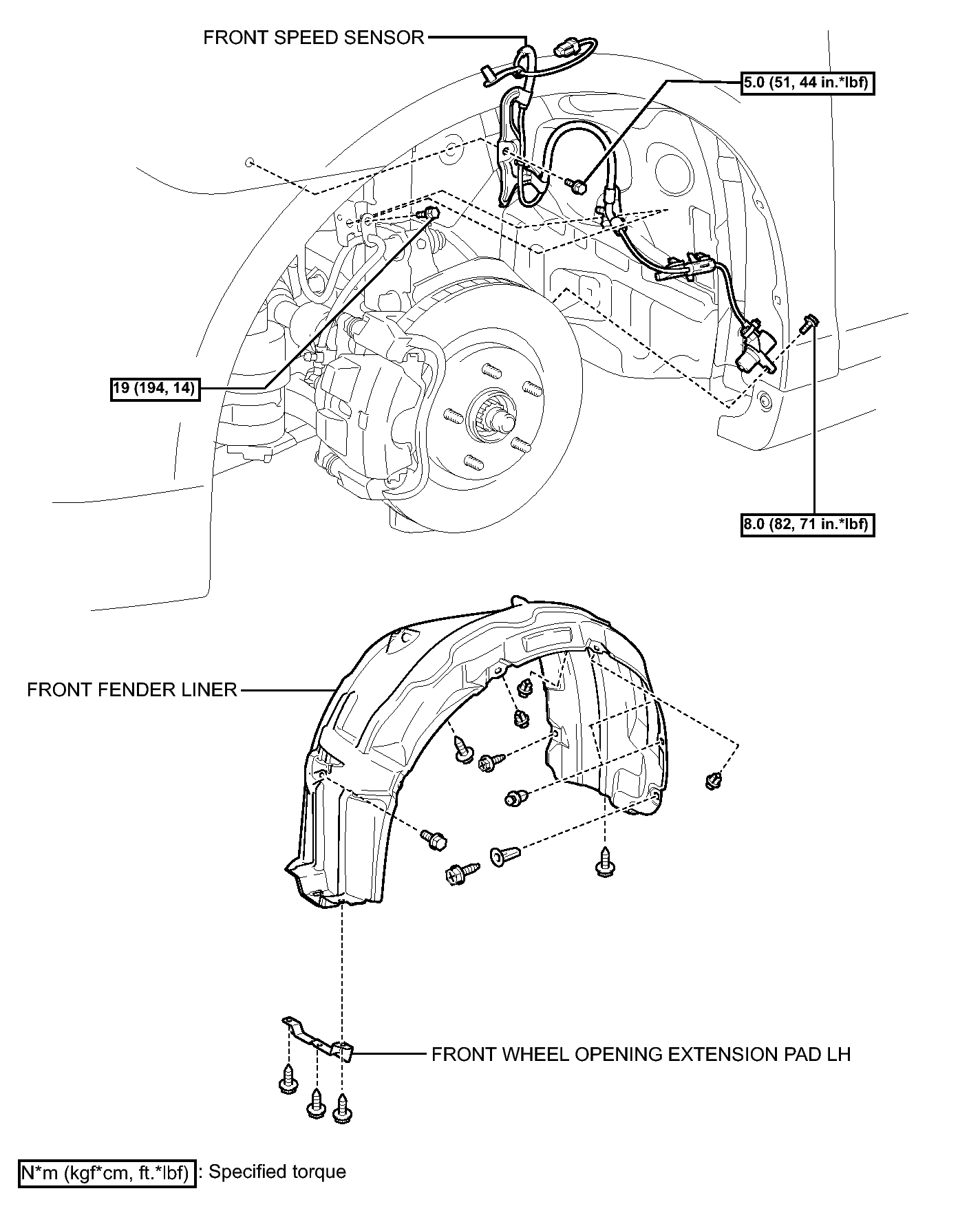

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications
GTY112360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
