Front Speed Sensor: Installation: Installation

INSTALL FRONT SPEED SENSOR
1. Install the front speed sensor with the bolt.

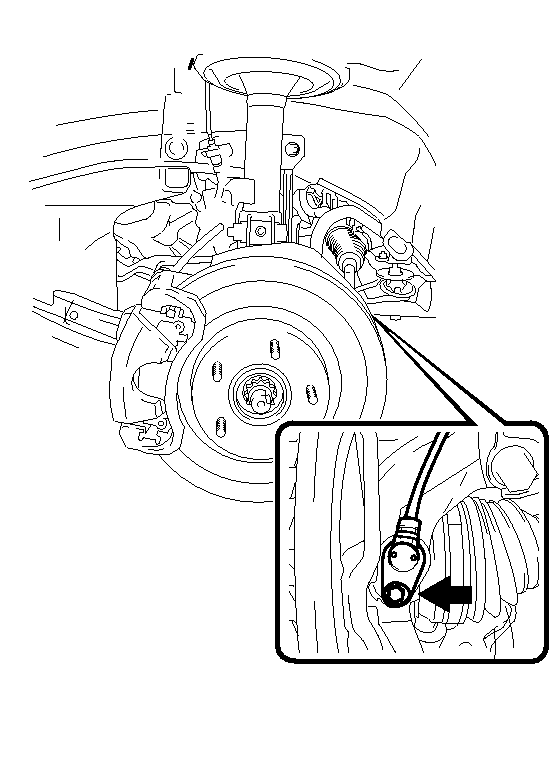

  Fig 1: Identifying Front Speed Sensor Bolt Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE: Prevent foreign matter from attaching to the sensor tip.
2. Install the front speed sensor with the 2 bolts and engage the 2 claws.

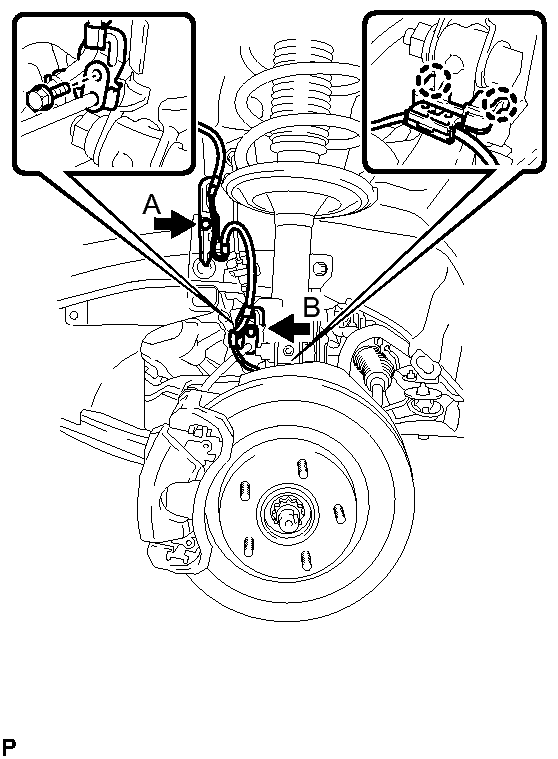

  Fig 2: Identifying Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Bolt B

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
  NOTE:
  - Do not twist the wire harness for the front speed sensor when installing the speed sensor.
  - The bolt B tightens the brake flexible hose and front speed sensor together. Make sure that the flexible hose is positioned over the front speed sensor.
  - Install the stopper firmly to the hole in the body.
3. Connect the front speed sensor connector and engage the clamp.

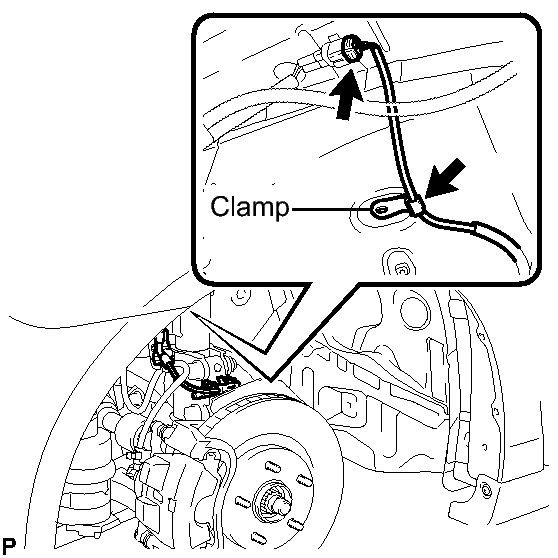

  Fig 3: Identifying Front Speed Sensor Connector And Clamp Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER . Refer to INSTALLATION - Step 7
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH . Refer to INSTALLATION - Step 9
INSTALL FRONT WHEEL
Torque: 103 N*m (1, 050 kgf*cm, 76 ft.*lbf)
CHECK SPEED SENSOR SIGNAL
HINT:

Refer to TEST MODE PROCEDURE
