VSC Off Switch: Components: Illustration

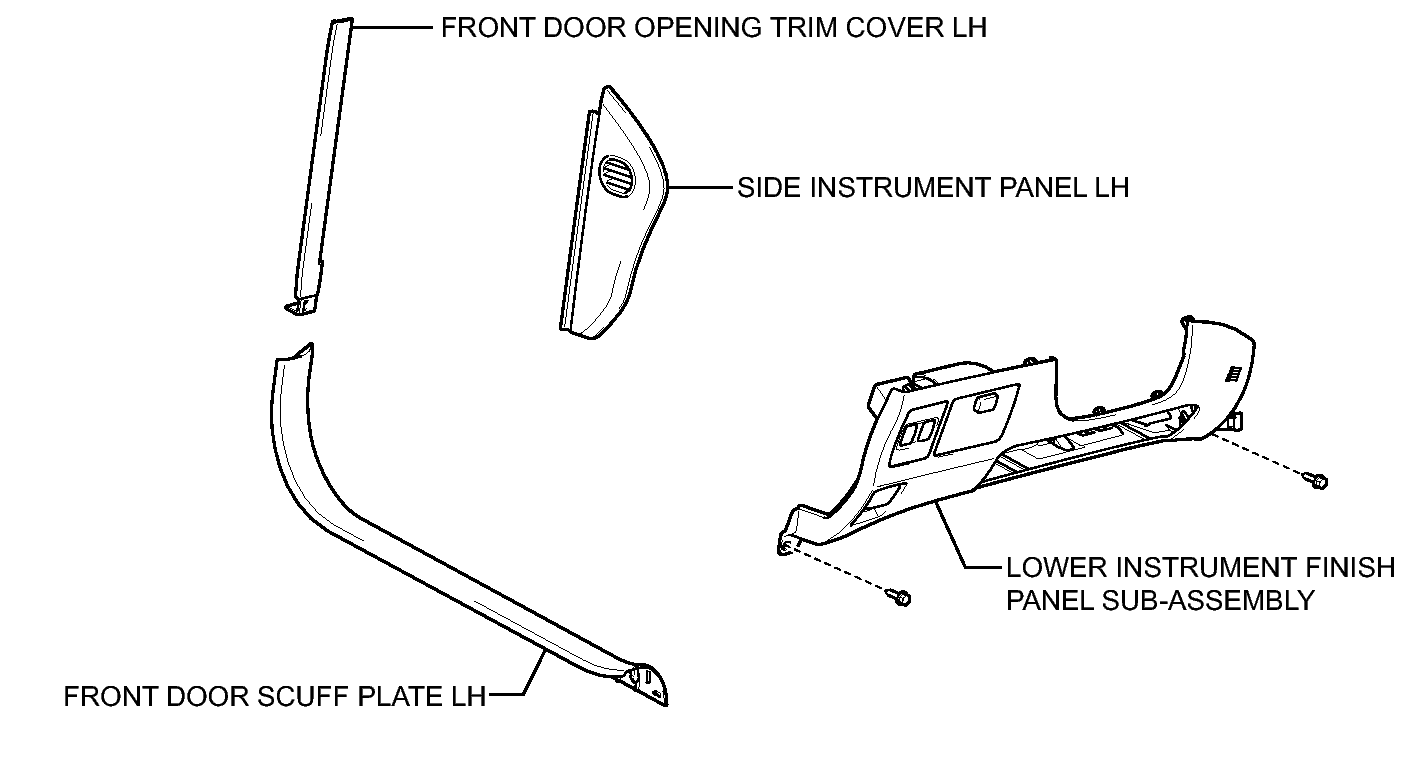

Fig 1: Identifying VSC Off Switch Replacement Components (1 Of 2)
GTY256015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

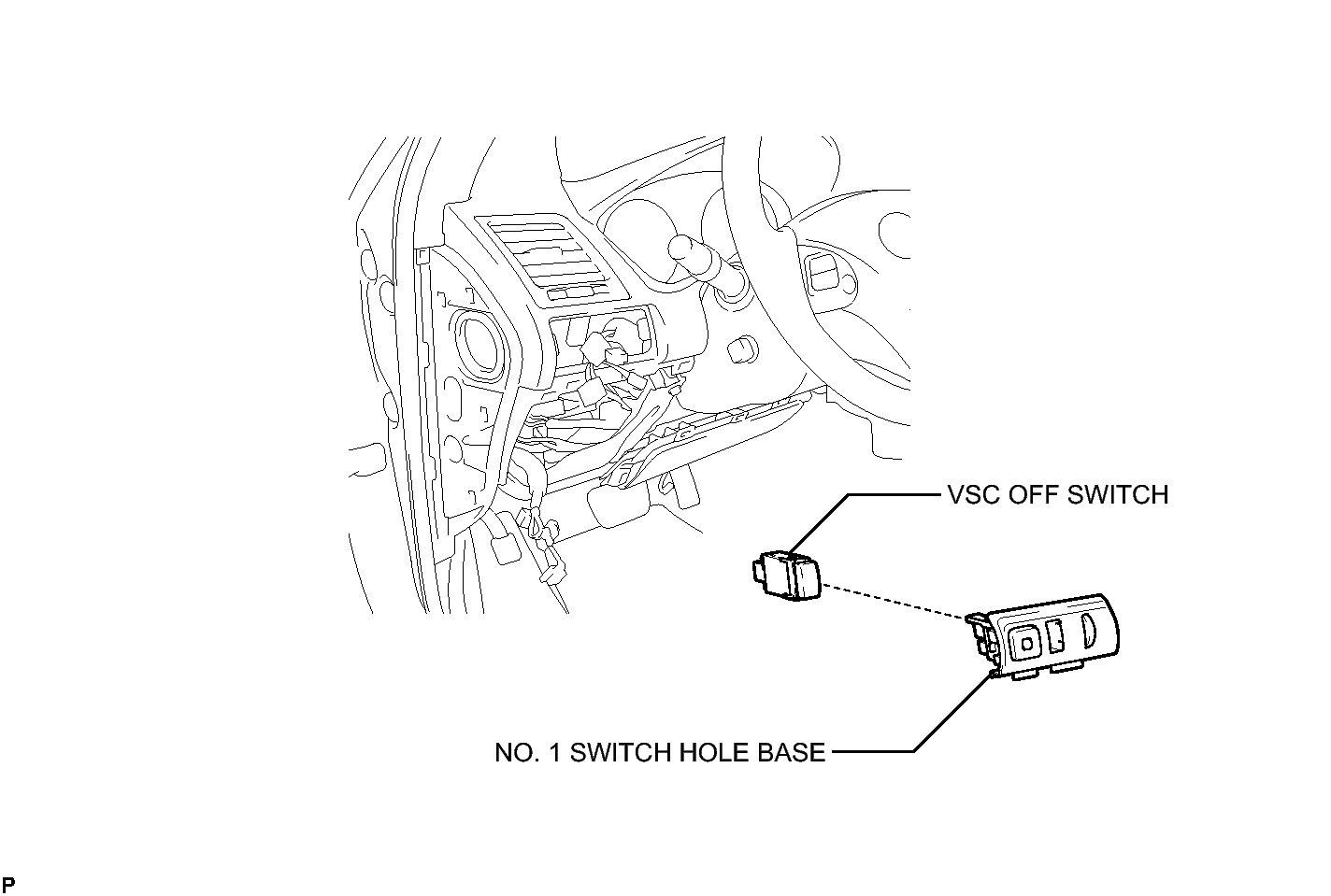

Fig 1: Identifying VSC Off Switch Replacement Components (2 Of 2)
GTY277270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
