Yaw Rate And Acceleration Sensor: Components: Illustration

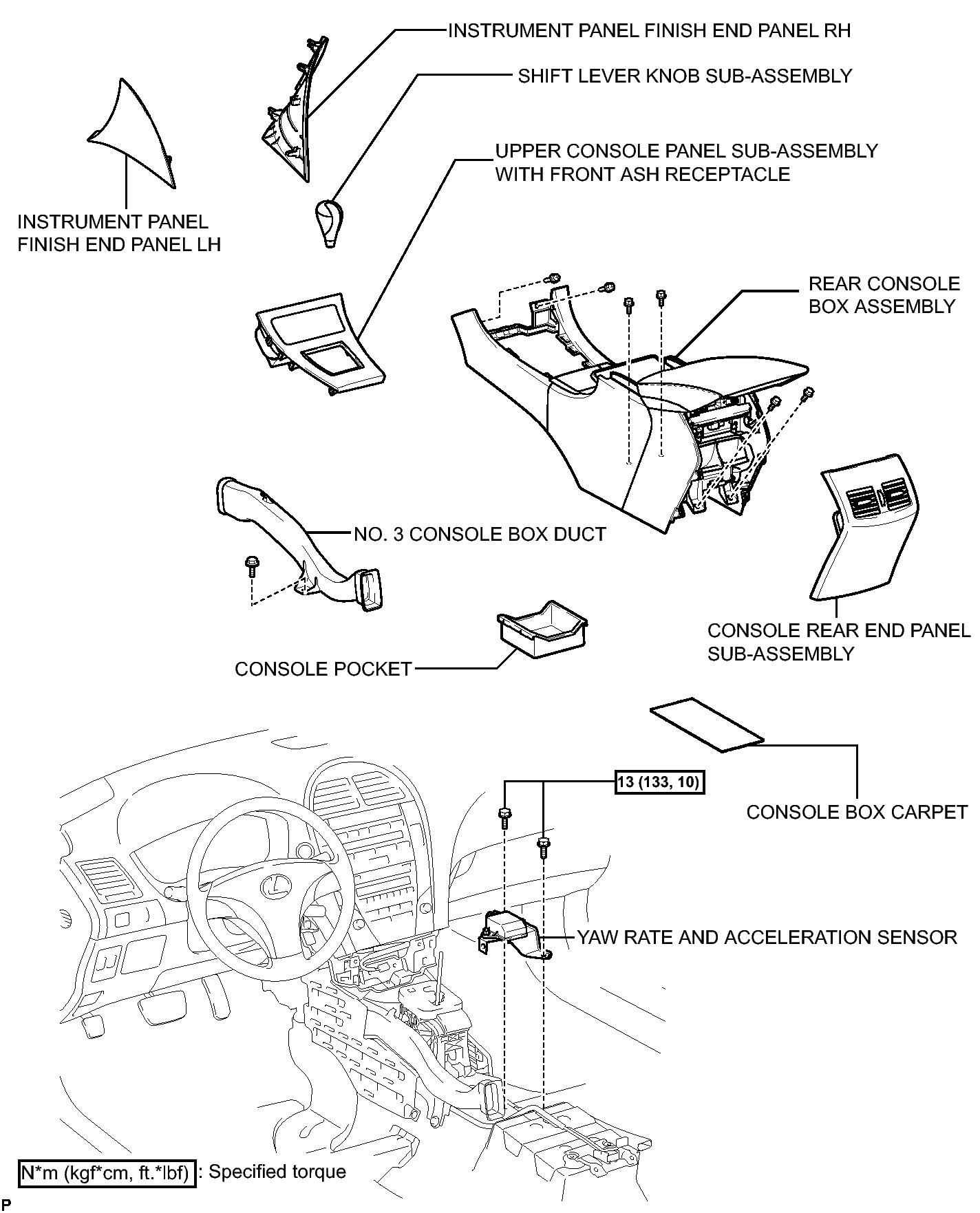

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
GTY111931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
