LEXUS ENFORM or Safety Connect: Notes

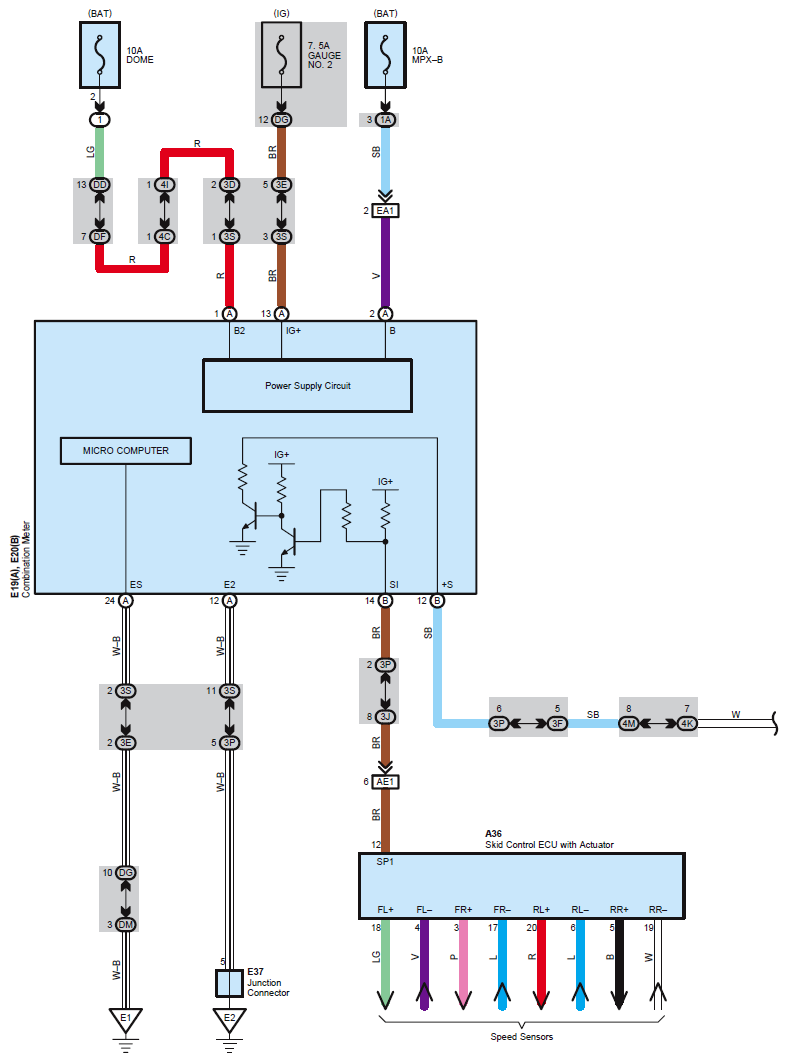

Fig 1: Lexus Enform/Safety Connect - Circuit Diagram (1 Of 4)
G07569735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

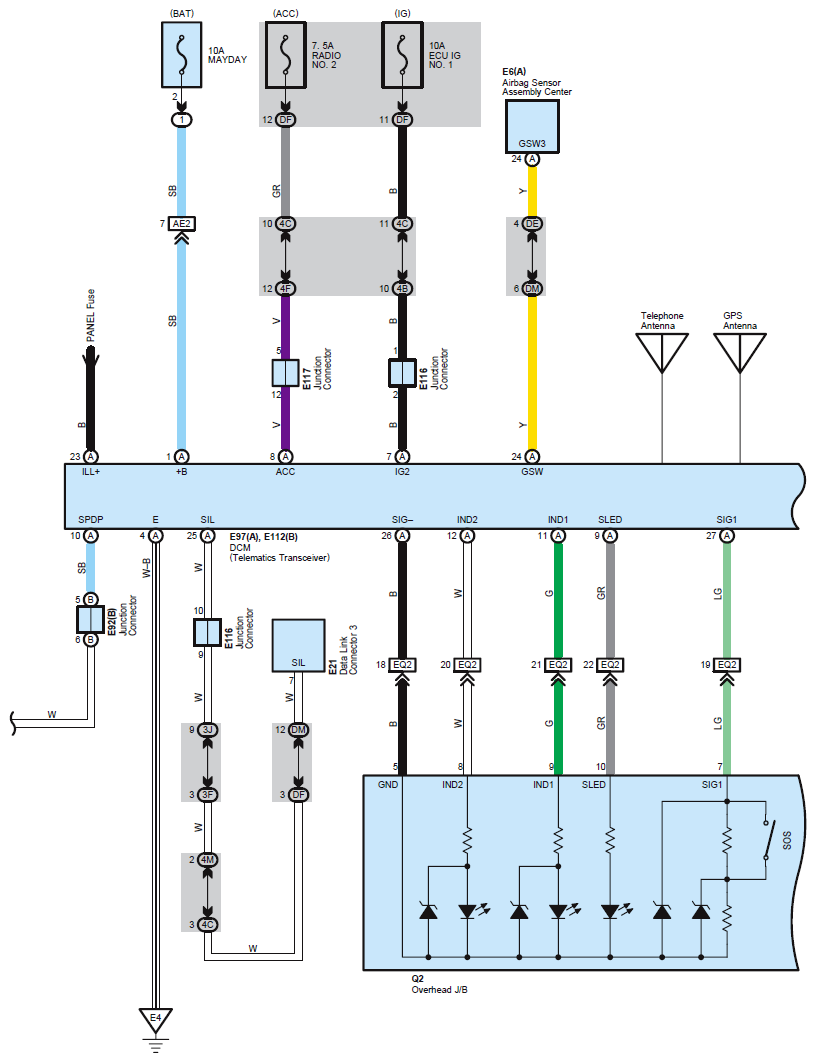

Fig 2: Lexus Enform/Safety Connect - Circuit Diagram (2 Of 4)
G07569736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

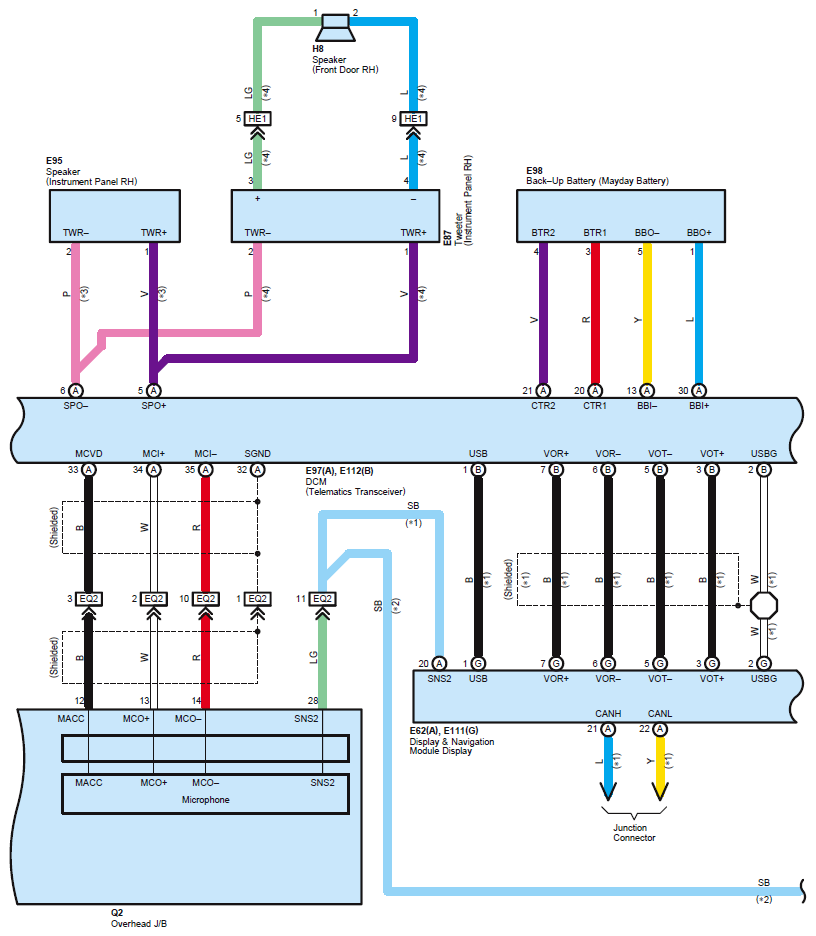

Fig 3: Lexus Enform/Safety Connect - Circuit Diagram (3 Of 4)
G07569737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

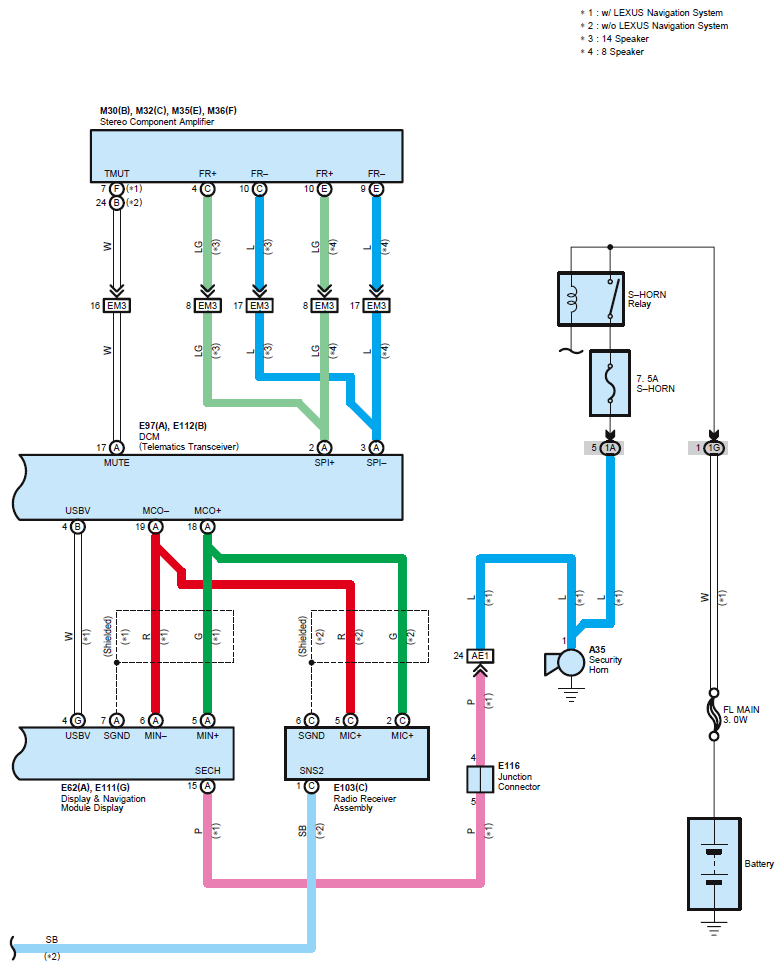

Fig 4: Lexus Enform/Safety Connect - Circuit Diagram (4 Of 4)
G07569738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
