Smart Access System with Push-Button Start and Blocking System: Notes

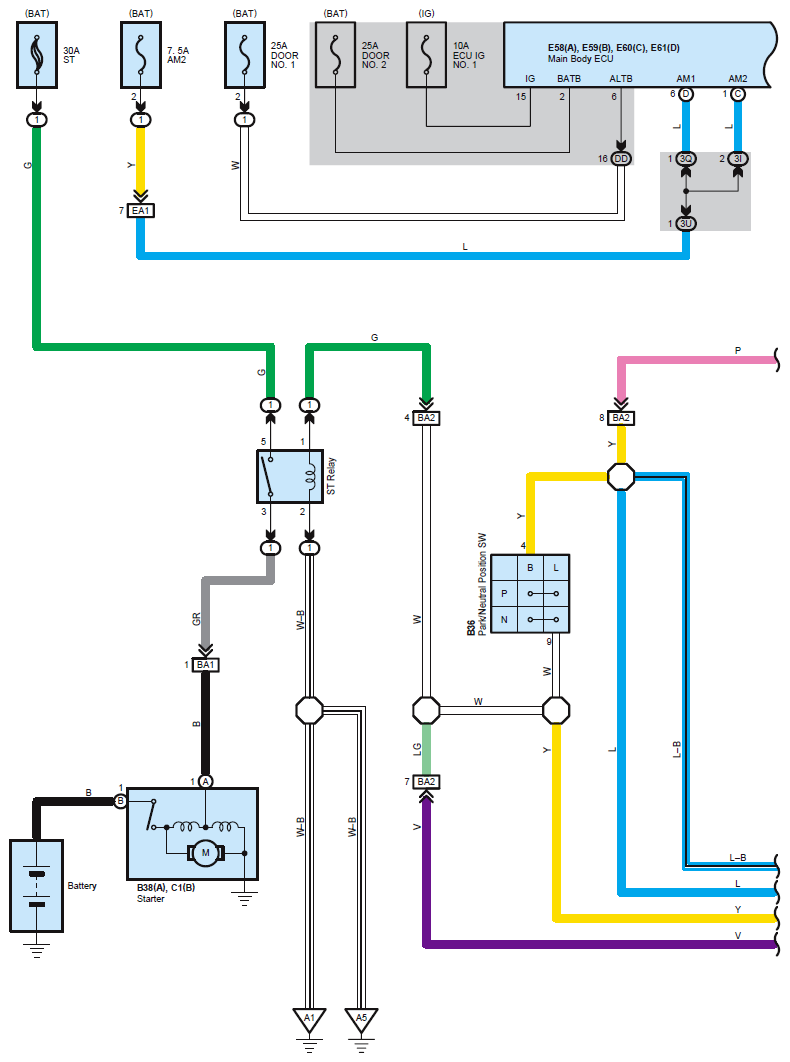

Fig 1: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (1 Of 20)

G07569535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

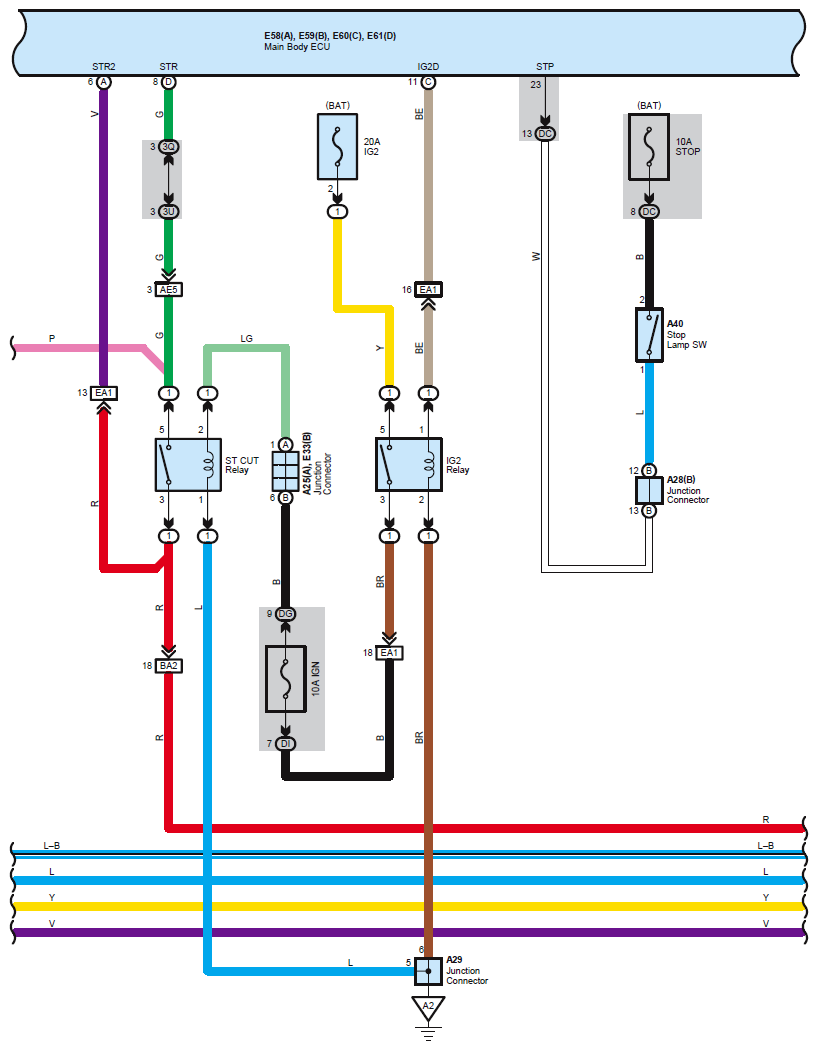

Fig 2: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (2 Of 20)

G07569536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

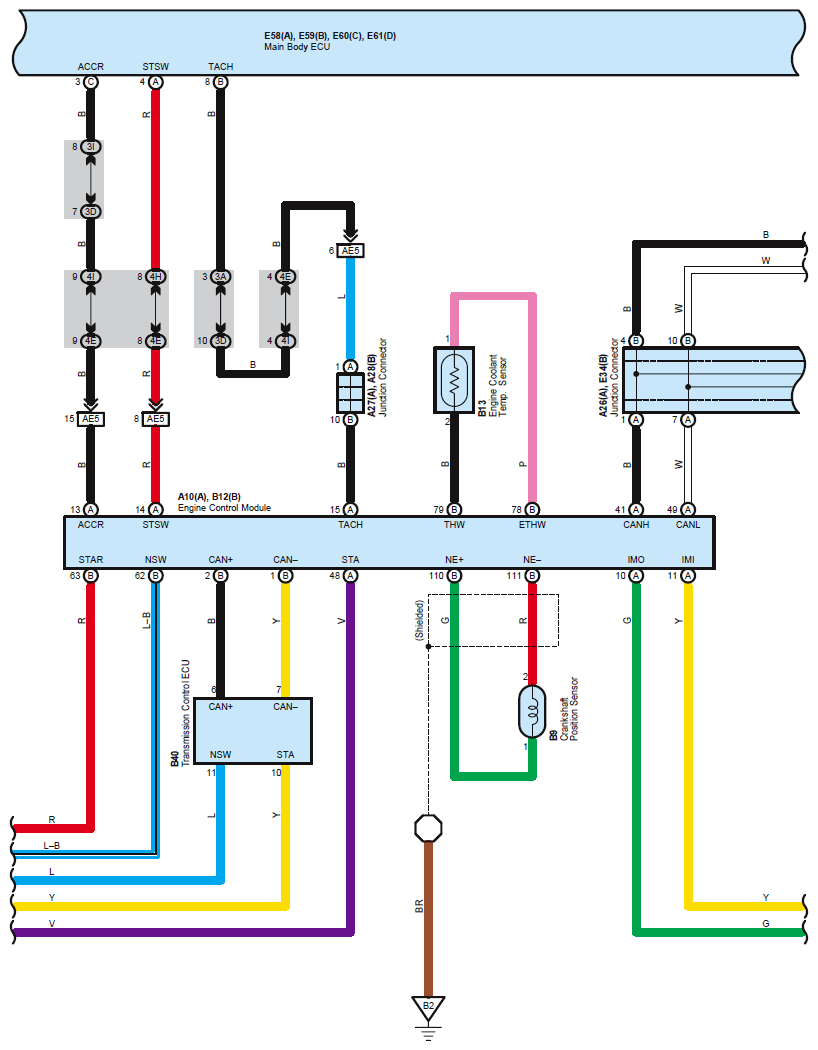

Fig 3: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (3 Of 20)

G07569537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

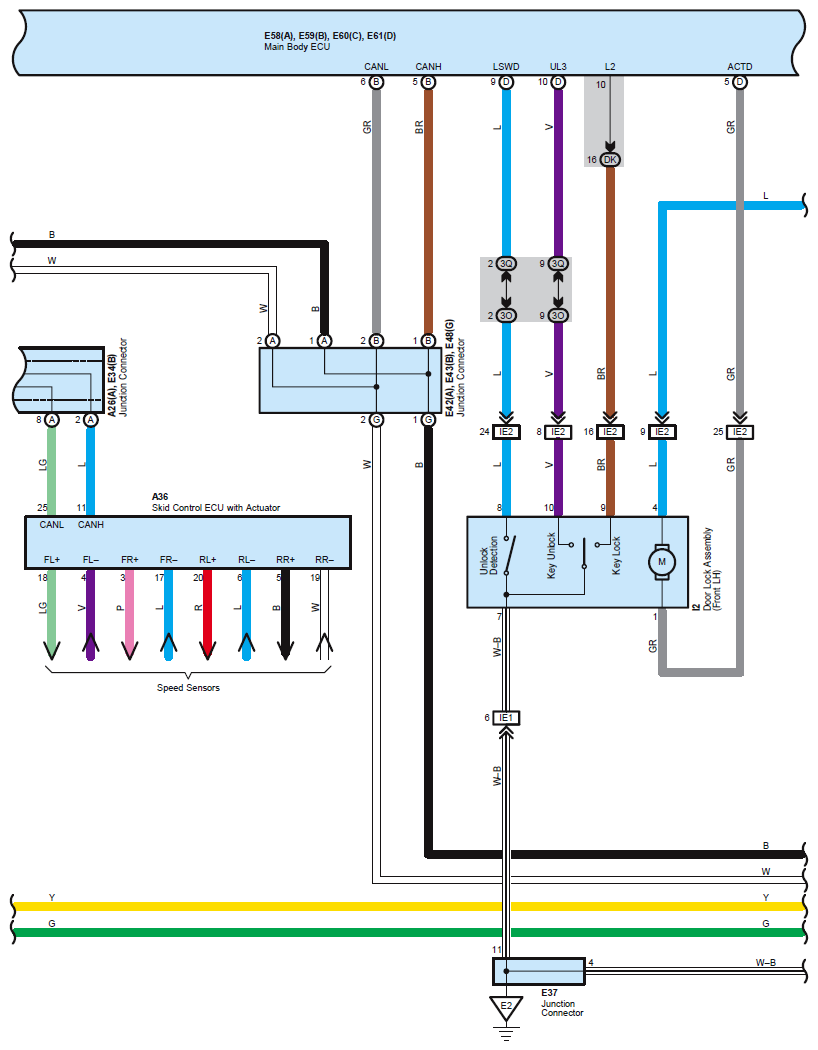

Fig 4: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (4 Of 20)

G07569538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

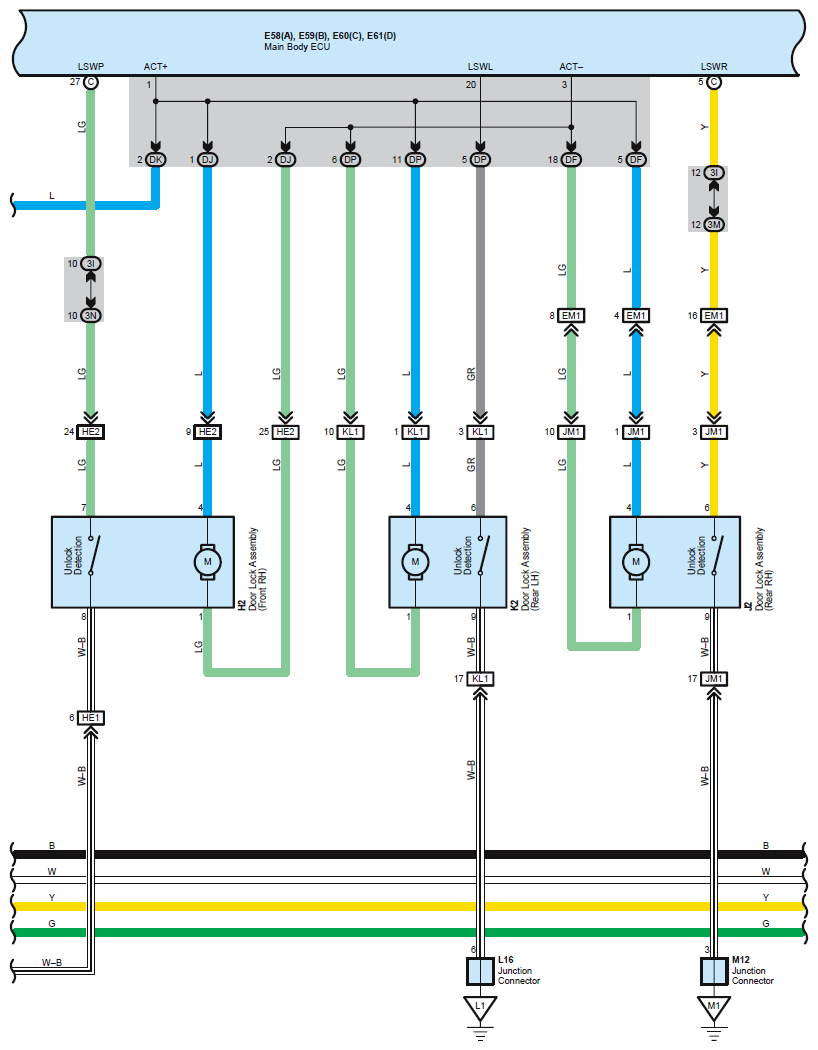

Fig 5: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (5 Of 20)

G07569539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

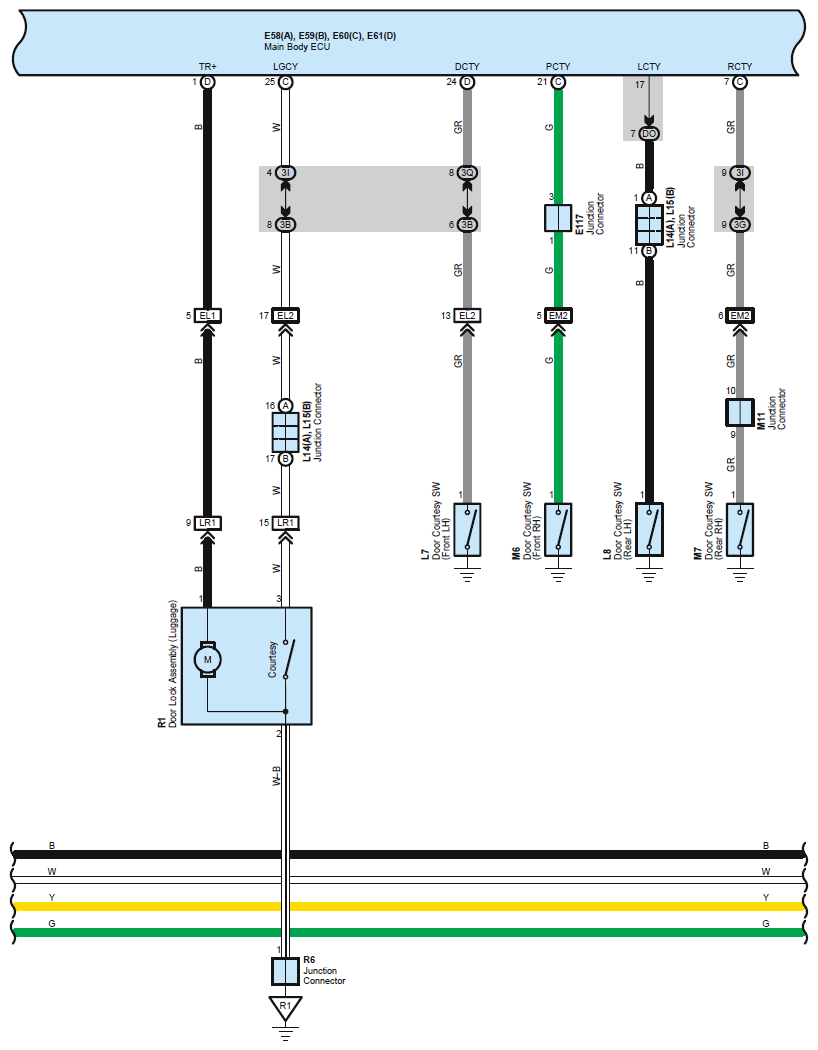

Fig 6: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (6 Of 20)

G07569540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

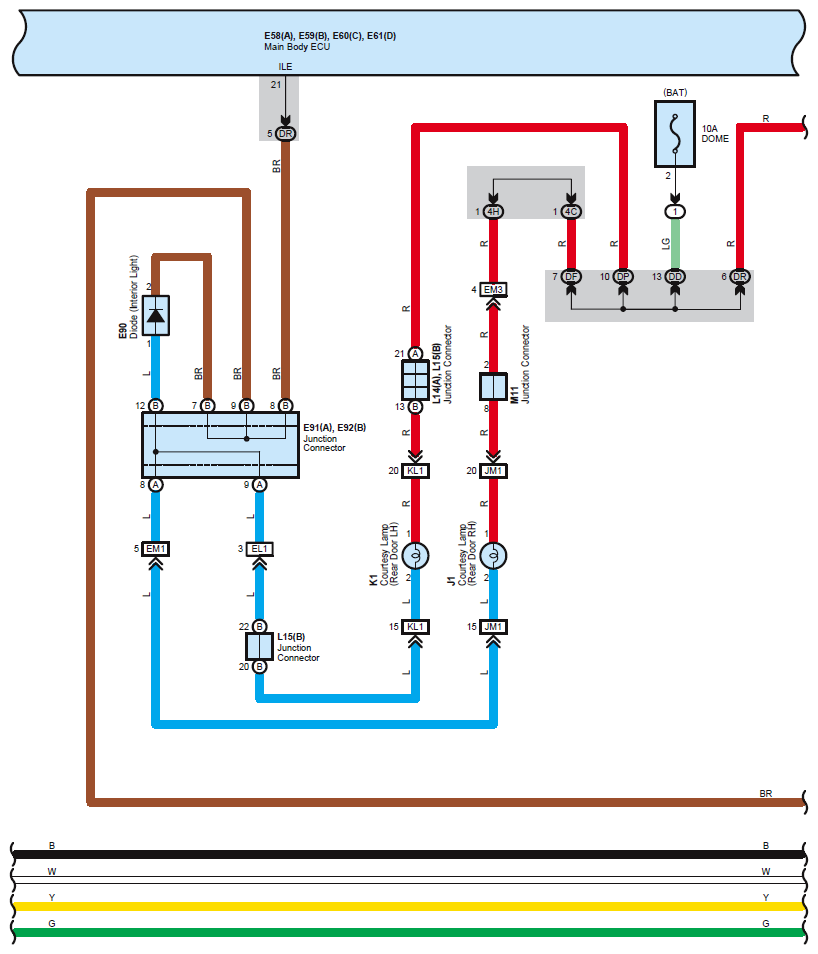

Fig 7: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (7 Of 20)

G07569541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

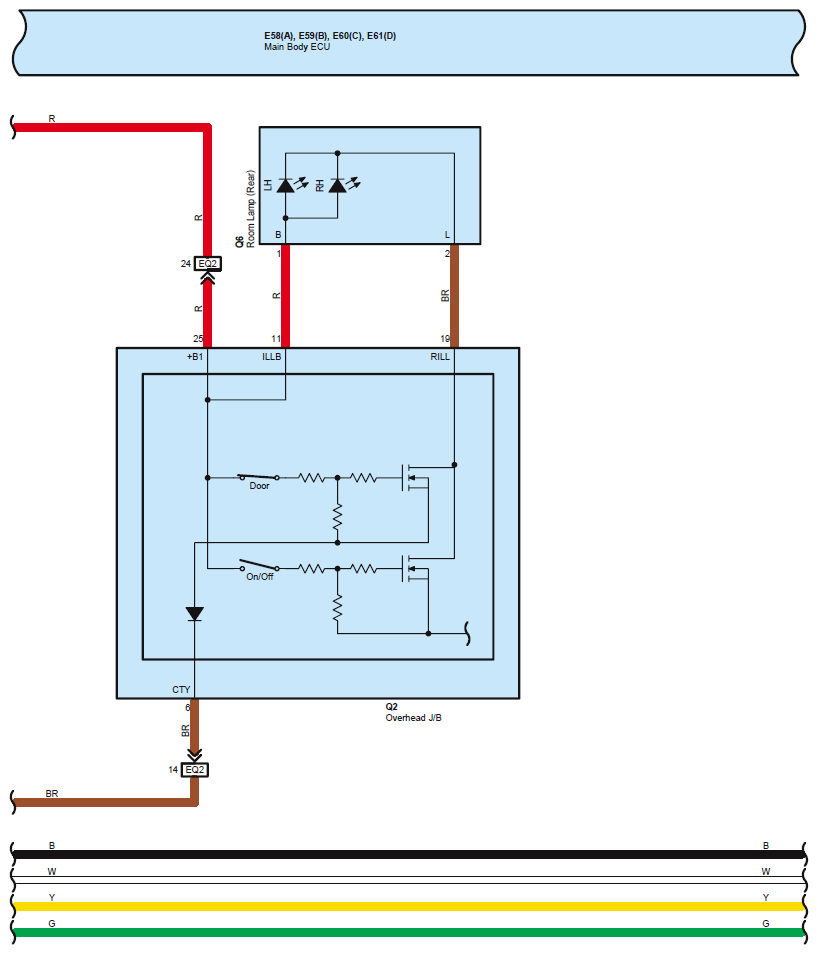

Fig 8: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (8 Of 20)

G07569542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

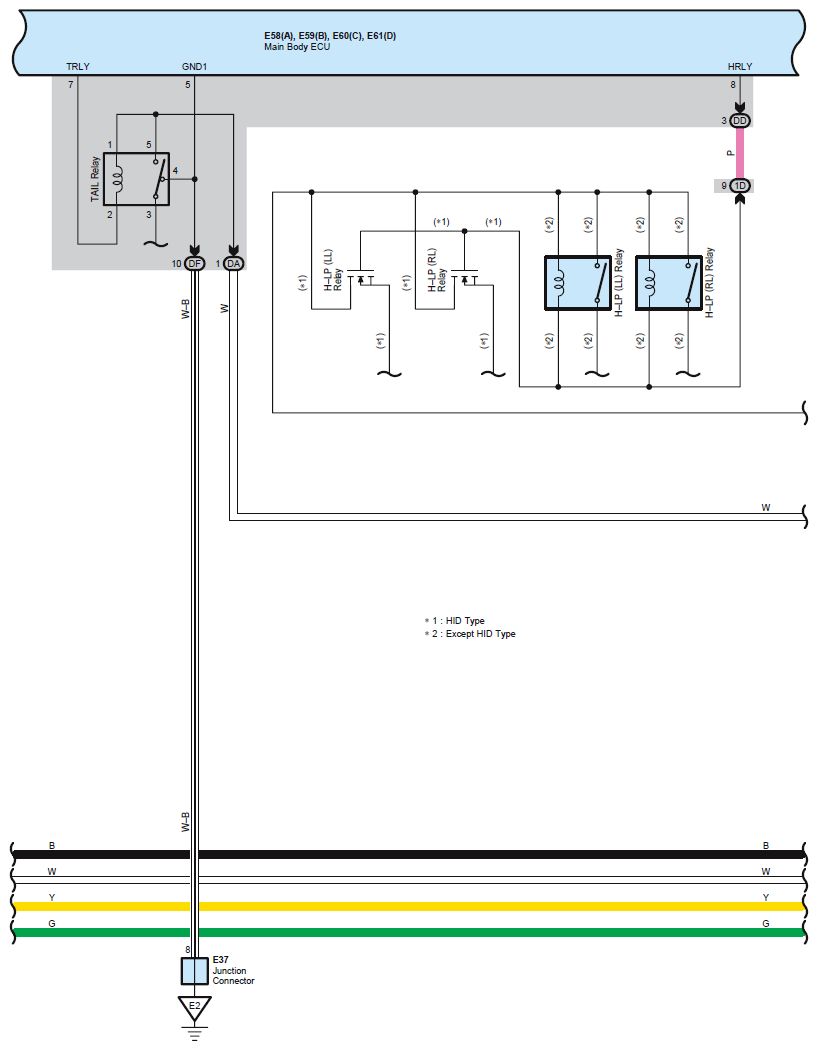

Fig 9: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (9 Of 20)

G07569543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

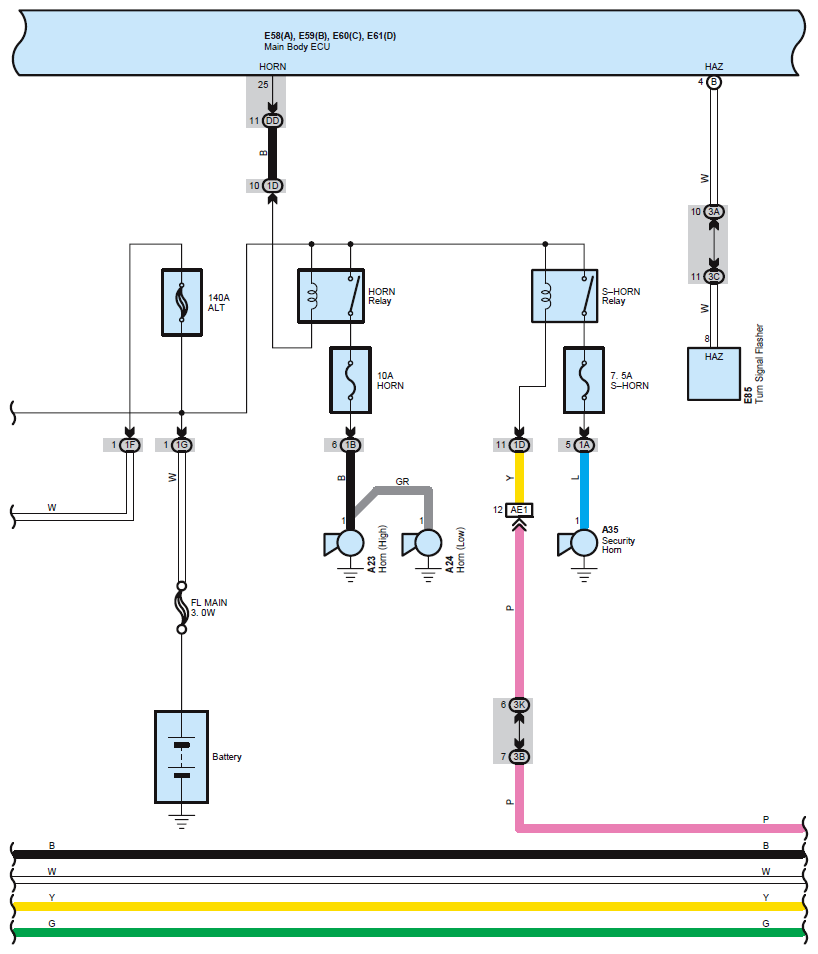

Fig 10: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (10 Of 20)

G07569544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

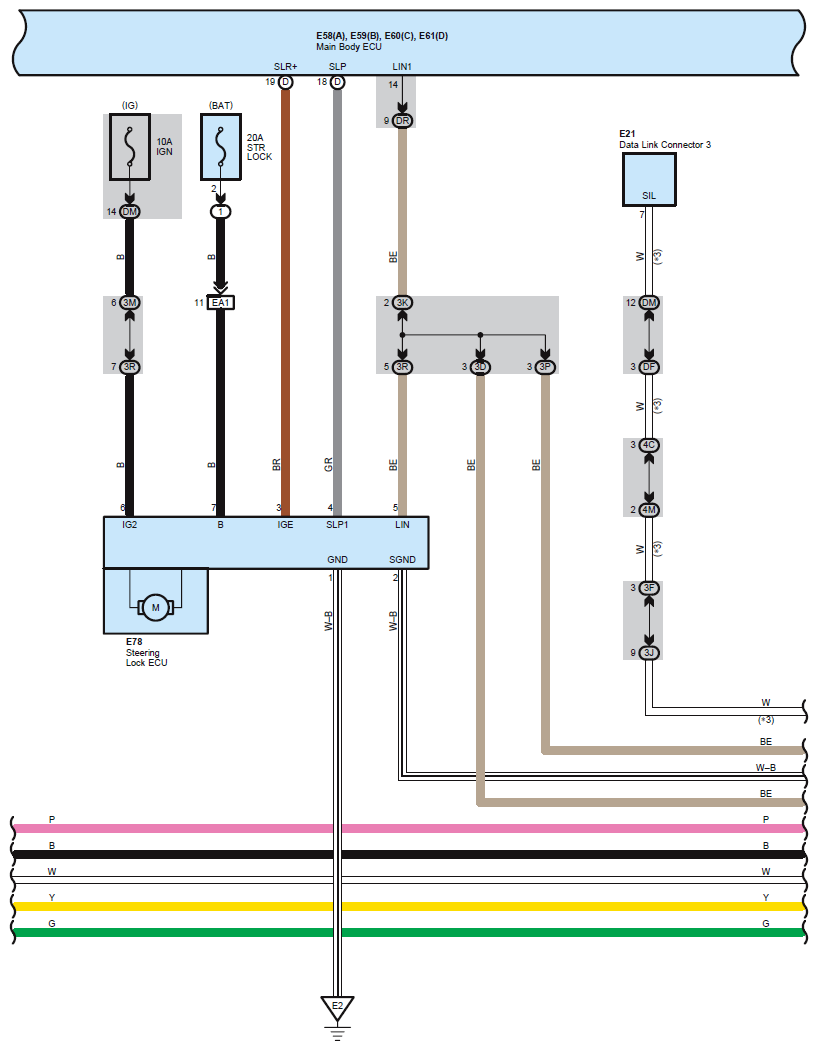

Fig 11: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (11 Of 20)

G07569545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

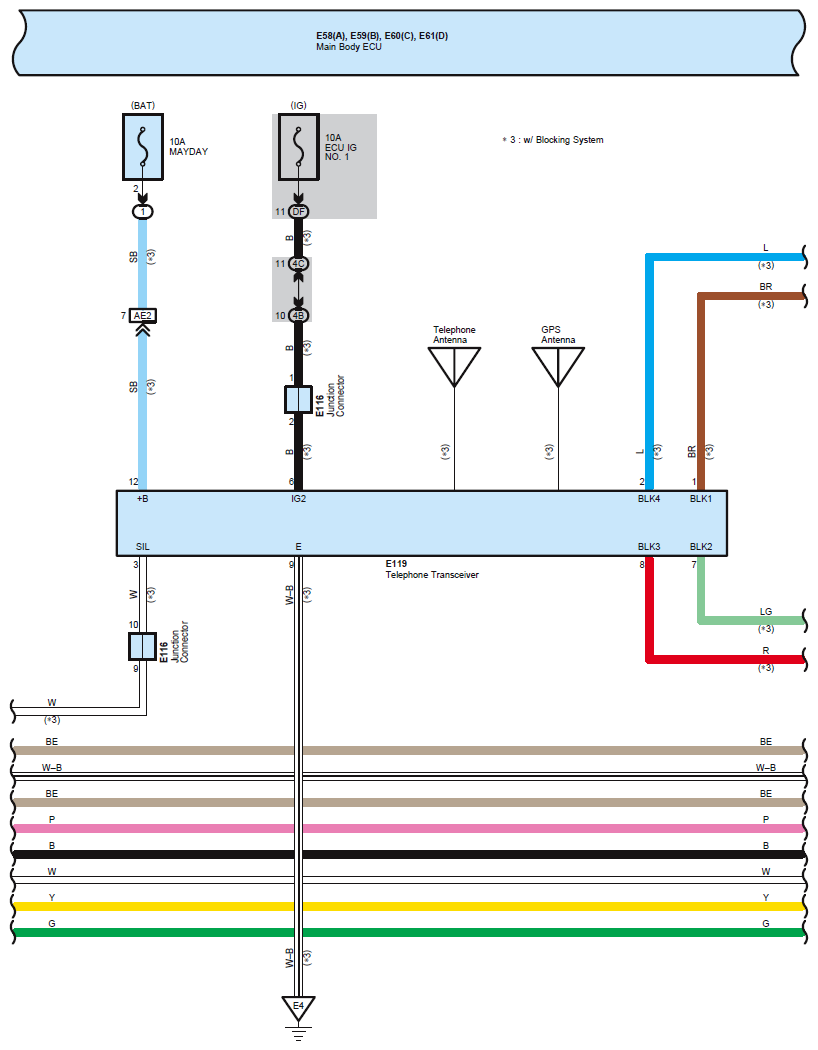

Fig 12: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (12 Of 20)

G07569546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

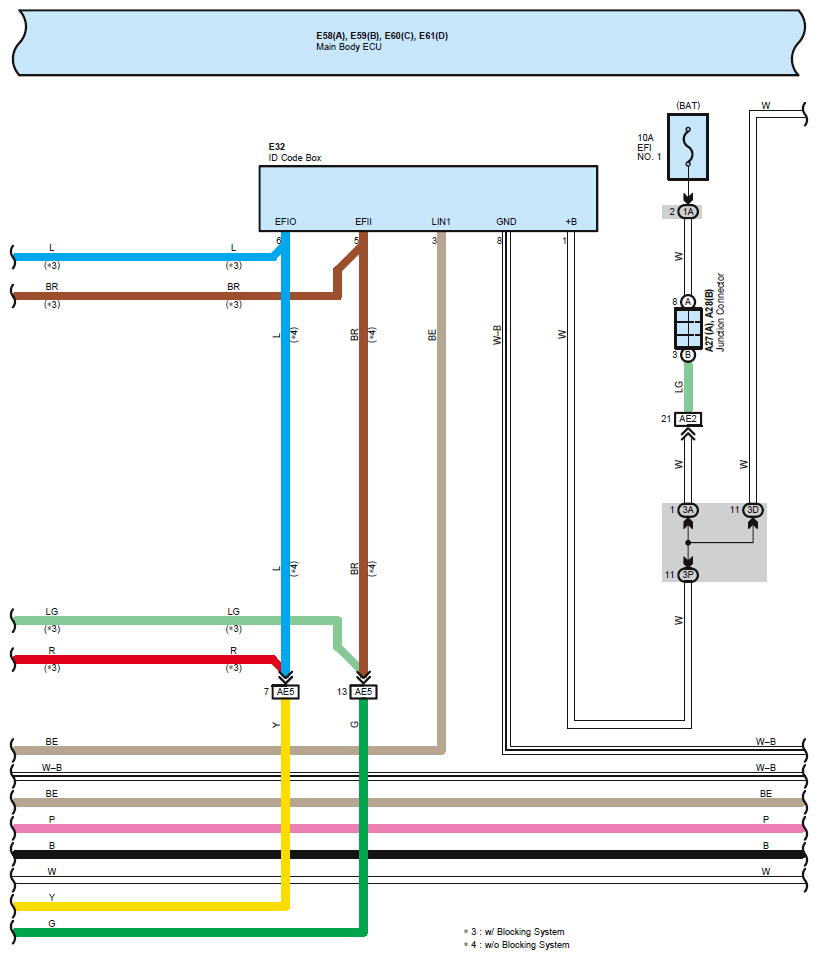

Fig 13: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (13 Of 20)

G07569547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

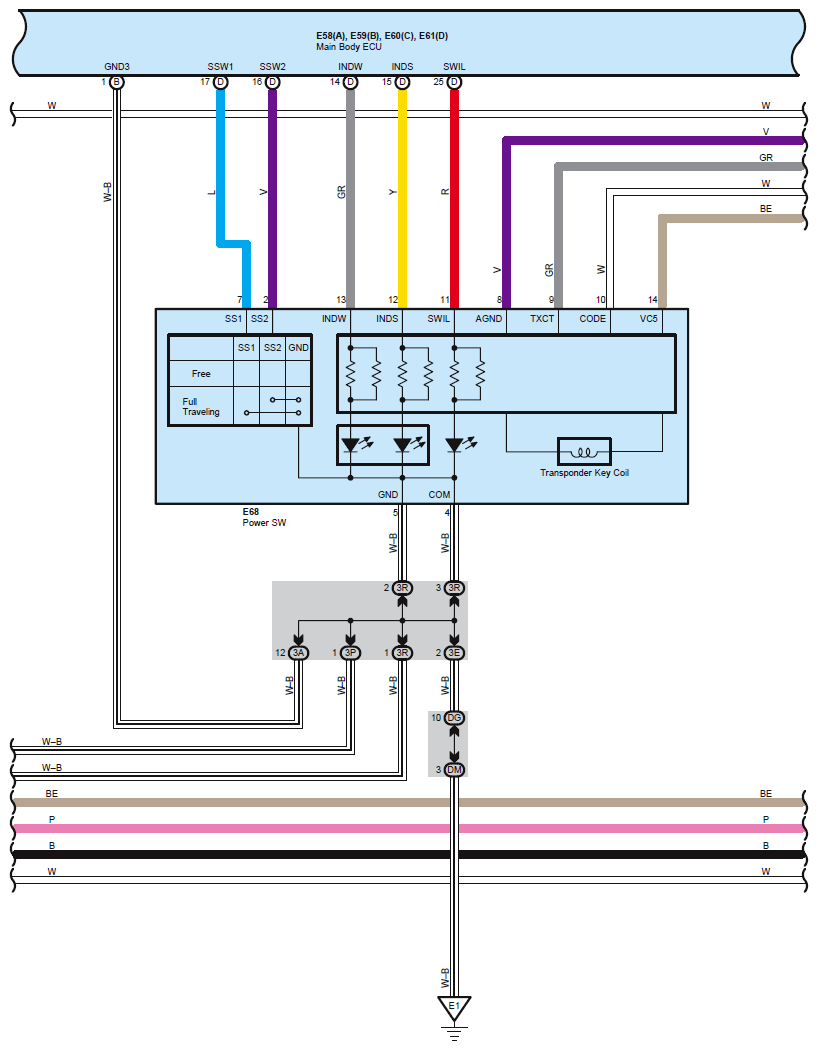

Fig 14: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (14 Of 20)

G07569548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

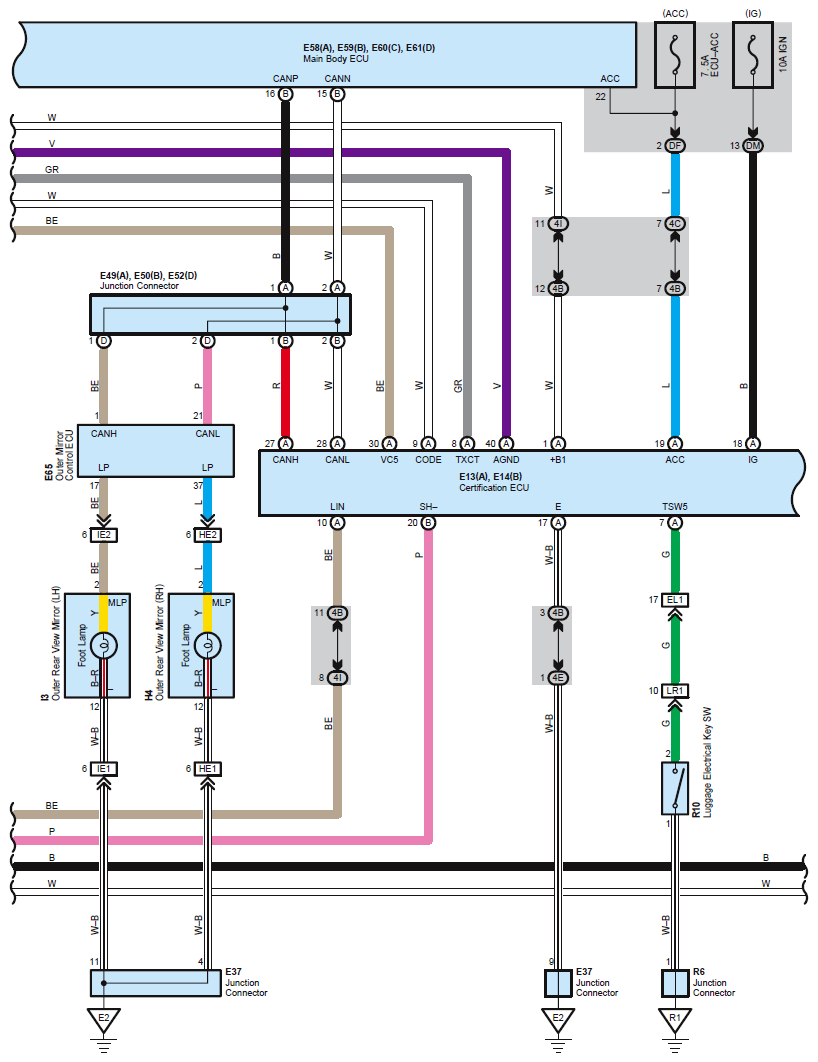

Fig 15: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (15 Of 20)

G07569549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

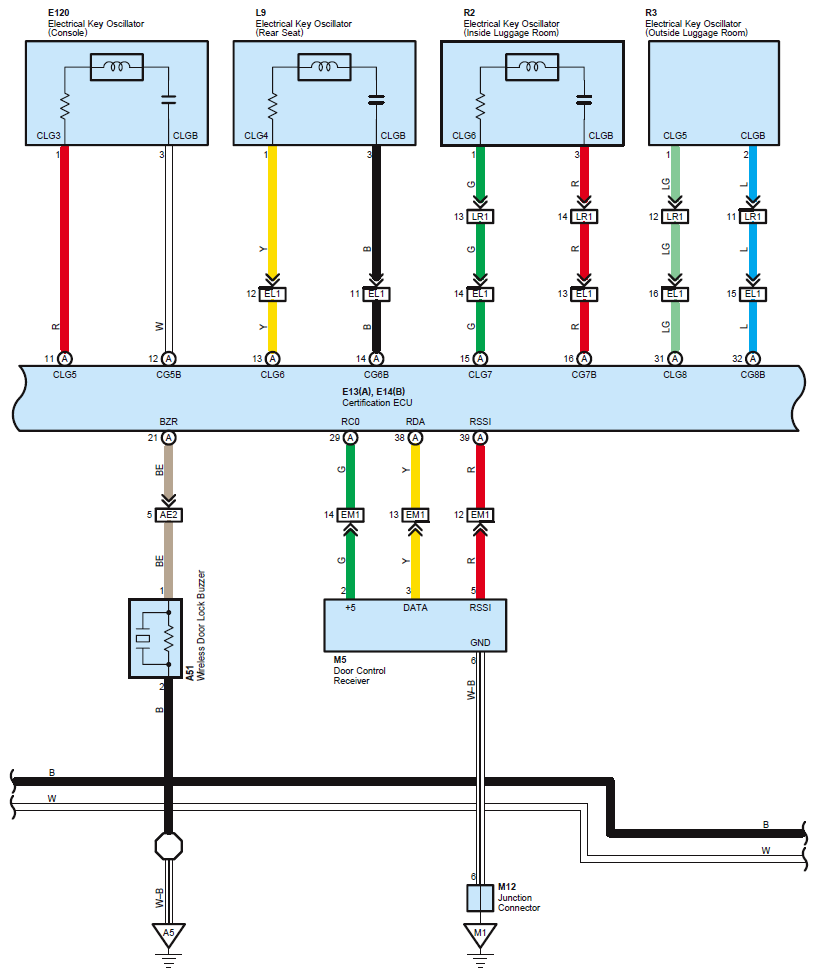

Fig 16: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (16 Of 20)

G07569550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

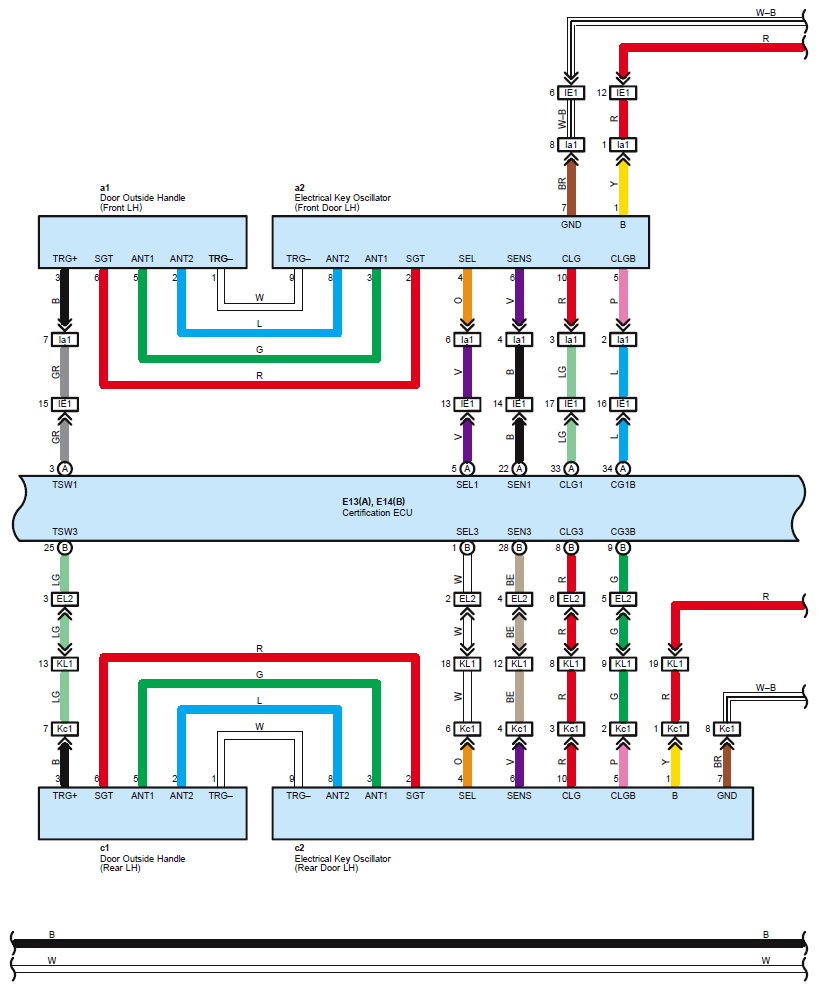

Fig 17: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (17 Of 20)

G07569551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

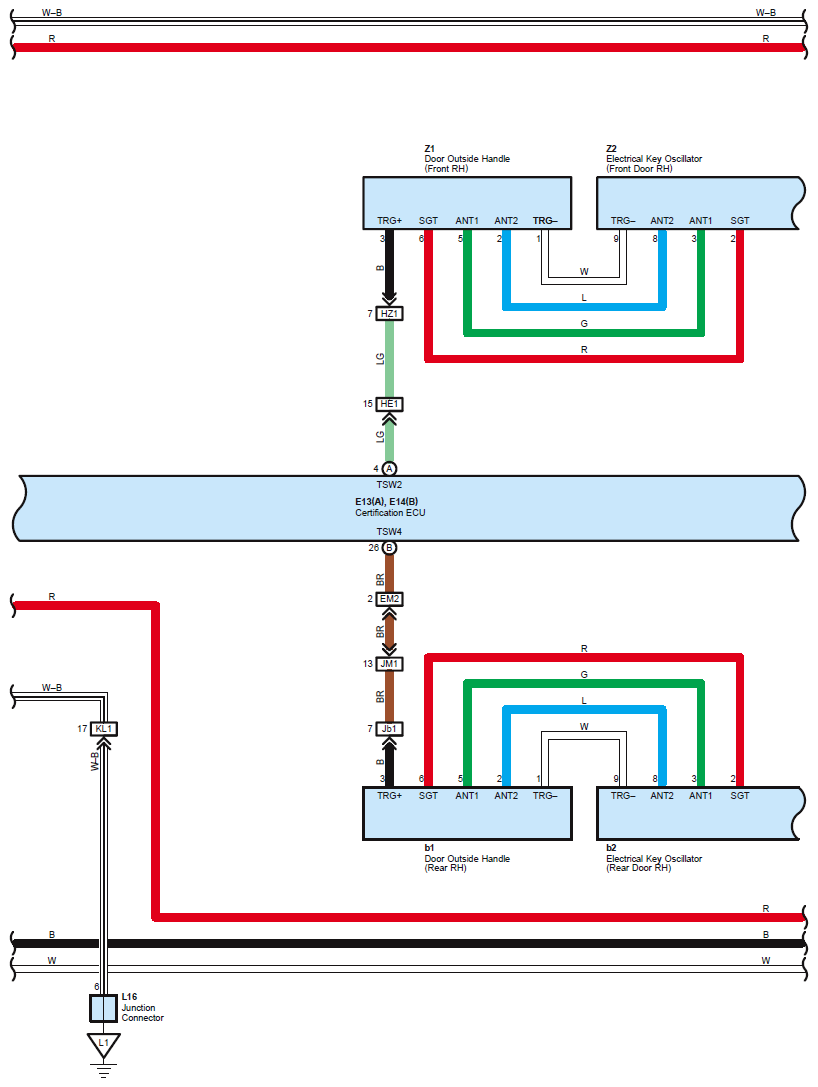

Fig 18: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (18 Of 20)

G07569552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

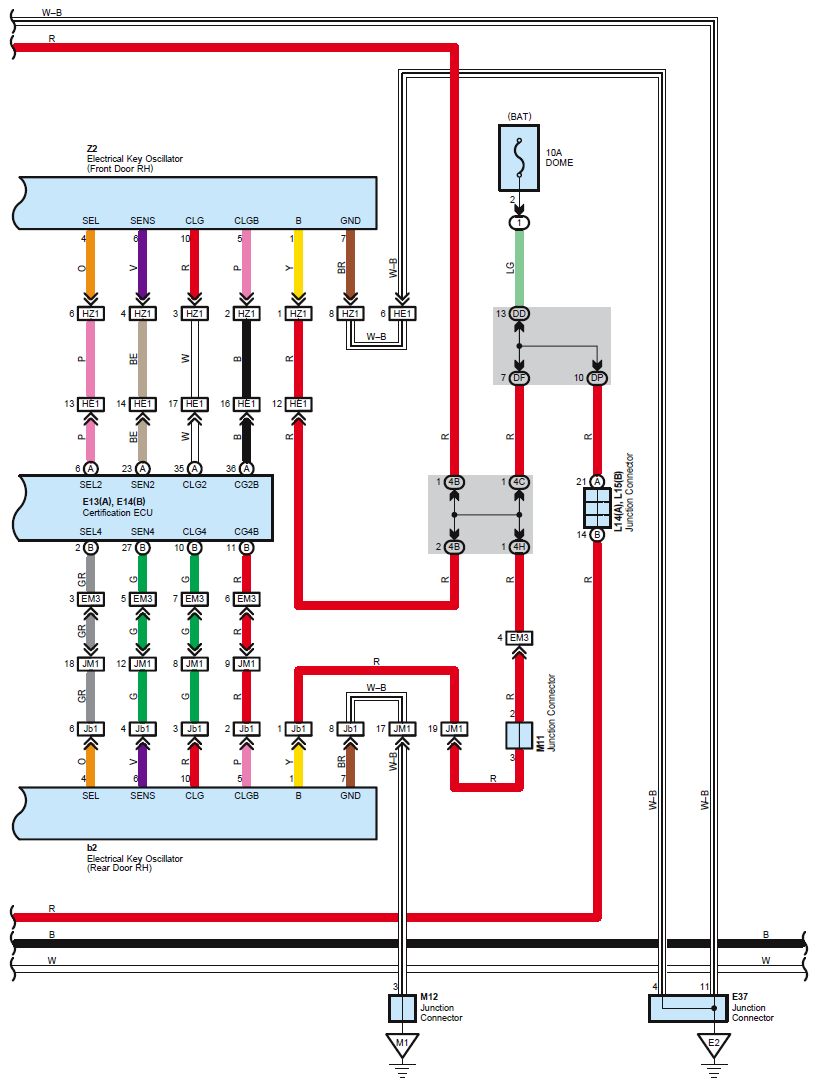

Fig 19: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (19 Of 20)

G07569553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

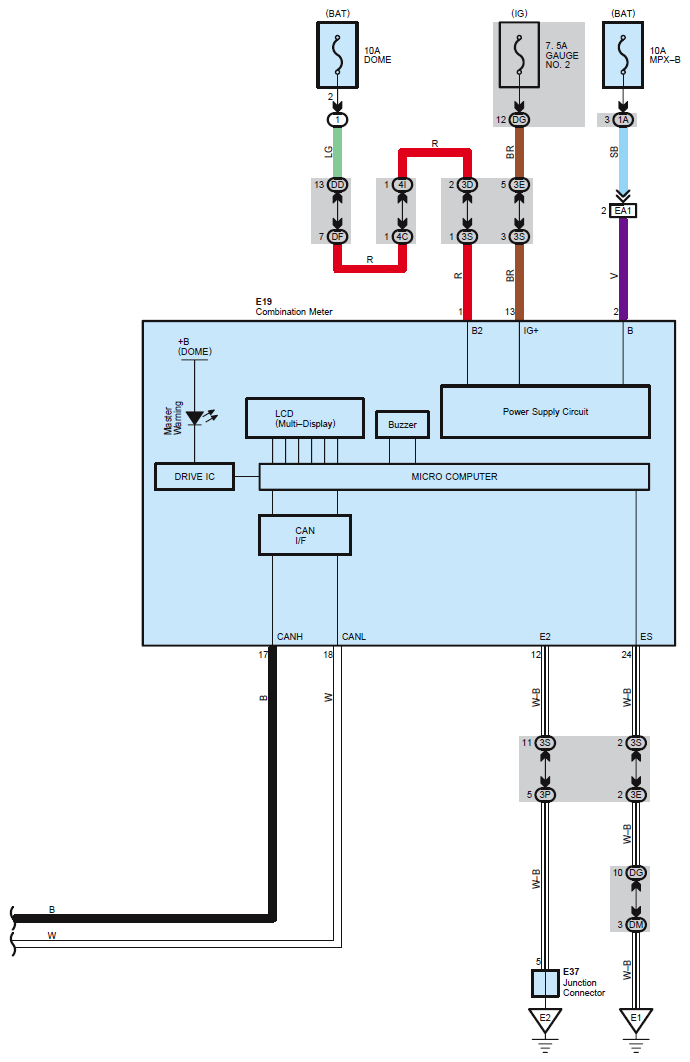

Fig 20: Smart Access System With Push-Button Start And Blocking System - Circuit Diagram (20 Of 20)

G07569554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
