Audio System (w/o LEXUS Navigation System): Notes

WARNING: This page is about a different car, the 2010 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

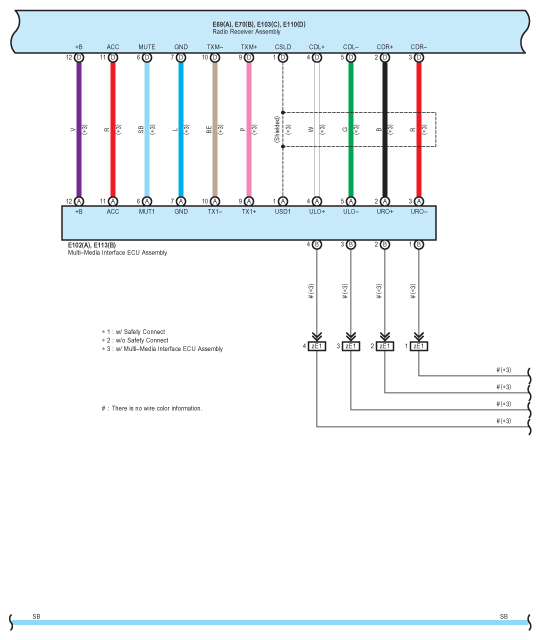

Fig 1: Audio System (w/o Lexus Navigation System) - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

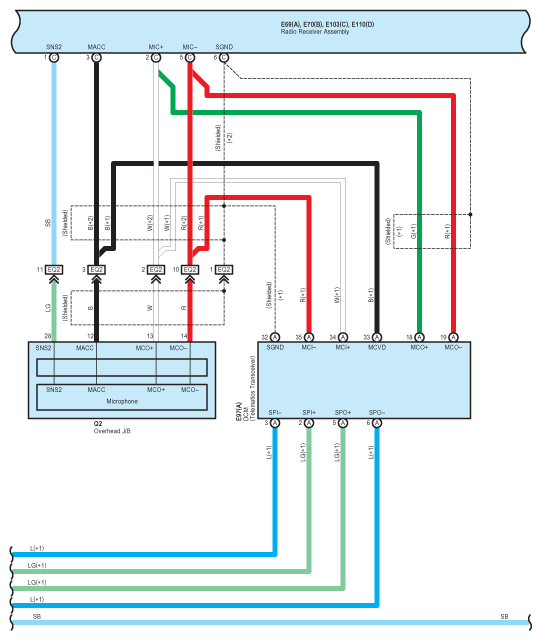

Fig 2: Audio System (w/o Lexus Navigation System) - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

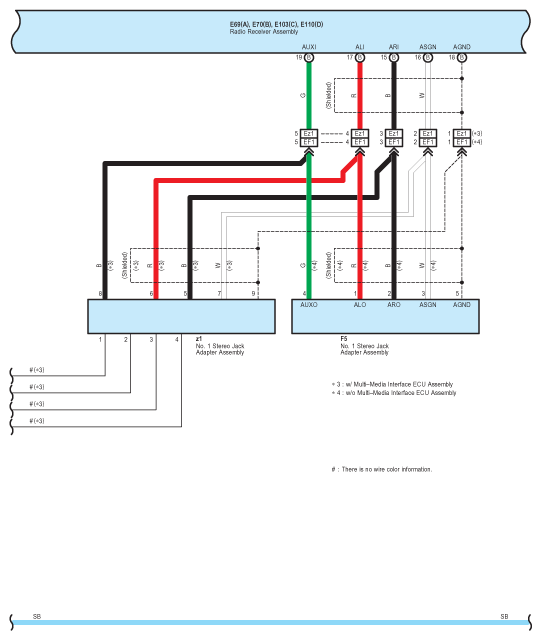

Fig 3: Audio System (w/o Lexus Navigation System) - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

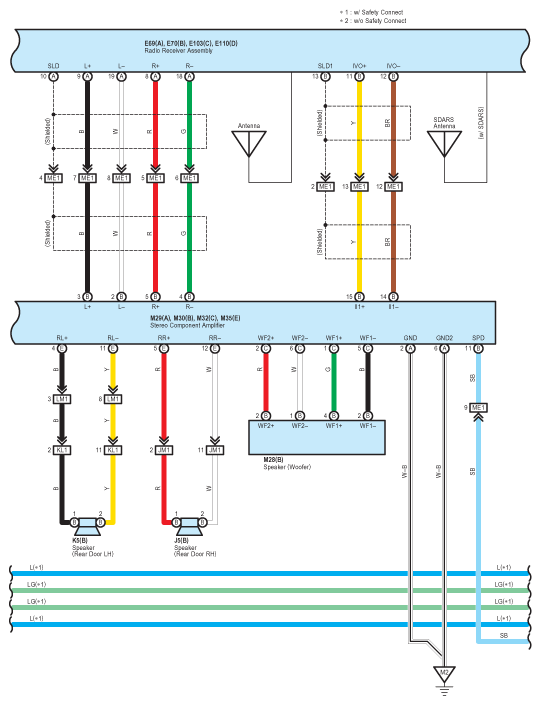

Fig 4: Audio System (w/o Lexus Navigation System) - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

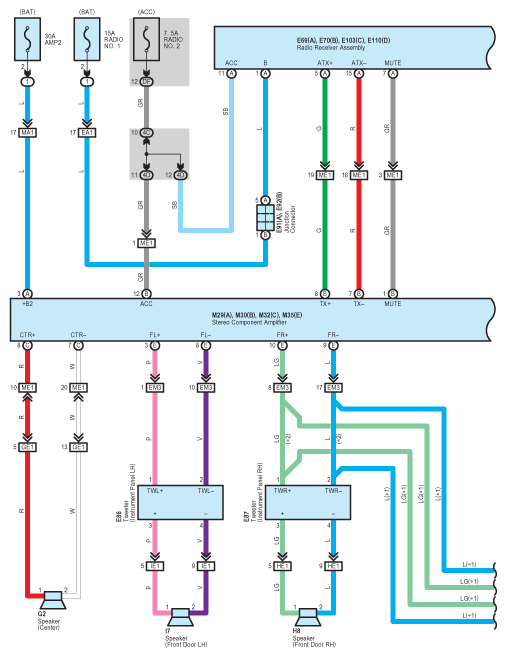

Fig 5: Audio System (w/o Lexus Navigation System) - Circuit Diagram (5 Of 7)

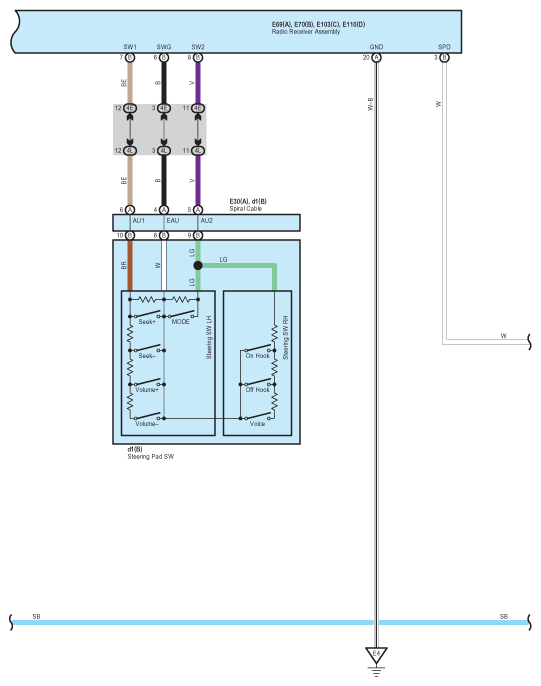

Fig 6: Audio System (w/o Lexus Navigation System) - Circuit Diagram (6 Of 7)

Fig 7: Audio System (w/o Lexus Navigation System) - Circuit Diagram (7 Of 7)
