VGRS System: Notes — 2011 Lexus GS 350 AWD Service Manual ~ LEMON Manuals

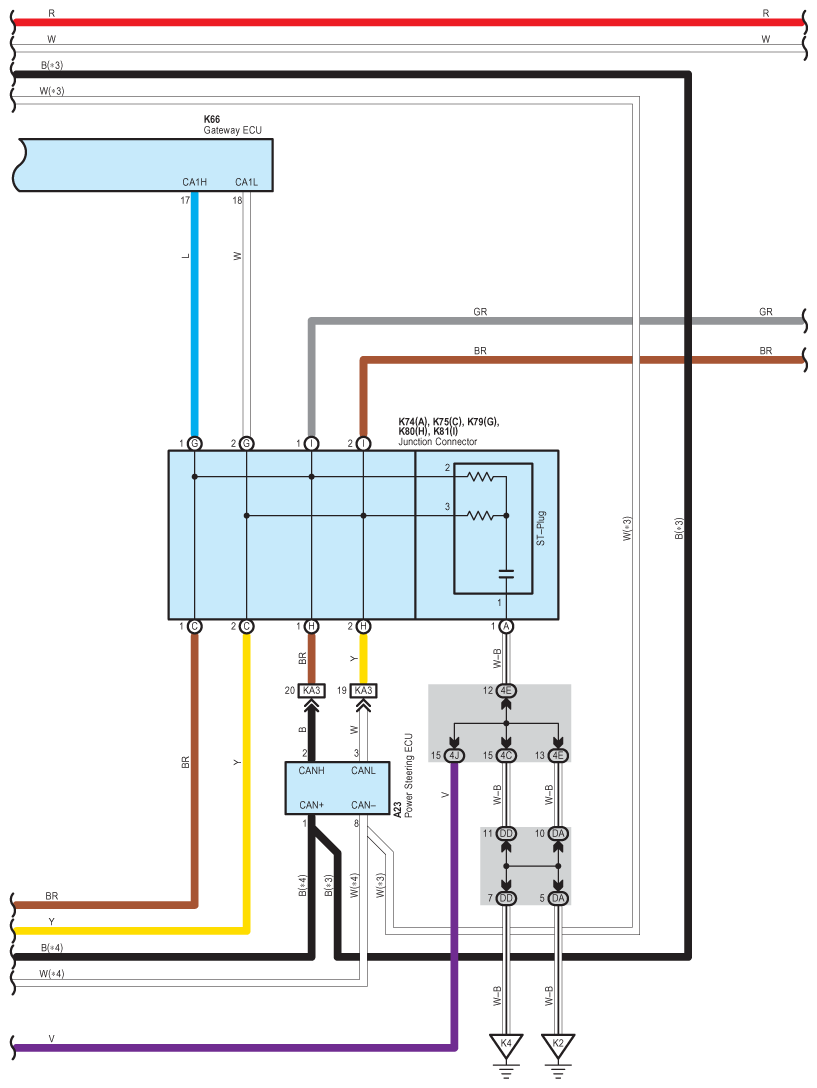

Fig 1: VGRS System - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

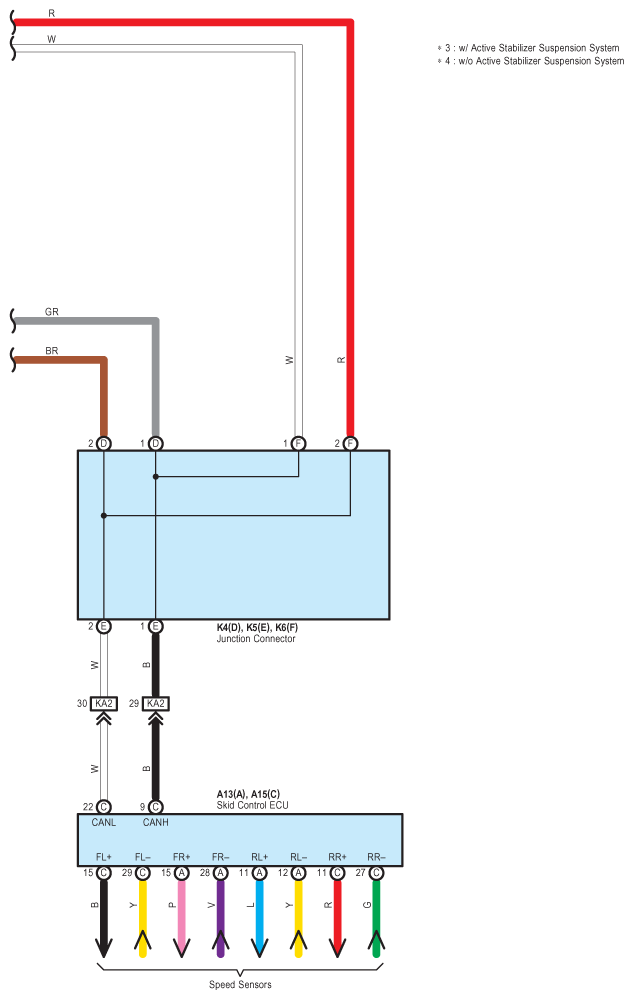

Fig 2: VGRS System - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

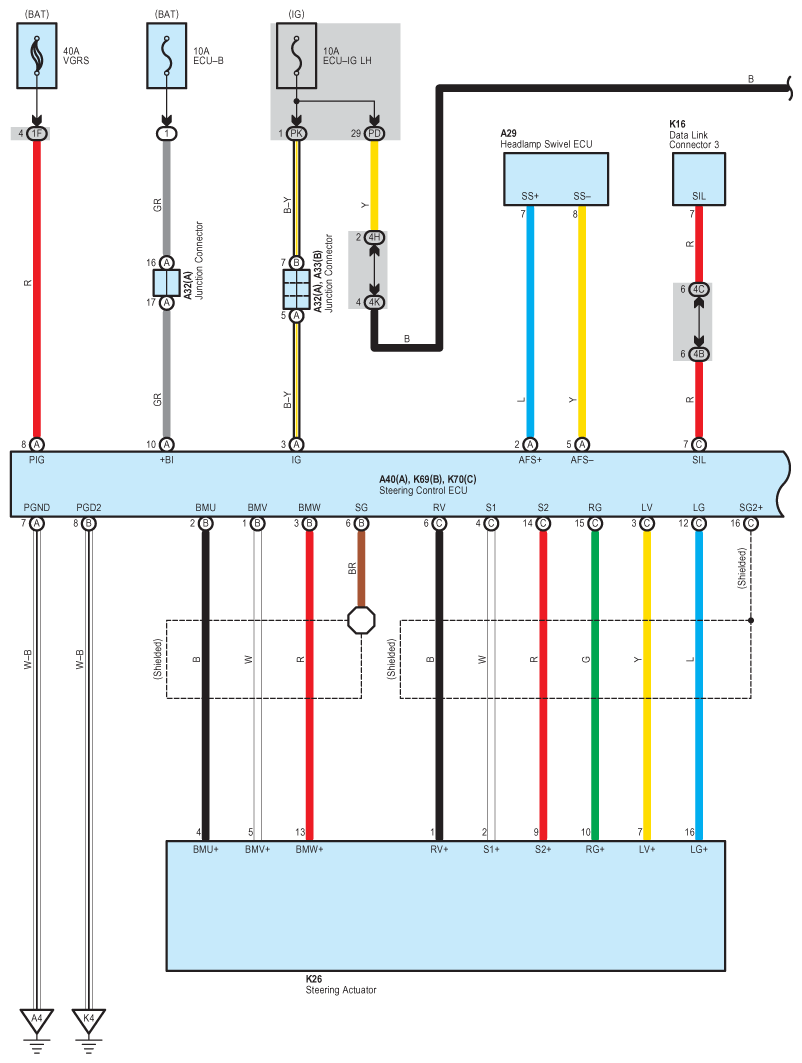

Fig 3: VGRS System - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

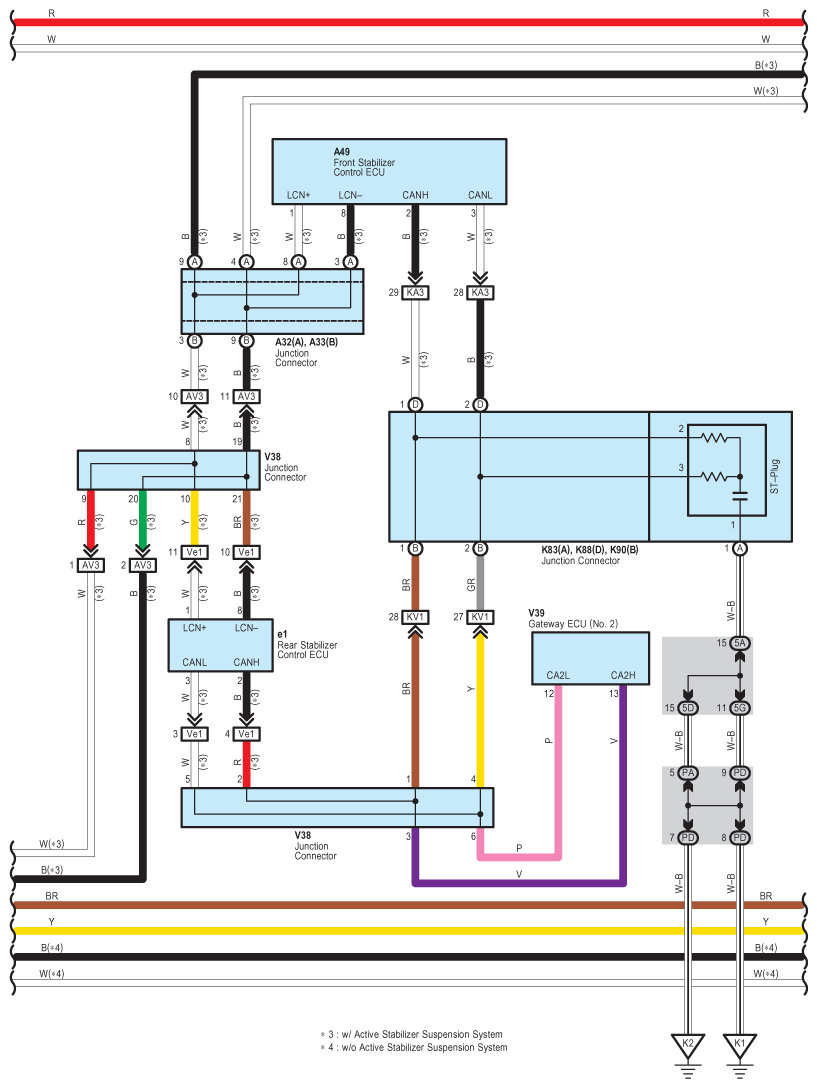

Fig 4: VGRS System - Circuit Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

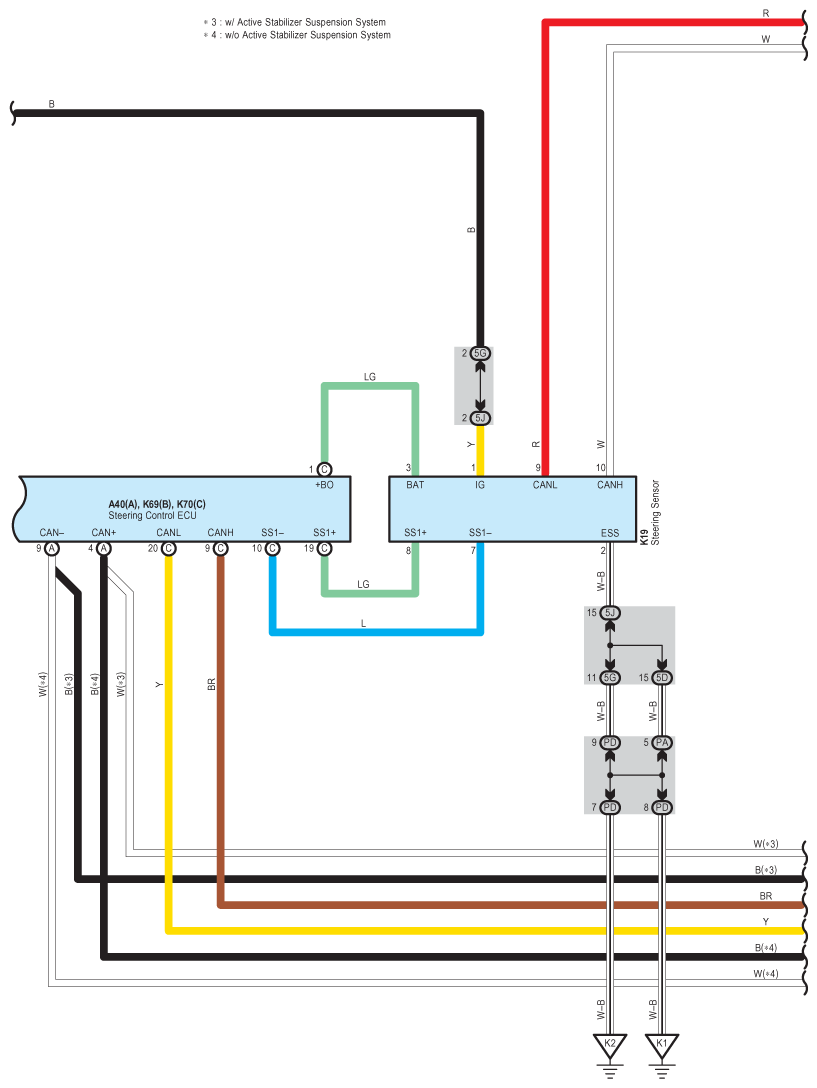

Fig 5: VGRS System - Circuit Diagram (5 Of 6)

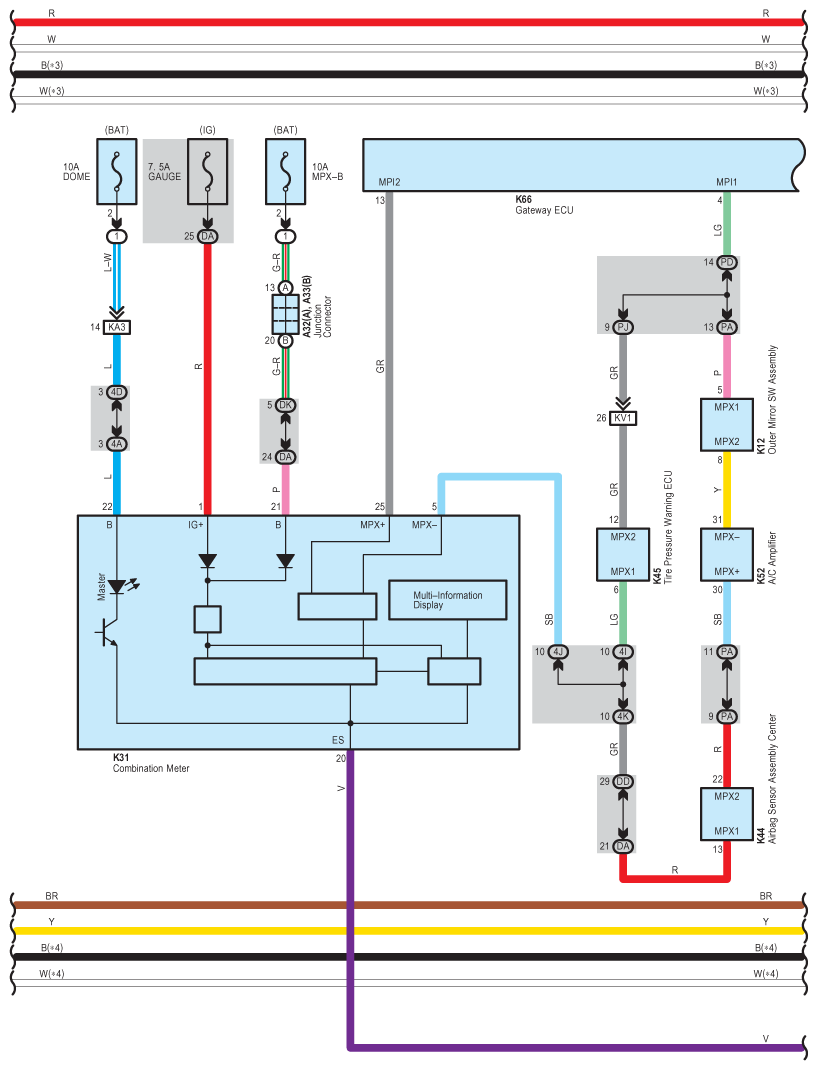

Fig 6: VGRS System - Circuit Diagram (6 Of 6)
