Steering Angle Sensor: Installation: Installation

INSTALL STEERING SENSOR

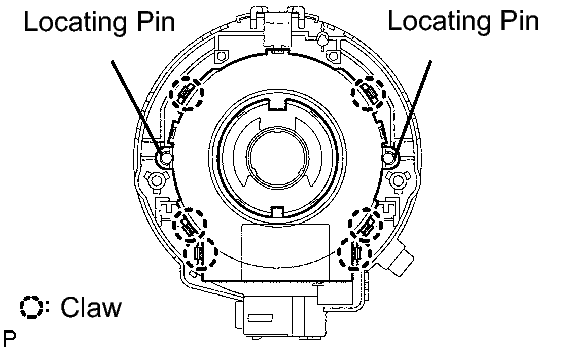

1. Align the locating pins, engage the claws and install the steering sensor to the spiral cable sub-assembly

  Fig 1: Aligning Locating Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR . Refer to INSTALLATION - Step 2
INSTALL STEERING COLUMN COVER
for 2GR-FSE. Refer to INSTALLATION - Step 9

for 1UR-FSE. Refer to INSTALLATION - Step 10
CENTER SPIRAL CABLE . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY
for 2GR-FSE. Refer to INSTALLATION - Step 11

for 1UR-FSE. Refer to INSTALLATION - Step 12
INSTALL HORN BUTTON ASSEMBLY . Refer to INSTALLATION - Step 1
INSPECT STEERING WHEEL CENTER POINT
CONNECT BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT HORN BUTTON ASSEMBLY . Refer to INSTALLATION - Step 5
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
