Dynamic Radar Cruise Control: Notes

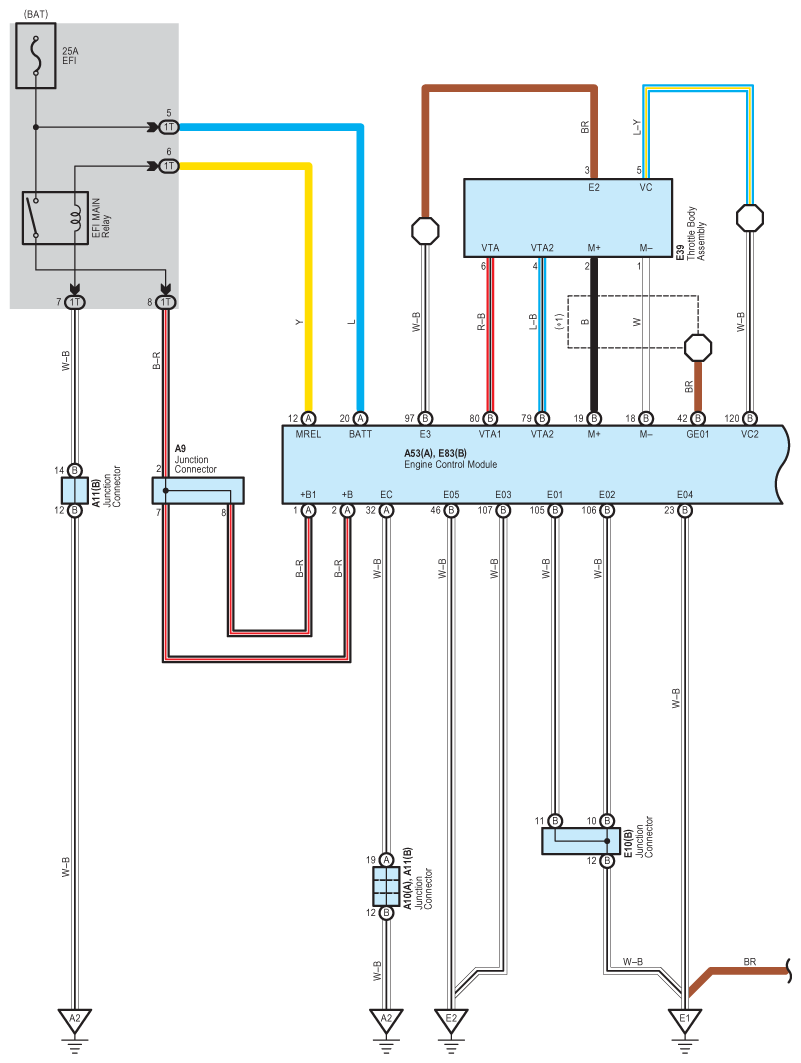

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 23)

G07570173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

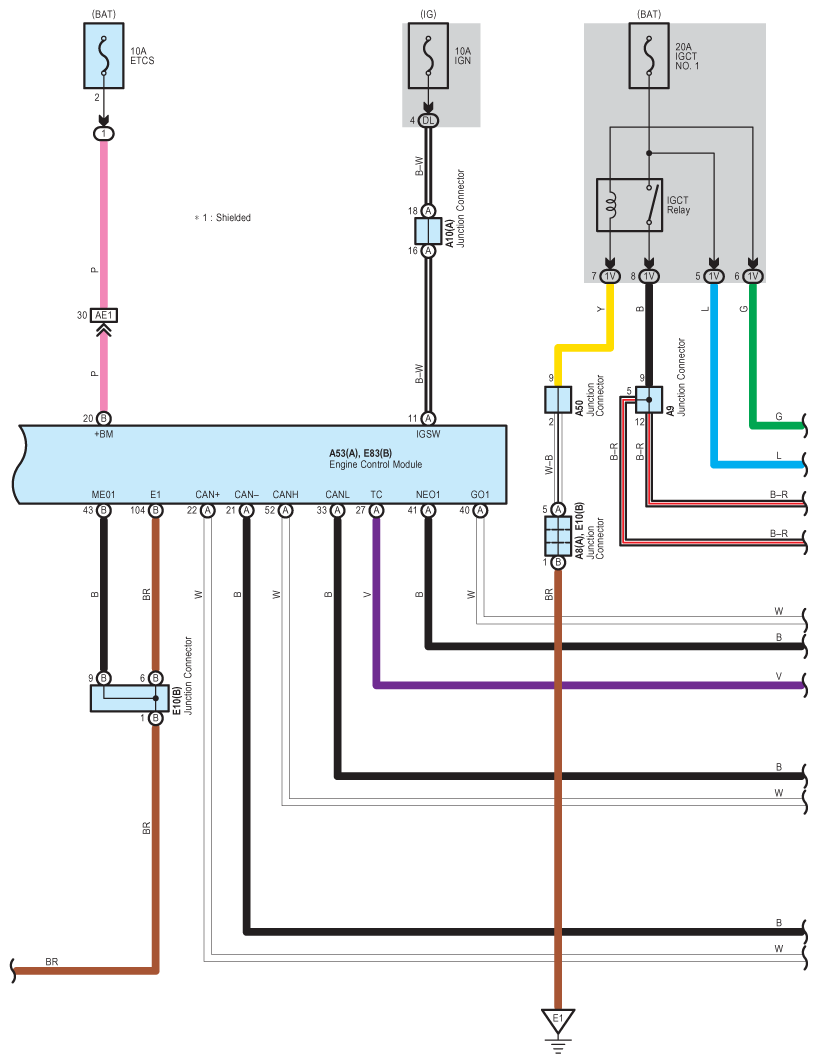

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 23)

G07570174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

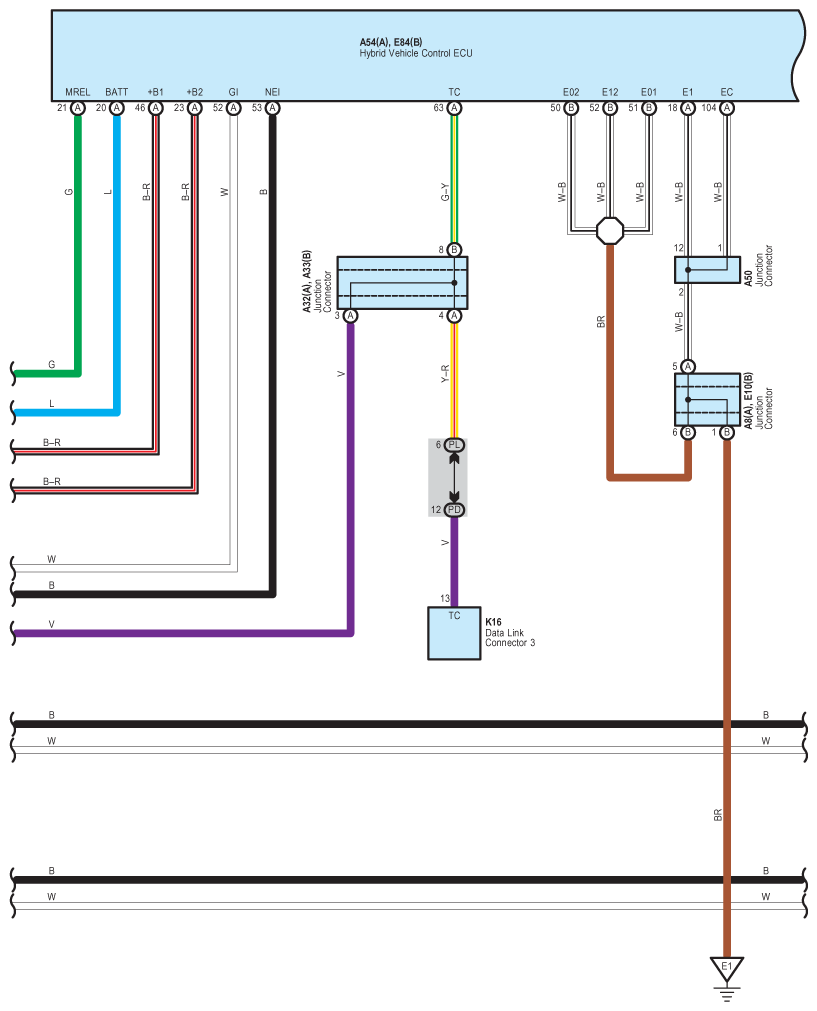

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 23)

G07570175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

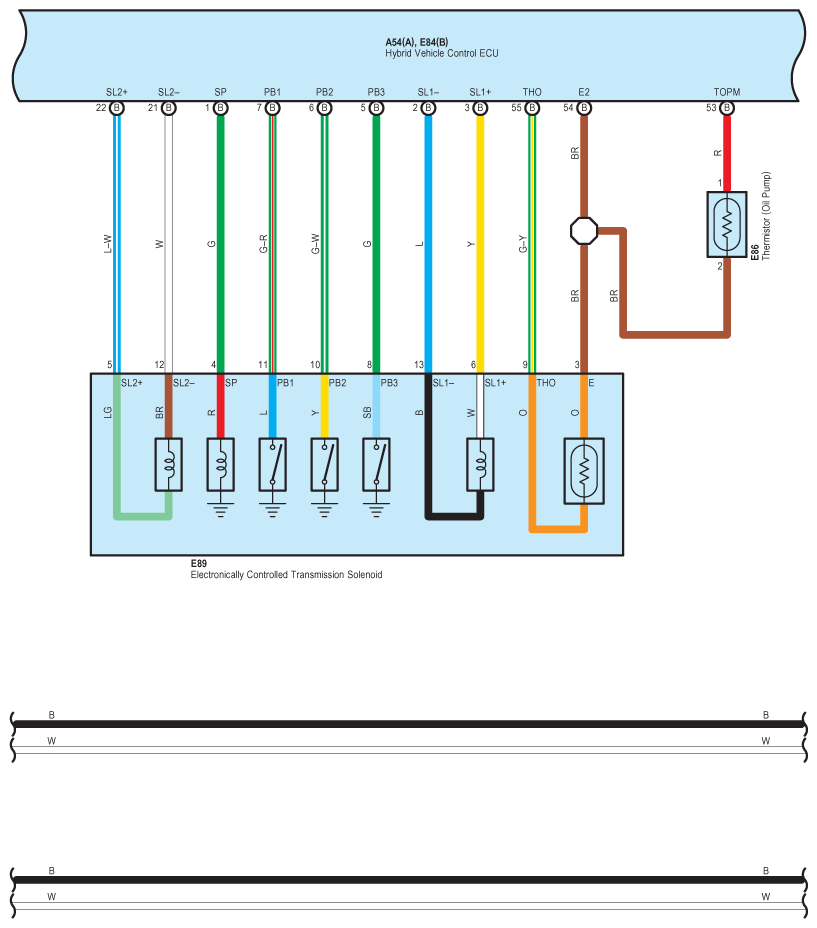

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 23)

G07570176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

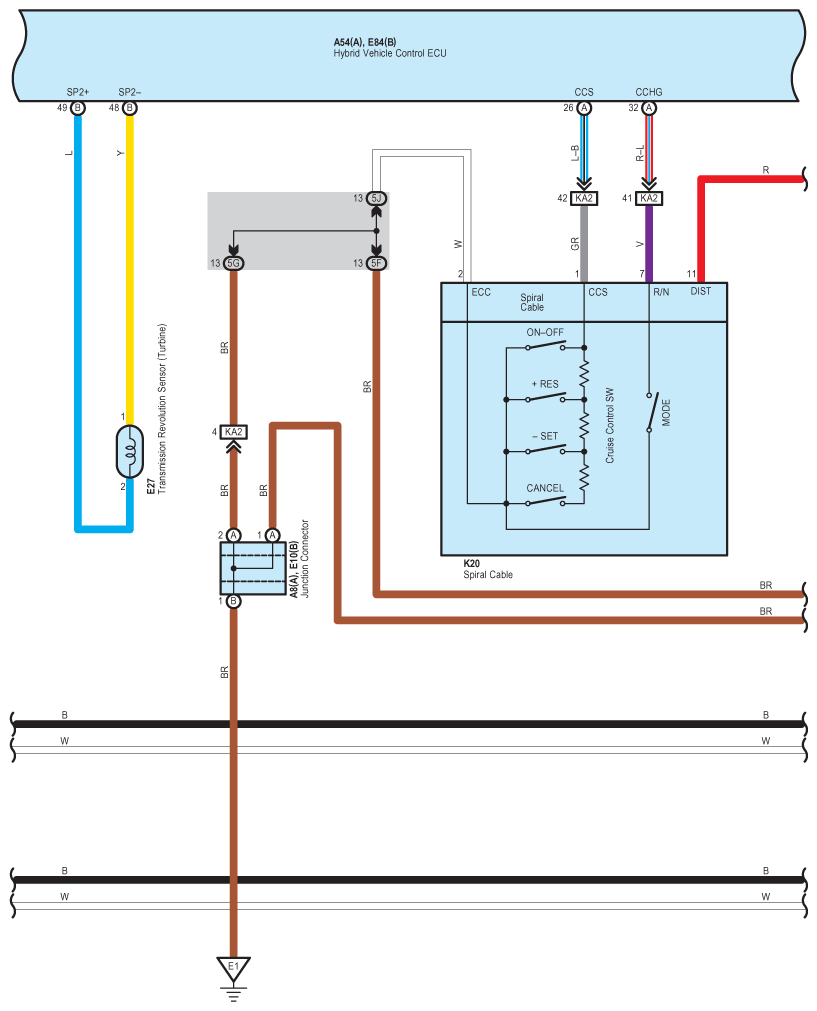

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 23)

G07570177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

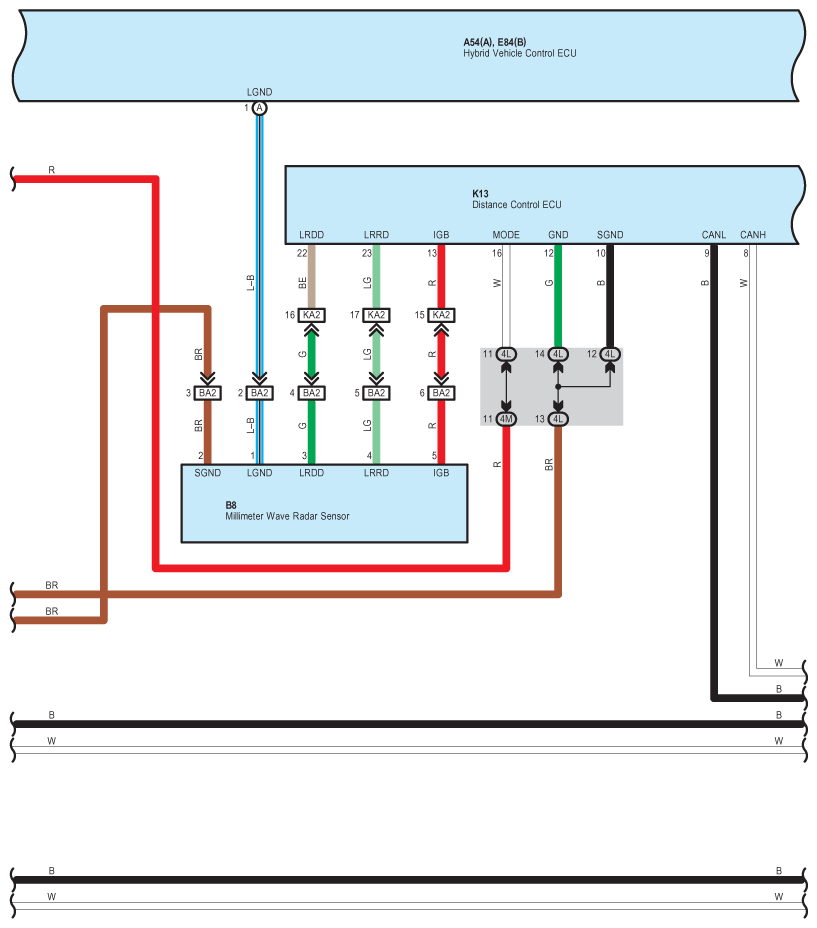

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 23)

G07570178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

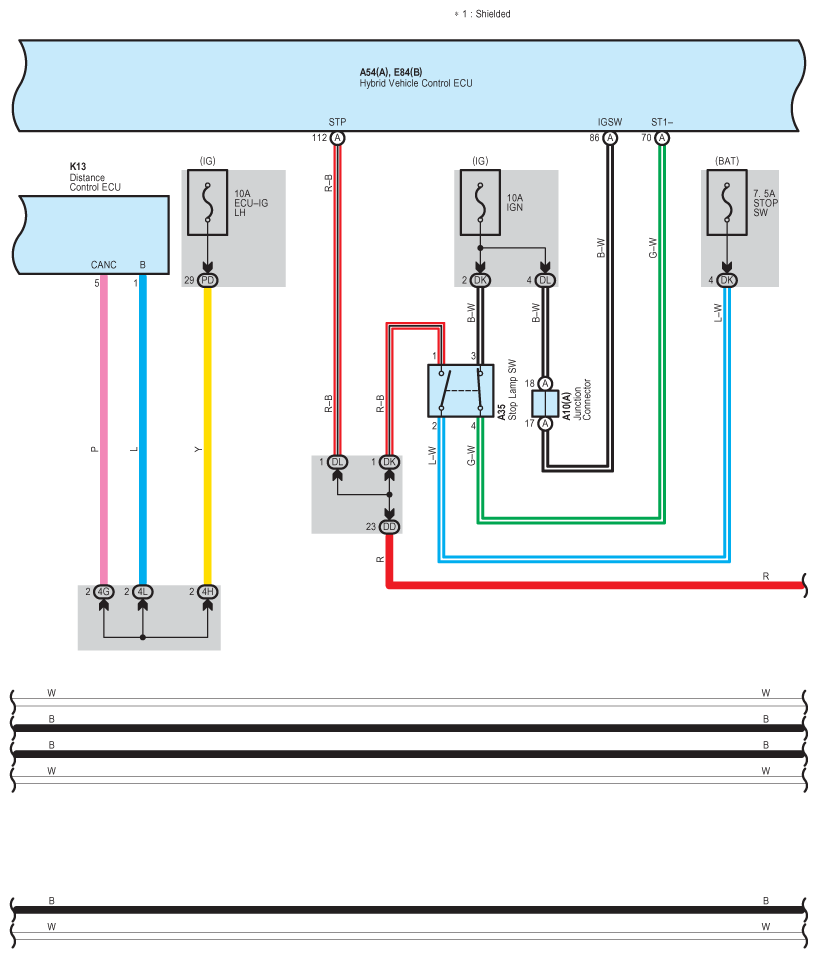

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 23)

G07570179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

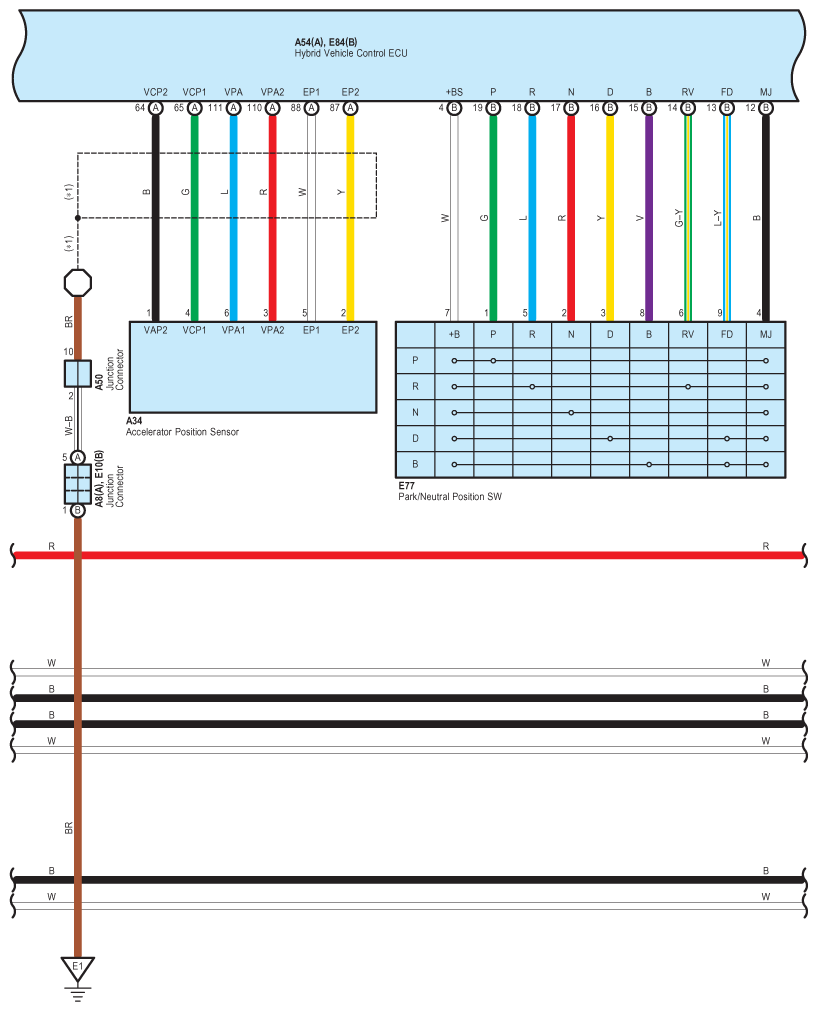

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 23)

G07570180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

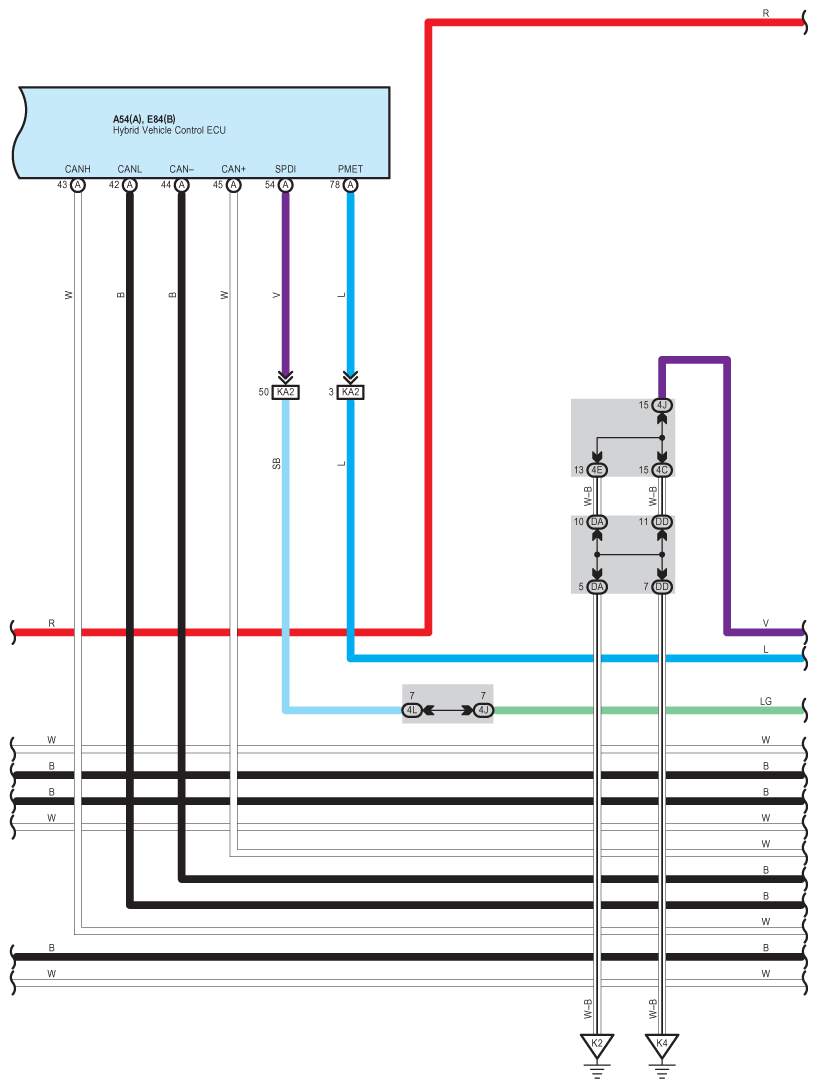

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 23)

G07570181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

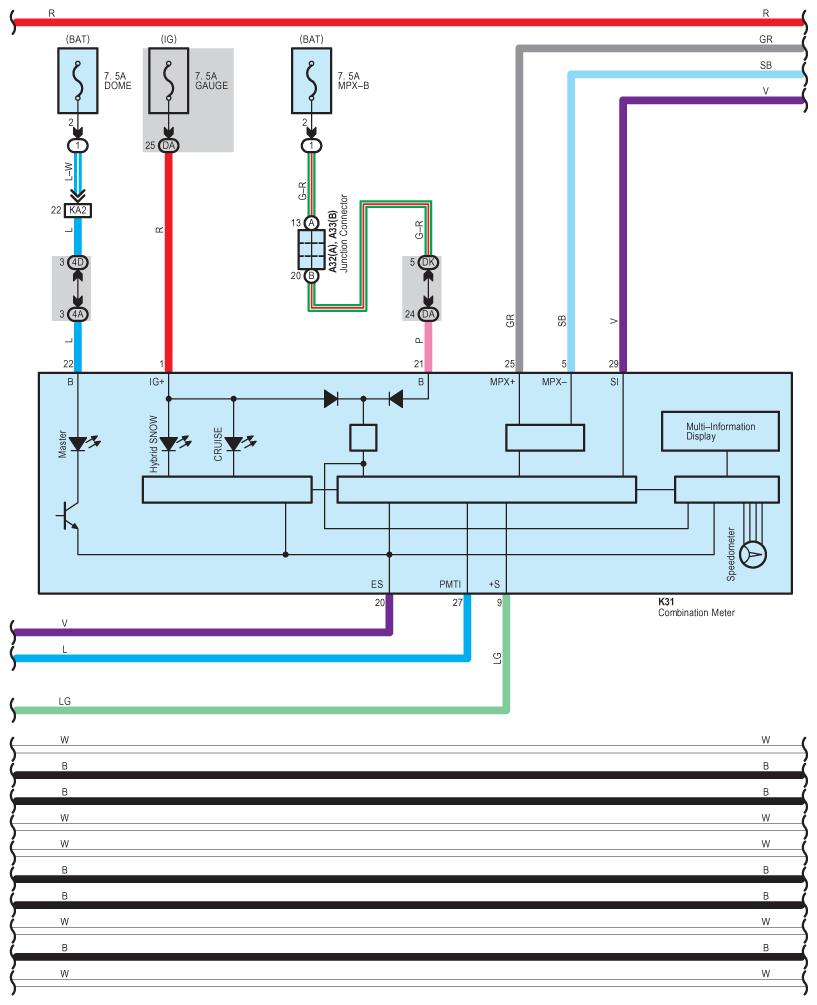

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 23)

G07570182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

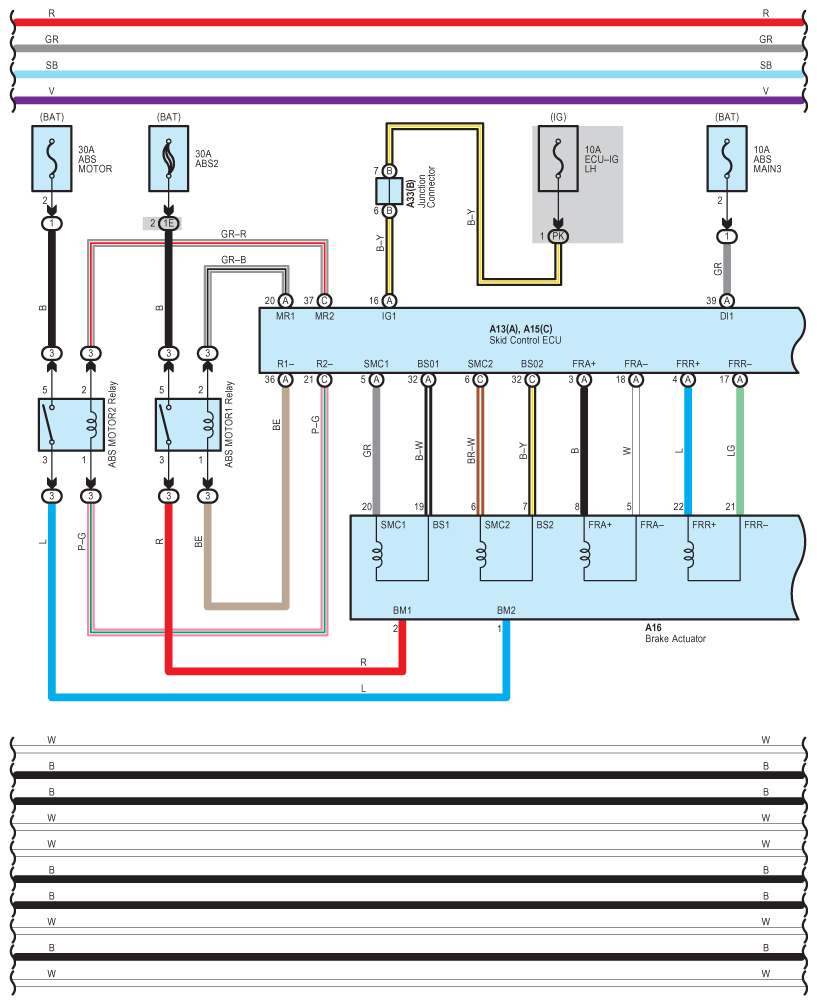

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 23)

G07570183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

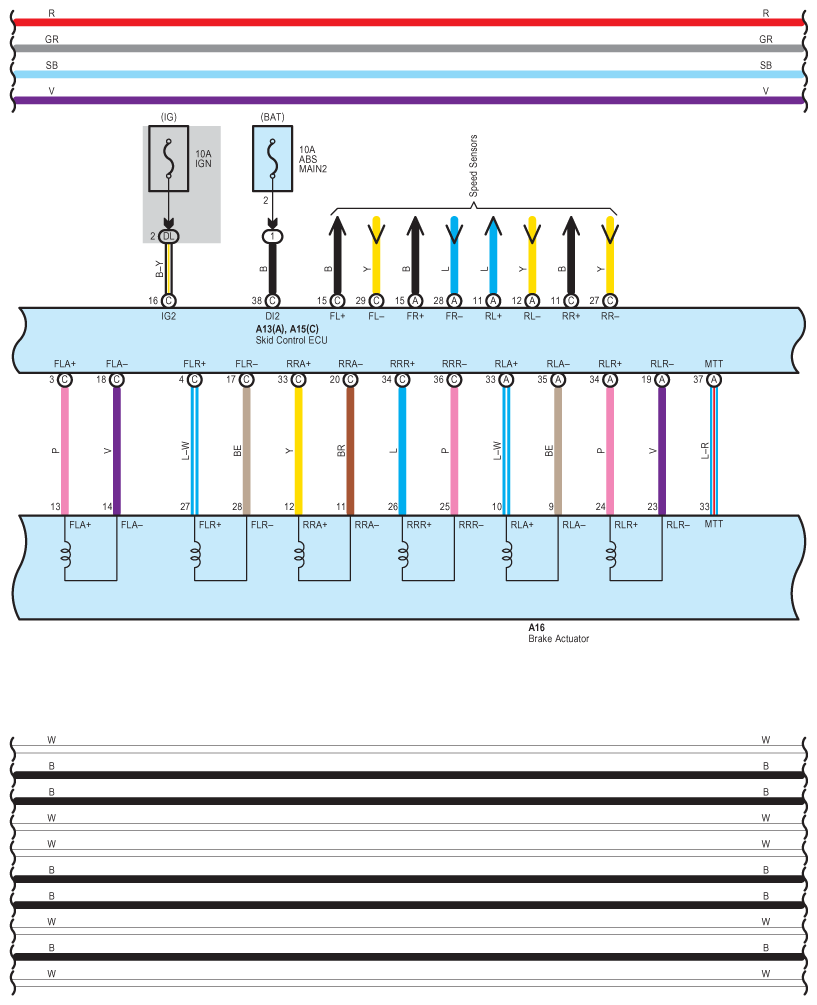

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 23)

G07570184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

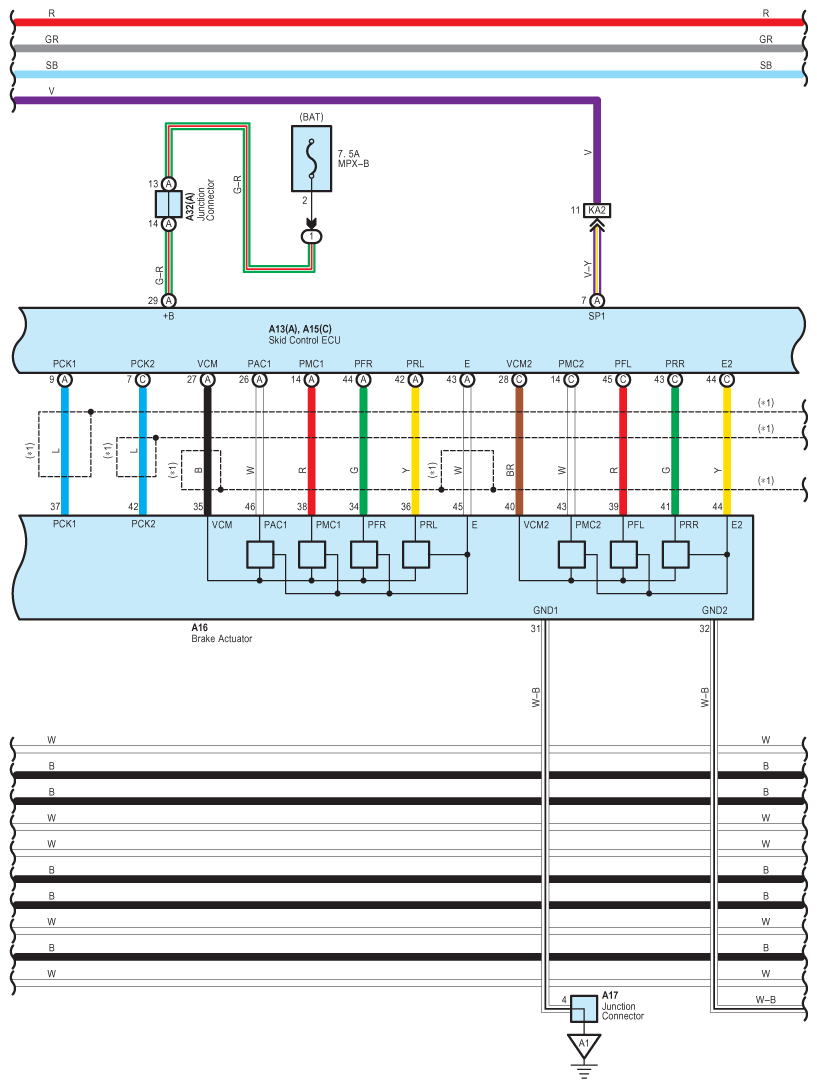

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 23)

G07570185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

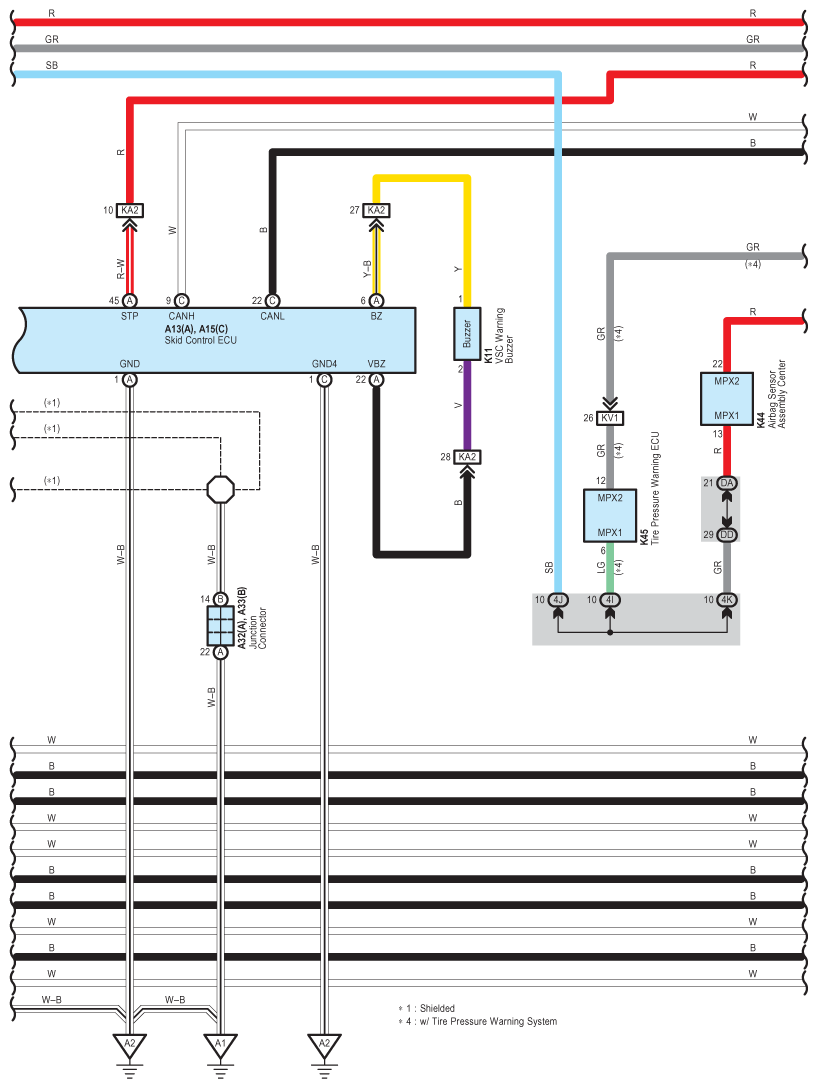

Fig 14: Dynamic Radar Cruise Control - Circuit Diagram (14 Of 23)

G07570186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

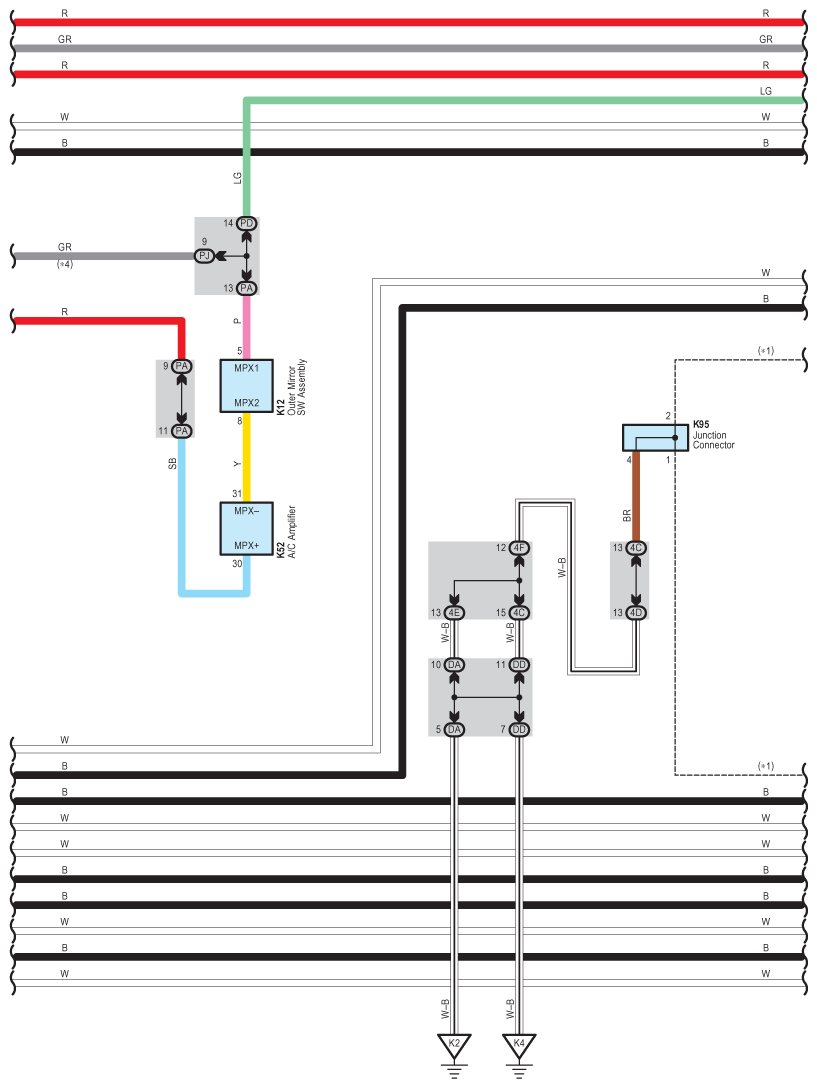

Fig 15: Dynamic Radar Cruise Control - Circuit Diagram (15 Of 23)

G07570187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

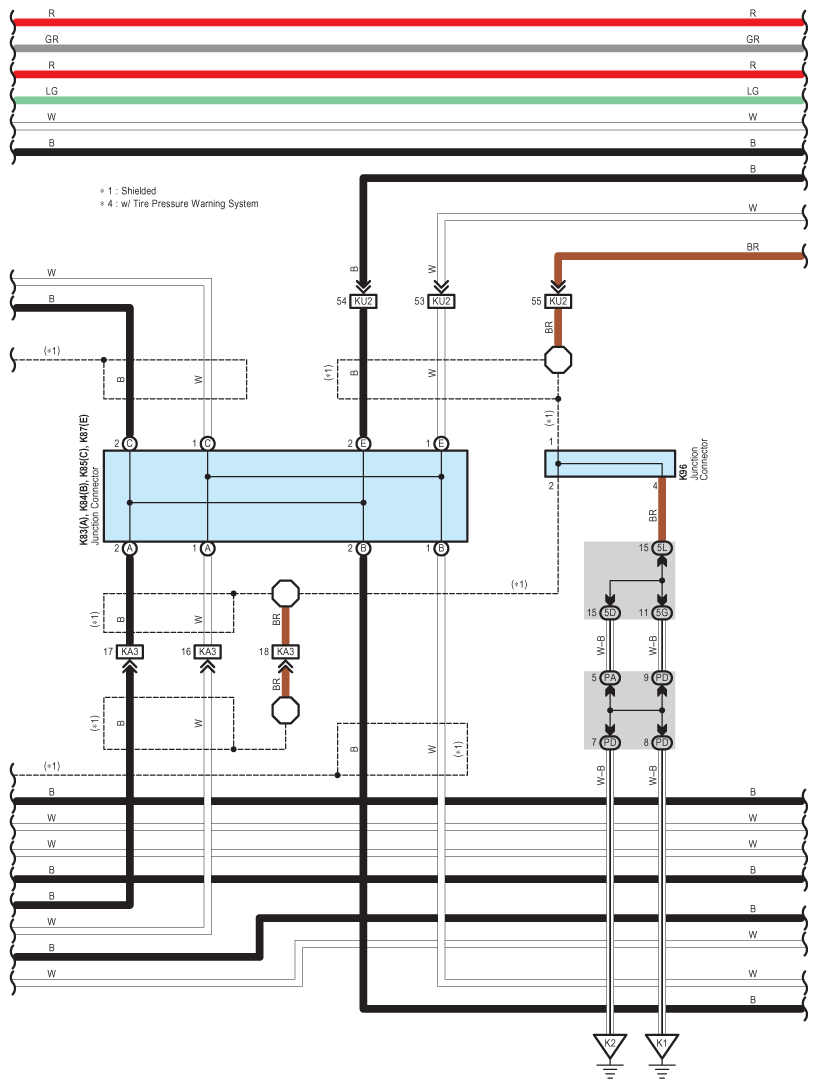

Fig 16: Dynamic Radar Cruise Control - Circuit Diagram (16 Of 23)

G07570188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

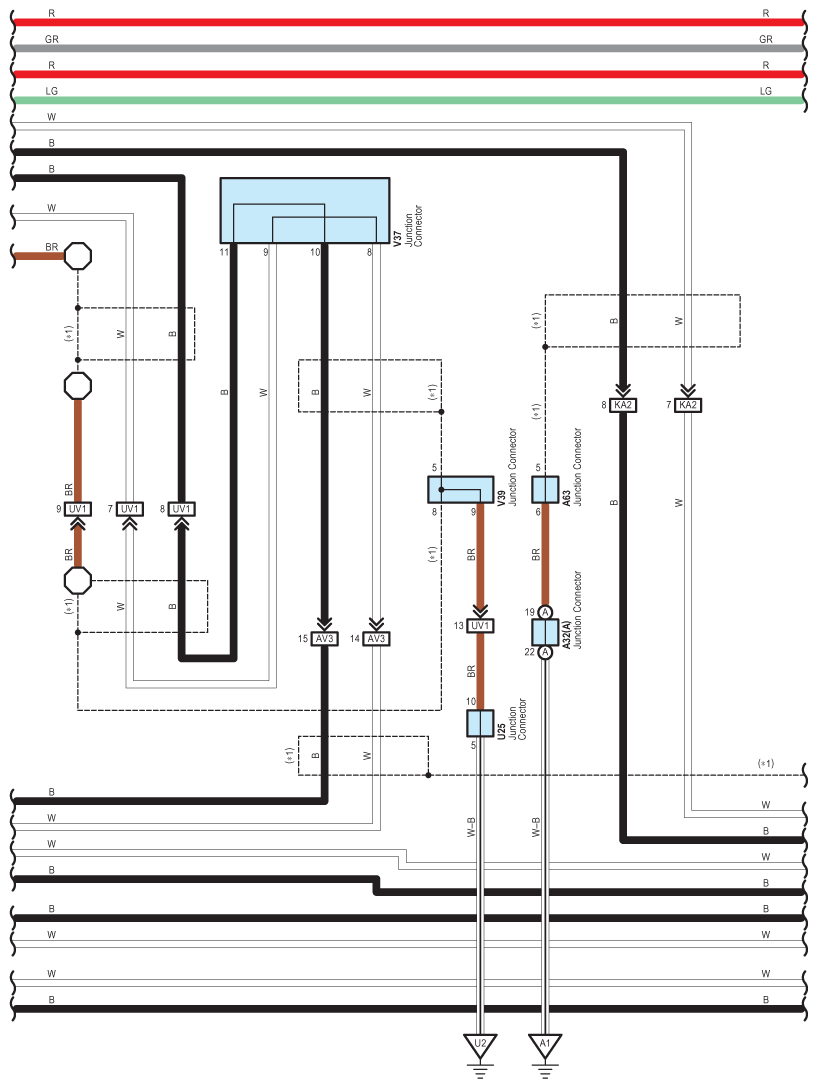

Fig 17: Dynamic Radar Cruise Control - Circuit Diagram (17 Of 23)

G07570189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

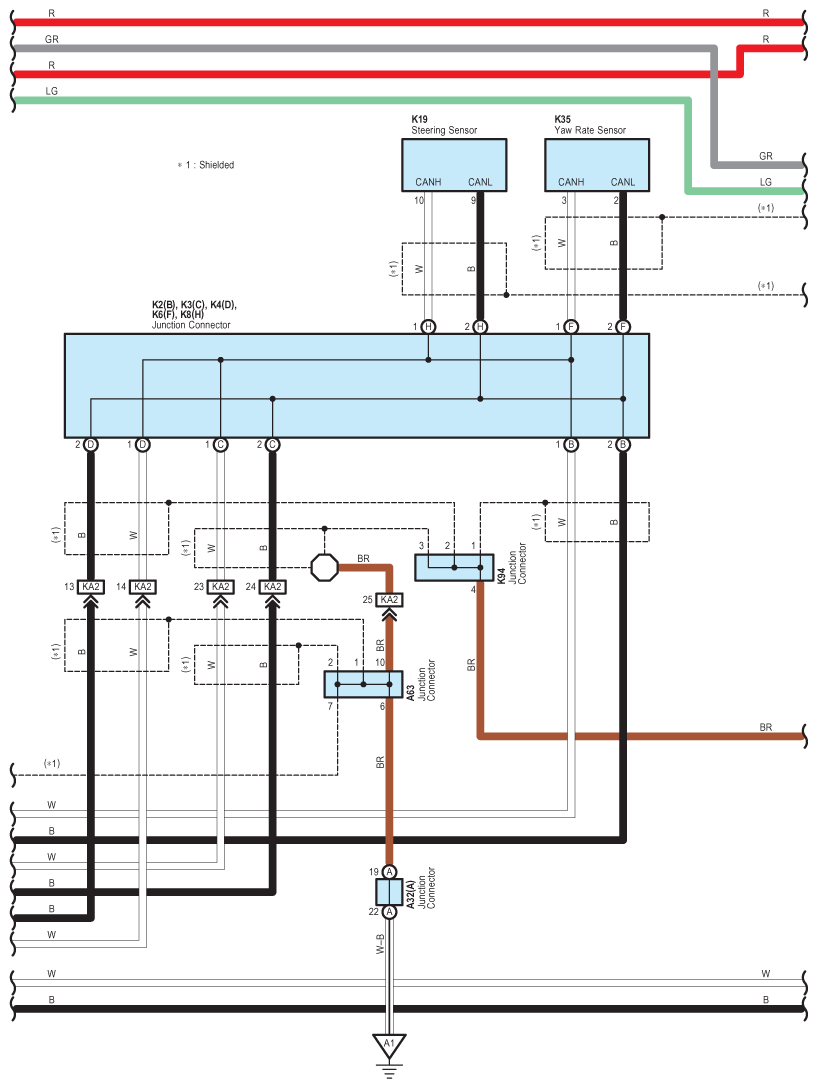

Fig 18: Dynamic Radar Cruise Control - Circuit Diagram (18 Of 23)

G07570190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

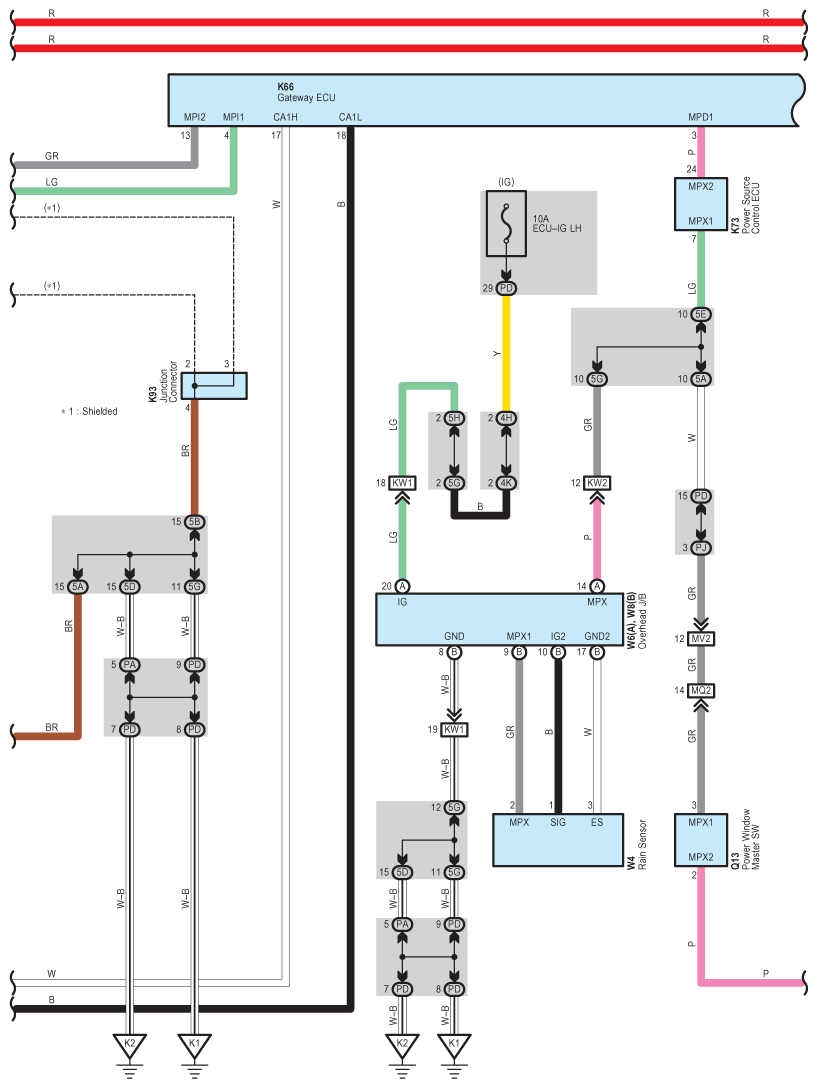

Fig 19: Dynamic Radar Cruise Control - Circuit Diagram (19 Of 23)

G07570191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

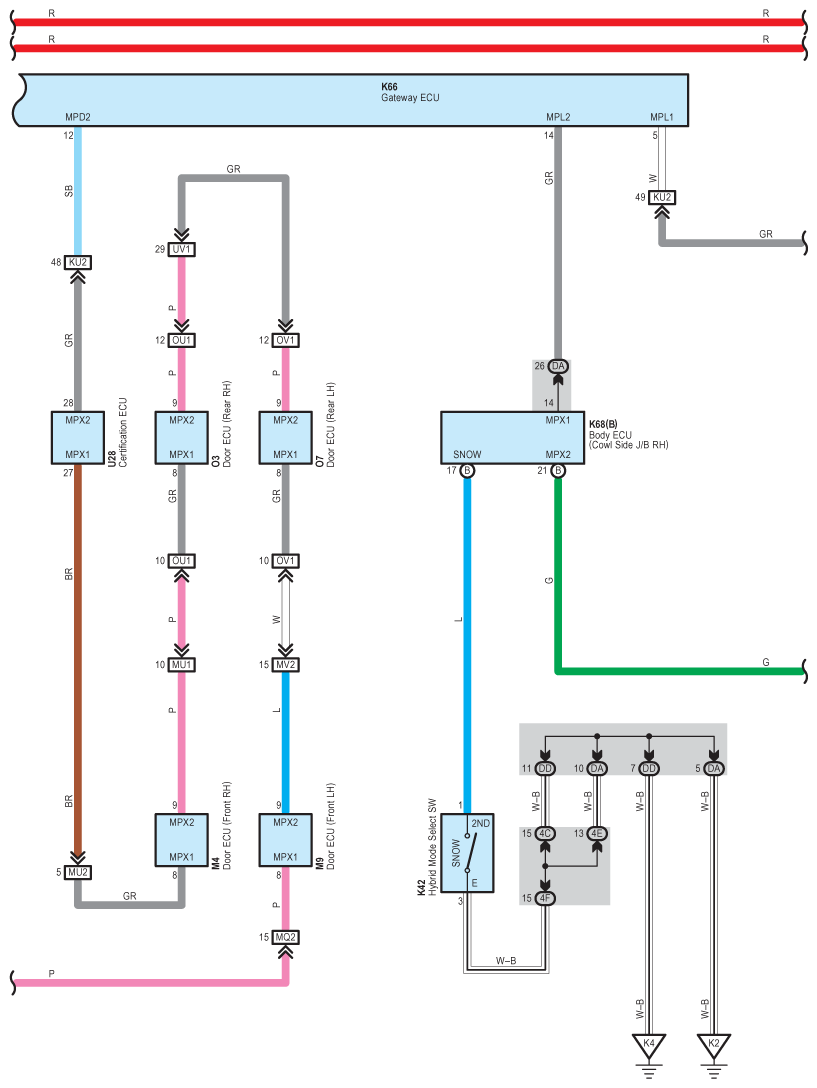

Fig 20: Dynamic Radar Cruise Control - Circuit Diagram (20 Of 23)

G07570192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

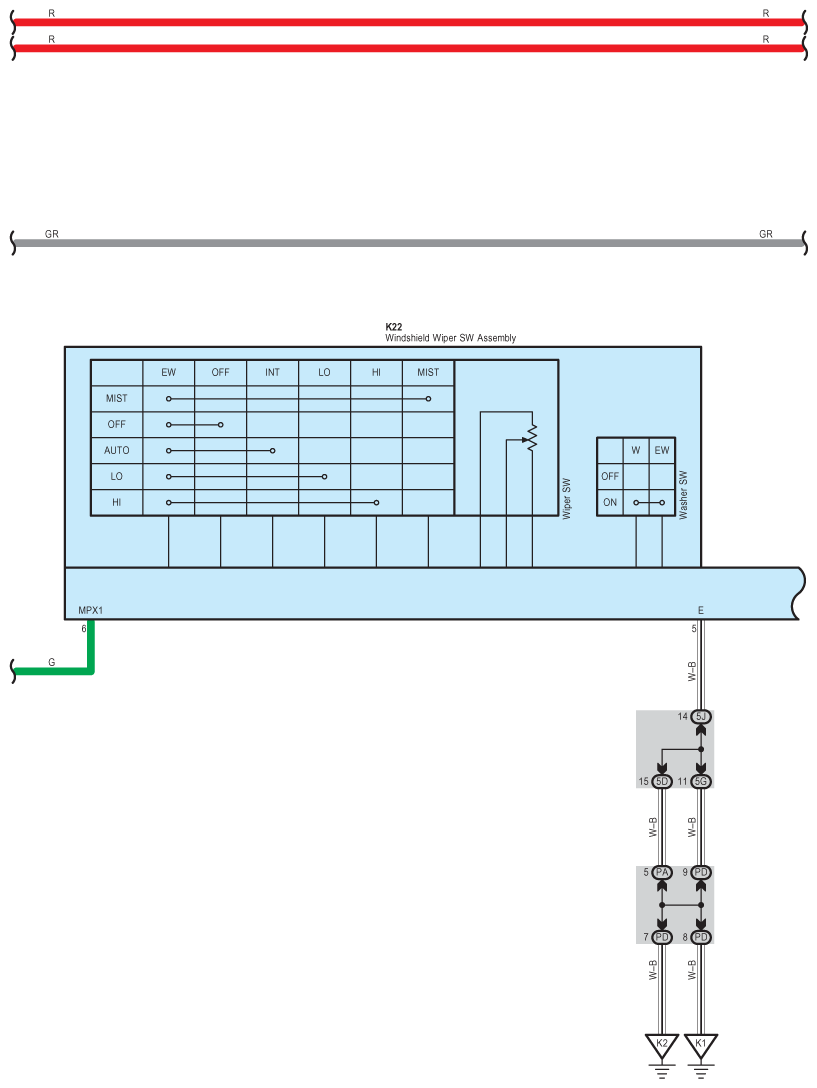

Fig 21: Dynamic Radar Cruise Control - Circuit Diagram (21 Of 23)

G07570193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

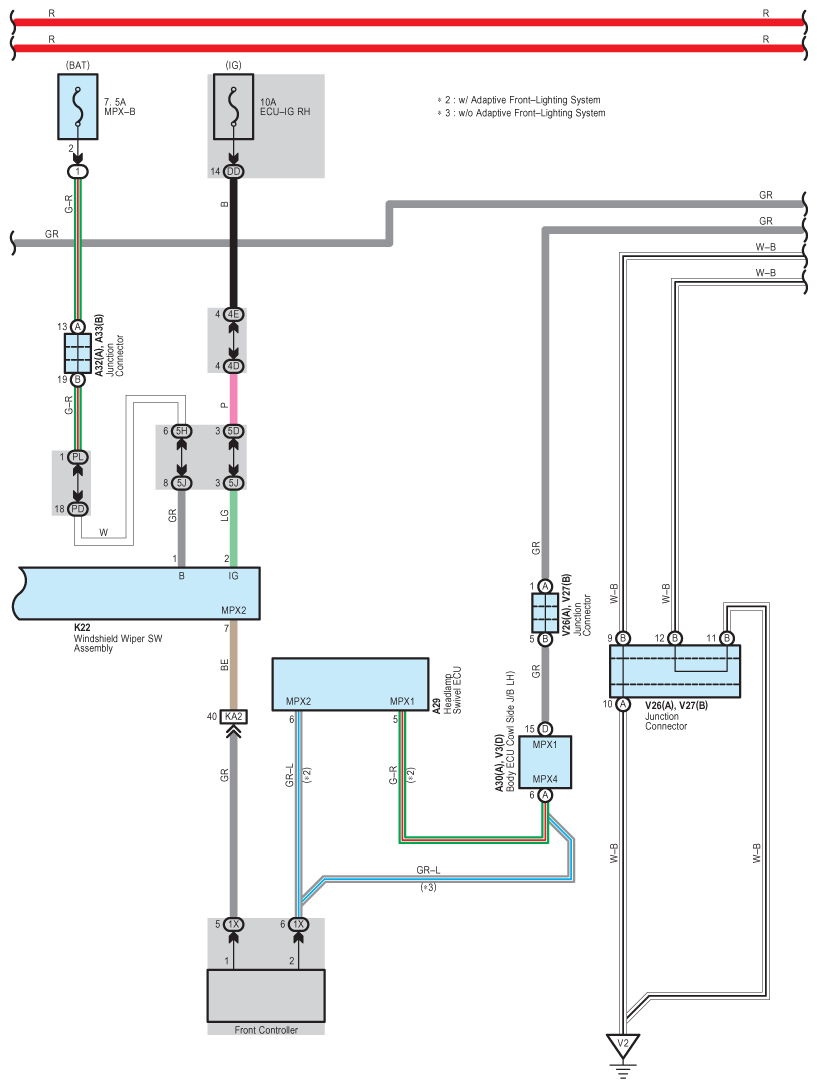

Fig 22: Dynamic Radar Cruise Control - Circuit Diagram (22 Of 23)

G07570194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

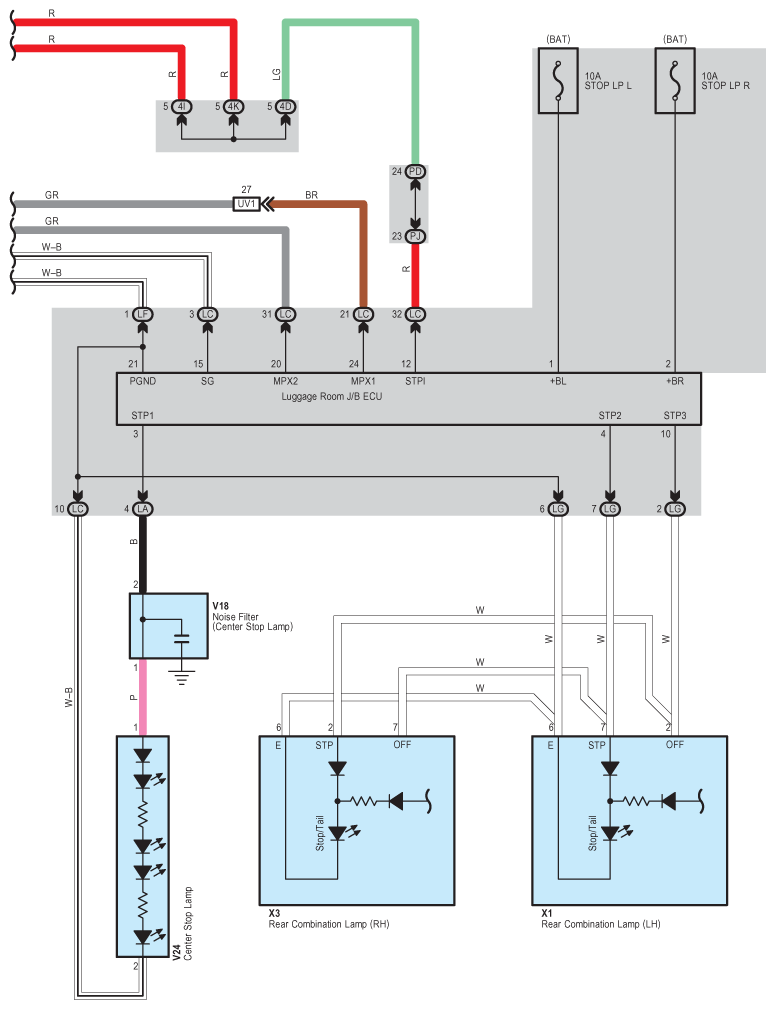

Fig 23: Dynamic Radar Cruise Control - Circuit Diagram (23 Of 23)

G07570195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
