LEXUS ENFORM or Safety Connect: Notes

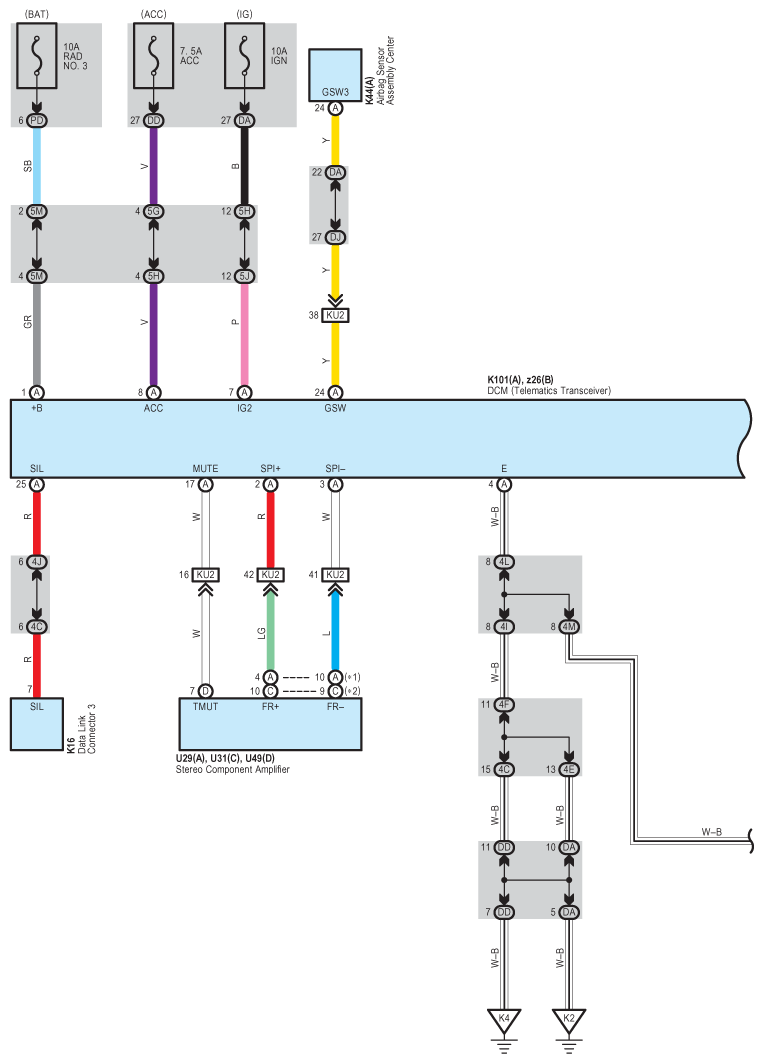

Fig 1: Lexus Enform Or Safety Connect - Circuit Diagram (1 Of 3)
G07570362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

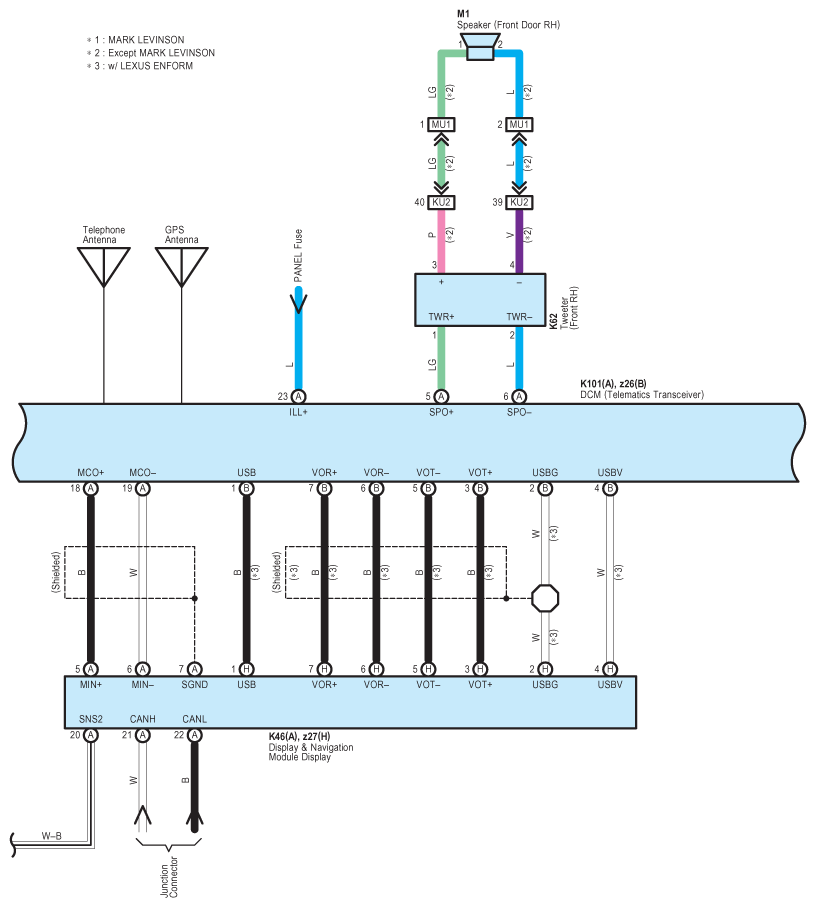

Fig 2: Lexus Enform Or Safety Connect - Circuit Diagram (2 Of 3)
G07570363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

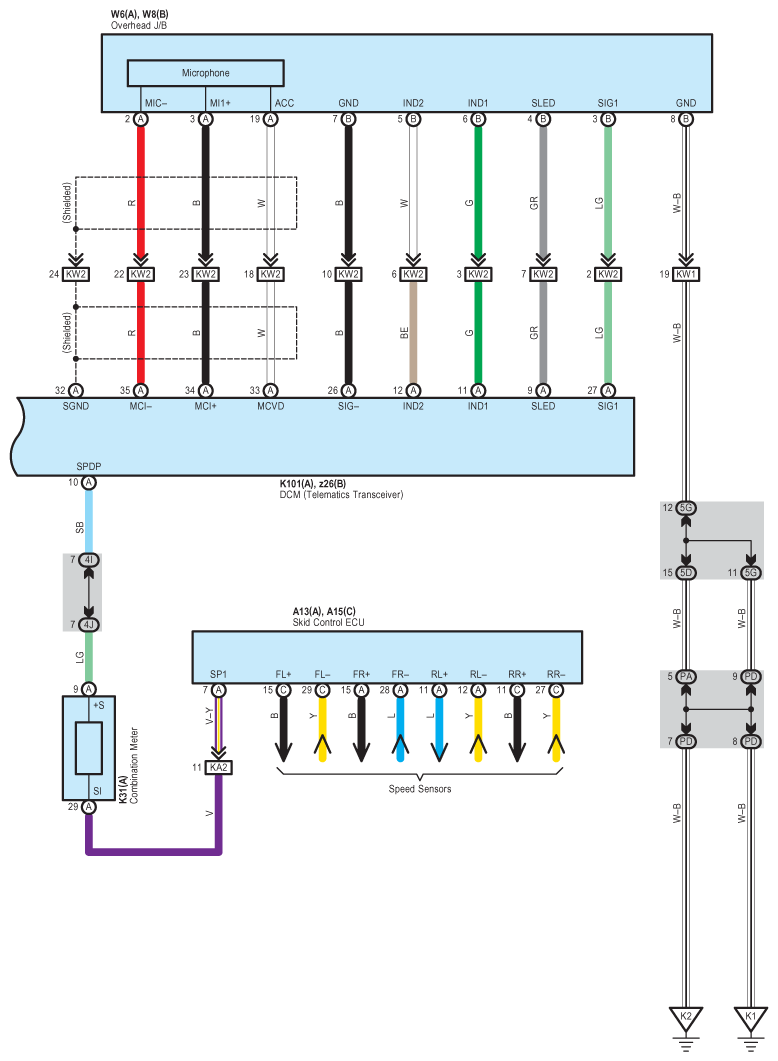

Fig 3: Lexus Enform Or Safety Connect - Circuit Diagram (3 Of 3)
G07570364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
