Fuel Pressure Sensor: Components: Illustration

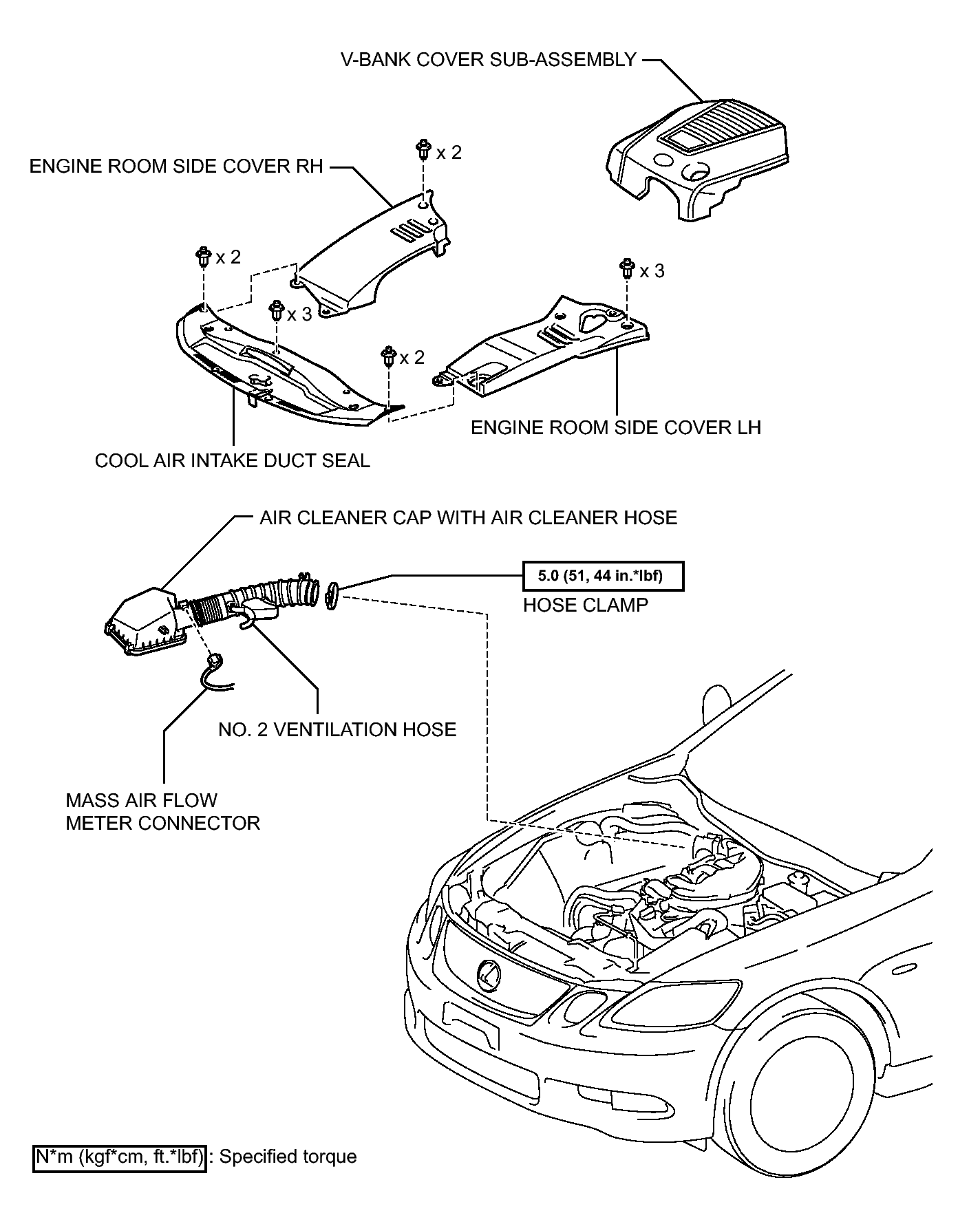

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 4)
GTY284583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

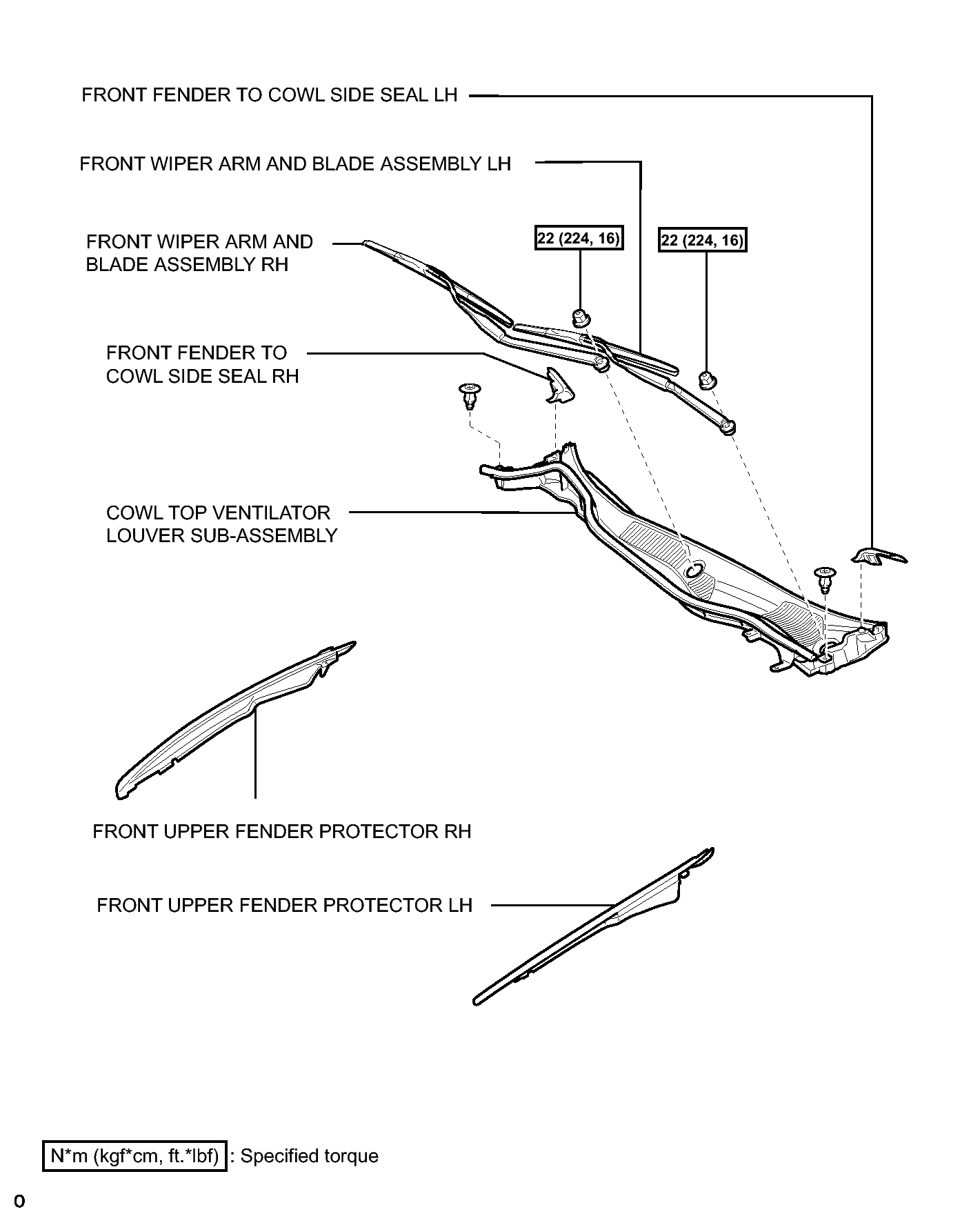

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (2 Of 4)
GTY278418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

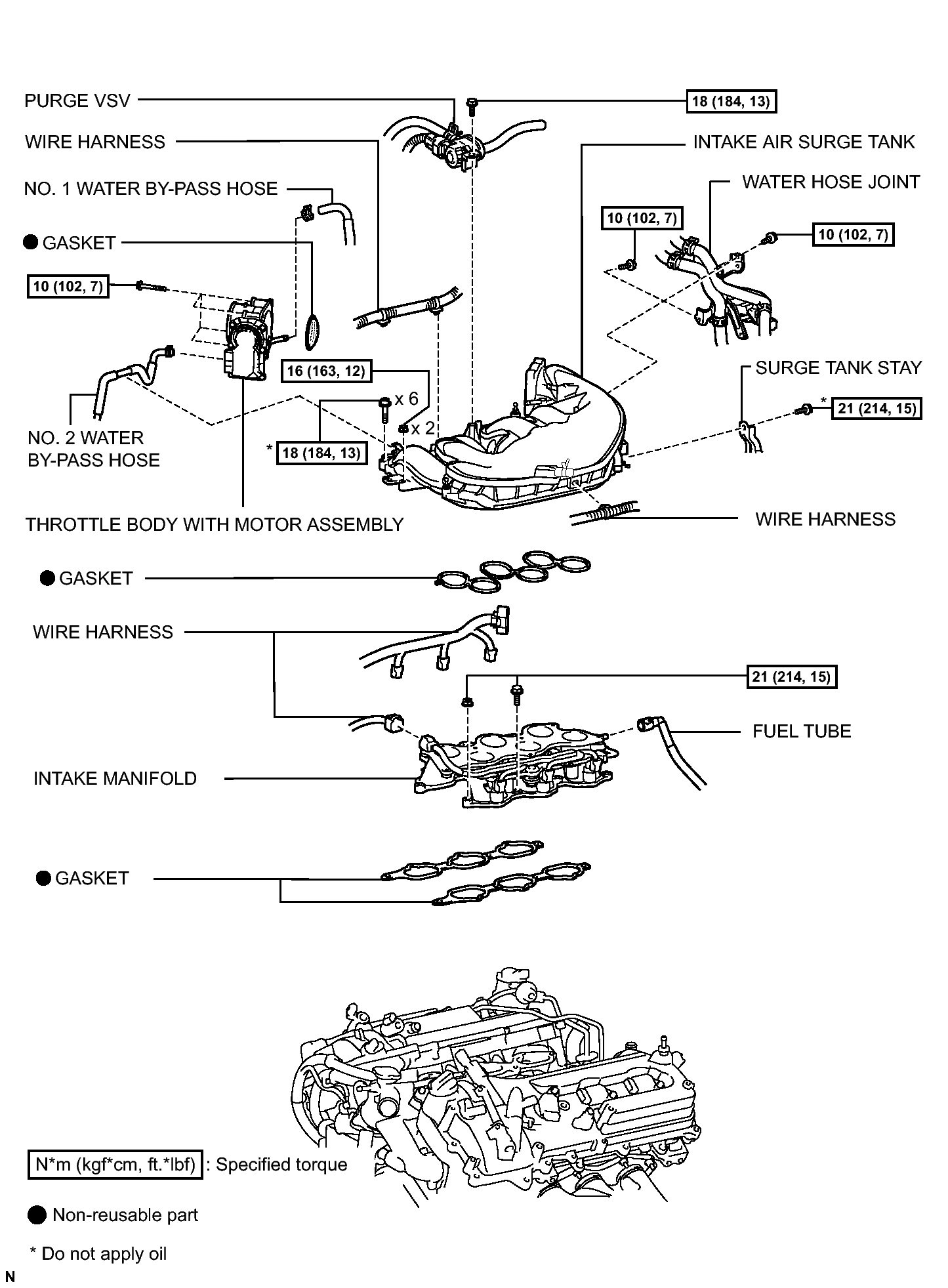

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (3 Of 4)
GTY275476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

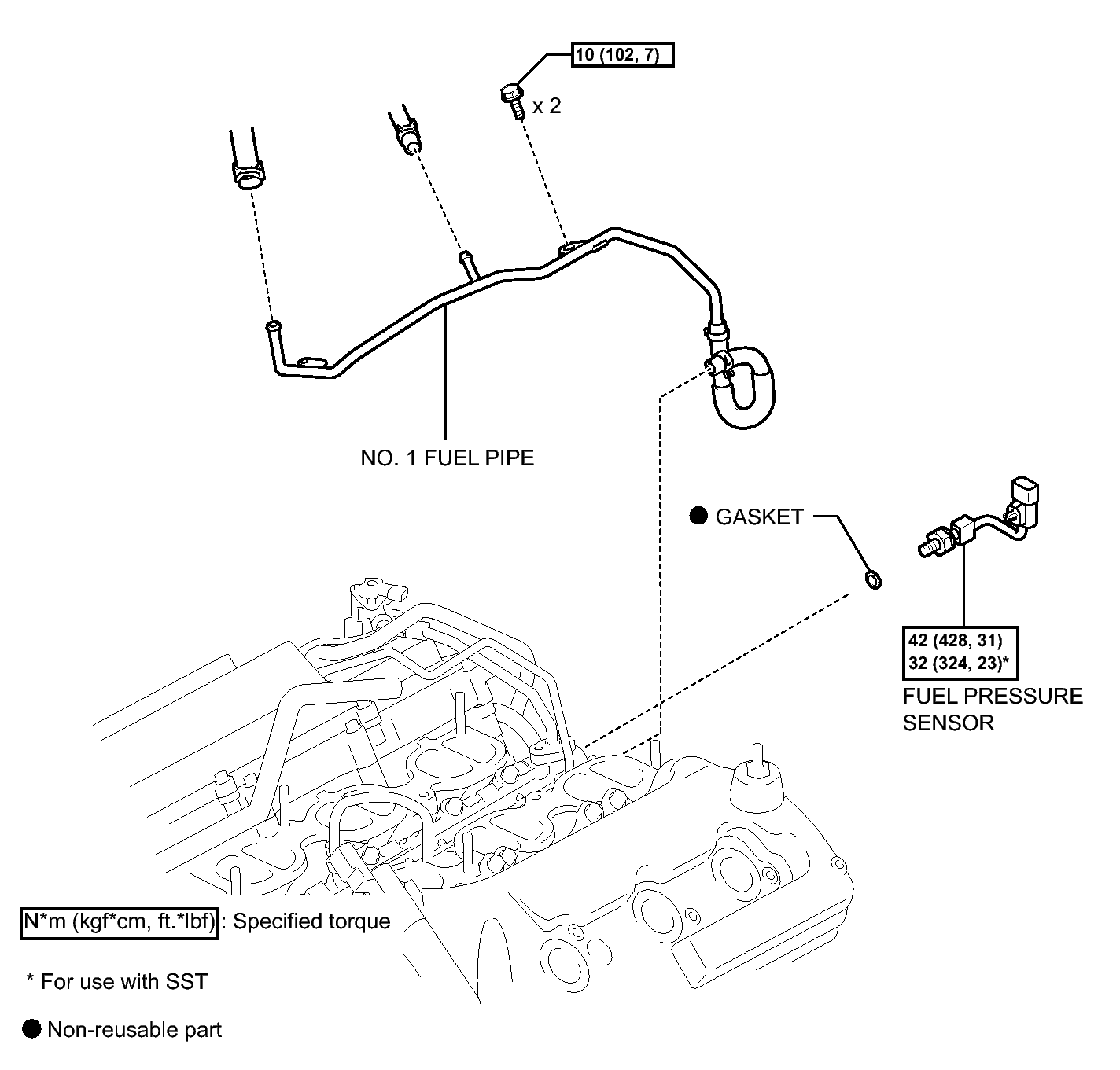

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (4 Of 4)
GTY122960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
