Customize Parameters

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

POWER TILT AND POWER TELESCOPIC STEERING COLUMN

Display	Default	Content	Setting
Autoaway/Return function	ON	ON/OFF of the auto away/return function	ON/OFF

AIR CONDITIONING SYSTEM

Display (Item)	Default	Content	Setting
Set Temperature Shift	NORMAL	To control with the shifted temperature against the display temperature	+2°C/+1°C/NORMAL/-1°C/-2°C
Air Inlet Mode	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	MANUAL/AUTO
Compressor Mode	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	MANUAL/AUTO
Compressor/Air Inlet DEF operation)	LINK	Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF	MANUAL/LINK
Emission Gas Sensor Shift	NORMAL	Function to change the sensitivity of the exhaust gas sensor	MU MORE/MORE/LI MORE/NORMAL/LI LESS/LESS/MU LESS
Button Press Buzzer	ON	Function to sound a buzzer when button is pressed	OFF/ON
Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT/DEF ON automatically when AUTO MODE is ON	OFF/ON
Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is ON	OFF/ON
Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3°C/+2°C/+1 C/Normal/-1°C/-2°C/-3°C
Foot Air Leak	ON	Function to cut off the airstream felt underfoot while the vehicle is moving	OFF/ON

THEFT DETERRENT SYSTEM

SECURITY

Display (Item)	Default	Content	Setting
Warning by Horn	ON	Function that allows vehicle horns and theft deterrent horn to be used as warning device.	ON/OFF
Passive Mode	OFF	Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Turn power switch ON (IG)	ON/OFF
Entry Delay Time	14s	Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE	0 s/14 s/30 s

LIGHTING SYSTEM

ILLUMINATED ENTRY

Display	Default	Content	Setting
I/L when ACC OFF	ON	Function to light the interior light when the power switch is operated from ON (IG or ACC) to OFF	ON/OFF
Lighting Time	15s	Function to change the lighting time after closing the door. (It will quickly fade out in case of turning the power switch ON (IG))	7.5s/15s/30s
Light Control	ON	Function to light up step light and door inside handle light when the power switch is ON (IG) and shift position is not P	ON/OFF
I/L ON / Unlock	ON	Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON/OFF
Seat Light Control	AVAIL	Function to light up the seat light when unlocking with the door key cylinder	NOT AVL/AVAIL
Steering Light Control	AVAIL	Function to light up the steering light when unlocking with the door key cylinder	NOT AVL/AVAIL
Shift Light Control	AVAIL	Function to light up the shift light when unlocking with the door key cylinder	NOT AVL/AVAIL

HINT:

Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

LIGHT CONTROL

Display	Default	Content	Setting
Light Auto OFF Delay	30 s	Function to keep on lighting the headlight for a certain period of time after closing all the doors with the power switch turned from ON to OFF under the condition that the light control switch is at HEAD or AUTO with the headlight ON	OFF/30 s/60 s/90 s
Sensitivity	NORMAL	Function to adjust the sensitivity of lighting illumination*1.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the graphic*2.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
Disp Ex OFF Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the graphic*3.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
Foot Light Time (Driver's Side)*4	15 s	Function to set how long foot light stays on (driver's side)	OFF/7.5 s/15 s/30 s
Foot Light Time (Passenger's Side)*4	15 s	Function to set how long foot light stays on (passenger's side)	OFF/7.5 s/15 s/30 s
Foot Light Set up	ON	Function to light up foot light	ON/OFF
DRL Function*	ON	DRL control	ON/OFF

HINT:

*:Except Canada

GRAPHIC*1

Lighting Brightness	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

GRAPHIC*2

Brightness of lowering the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

GRAPHIC*3

Brightness when canceling the lowering of the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

HINT:

*4: When customizing the foot light, make sure the driver seat and front passenger seat are set to the same setting.

LIGHTING SYSTEM (Door linked personal light illumination control)

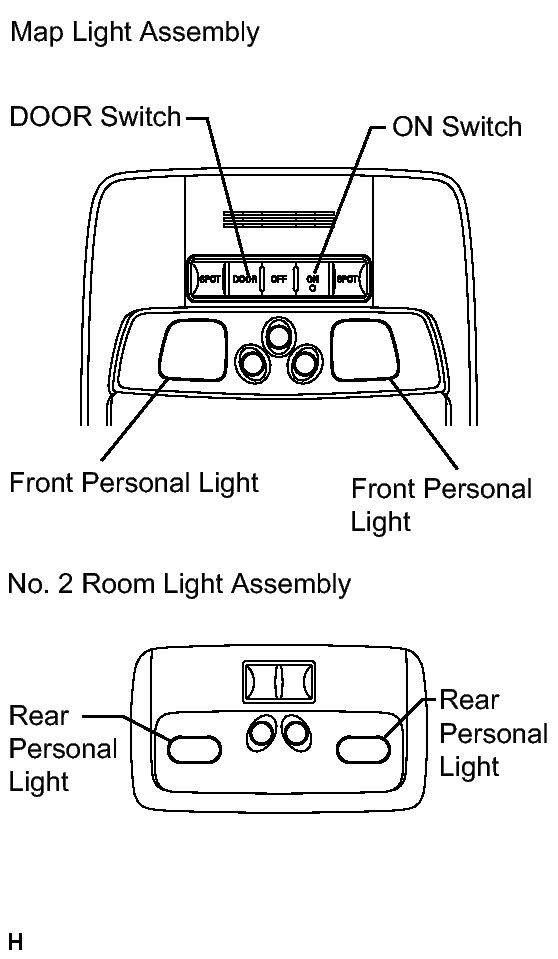

Fig 1: View Of Personal Light Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Mode 1: When door is opened, personal light of opened door illuminates

Mode 2: When door is opened, both front personal lights and rear personal lights illuminate

Mode 3: Front personal lights and rear personal lights are not linked to doors
1. To change modes, press the map light assembly DOOR and ON switch simultaneously, and then turn the power switch from off to on (IG). Each this operation will change the mode (Mode 1 → Mode 2 → Mode 3 → Mode 1).
  HINT:

  After changing modes, the front personal lights respond by blinking as follows:
  - Mode 1: once
  - Mode 2: twice
  - Mode 3: three times
LIGHTING SYSTEM (Map light assembly ON switch linked illumination control)

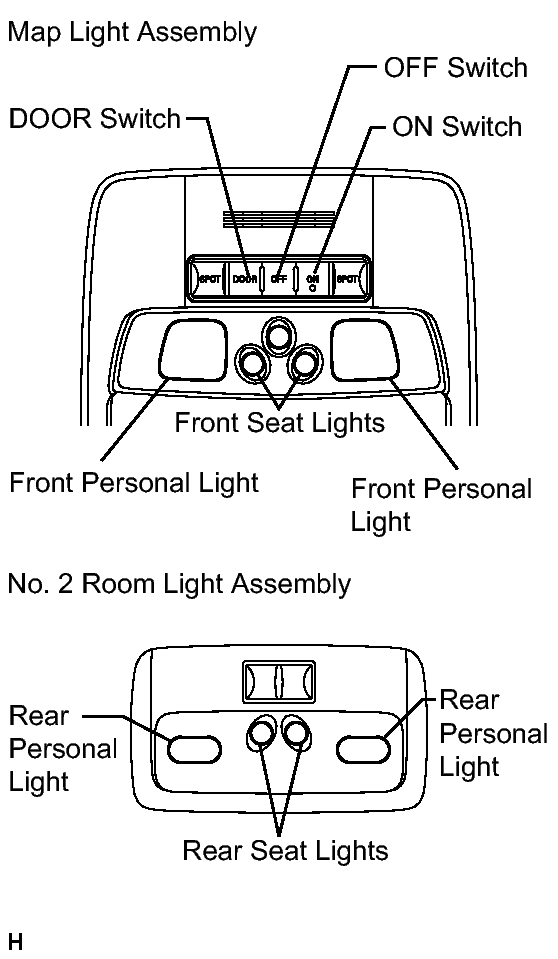

Fig 2: Map Light Assembly On Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Mode 4: When map light assembly ON switch is pressed, front personal lights, rear personal lights, front seat lights and rear seat lights illuminate.
- Mode 5: When map light assembly ON switch is pushed, front seat lights and rear seat lights illuminate.
1. To change modes, press the map light assembly ON, DOOR and OFF switches simultaneously, and then turn the power switch from off to on (IG). Each this operation will change the mode (Mode 4 → Mode 5 → Mode 4).
  HINT:

  After changing modes, the front personal lights responds by blinking as follows:
  - Mode 4: four times
  - Mode 5: five times

WIPER AND WASHER SYSTEM

WIPER

Display (Item)	Default	Content	Setting
Auto Wiper	Available	Function to operate the wiper automatically when it is raining	Not Available/Available
Re-wiper Control	Speed Mode	Function to change the time between end of wiper motor operation and start of wiper operation to prevent streaking from washer fluid	OFF/3 s/Speed Mode
Speed Mode	Available	Function to change to the intermittent operation when the vehicle comes to a stop from driving condition with the wiper switch in the LO position	Not Available/Available

POWER DOOR LOCK CONTROL SYSTEM

Tester Display	Default	Content	Setting
Unlock/Park	ON	Function that unlocks all doors when shift lever is shifted to P from any position other than P while power switch is ON (IG)	ON/OFF
All Unlock/Open-Close	OFF	Function that unlocks all other doors when opening driver door within 10 seconds after turning power switch is ON (IG)	ON/OFF
Unlock/Key Twice	ON	Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors.	ON/OFF
Auto Lock/Shift	ON OFF*	Function that locks all doors when shift lever is shifted to from P to any position other than P	ON/OFF
Auto Lock	OFF ON*	Function that locks doors when vehicle reaches a vehicle speed of 20 km/h (13 mph)	ON/OFF

*: for Korea

WIRELESS DOOR LOCK CONTROL SYSTEM

Display (Item)	Default	Content	Setting
Hazard Answer Back	ON	When wireless lock switch on transmitter is pressed, this function illuminates all turn signal lights once. When unlock switch is pressed, all turn signal lights illuminate twice	ON/OFF
Wireless Auto Lock	ON	This function turns the wireless auto lock function on or off.	ON/OFF
Wireless Control	ON	ON/OFF of wireless door lock function	ON/OFF
Open Door Warning	ON	If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds	ON/OFF
Trunk Lid Operation	0.8 s PR	This function changes transmitter operation method for opening luggage compartment door	1 time/2 times/0.8 s PR/OFF
Panic Function	ON	Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 2.5 seconds	ON/OFF
Unlock 2 Operation	ON	Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock.	ON/OFF
Auto Lock Time	60 s	Function to change time until relocking after unlocking with wireless door lock function	30 s/60 s/120 s/OFF
Wireless Buzzer Resp	ON	ON/OFF on wireless buzzer response function	ON/OFF

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK)

SMART ACCESS SYSTEM WITH PUSH-BUTTON START

Tester Display	Default	Content	Setting
Park Wait Time	2.5 s	Function that sets waiting time to permit opening door after door is locked with entry lock function	0.5 s/1.5 s/2.5 s/5.0 s
Trunk Open Mode	ON	Function to permit opening luggage compartment door	ON/OFF
Key Low Battery Warning	ON	Function that warns driver that key's battery power is low	ON/OFF
Ignition Available Area	All	Function to choose the available area for electrical key to start engine and release the steering lock.	All/FRONT

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK) (ENTRY UNLOCK MODE SWITCHING FUNCTION)
NOTE: Because the key (for card type) does not have a wireless transmitter function, it cannot be used to change the entry unlock mode.
1. Check that the power source mode is OFF and the LED on the key is not blinking. Press the LOCK switch and one of the other switches on the key at the same time for approximately 5 seconds while the key is in the actuation area.
  - When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, one door unlock mode, doors on one side unlock mode, all door unlock mode.
  NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
  - One door unlock mode:
    When a touch sensor is touched, the touch sensor's door unlocks. For example, if the driver door's touch sensor is touched, the driver door unlocks.
  - All door unlock mode:
    When a touch sensor is touched, all doors unlock.
  - Driver door unlock mode (default):
    When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - Doors on one side unlock mode:
    When a touch sensor is touched, the doors on the side of the touch sensor unlock. For example, when the driver door's touch sensor is touched, the driver door and driver side rear door unlock.
2. The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.
  HINT:

  The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.
  - One door mode:

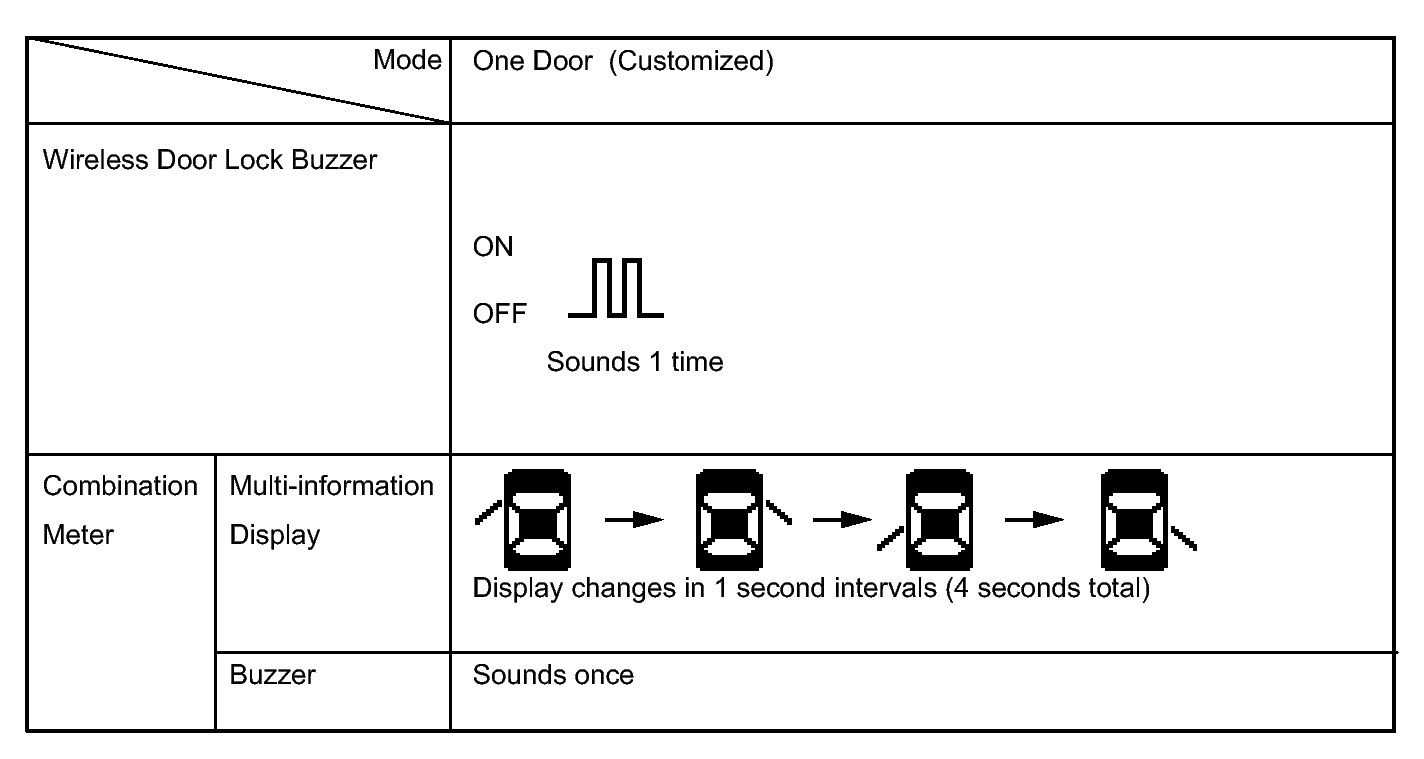

    Fig 4: Wireless Door Lock Buzzer Blinking Pattern (One Door Mode)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - All door unlock mode:

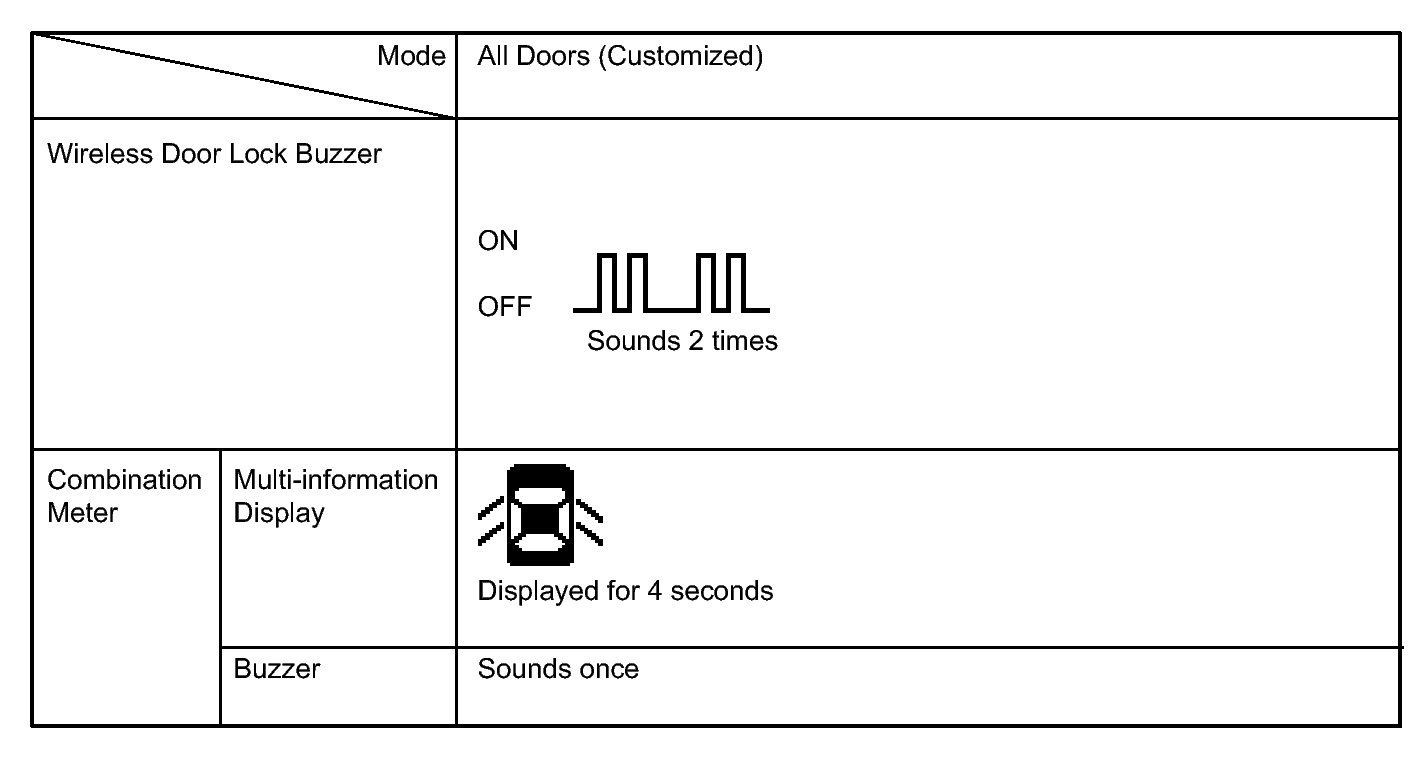

    Fig 5: All Door Unlock Mode - Blinking Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Driver door unlock mode:

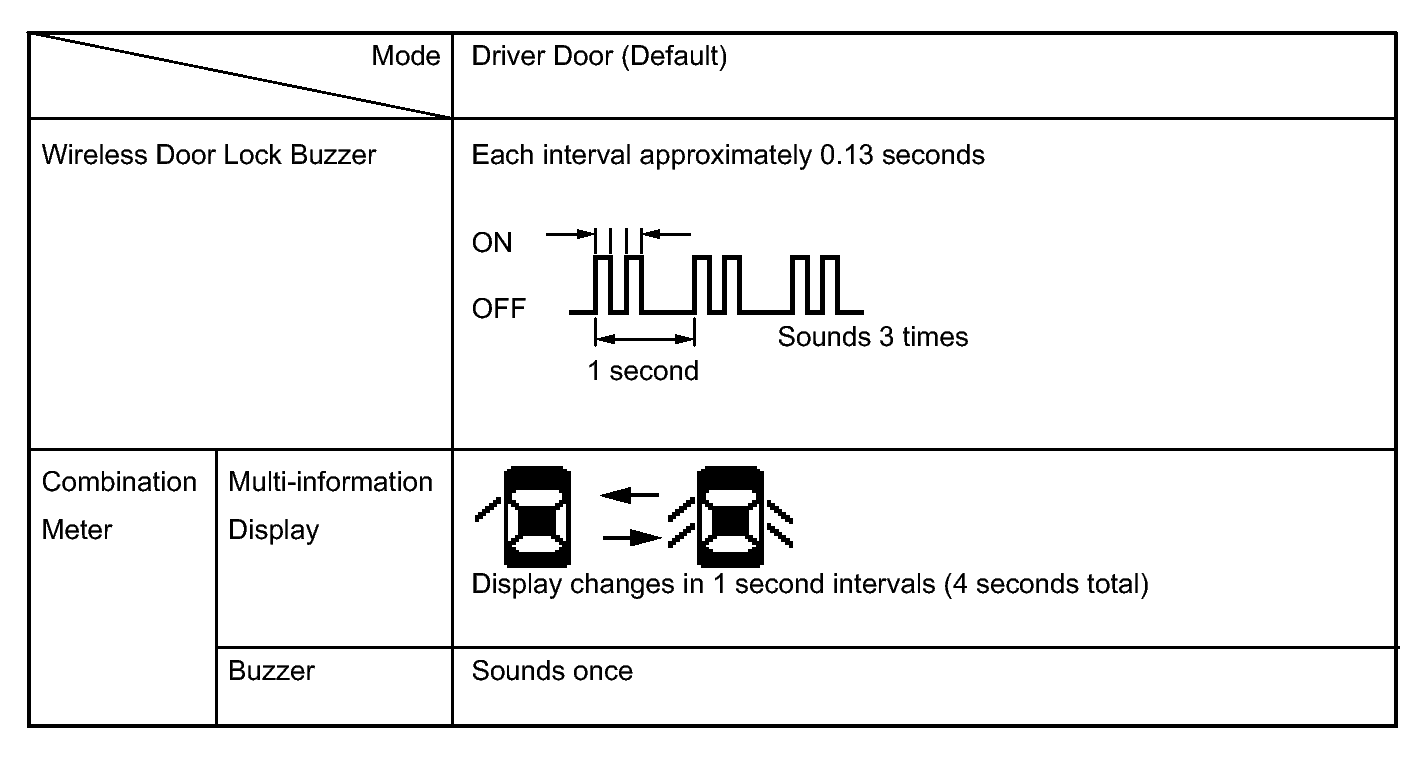

    Fig 6: Driver Door Unlock Mode - Blinking Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Doors on one side mode:

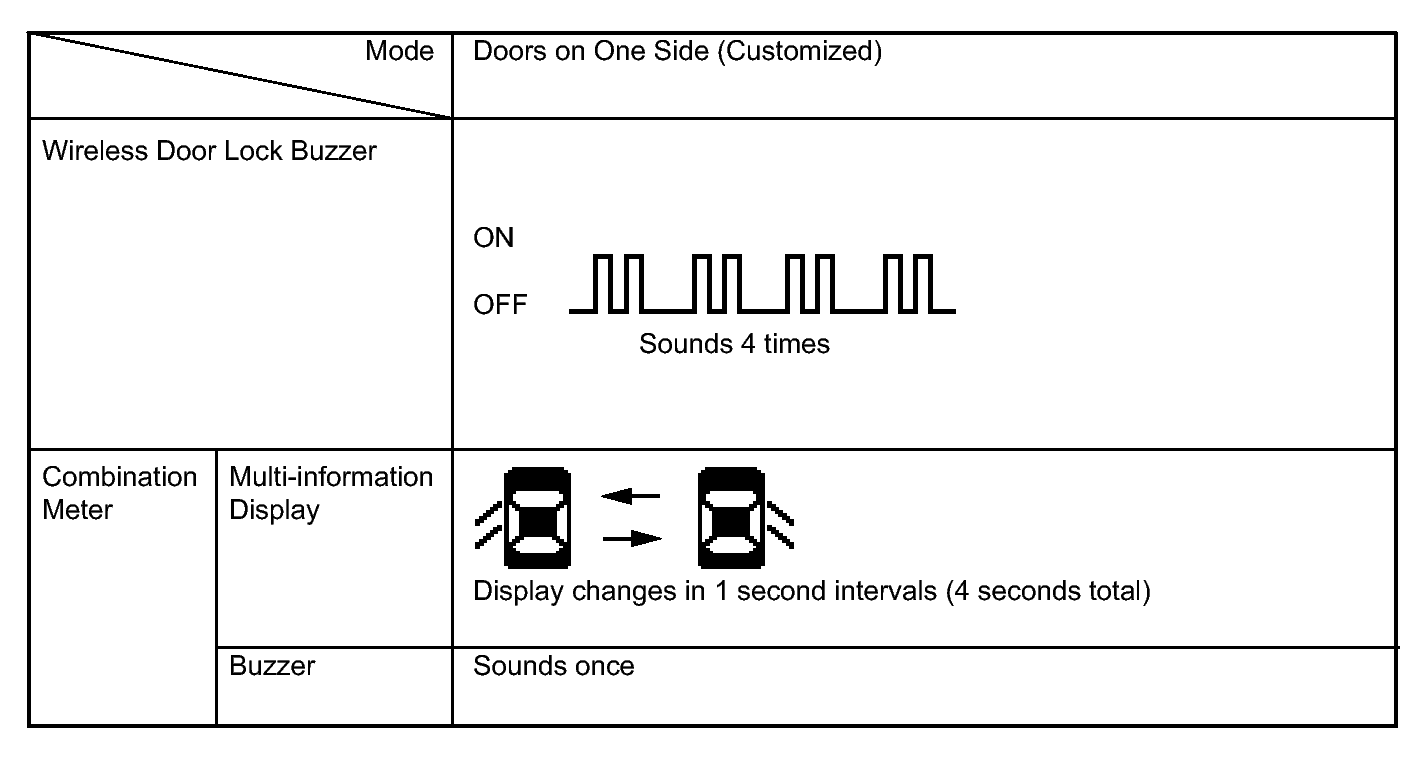

    Fig 7: Wireless Door Lock Buzzer Blinking Pattern (Doors On One Side Mode)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK) (KEY CANCEL)
NOTE: Because the key (for card type) does not have a wireless transmitter function, it cannot be used to perform the key cancel operation.

The key cancel operation disables the following functions:
- Entry Ignition
- Entry Unlock/Lock
- Entry Luggage Compartment Open
- Key Lock-in Prevention
- Warning
- Memory Call
1. The operation procedures are as follows:
  Precondition:

  Power switch OFF, driver side door closed and unlocked.
  1. Unlock the driver side door once with the UNLOCK switch of the key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  4. Close and open the driver door twice within 30 seconds.
    (Driver door: Close → Open → Close → Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  6. Close and open the driver door within 30 seconds.
    (Driver door: Close → Open)
  7. Close the driver door within 5 seconds.
    When key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

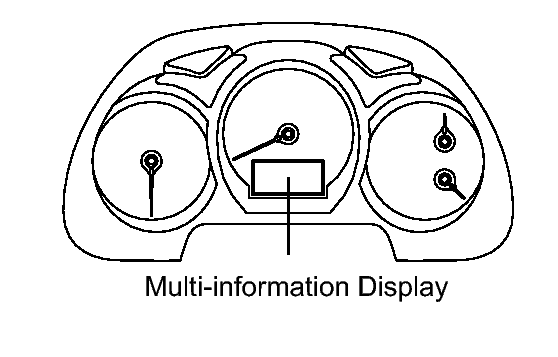

METER/GAUGE SYSTEM

COMBINATION METER

Tester Display	Default	Content	Setting
Key Remind Volume (Key reminder buzzer volume)	Large	To change the volume of the key reminder buzzer	Large/Medium/Small
Key Remind Sound (Key reminder buzzer frequency)	Normal	To change the frequency of the key reminder buzzer	Normal/Fast/Slow

INTUITIVE PARKING ASSIST SYSTEM

WARNING

Tester Display	Default	Content	Setting
Front Buzzer Onset Range	Wide	Function to set front buzzer activation range	Narrow/Wide
Rear Buzzer Onset Range	Wide	Function to set rear buzzer activation range	Narrow/Wide
Keep Sense Status Buzzer	ON	Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds	ON/OFF
Fr & Rr Buzzer Volume	M2	Function to change volume of buzzer	L/M1/M2/M3/H

SENSOR

Tester Display	Default	Content	Setting
Sensor Condition N Range	OFF	Function to make sensors available when shift position is N	OFF/ON
Sonar Mode	Steering	Function to change sonar mode	Normal/Steering

DISPLAY

Tester Display	Default	Content	Setting
Display Mode	Guide	Function to change display mode	All/Guide/Undisp

POWER WINDOW CONTROL SYSTEM

POWER WINDOW

Tester Display	Default	Contents	Setting
Door Key Linked P/W Up	ON	Function that raises all engine windows when, with power switch off, key is used to hold driver door key cylinder to lock position for more than 2.3 seconds	ON/OFF
Door Key Linked P/W Down	ON	Function that lowers all engine windows when, with power switch off, key is used to hold driver door key cylinder to unlock position for more than 2.3 seconds	ON/OFF
P/W Down w/ Transmitter*	OFF	Function that lowers all engine windows when, with power switch off, unlock switch on transmitter is pressed and held for more than 3.0 seconds	ON/OFF

*: w/ Full Cover Type Transmitter

REAR SUNSHADE SYSTEM

Tester Display	Default	Content	Selection
Automatic Transmission Reverse Signal Response Time	0.7 sec.	Function to adjust reverse-linked sunshade lowering function's response time	0/0.7/0.9/1.2

SLIDING ROOF SYSTEM

SLIDE ROOF

Tester Display	Default	Content	Setting
Wireless Key Related Operation*1	SLIDE	Function to select tilt up or slide open of manual sliding roof operation linked with power window Activate by pressing on transmitter UNLOCK switch for 3 seconds or more when power switch is OFF	TILT/SLIDE
Door Key Related Operation	SLIDE	Function to select tilt up or slide open of manual sliding roof operation linked with power window Activate by holding driver side door key for 3 seconds or more to unlock position when power switch is OFF	TILT/SLIDE
Wireless Key Related Open1, 2	ON	Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 3 seconds or more when power switch is OFF	ON/OFF
Door Key Related Open*3	ON	Function to manually open sliding roof linked with power window if holding driver side door key for 3 seconds or more to unlock position when power switch is OFF	ON/OFF
Door Key Related Close*3	ON	Function to manually close sliding roof linked with power window if holding driver side door key for 3 seconds or more to lock position when power switch is OFF	ON/OFF

*1: This item is displayed on the Techstream screen, however, this function is not available for models with Half Cover Type Transmitter.
*2: This function is linked with the power window wireless transmitter-linked function. If the power window wireless transmitter-linked function is set to OFF, the sliding roof wireless transmitter-linked function will not operate even when it is set to ON.
*3: This function is linked with the power window key-linked function. If the power window key-linked function is set to OFF, the sliding roof key-linked function will not operate even when it is set to ON.
