Absorber Control Switch: Inspection: Inspection
- INSPECT ABSORBER CONTROL SWITCH

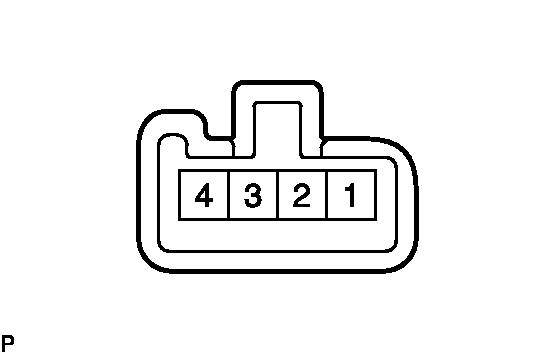

- Measure the resistance of the switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 4 - 3 |
NORM |
10 kΩ or higher |
| 4 - 3 |
SPORT |
Below 1 Ω |
