Rear Acceleration Sensor: Components: Illustration

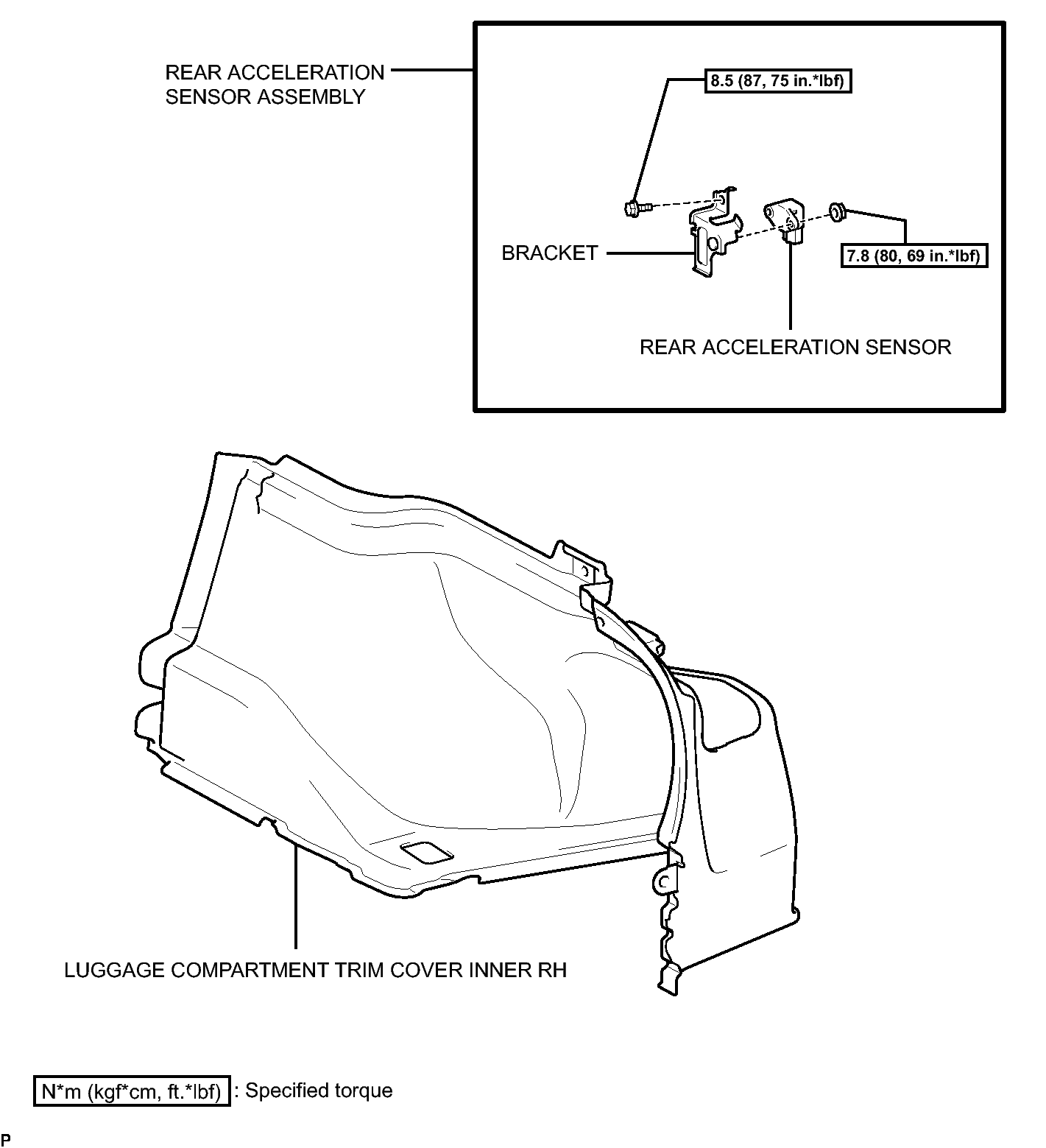

Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications
GTY106922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
