Alignment: Specifications

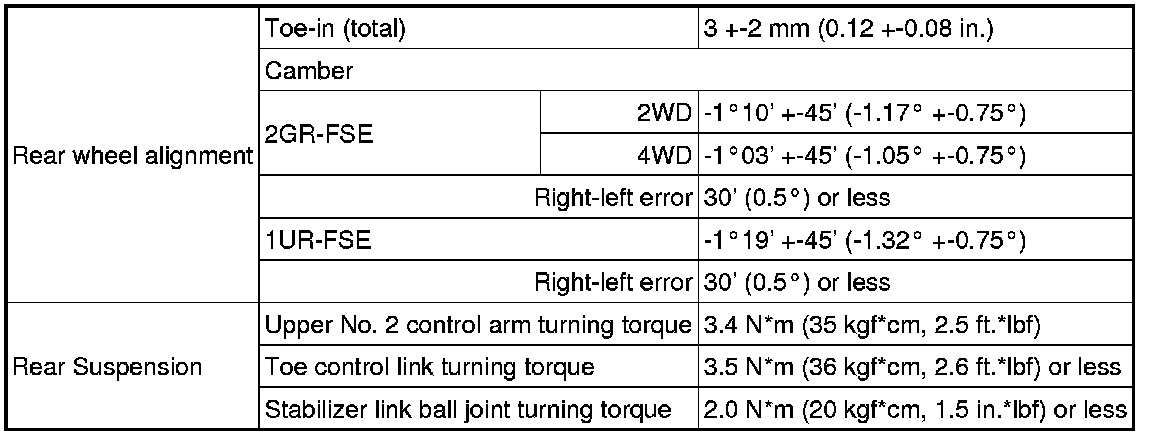

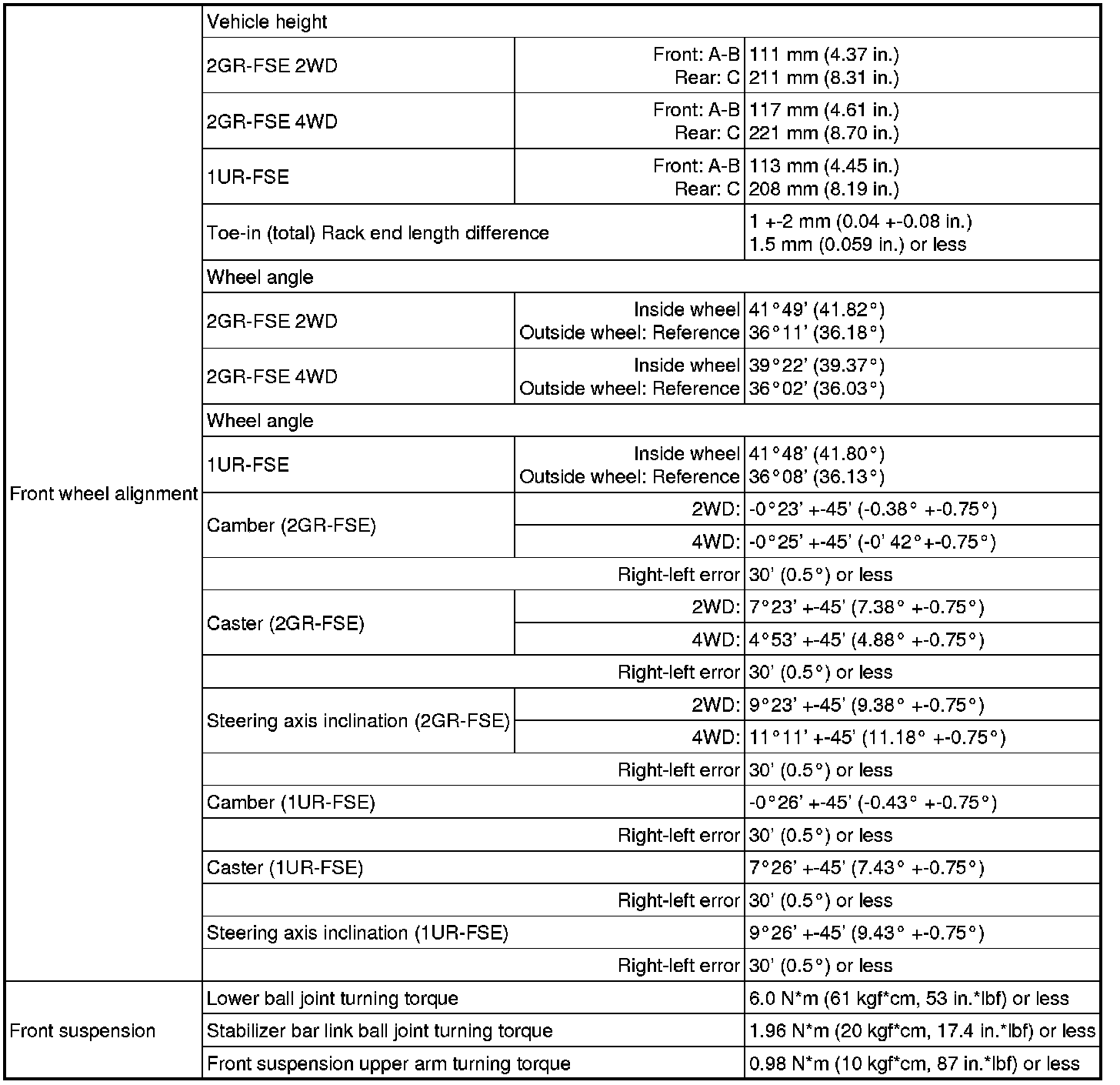

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA














* A: Ground clearance of front wheel center

* B: Ground clearance of front center position of front suspension lower arm front bush installation bolt head

* C: Ground clearance of rear center position of rear No.2 lower arm bush installation bolt screw thread
