Installation

1UR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

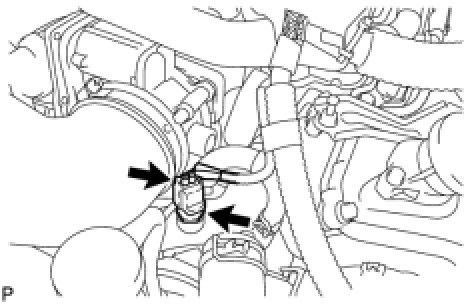

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the engine coolant temperature sensor.





(b) Install the engine coolant temperature sensor.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

(c) Connect the engine coolant temperature sensor connector.

2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Testing and Inspection

4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

5. INSTALL ENGINE UNDER COVER
