Installation

1UR-FSE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: INSTALLATION

1. INSTALL INTEGRATION NO.1 RELAY

(a) Connect the 3 connectors.

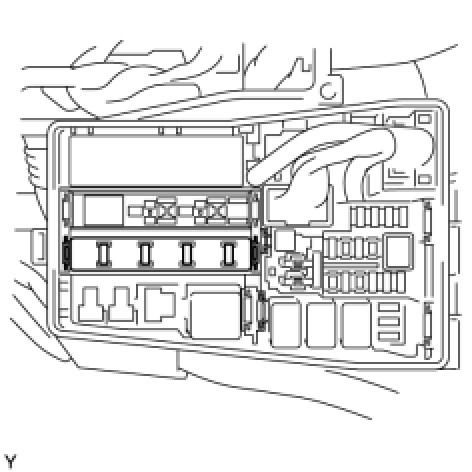

(b) Attach the integration relay to the engine room No. 2 relay block.

(c) Install the engine engine room No. 1 relay block cover.

2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
