Brake Control Power Supply: Components: Illustration

Fig 1: Identifying Brake Control Brake Control Power Supply Components (1 Of 2)
GTY106651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

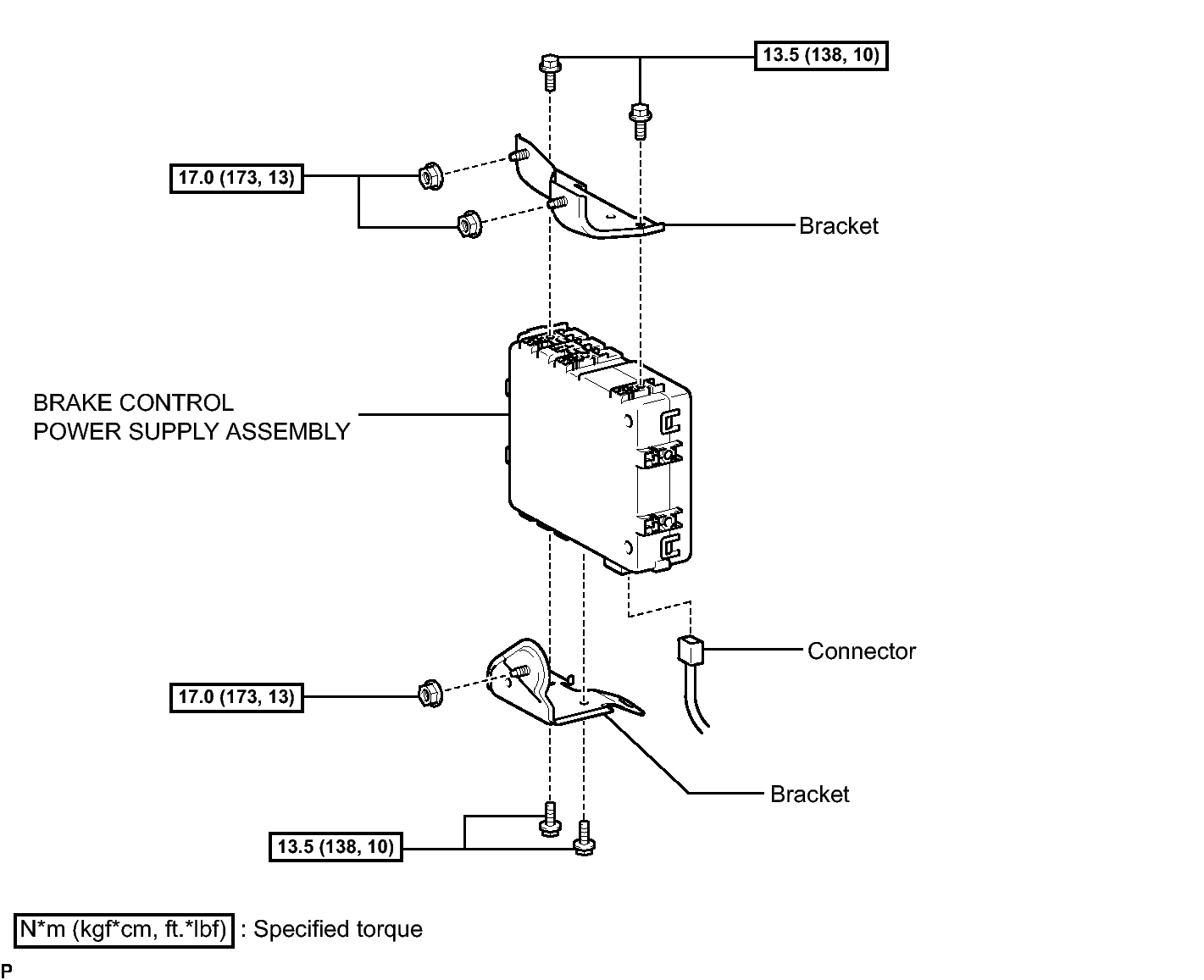

Fig 1: Brake Control Brake Control Power Supply Replacement Components With Torque Specifications (2 Of 2)
GTY106652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
