System Diagram

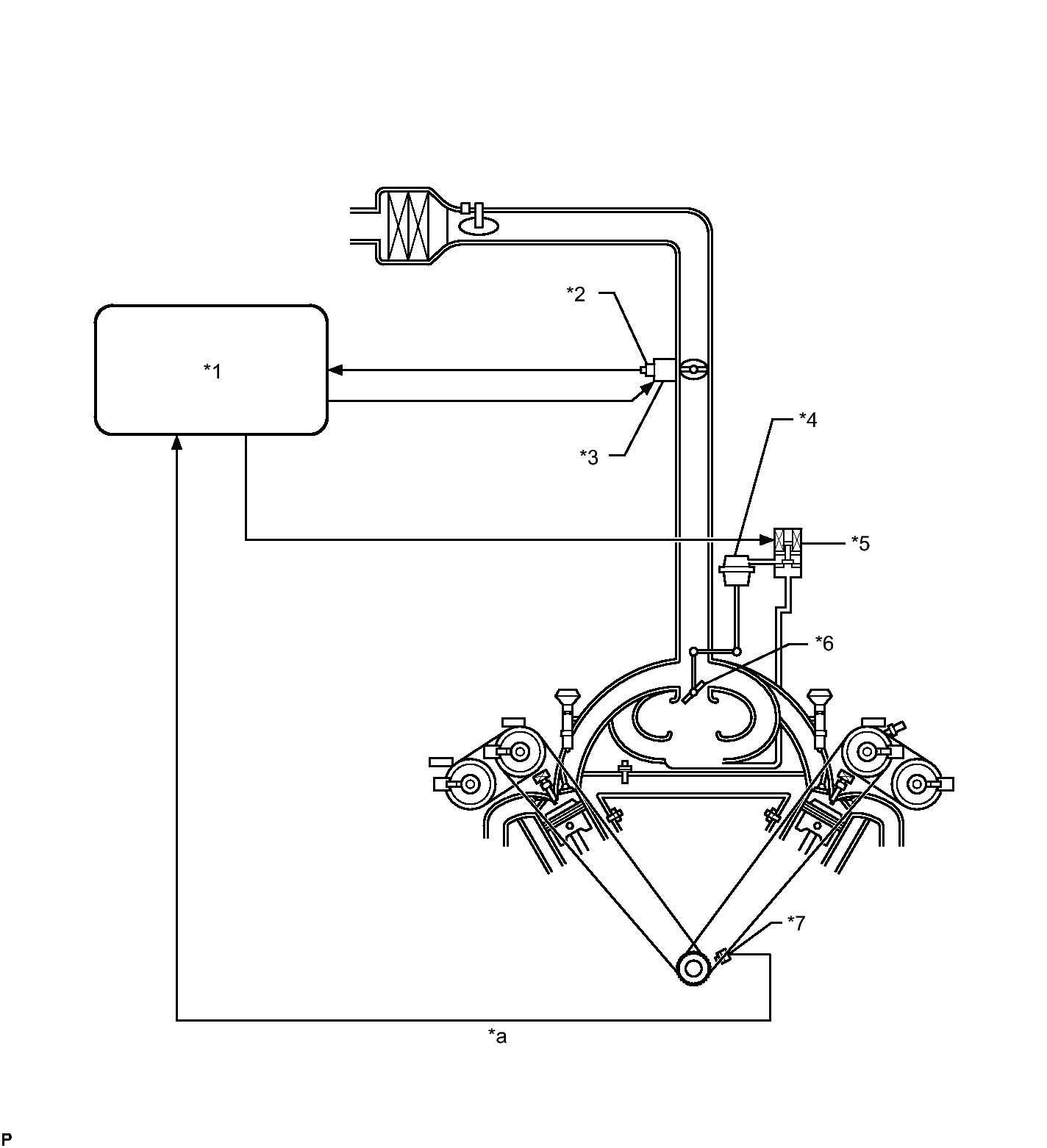

Fig 1: Identifying Intake System Diagram (1 Of 2)

GTY264966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	ECM	*2	Throttle Position Sensor
*3	Throttle Body Assembly	*4	Intake Air Control Valve Actuator
*5	Vacuum Switching Valve (for ACIS)	*6	Intake Air Control Valve
*7	Crankshaft Position Sensor	-	-
*a	Engine Speed	-	-

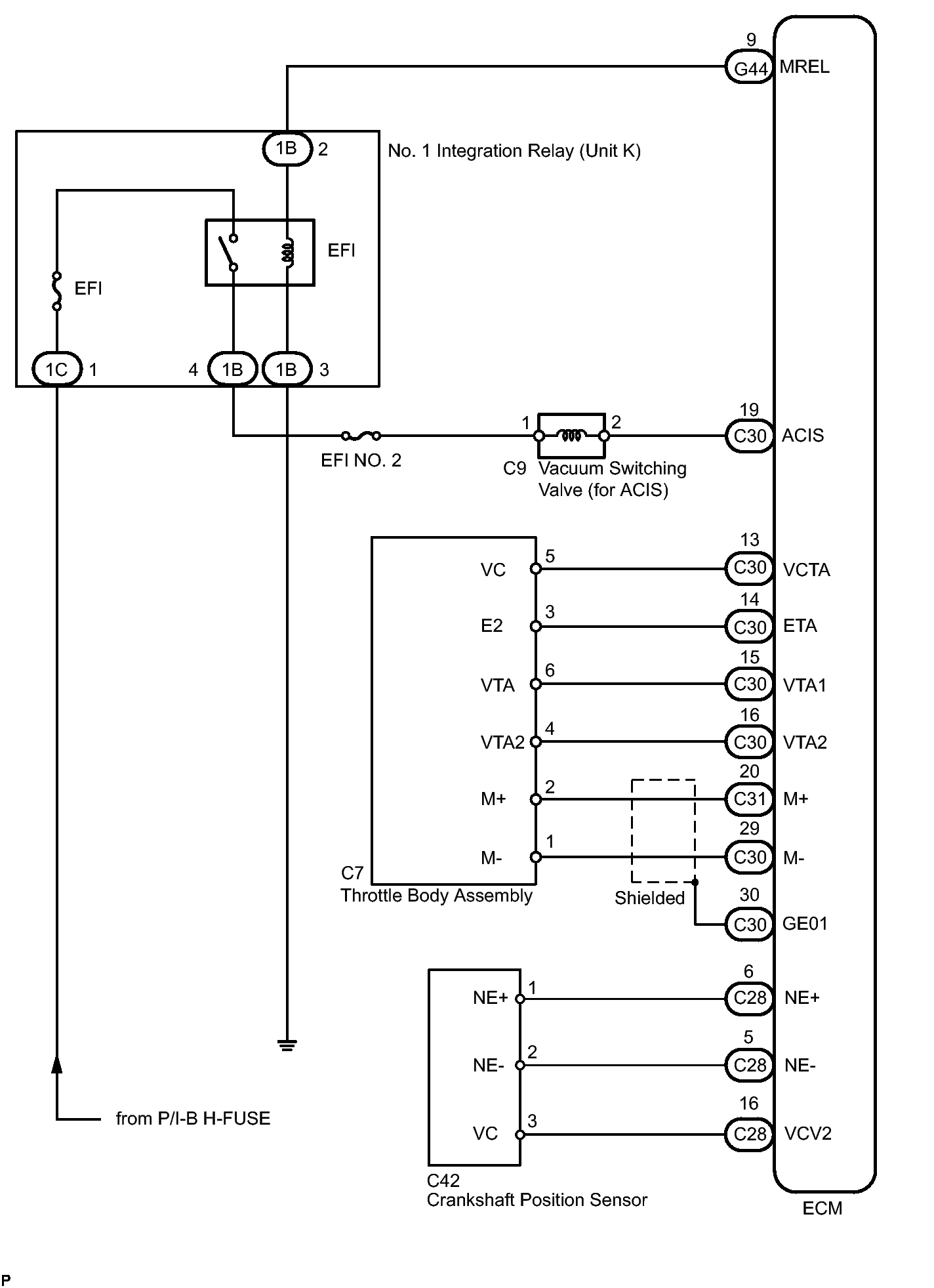

Fig 2: Identifying Intake System Diagram (2 Of 2)

GTY270373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
