Accelerator Pedal: Removal: Removal

  1. REMOVE FRONT NO. 1 CONSOLE BOX INSERT  . Refer to REMOVAL - Step 3
  2. REMOVE ACCELERATOR PEDAL POSITION SENSOR ASSEMBLY
    1. Disconnect the accelerator pedal position sensor connector.

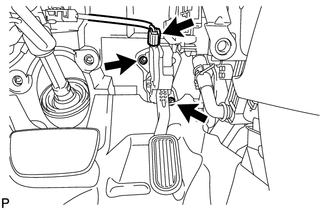

      Fig 1: Identifying Accelerator Pedal Position Sensor Connector & Nuts
      GTY275040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal position sensor.
