Knock Sensor: Removal: Removal

  1. REMOVE EGR COOLER ASSEMBLY
    1. Remove the EGR cooler. Refer to REMOVAL .
  2. REMOVE SEPARATOR CASE
    1. Remove the 4 bolts and separator case.

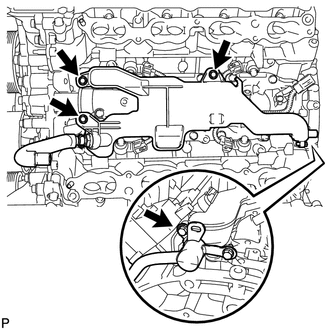

      Fig 1: Identifying Separator Case
      GTY281643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KNOCK SENSOR
    1. Disconnect the 4 knock sensor connectors.

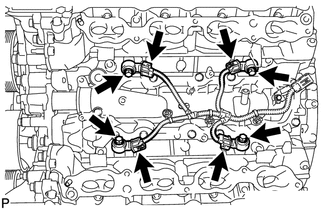

      Fig 2: Identifying Knock Sensor Connectors
      GTY275032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 knock sensors.
